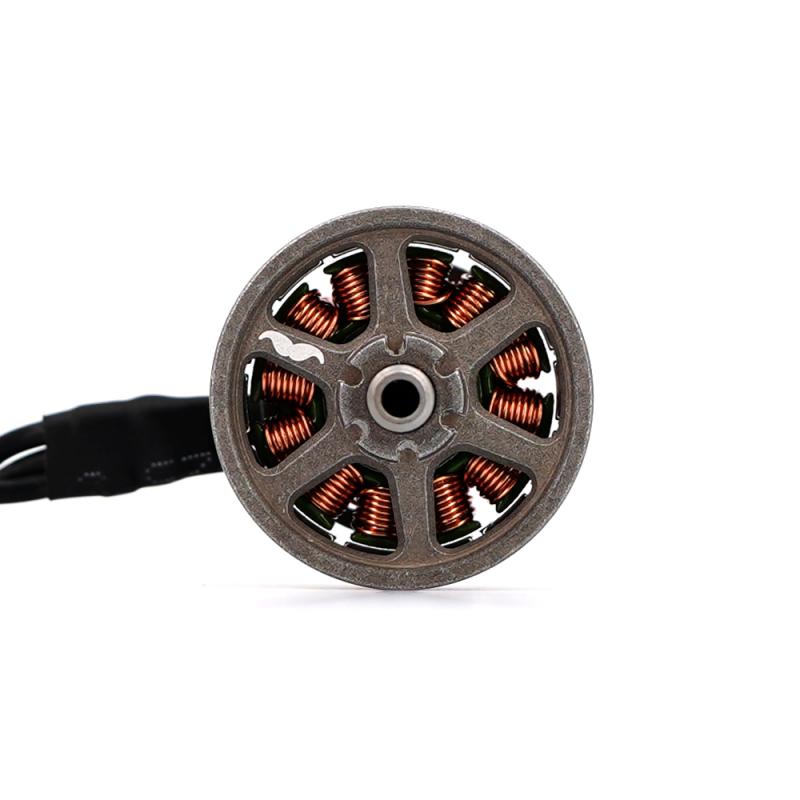

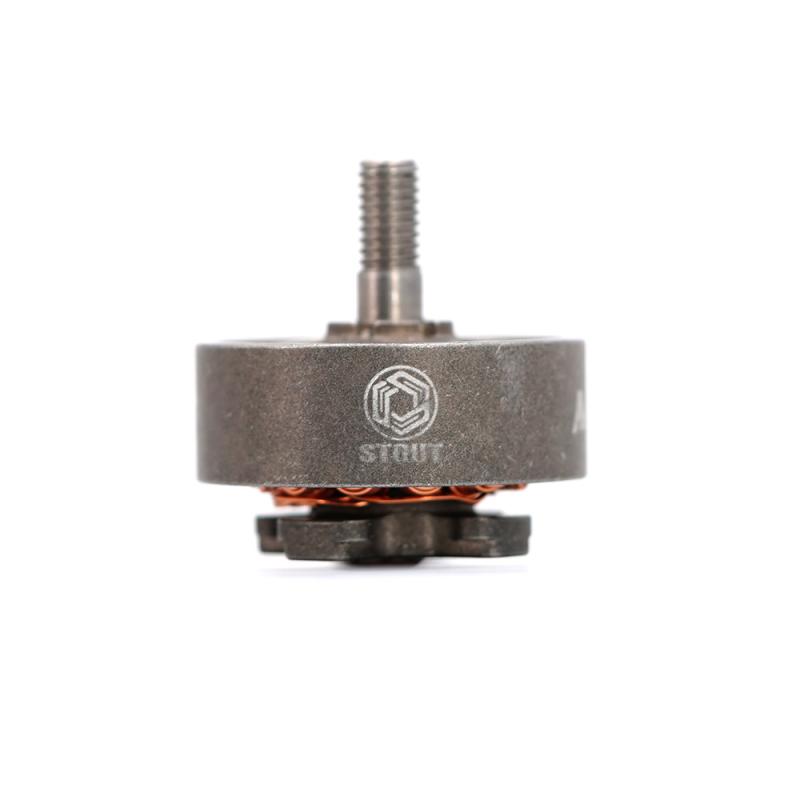

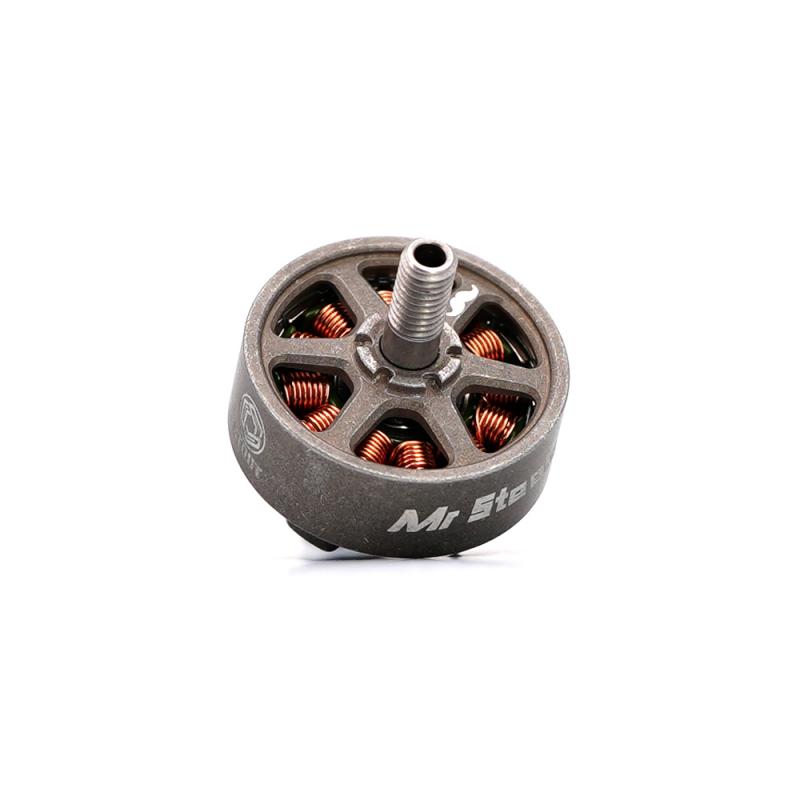

ETHIX Mr. Steele Stout Motor V4 (Tumbled Edition)
Check out all of our Ethix Products!
V4 motor highlights/changes

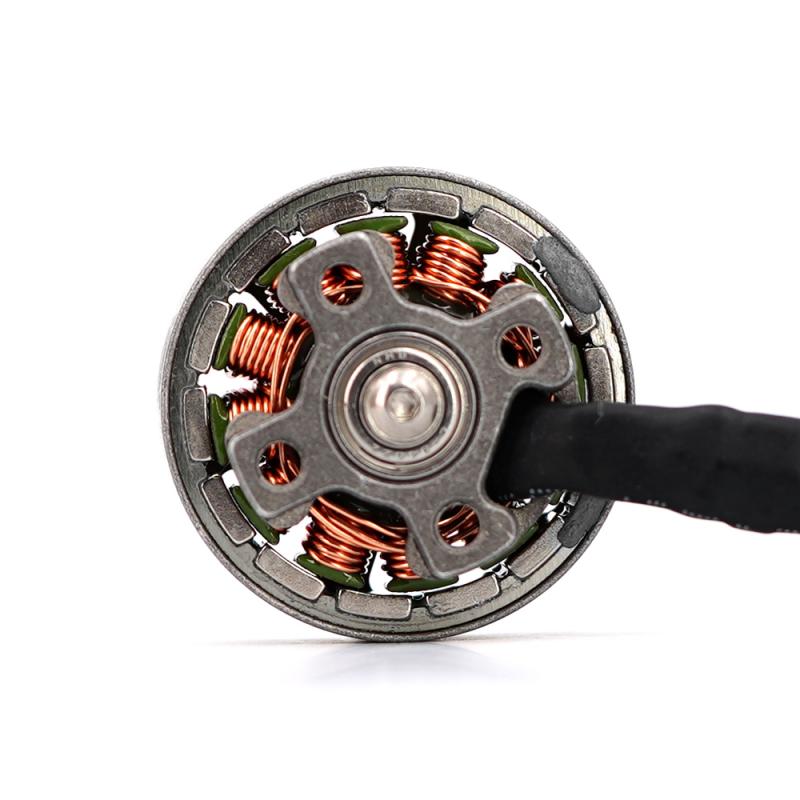

- base redesign 16×16(only) mounting holes (structural changes for more durability)
- Complete bell redesigned (durability and smoothness in mind)
- Thicker single-strand copper winding
- increased EFFICIENCY & POWER
- Complete Interchangeable motor pants redesign (thicker & more crash/low temperature resistant, better gap fitment, + more protection coverage for the “tall pants”)
- better assembly tolerances
- Overall QC improvements
- 9mm steel bearings
- Eco-Friendly packaging
- Motor weight 31.8g
- (full-length cables) compared to Stout V3 at 30.5g
Pants weights
- Low – 1g vs (0.8 v3)
- Tall – 2g vs (1.8 v3)
All in all this motor is an absolute gem only increasing the weight by a tad over 1g from the previous model while achieving more power, efficiency, and most importantly durability.
V3- V4 COMPATIBILITY
- V4 and V3 motors are completely cross-compatible.
- V3 bells – V4 stator
- V4 bells – V3 stator
( everything is interchangeable except pants) The pants are stator-specific and can be interchangeable but with less than desired effect.
Enjoy & Thank you for your continued support.
-Steele
Specifications
- Stator Size (Diameter): 23mm*6mm
- Kv: 1750kv
- Magnets: N52SH Curved
- Windings: 15 turn DLRK
- Shaft Length (mm): 11.5mm
- Shaft Diameter (mm): 4mm
- Shaft material: Steel
- Bearing: NMB684
- Weight (With Wires) (g): 32.4g
- Cells (Lipo): 6S
- Max Current (A): 45A
- Max Burst Current (A): 50A
- Internal Resistance (Rm): 100mΩ
- Wire Spec (AWG): 20#-135mm
- Base Mounting Pattern: 16x16mm
- Base Mounting Thread: M3 Thread
- Motor Overall Dimensions: φ28.6mm*17.5mm

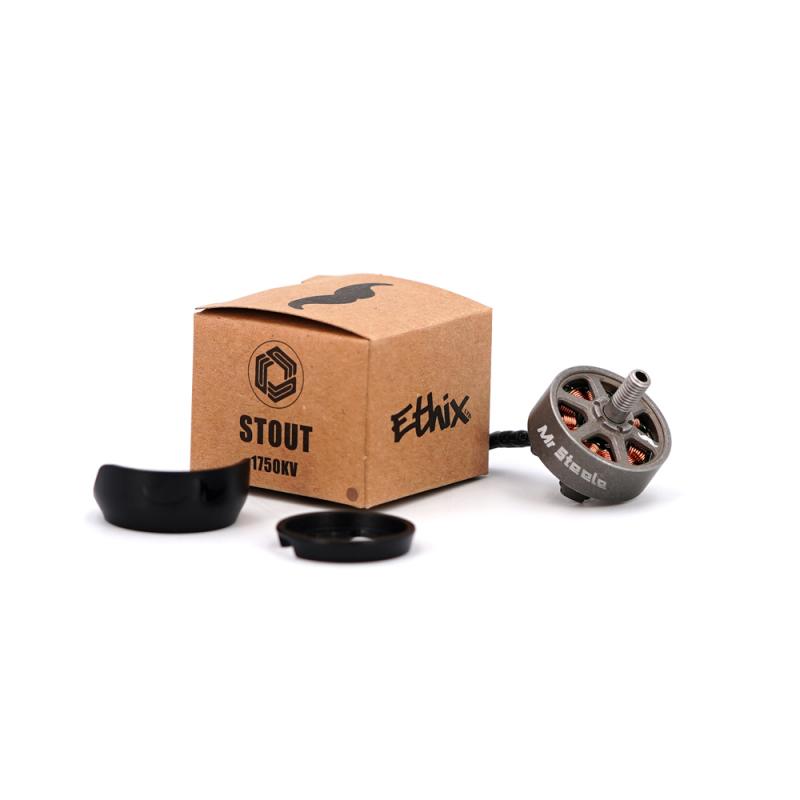

Includes
- 1 x Motor
- 1 x Tall Motor Pants
- 1 x Short Motor Pants
- 4 x motor screws
