ETHIX Mr. Steele Silk Motor V5 White
Check out all of our Ethix Products, and all of our Motors! We also have this motor in Pink!

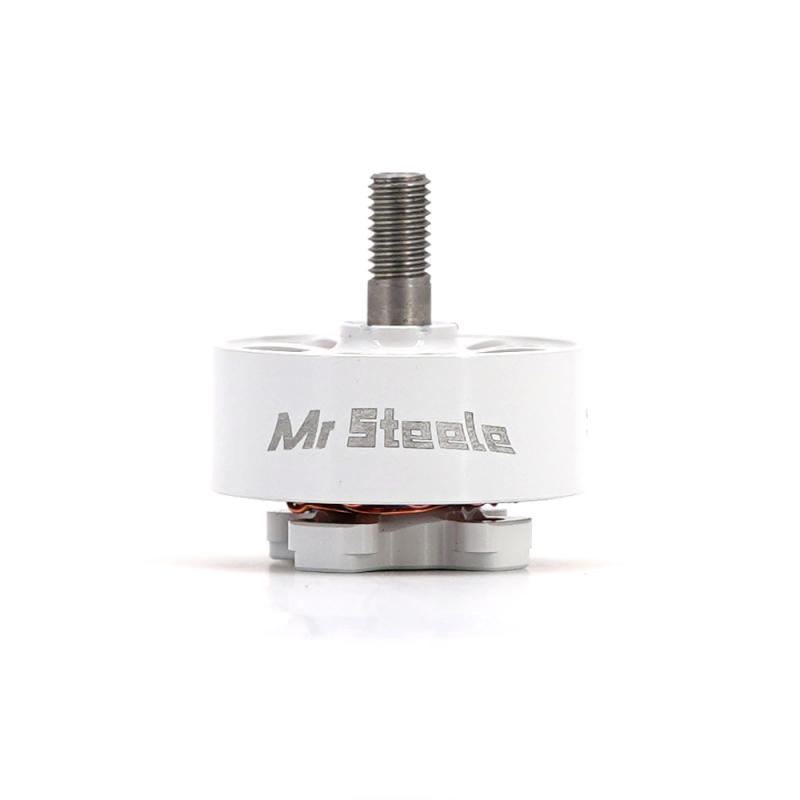

Introducing the Mr. Steele V5 Silk 2307 (1750KV) 6S (5”-5.5” prop) FPV freestyle motor.
The V5 features an increased stator size and a redesigned motor bell setup for more durability. This new iteration of my trusted power train formula follows a lightweight ethos with increased power and torque where it counts. Attaining a high power-to-weight ratio cannot overstate when building a high-performance aircraft. The V5 Silk adds confidence with even heavier HD cameras.
Thank you for your support and take pride in knowing that you are the reason I am able to keep evolving in this amazing space we call the FPV community.
V5 MOTOR HIGHLIGHTS
- Increased stator size 2307

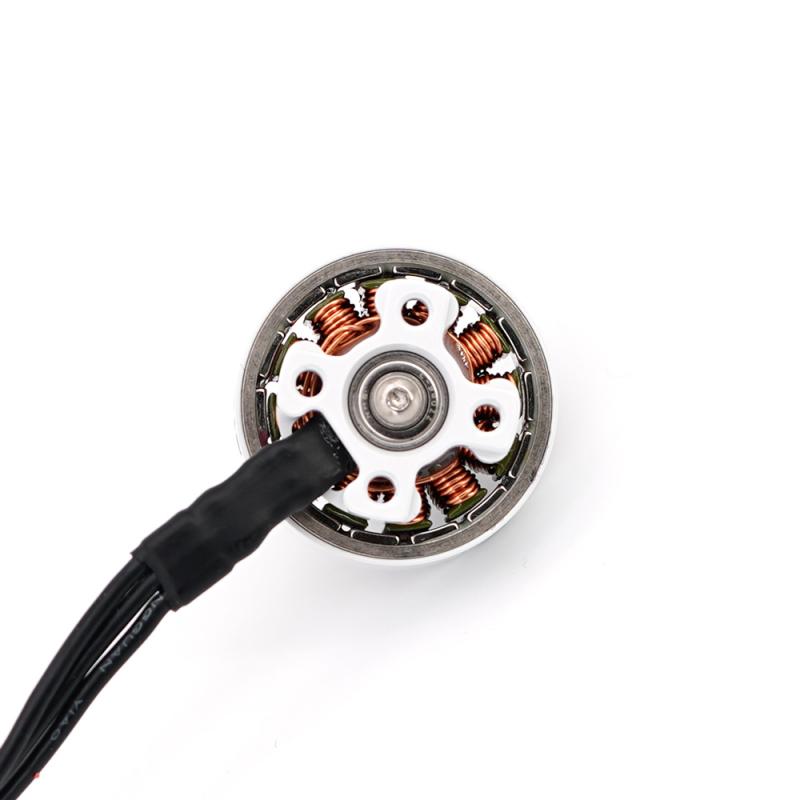

- Base redesign 16×16(only) mounting holes (new structural changes for more durability)

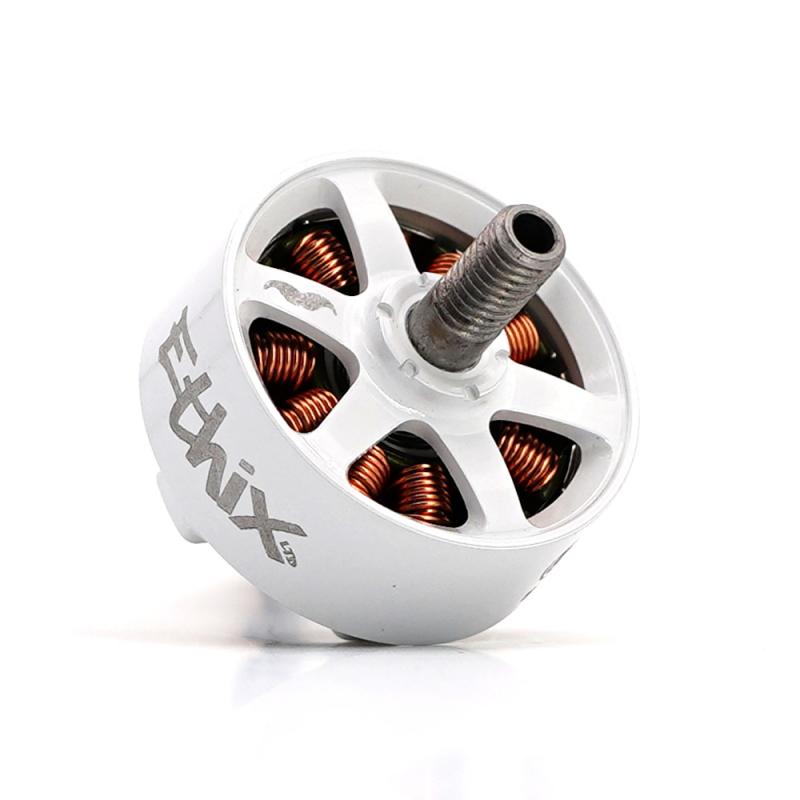

- Complete bell redesigned (durability and smoothness in mind)

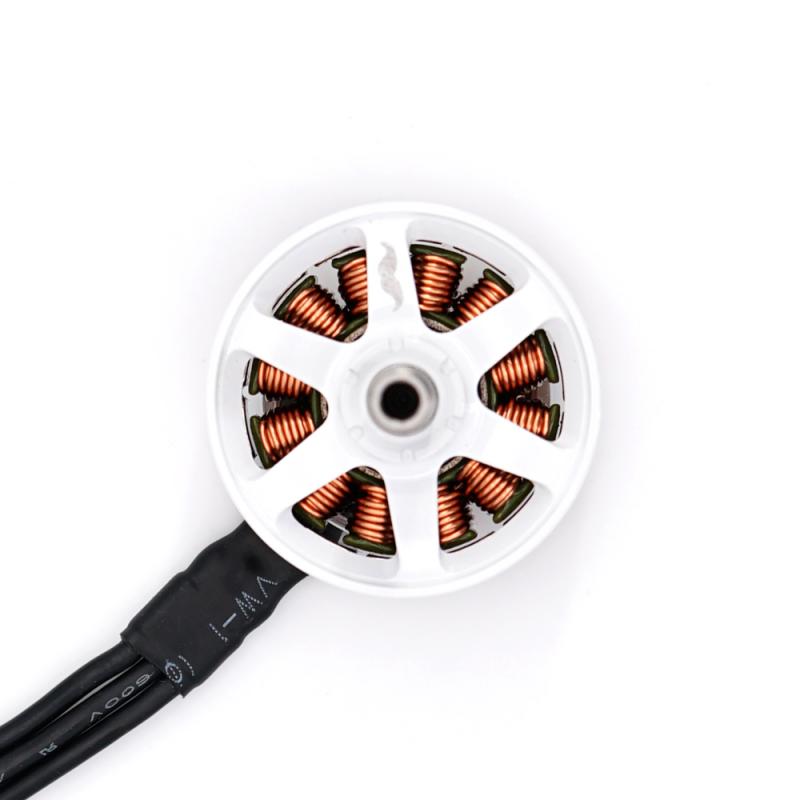

- Thick single-strand copper winding
- Increased EFFICIENCY & POWER

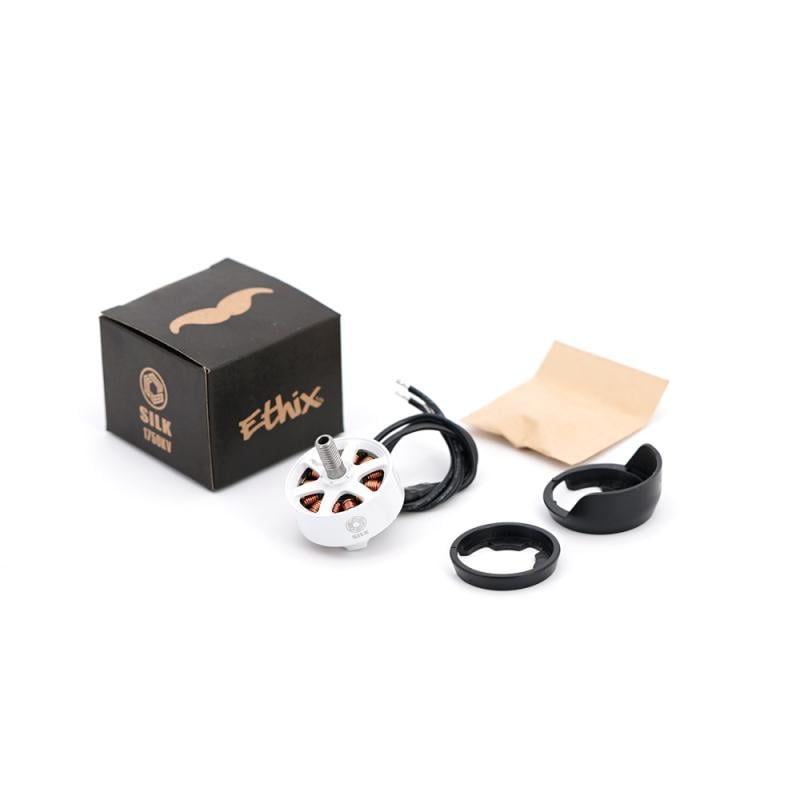

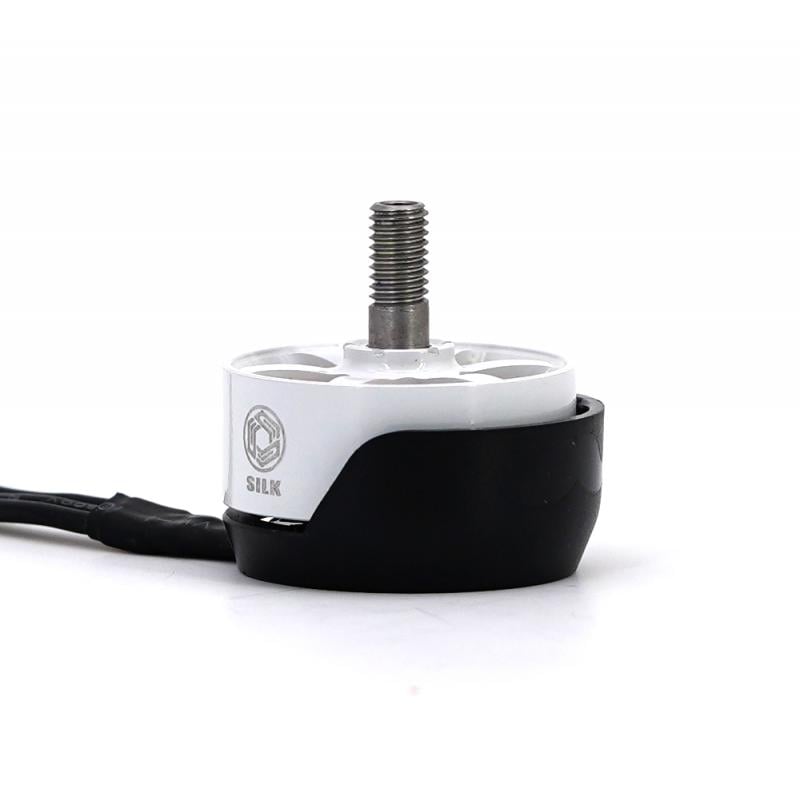

- Complete Interchangeable motor pants redesign (thicker & more crash/low temperature resistant, better gap fitment, + more protection coverage for the “tall pants”)
- Better assembly tolerances
- Overall QC improvements
- 9mm steel bearings
- Eco-Friendly packaging
- Motor weight 33.8g (full-length cables) compared to Stout V1 at 31.5g
- Pants Weight – Low – 1g vs (0.8 v3) | Tall – 2g vs (1.8 v3)
All in all this motor is an absolute gem only increasing the weight by a tad over 1g from the previous model while achieving more power, efficiency, and most importantly durability.
Enjoy & Thank you for your continued support. -Steele
|Stator Size (Diameter)||23mm*7mm|
|Shaft Length (mm)||11.5mm|
|Shaft Diameter (mm)||4mm|
|Weight (With Wires)(g)||36.5g|
|Max Current (A)||45A|
|Max Burst Current (A)||60A|
|Internal Resistance (Rm)||64mΩ|
|Wire Spec (AWG)||20#-135mm|
|Base Mounting Pattern||16x16mm|
|Base Mounting Thread||M3 Thread|
|Motor Overall Dimensions||φ28.6mm*18.2mm|
