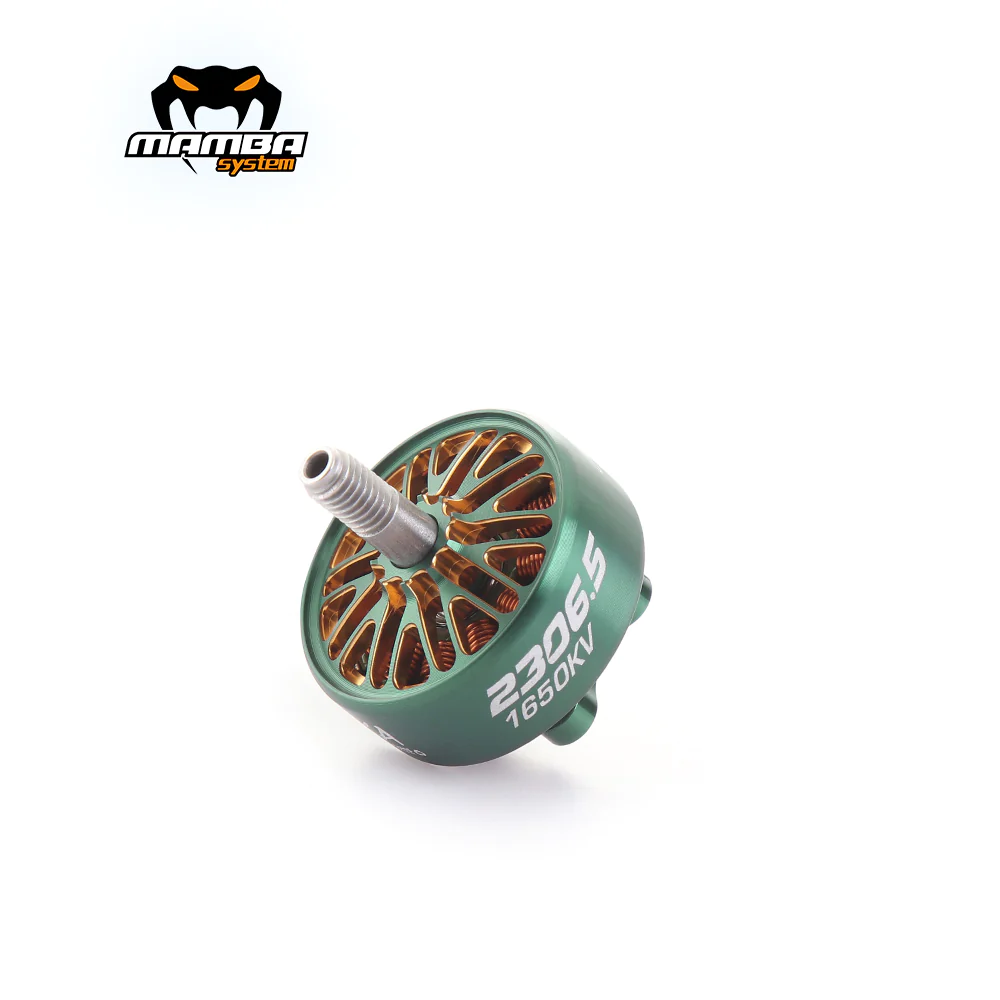

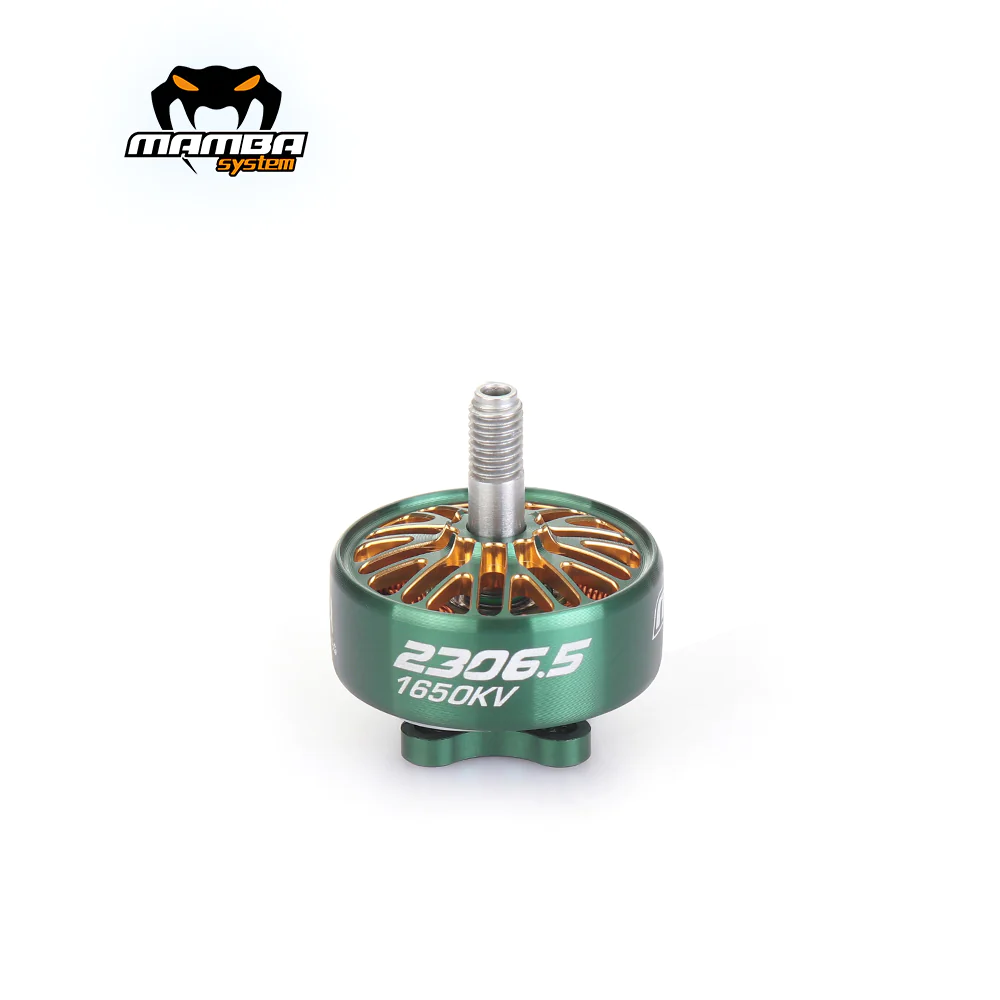

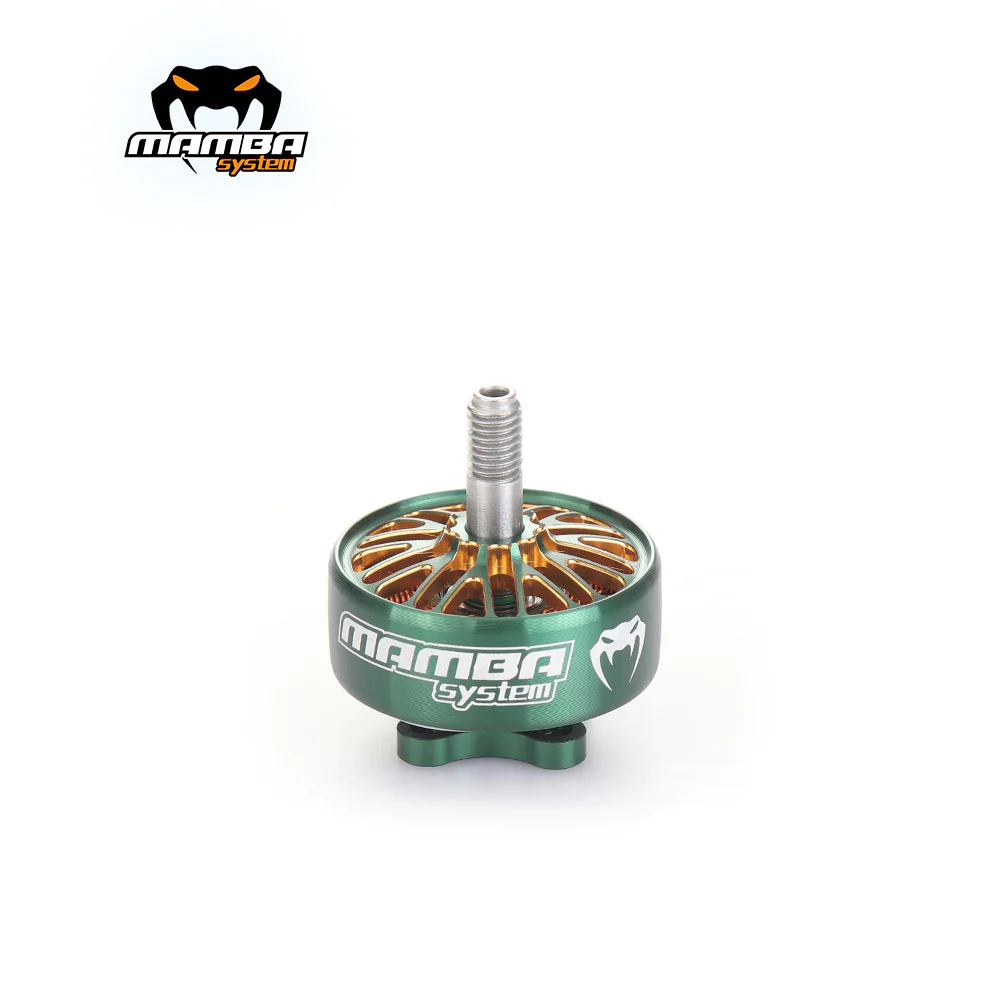

Diatone Mamba TOKA 2306.5 1650KV FPV Racing Motor
Check out all of our Diatone Products!
Specifications:
Motor KV：1650KV
Overall Dimension:Φ29.8×33.2mm
prop mounting shaft diameter:5mm
Installation hole position:16×16mm，M3
Prop: 6inch
Bearing：681ZZ 9*4*4mm
Shaft Diameter:4.0mm
Lead Wire Size：20AWG×190mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Magnet： N52H
Stator Diamter：23mm
Stator Height:6.5mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current: 40.5A
ladle Current：0.7A
Maximum Power: 970.05W
Internal Resistance：78mΩ
