Diatone MAMBA TOKA 1404 3000KV FPV Racing motor
Check out all of our Diatone Products!
Specifications:
Overall Dimension:Φ20.5×15mm
Prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm,M2
Prop: 2.5inch~4inch(Toothpick)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Bearing: 5*2*2.5                                             Â
Shaft Diameter: 2mm
Lead Wire Size: 24AWG×150mm
slots/poles: 9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diameter:14mm
Stator Height:4mm
Rated Voltage:3S~6S (12.6V~25.2V)
Peak Current: 11.95A
ldle Current:10V/0.3~1.0A                                                               Â
Maximum Power: 286.8W
Internal Resistance:310mΩ

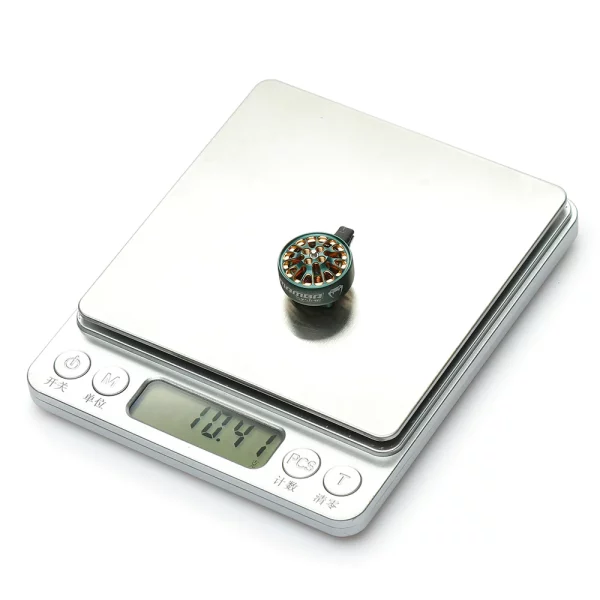

Weight: 10.5g
