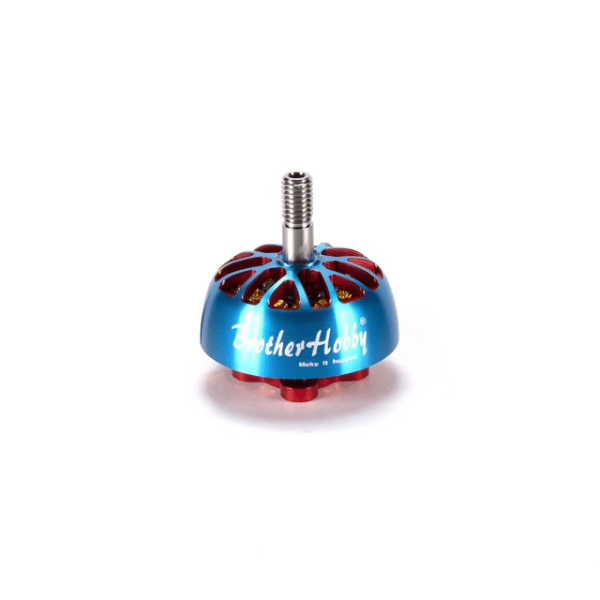

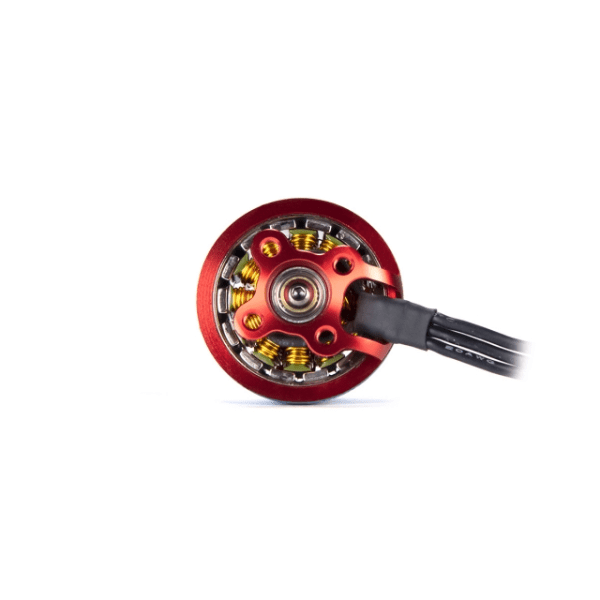

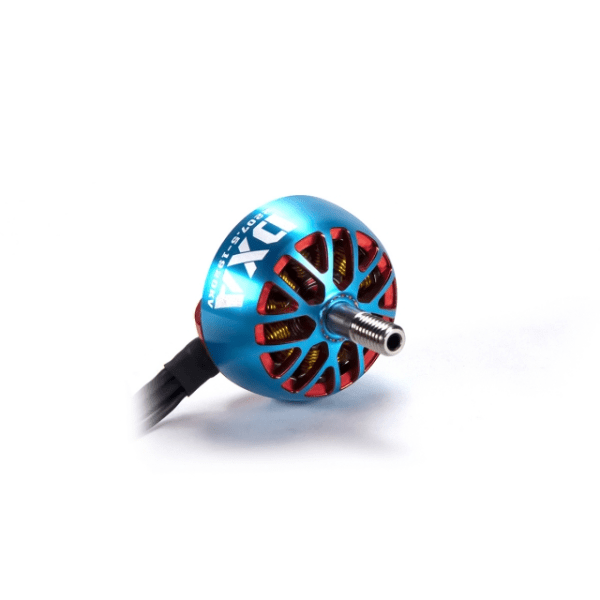

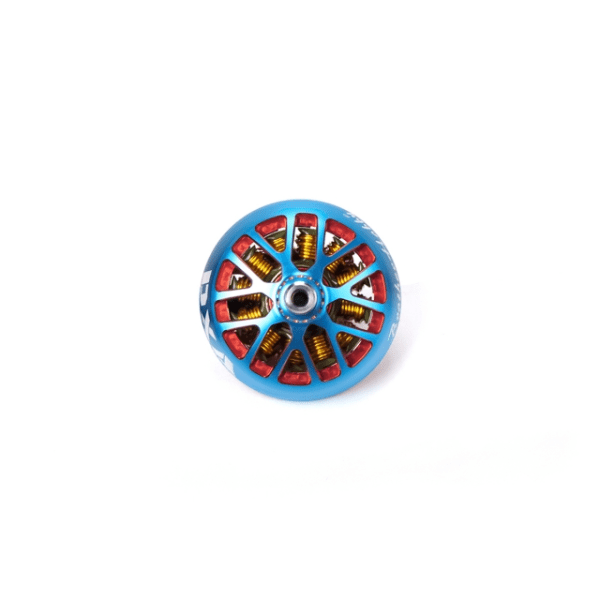

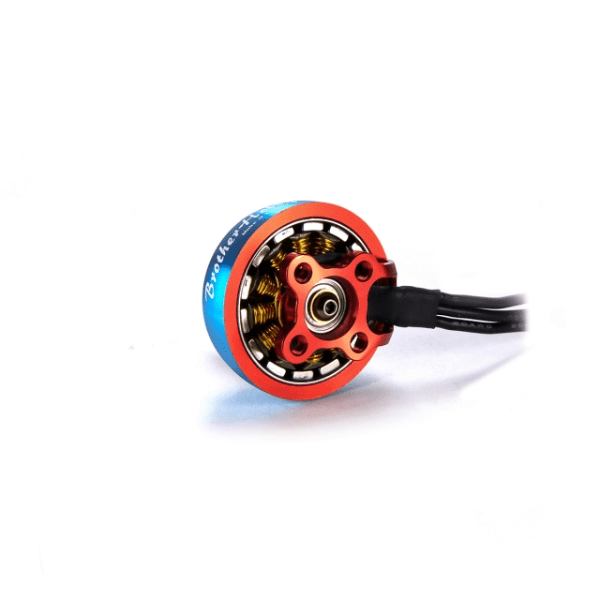

Brotherhobby DXA 2207.5 FPV Motor – 1750Kv
See all of our BrotherHobby products, and check out the 1920kv version of this motor!
Elevate your freestyle build with the Brotherhobby DXA 2207.5, a premium brushless motor designed for pilots who refuse to compromise on smoothness or durability. This 1750KV version is the gold standard for 6S LiPo setups, offering the perfect balance of efficiency, torque, and top-end power for modern 5-inch freestyle drones.
Aerospace-Grade Construction
Brotherhobby is known for material excellence, and the DXA series is no exception. At its core is a Titanium Alloy Hollow Shaft, providing incredible strength while keeping weight to a minimum. The motor spins on ultra-smooth Japanese NMB 9x4x4mm Bearings, ensuring a vibration-free flight that helps deliver jello-free HD footage.
The 6S Freestyle Sweet Spot
Why 1750KV? For 6S voltages, this KV rating provides a linear throttle response, giving you a “locked-in” feeling. It provides the low-end torque needed to catch the drone at the bottom of a dive, while still offering explosive power for acrobatic maneuvers without overheating your battery or ESCs.
Military-Grade Durability
Built to survive the bando. The bell and base are machined from robust 7075 Aluminum, and the windings use 260℃ Military-Grade Copper Wire. This high-temperature tolerance means the motor can handle high-current spikes without burning out, ensuring reliability flight after flight.
Key Features:
-
Premium Materials: Titanium Alloy Hollow Shaft & 7075 Aluminum.
-
Smooth Operation: Japanese NMB Bearings & N52H Arc Magnets.
-
6S Optimized: 1750KV rating for perfect freestyle control.
-
High Temp Resistant: Military-grade wiring prevents burnouts.
-
Lightweight: Hollow shaft design reduces rotational mass.
Specifications:
-
Model: DXA 2207.5
-
KV: 1750KV
-
Input Voltage: 6S LiPo
-
Configuration: 12N14P
-
Shaft: Titanium Alloy Hollow Shaft
-
Bearings: Japanese NMB 9x4x4mm
-
Magnets: N52H Arc
-
Wire: 20AWG Military Grade
-
Mounting: 16x16mm (M3)
What’s in the Box?
-
1x Brotherhobby DXA 2207.5 1750KV Motor
-
1x Propeller Lock Nut
-
4x M3 Motor Screws
