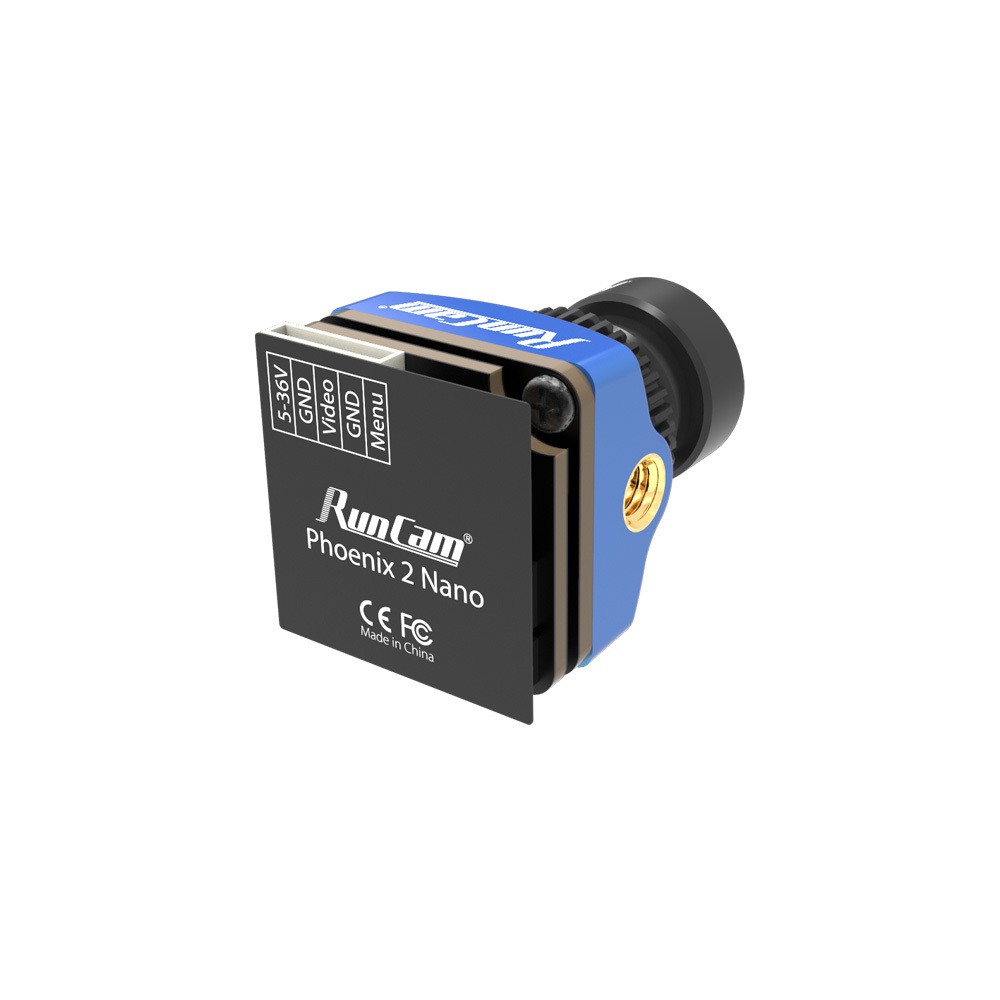

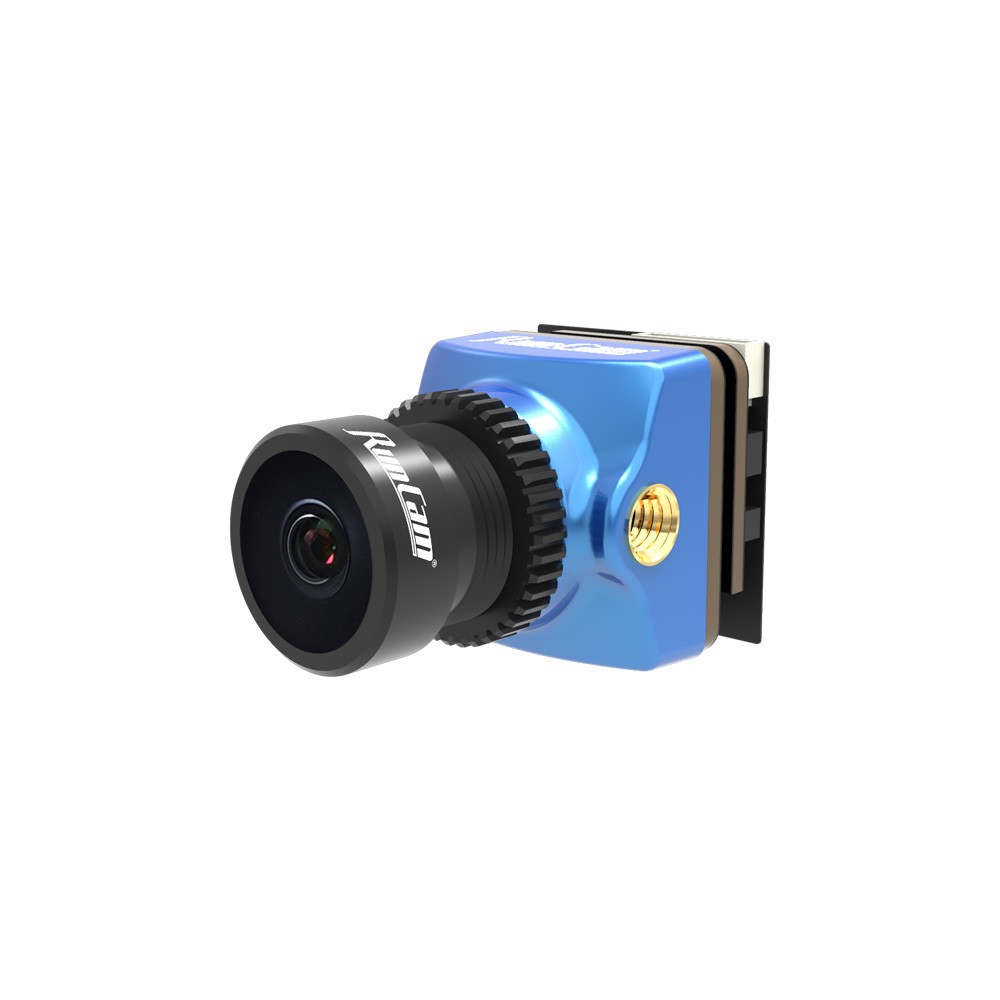

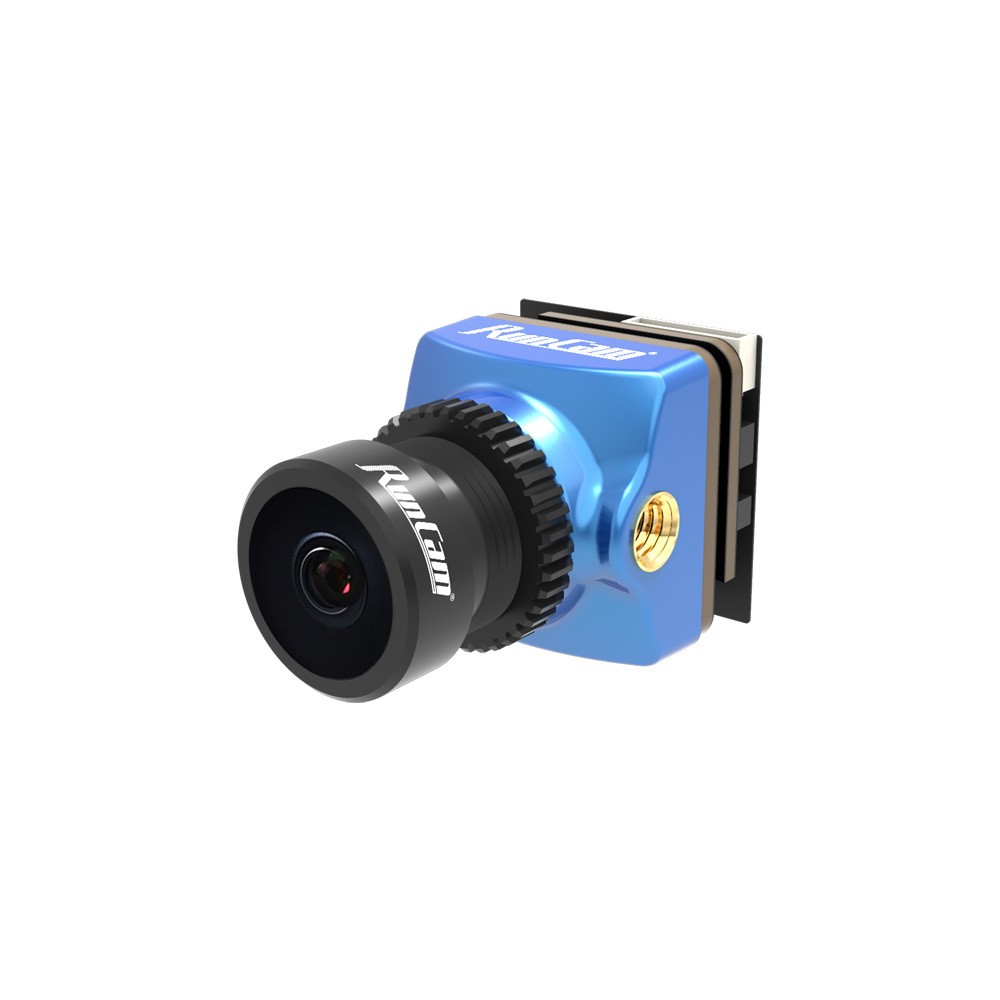

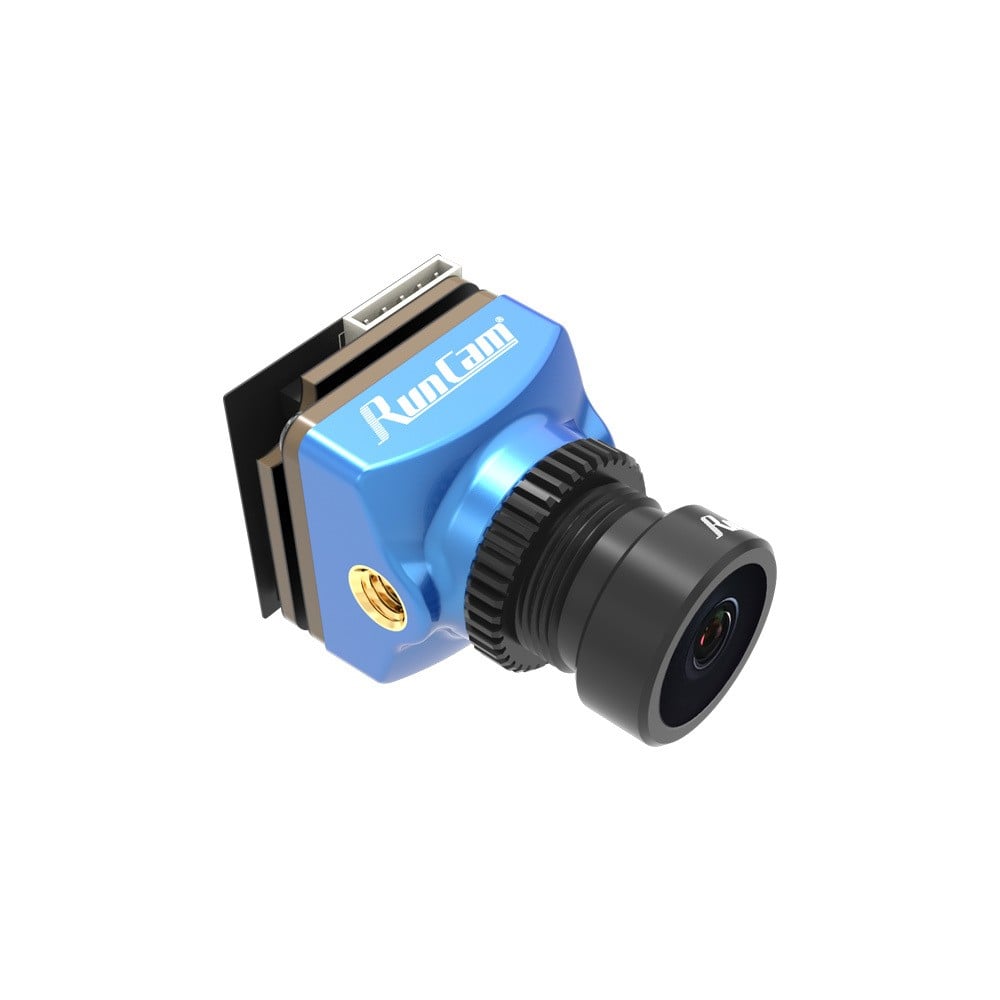

RunCam Phoenix 2 Nano FPV Camera
Check out all of our Runcam products, and all of our Analog Cameras!
Experience exceptional analog video quality in any lighting condition with the RunCam Phoenix 2 Nano. This micro-sized FPV camera is a true all-around performer, engineered to deliver a stunning picture whether you’re flying in bright daylight or at dusk. Featuring a massive 1/2″ image sensor and a large f/2.0 aperture, the Phoenix 2 Nano is a top-tier drone part for your freestyle FPV drone, tiny whoop, or cinematic build.
Excellent Performance, Day or Night
The standout feature of the Phoenix 2 is its incredible low-light capability. The large 1/2″ COMS sensor and big f/2.0 aperture gather more light, resulting in a brighter, clearer, and less noisy image as the sun goes down. During the day, its Global WDR (Wide Dynamic Range) ensures excellent handling of high-contrast scenes, providing rich color and detail in both shadows and highlights. It’s the one camera you need for any time of day.
Nano Size for Ultimate Versatility
Packing this level of performance into a tiny 14x14mm nano form factor is a major engineering feat. Weighing only 5 grams, the Phoenix 2 Nano is perfect for lightweight FPV drone kits like toothpick and brushless whoop builds where every gram matters. It provides flagship image quality without weighing down your FPV drone.
Feature-Rich & User-Friendly
The RunCam Phoenix 2 Nano is packed with features for maximum compatibility. It offers switchable 4:3 and 16:9 aspect ratios, as well as switchable PAL and NTSC video systems, making it compatible with virtually any FPV goggles or display. With a wide 5-36V input range, it can be safely powered by 2S-6S+ LiPo batteries, making it a versatile choice for any FPV drone build.
Specifications
- Model: RunCam Phoenix 2 Nano
- Image Sensor: 1/2″ COMS Sensor
- Horizontal Resolution: 1000TVL
- Aperture: f/2.0
- Lens: 2.1mm (M8) FOV 155°
- Aspect Ratio: 4:3 / 16:9 (Switchable)
- Signal System: NTSC / PAL (Switchable)
- WDR: Global WDR
- Power Input: DC 5-36V

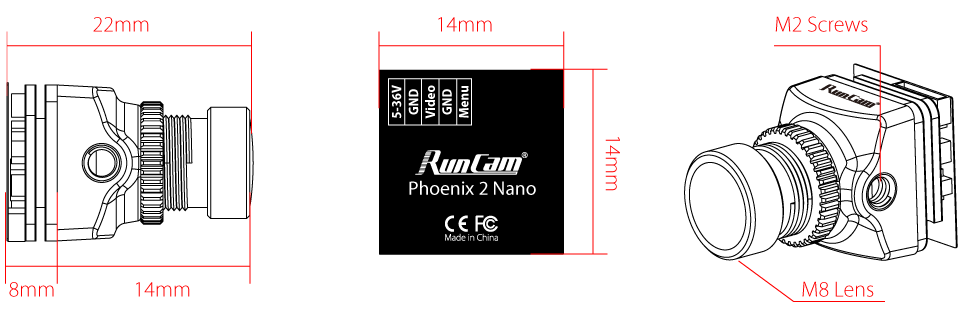

- Dimensions: 14mm x 14mm x 22mm
- Weight: 5g
What’s in the Box?
- 1x RunCam Phoenix 2 Nano FPV Camera
- 1x 14mm to 19mm ABS Mounting Bracket
- 1x 6-pin FPV Silicone Cable
- 1x Set of Screws
- 1x User Manual
