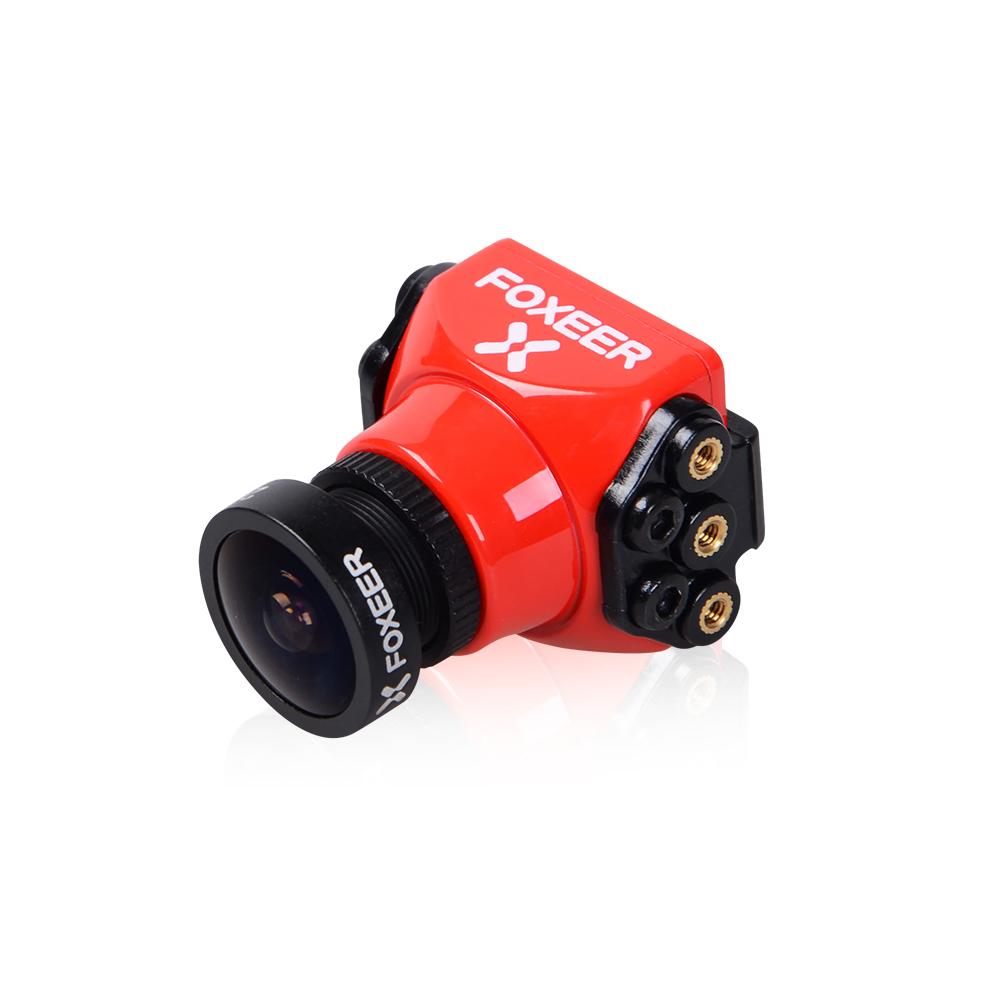

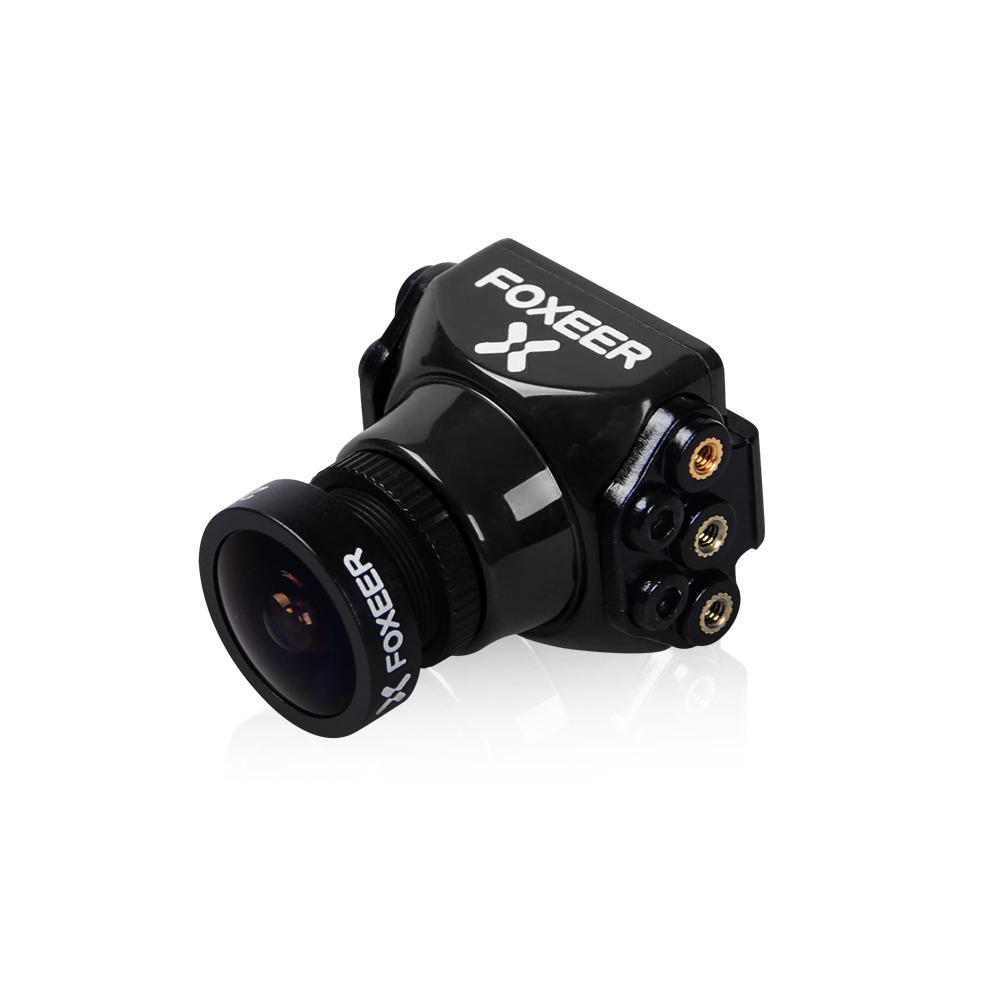

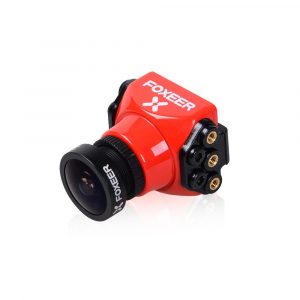

Foxeer Arrow Mini/Standard Pro FPV CCD Camera Built-in OSD
Foxeer Arrow Mini/Standard Pro FPV CCD Camera Built-in OSD
Foxeer Arrow Mini Pro FPV CCD Camera Built-in OSD (Pick Your Color) 1
Foxeer Arrow Mini/Standard Pro FPV CCD Camera Built-in OSD
Foxeer Arrow Mini/Standard Pro FPV CCD Camera Built-in OSD
Foxeer Arrow Mini/Standard Pro FPV CCD Camera Built-in OSD
Foxeer Arrow Mini Pro FPV CCD Camera Built-in OSD (Pick Your Color) 2
Foxeer Arrow Mini/Standard Pro FPV CCD Camera Built-in OSD

Foxeer Arrow Mini Pro FPV CCD Camera Built-in OSD (Pick Your Color)

$21.89

The upgraded Foxeer Arrow Mini Pro. This is the mini version of the affordable, feature packed Arrow Micro.

Clear
SKU: N/A Categories: FPV Equipment, FPV Cameras
Product categories
  • 3D Printed Quad Parts
  • Accessories
    • Battery Accessories
    • Build Accessories
    • Cables and Connectors
    • Drone Accessories
    • Goggle Accessories
    • Racing Gear
    • Radio Accessories
  • Antennas
    • 2.4G Antennas
    • 5.8G Antennas
    • Long Range Antennas
  • Batteries
    • Micro Quad Batteries
    • Mini Quad Batteries
    • X Class Batteries
  • Battery Chargers
  • DJI/HD FPV
  • Electronics
    • Electronic Speed Controllers (ESC)
    • Flight Controllers
    • LED Lighting
    • PDBs
  • FPV Drone Bundles
  • FPV Equipment
    • Action Cameras
    • FPV Cameras
    • FPV Monitors
    • Video Goggles
    • Video Receivers
    • Video Transmitters
  • Merch
  • Motors
  • Propellers
    • 10" Propellers
    • 12" Propellers
    • 13" Propellers
    • 2" Propellers
    • 3" Propellers
    • 4" Propellers
    • 5" Propellers
    • 6" Propellers
    • 7" Propellers
    • Micro Props
  • Quadcopter Frames
    • 3" Quad Frames
    • 4" Quad Frames
    • 5" Quad Frames
    • 6" Quad Frames
    • 7" Quad Frames
    • Micro FPV Frames
    • Spare Parts
  • Radios
    • Long Range FPV Equipment
    • Radio Controllers
    • Radio Receivers
  • Ready to Fly Drones
    • Bind-N-Fly
    • Plug-N-Play Quads
  • Toothpick FPV
  • Uncategorized
  • Whoop Drones
    • Ready to Fly
    • Whoop Drone Parts
  • X-Class FPV
  • Description
  • Additional information
  • Reviews (0)

Foxeer Arrow Mini Pro FPV CCD Camera Built-in OSD (Pick Your Color) 3

Foxeer Arrow Mini/Standard Pro FPV CCD Camera Built-in OSD (Pick Your Color)

The Arrow Mini has received a similar treatment to the recent Predator V2 update. Foxeer’s latest installment of the Arrow Mini, the Arrow Mini Pro received some spring cleaning on the inside. Though it may look the same on the outside, there are some notable differences internally such as improved image processing and numerous software enhancements. These include better image quality and contrast, better detail in dark areas, and more vivid colors.

New menu options include voltage calibration, and 3 LED options (off/mid/dark) preventing overexposure while flying around LED gates.

Be sure to check out the Arrow Micro for your tighter builds, although both do well on all applications.

Foxeer Arrow Mini Pro FPV CCD Camera Built-in OSD (Pick Your Color) 4 Foxeer Arrow Mini Pro FPV CCD Camera Built-in OSD (Pick Your Color) 5 Foxeer Arrow Mini Pro FPV CCD Camera Built-in OSD (Pick Your Color) 6 Foxeer Arrow Mini Pro FPV CCD Camera Built-in OSD (Pick Your Color) 7

Specifications

  • Solution: 1/3″ Sony SUPER HAD II CCD+Nextchip 2040 DSP
  • Pixel: 768(H)x494(V)
  • TV System: NTSC
  • Lens: 2.5mm
  • Resolution: 600TVL(color) 650TVL(B&W)
  • Synchronization: internal
  • Min. Illumination: 0.01Lux
  • WDR: support
  • OSD programming board: support
  • White Dot Repair: support
  • DNR: 2D DNR
  • Camera Title: support
  • Image Adjustment: support
  • OSD: Edit Name, Power, Flying time
  • Input Power: 5-40V
  • Storage Temperature: -20C ~ 60C
  • Working Temperature: -20C ~ 50C
  • Power Consumption: 75mA/12V 166mA/5V
  • Low voltage alarm: support
  • Preset mode: DEF, VIVID, SUNNY, CLOUDY, LED TR, USR1
  • Size: 21.8×21.8mm
  • Weight: 8.7g (excluding bracket)

Includes

  • 1x Arrow Mini Pro Camera – 2.5mm Lens
  • 1x Manual
  • 1x OSD board
  • 1x Servo cable
  • 2x Bracket
  • 1x Set of screws



Weight 0.01875 lbs
Dimensions 3 × 3 × 2.5 in
Brand

Foxeer

Color

Black, Blue, Red
