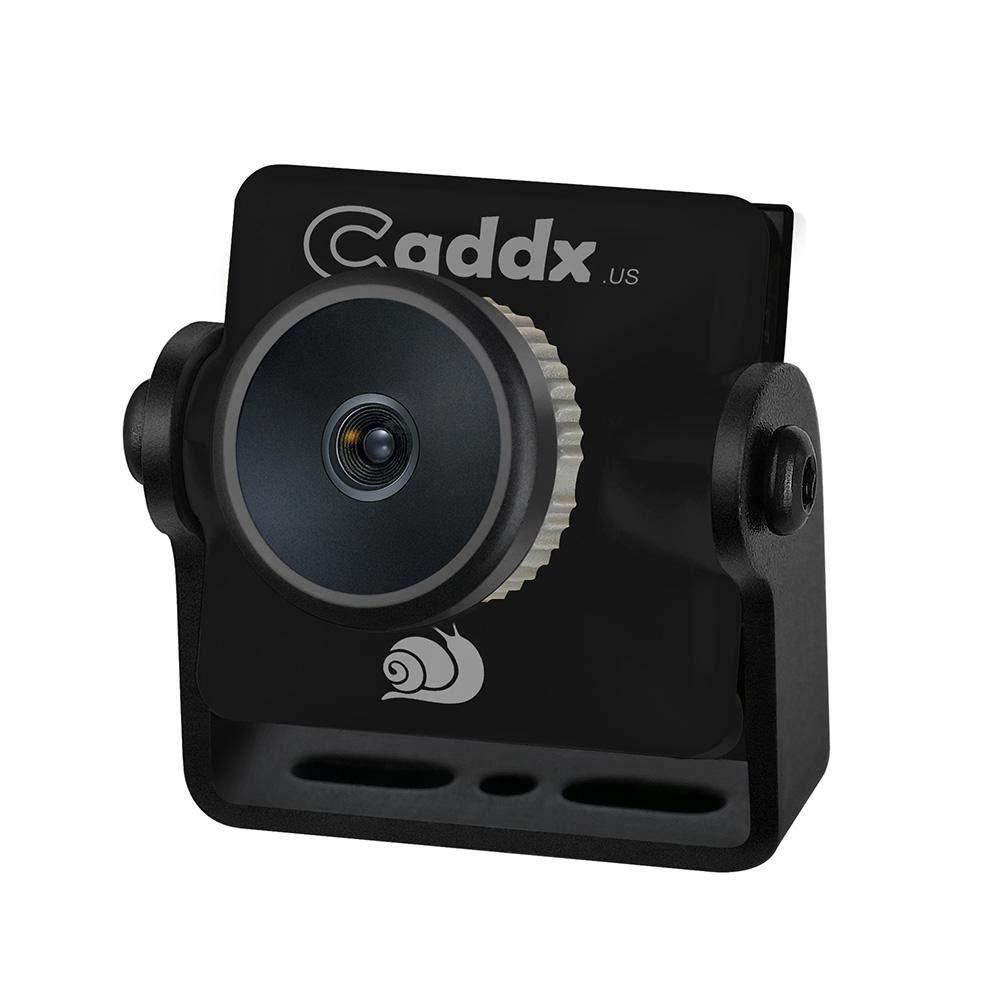

Caddx Turbo Micro S2
Check out all of our Caddx Products!
Most FPV cameras right now still use the third generation CCD. The new Turbo S2 uses a fourth-generation CCD that has better night vision and backlight effect. It easily transitions through different levels of brightness.
Features
- Upgraded Turbo eye lens
- PCB protection
- Integrated OSD
- 1/3″ CCD Sensor
- Global shutter
- Low latency
- Voltage detection
- Wide voltage range 5-40v
Specifications
- Image Sensor 1/3″ CCD Sensor
- Horizontal Resolution 600 TVL
- TV System NTSC
- Synchronization Internal
- Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000
- S/N Ratio >60dB (AGC OFF)
- Video Output CVBS
- Lens 1.8mm Turbo Eye
- Min. Illumination [email protected]
- Auto Gain Control YES
- BLC YES
- FLY OSD Voltage/time/horizontal line/title
- Camera OSD YES
- WDR D-WDR
- DNR 2 DNR
- Day/Night Auto/Color/B&W

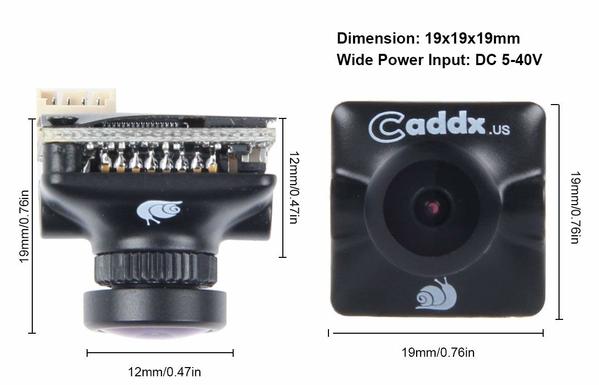

- Dimensions 19mm*19mm
- Wide Power Input DC 5-40V
- Work Temperature -20℃~+60℃
- Work Humidity 20%~80%
- Weight 6g (N.W.)

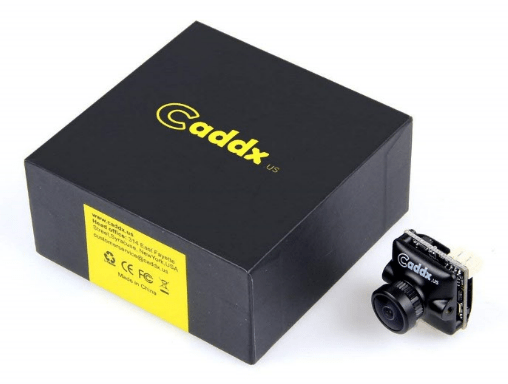

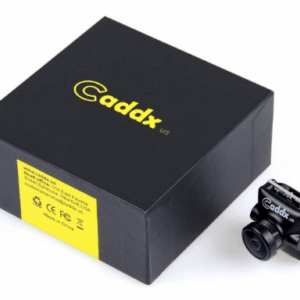

Includes
- 1 x Caddx Turbo Micro S2 Camera – Yellow
- 1 x 5D-OSD Menu Board
- 1 x Aluminum Bracket
- 1 x FPV cable
- 1 x Screws set
- 1 x Manual
