IFlight Borg 5.8G Micro VTX & CAM

Borg 5.8G Micro VTX & CAM

Check Out Our Other iFlight Products!

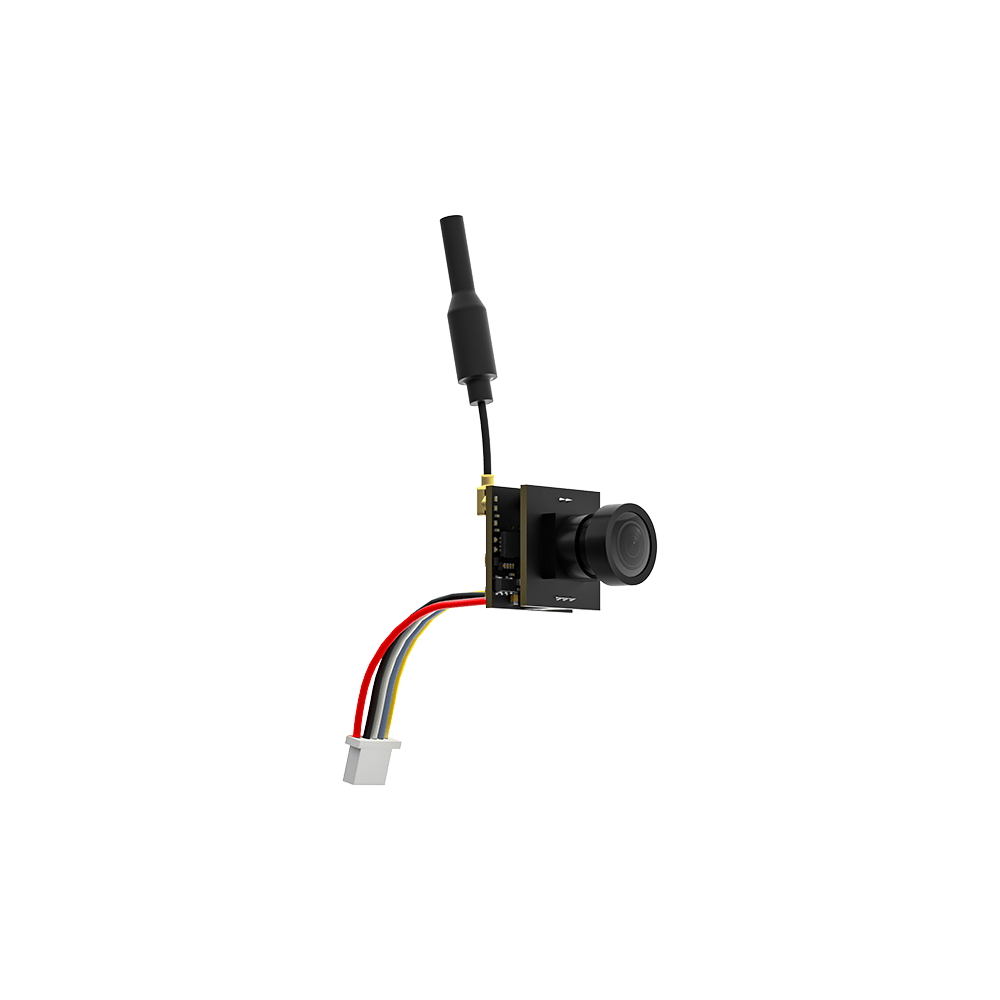

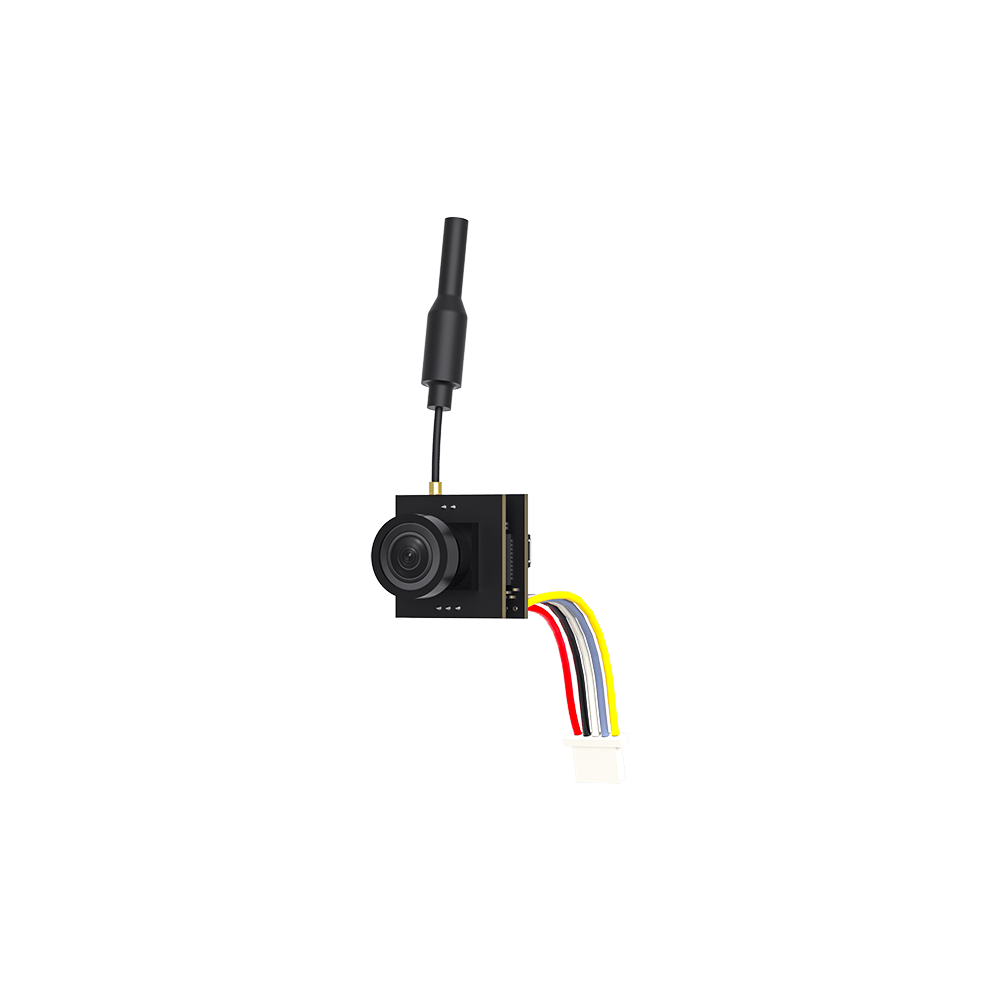

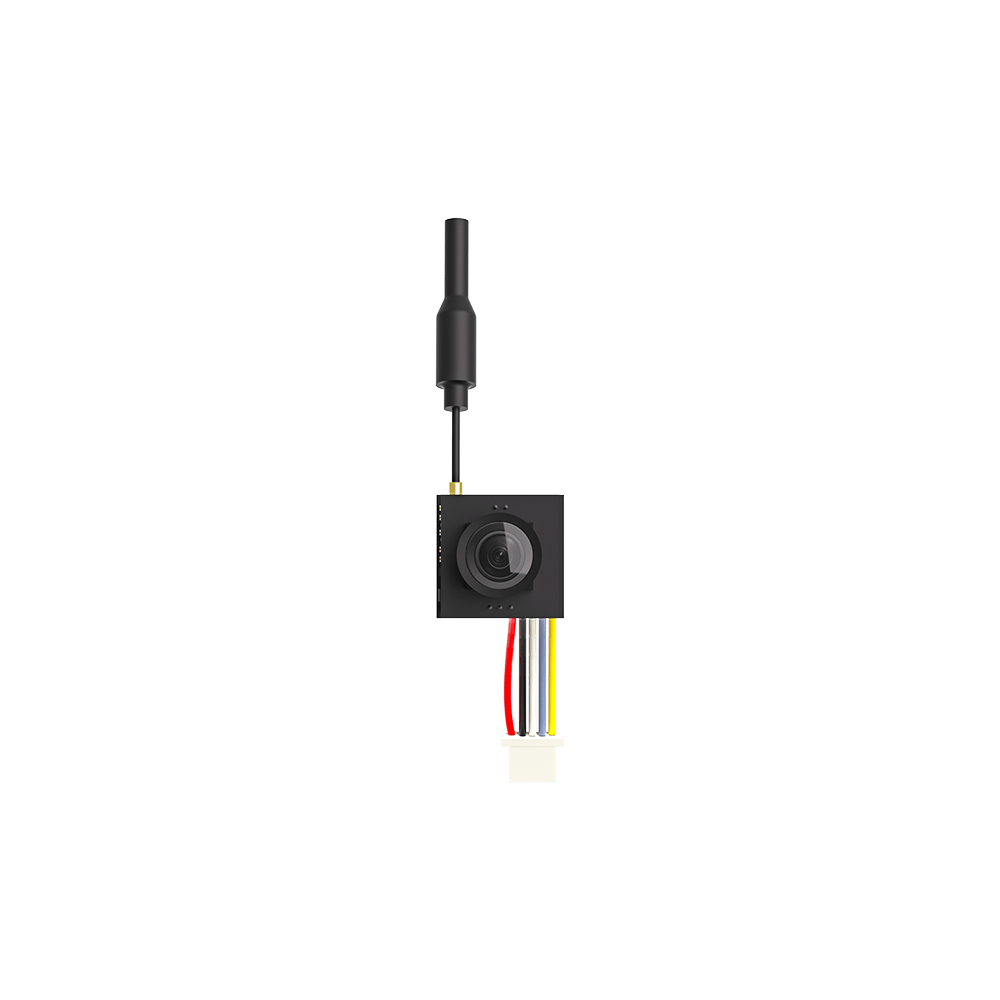

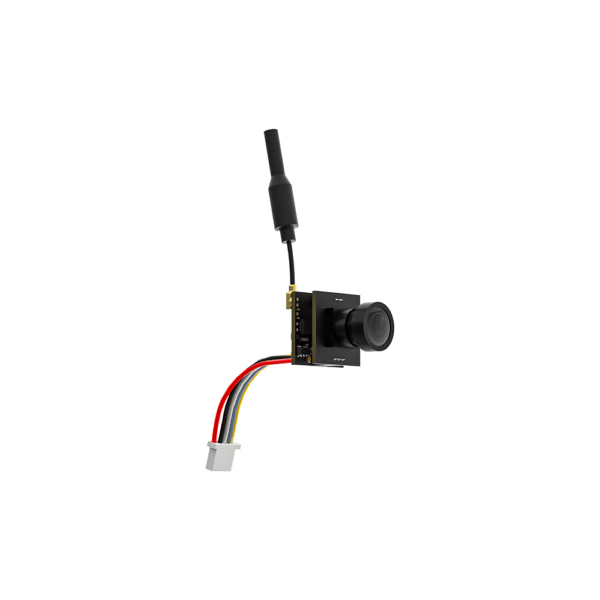

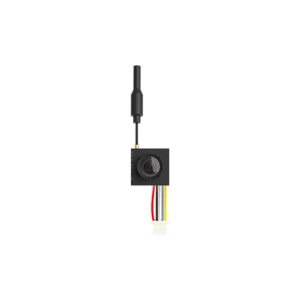

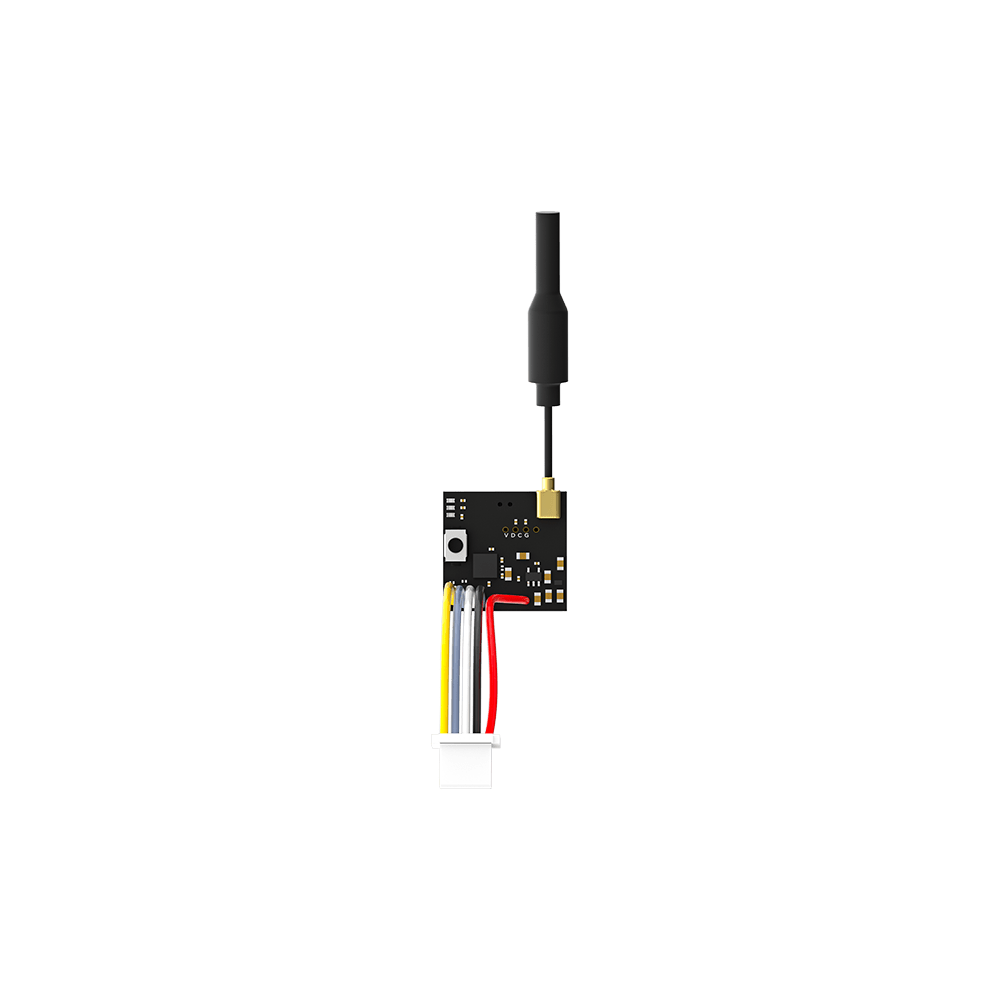

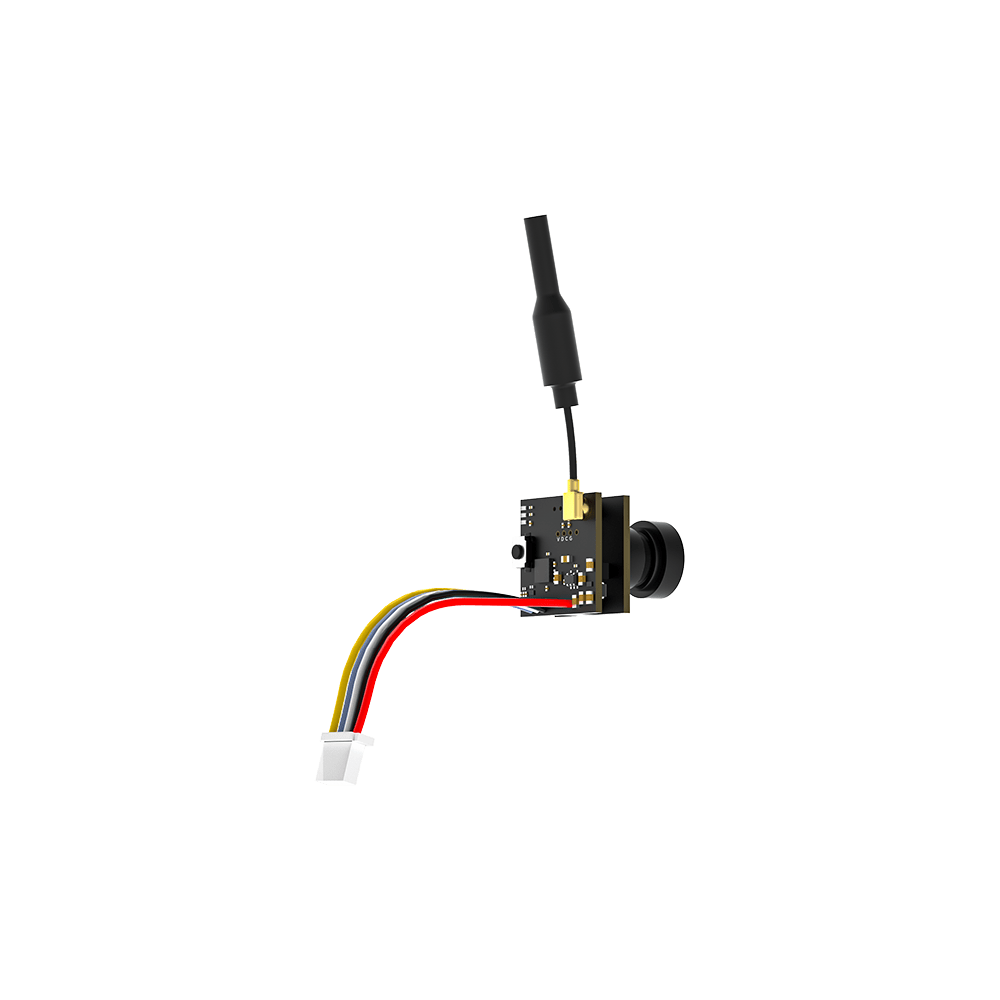

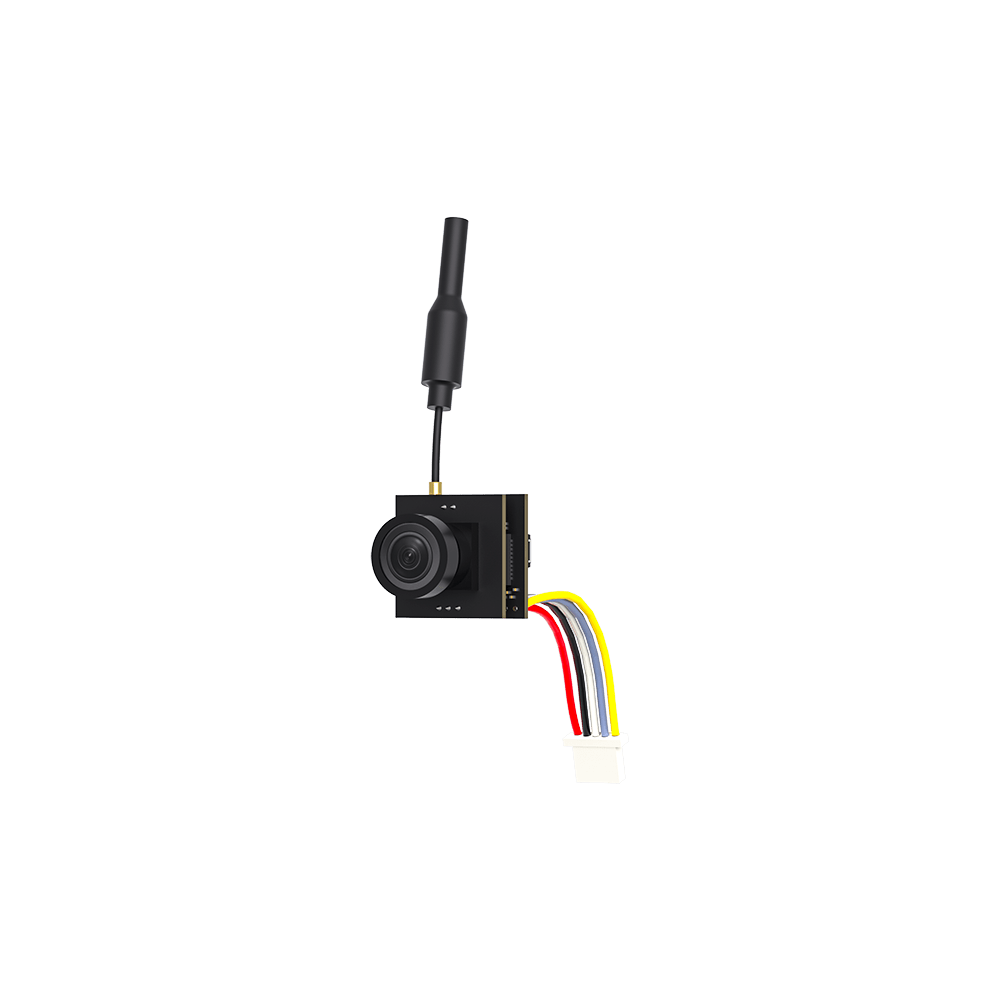

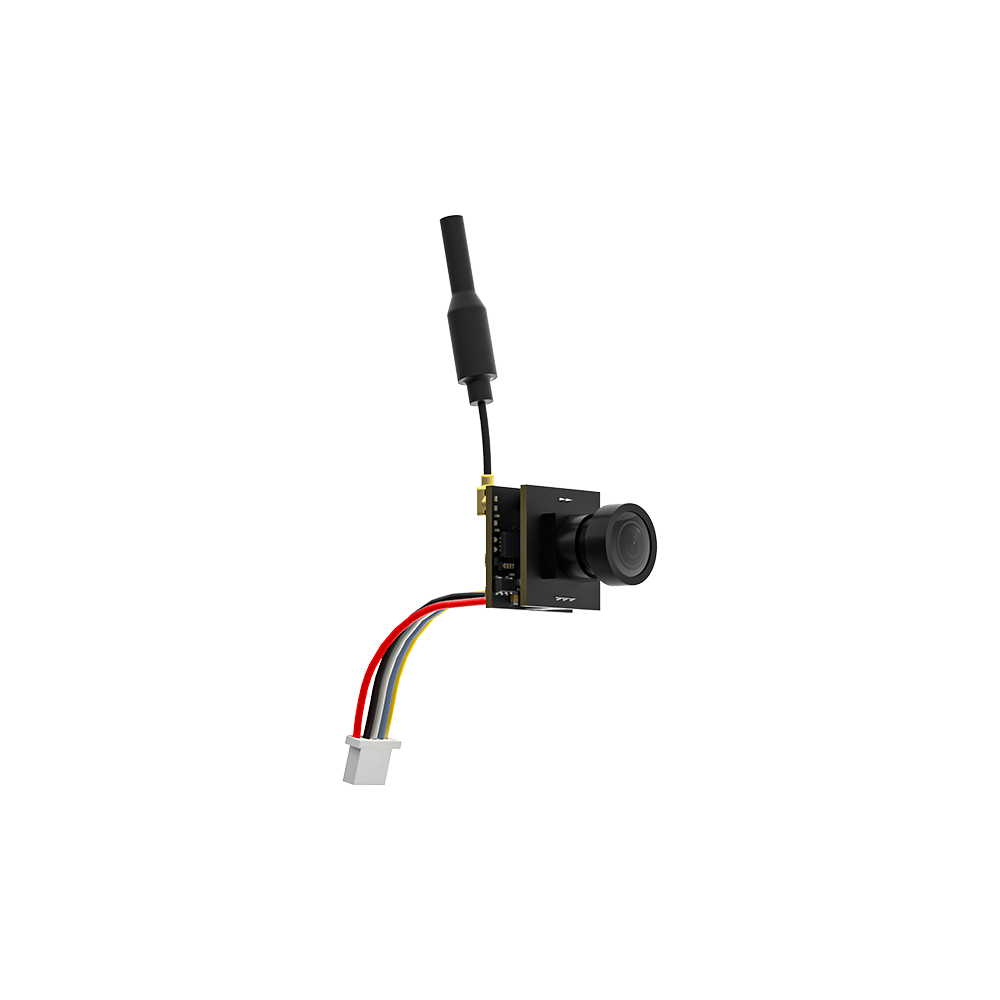

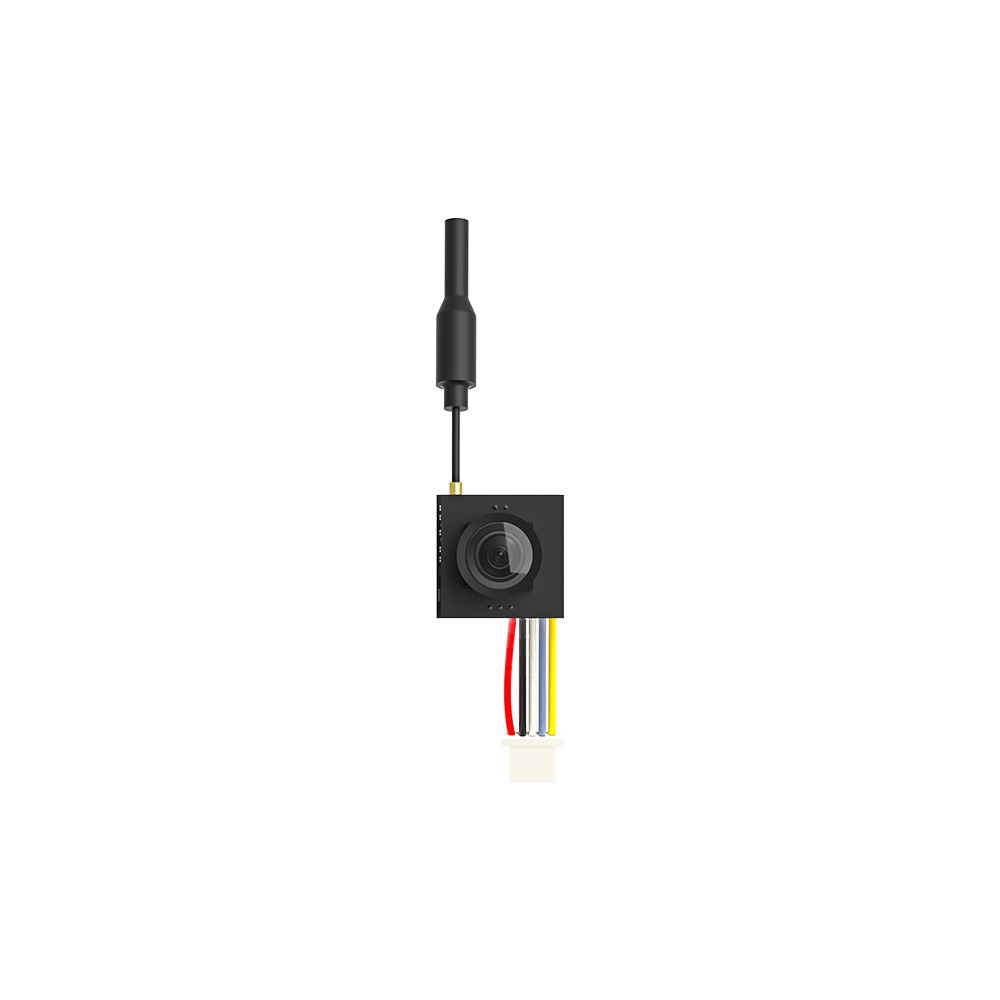

Simplify your ultralight FPV build with the iFlight Borg, a 2-in-1 unit that combines a 600TVL FPV camera and a 150mW video transmitter into a single, compact package. Weighing only $3.8$ grams, the Borg is the perfect all-in-one video solution for tiny whoops, toothpicks, and any micro drone where minimizing weight and simplifying wiring is a top priority.

All-in-One Simplicity The Borg’s integrated design eliminates the need for a separate camera and VTX, reducing the number of components, saving precious space, and making your build process cleaner and faster. It’s a complete FPV system in a tiny, easy-to-install package.

Versatile Performance Despite its small size, the Borg delivers impressive performance. The video transmitter features selectable output power from PIT mode up to $150\text{mW}$, providing a clear and reliable signal for both indoor and outdoor flying. It supports the IRC Tramp protocol, allowing you to easily change your VTX settings via your flight controller’s OSD. The 600TVL camera with its 115∘ wide-angle lens offers a crisp and immersive FPV feed.

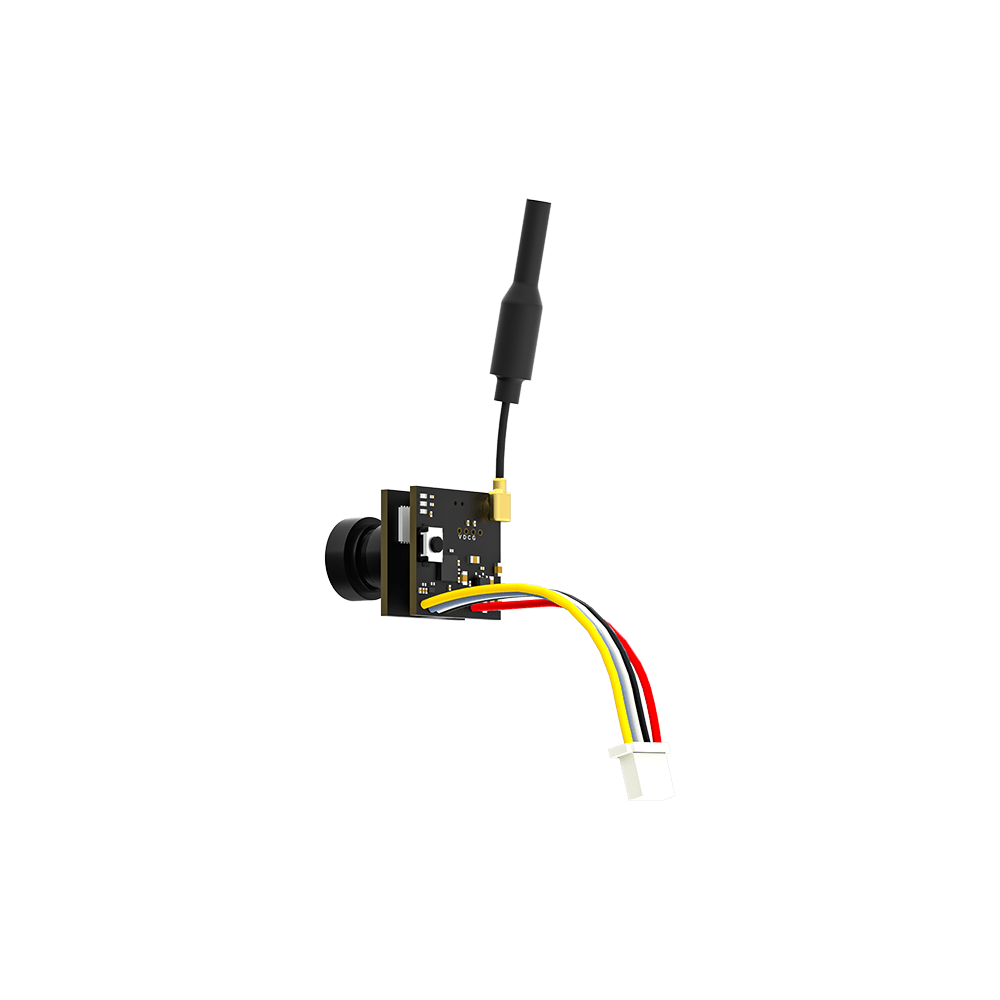

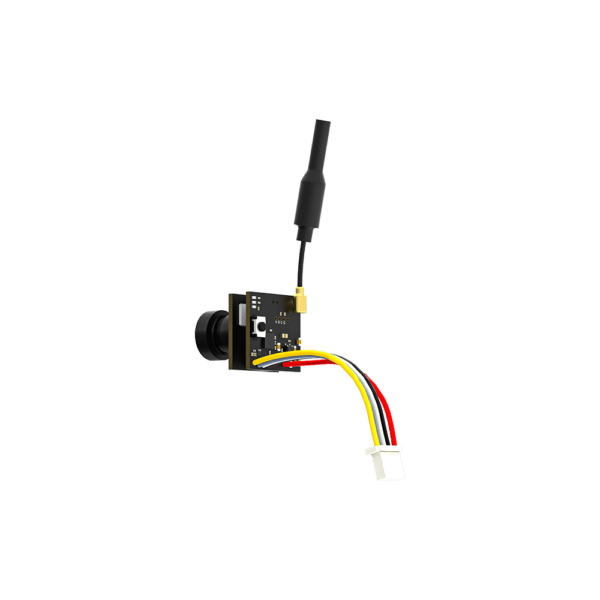

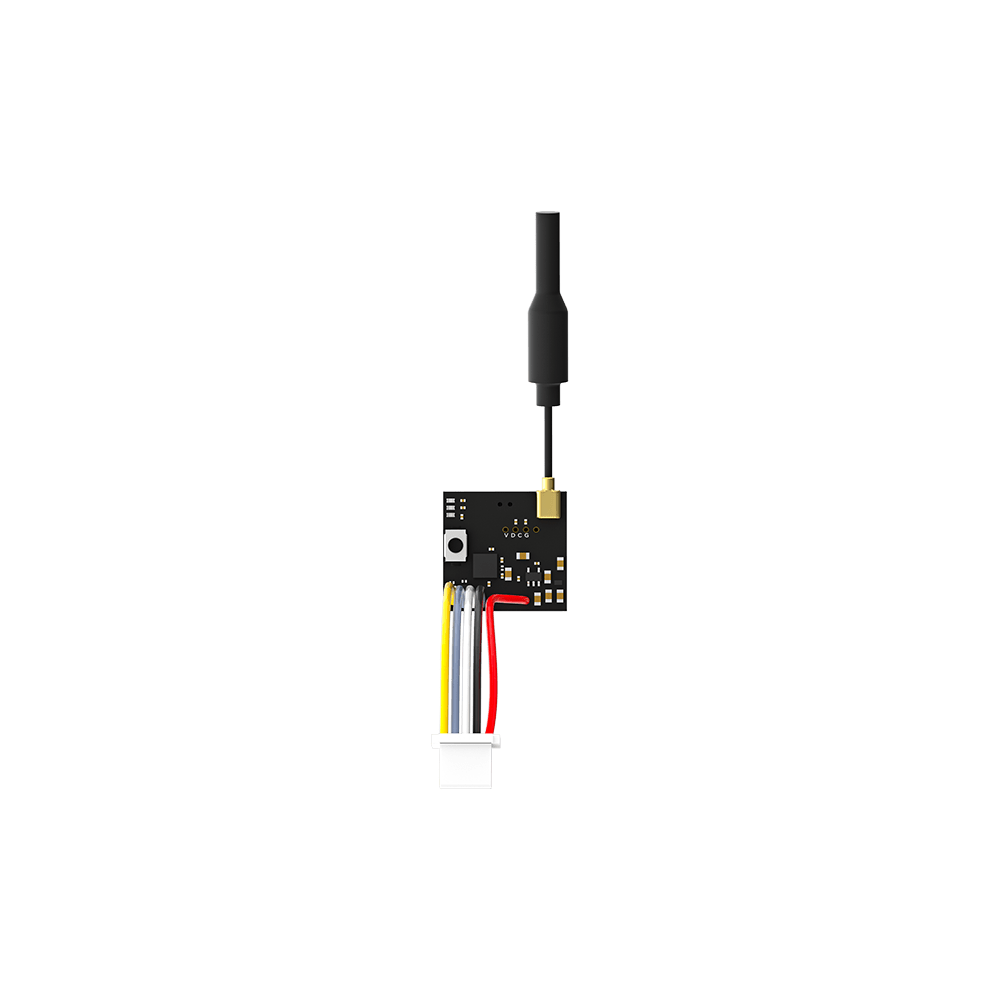

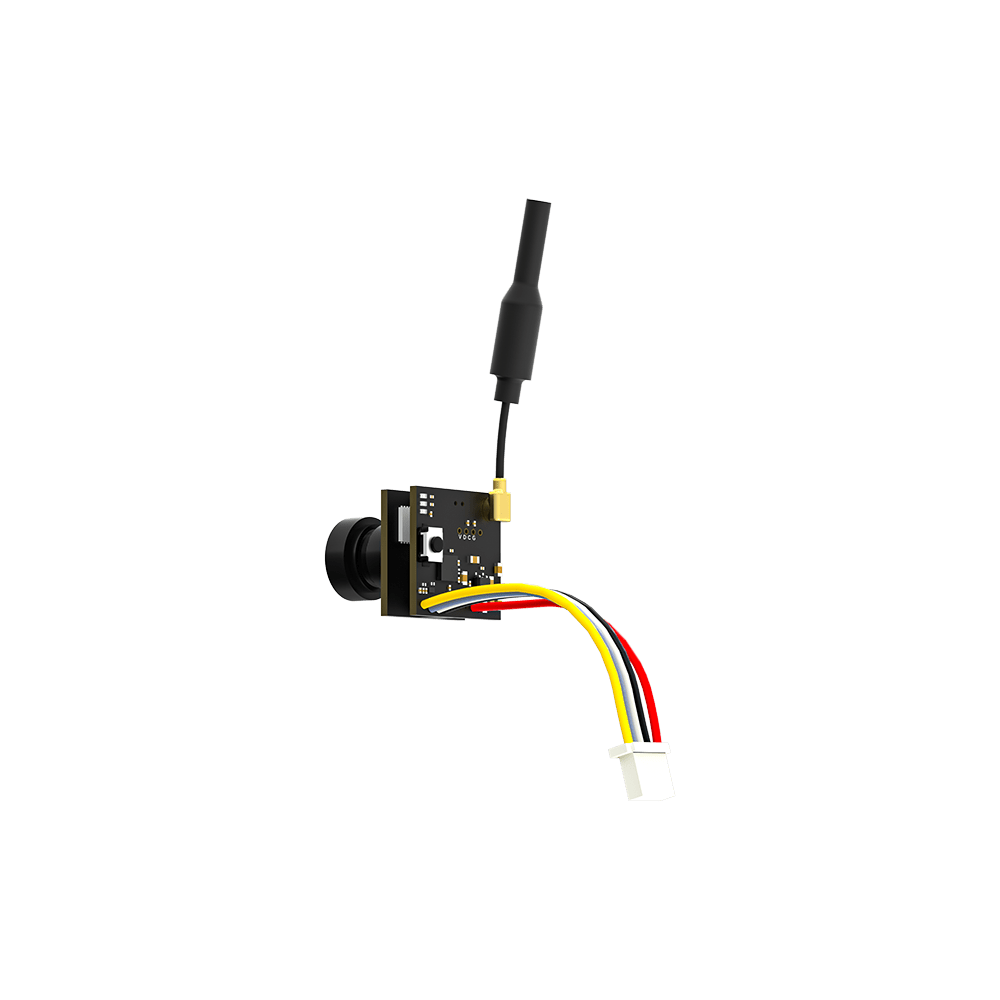

Button Control Guide For setups without OSD control, you can easily change settings with the single onboard button:

• Channel: Short press to cycle through channels 1-8 (indicated by red LED flashes).
• Band: Press and hold for 2 seconds to enter Band selection. Short press to cycle through bands A-R (indicated by blue LED flashes).
• Power: Press and hold for 2 seconds again to enter Power selection. Short press to cycle through power levels (indicated by green LED flashes). A solid green light indicates PIT mode.

Key Features:

• 2-in-1 Integrated Design: Combines a VTX and FPV camera into a single unit, saving weight and space.
• Ultralight at 3.8g: Perfect for performance-critical tiny whoop and toothpick builds.
• Selectable 150mW Power: Choose from PIT/$25\text{mW}/100\text{mW}/150\text{mW}$ output power.
• IRC Tramp Control: Easily adjust VTX settings remotely via your Betaflight OSD menu.
• 600TVL Camera: A 1/4″ CMOS sensor provides a clear 4:3 image for confident flying.

Specifications

VTX Specs:

• Power levels: PIT/$25\text{mW}/100\text{mW}/150\text{mW}$
• Input Voltage: $5\text{V}$ DC
• VTX telemetry: IRC Tramp
• Antenna Interface: IPEX (U.FL)
• Weight: $3.8\text{g}$
• Dimensions: $15.5\text{mm}\times 15\text{mm}\times 20.5\text{mm}$

Camera Specs:

• Image Sensor: 1/4″ CMOS Sensor
• Resolution: 600TVL
• Lens: $1.45\text{mm}$
• Field of View (FOV): 115∘
• Screen Format: 4:3
• Signal System: PAL/NTSC (Selectable)

Packing List

• 1 x iFlight Borg 5.8G Micro VTX & Camera Combo
