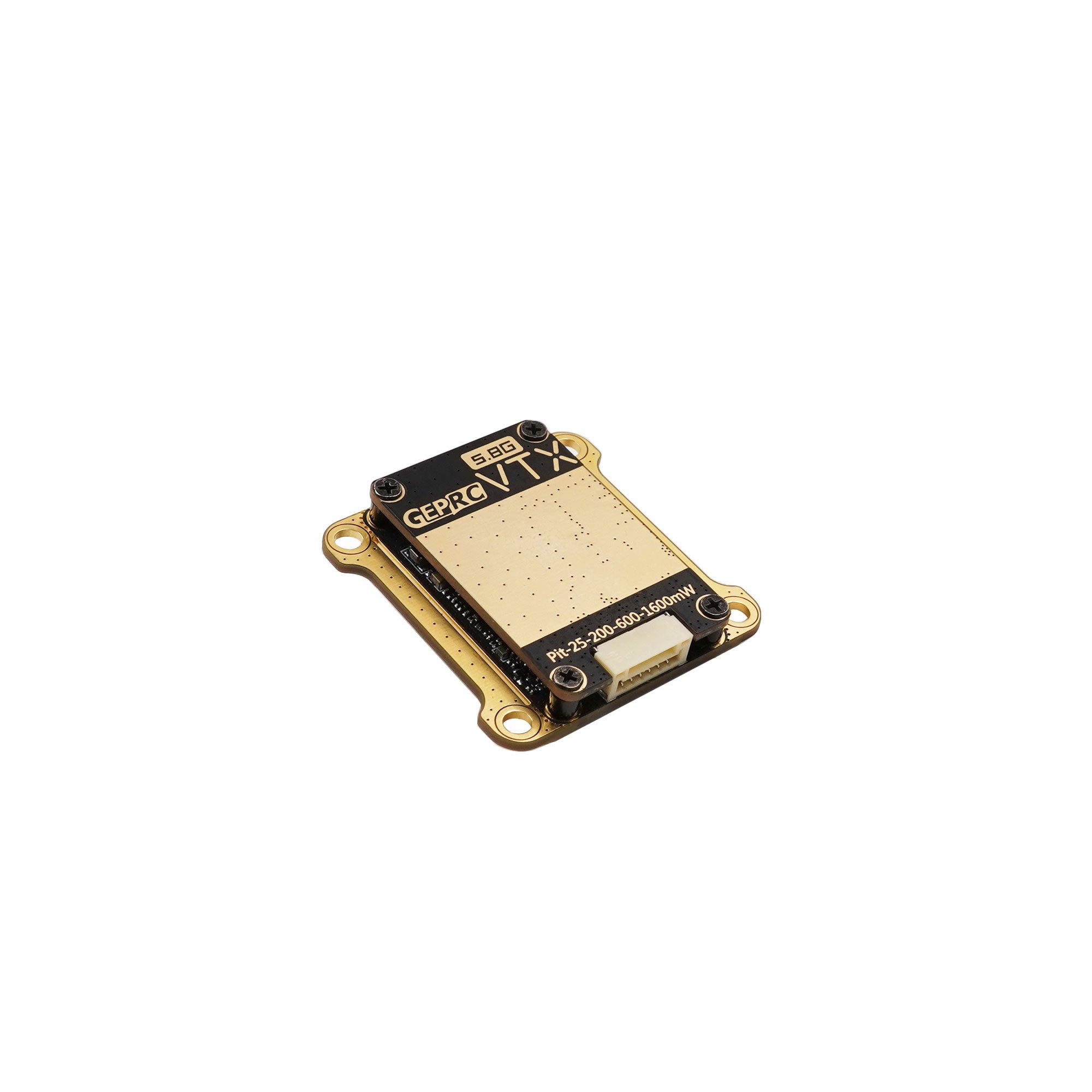

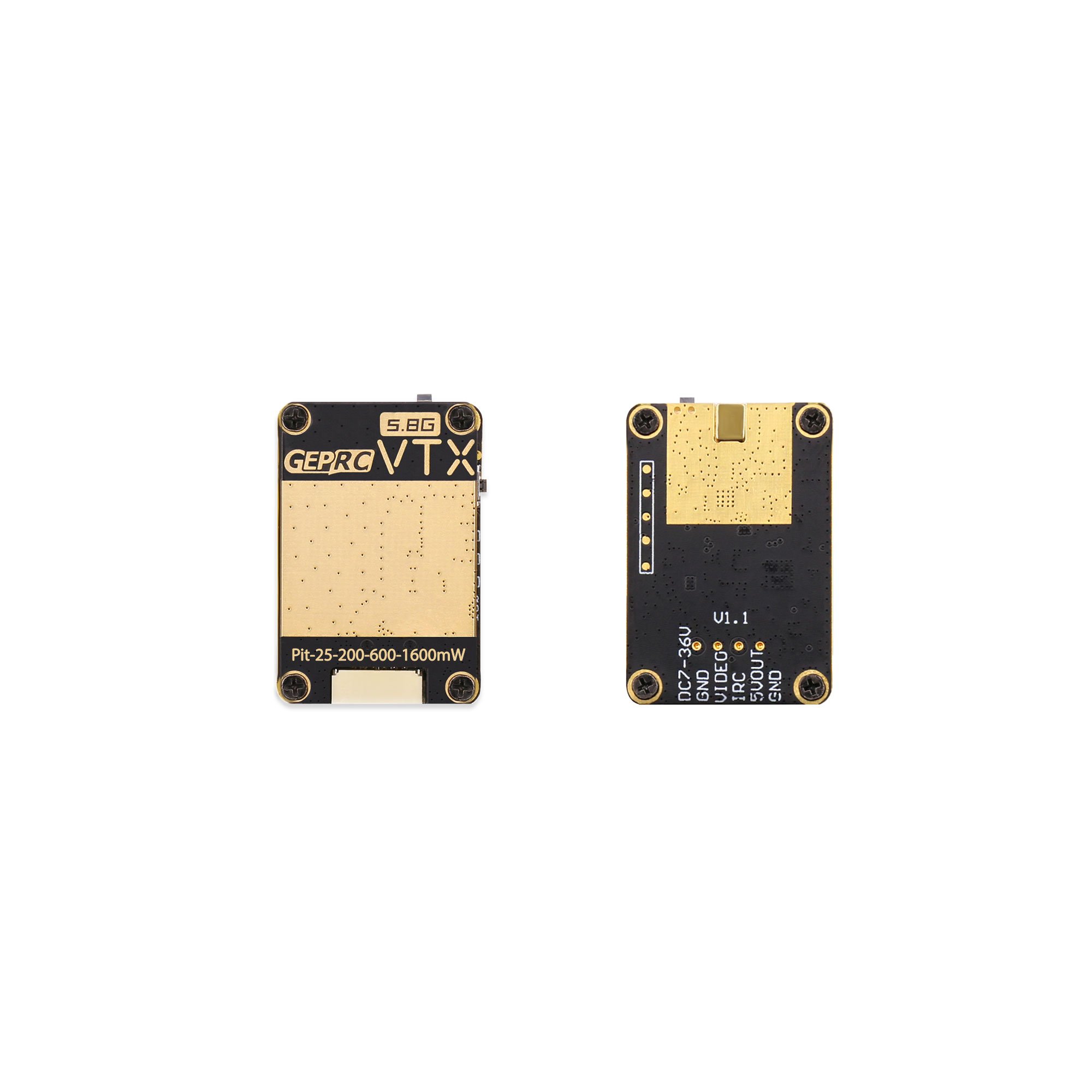

GEPRC Rad 1600mw Analog VTX 5.8ghz
Push the limits of your analog FPV system with the GEPRC RAD 1.6W, a super-power video transmitter designed for extreme long-range flight. This VTX is engineered for pilots who need maximum signal penetration and a stable video link over incredible distances. Featuring up to 1600mW of output power, an advanced cooling design, and a full suite of modern features, it’s the ultimate VTX for your long-range FPV drone.
Unleash 1.6W of Long-Range Power

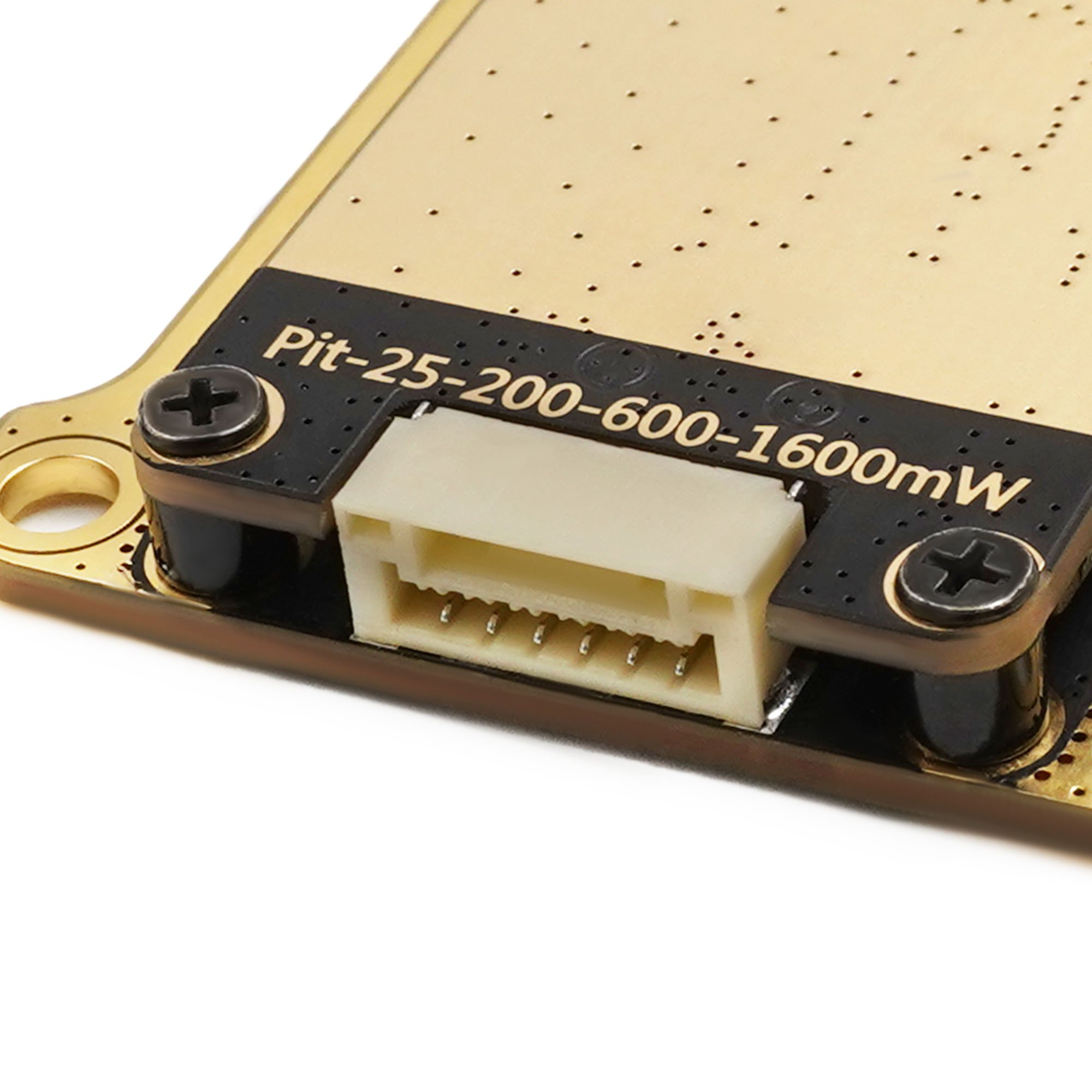

The standout feature of the RAD VTX is its massive 1.6W (1600mW) maximum output power. This provides an incredibly strong and robust video signal, perfect for long-range missions, mountain surfing, or flying in environments with high interference. With five adjustable power levels (PIT/25/200/600/1600mW), you can easily switch from race-legal power to full long-range output.
Advanced Cooling & Clean Signal

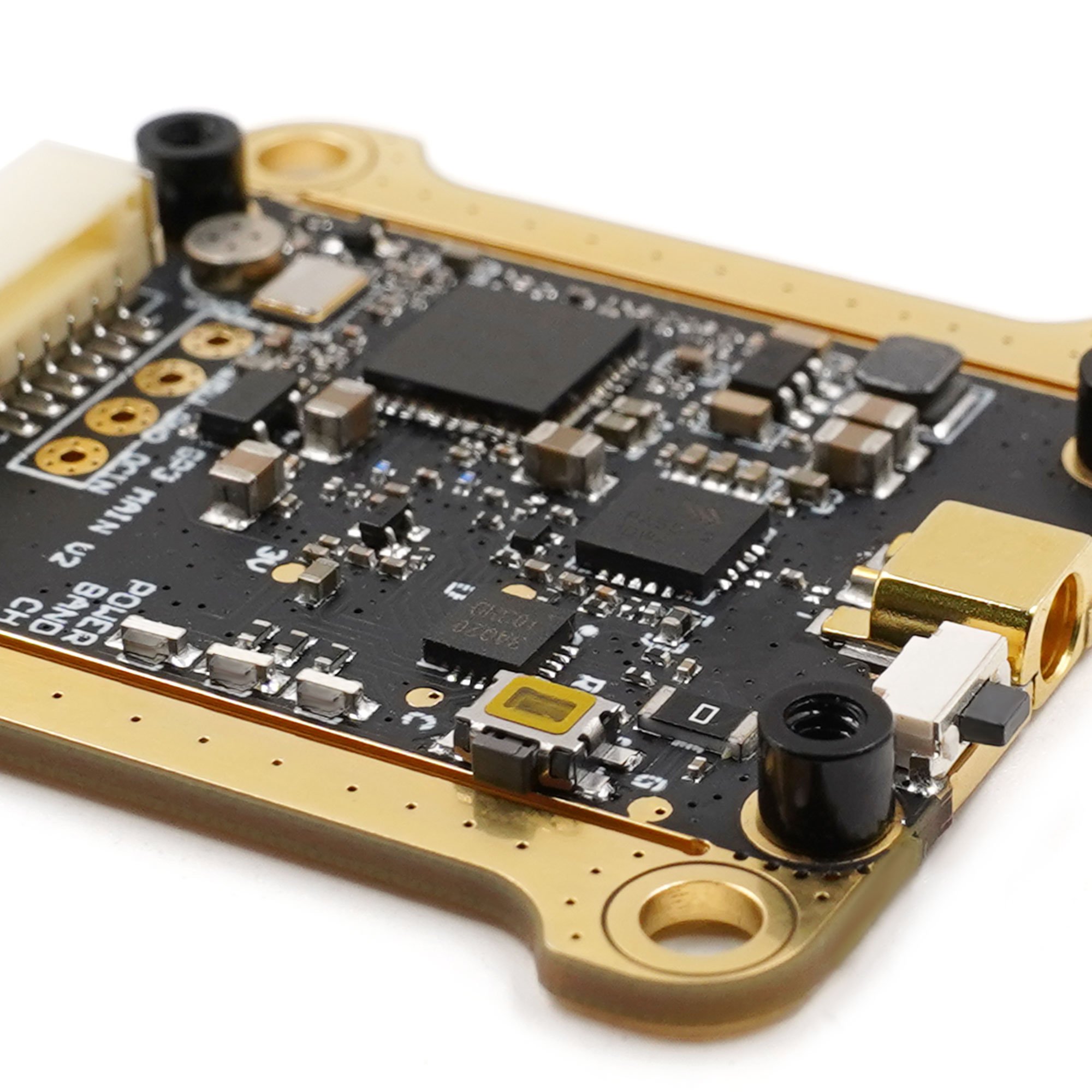

High power generates heat, and the RAD is designed to manage it effectively. It uses a double-layer PCB design that separates the mainboard from the power supply, reducing interference and improving heat dissipation. It also features a temperature control protection function to prevent overheating, ensuring your FPV drone’s video remains stable and reliable throughout your flight.
Full Control with IRC Tramp

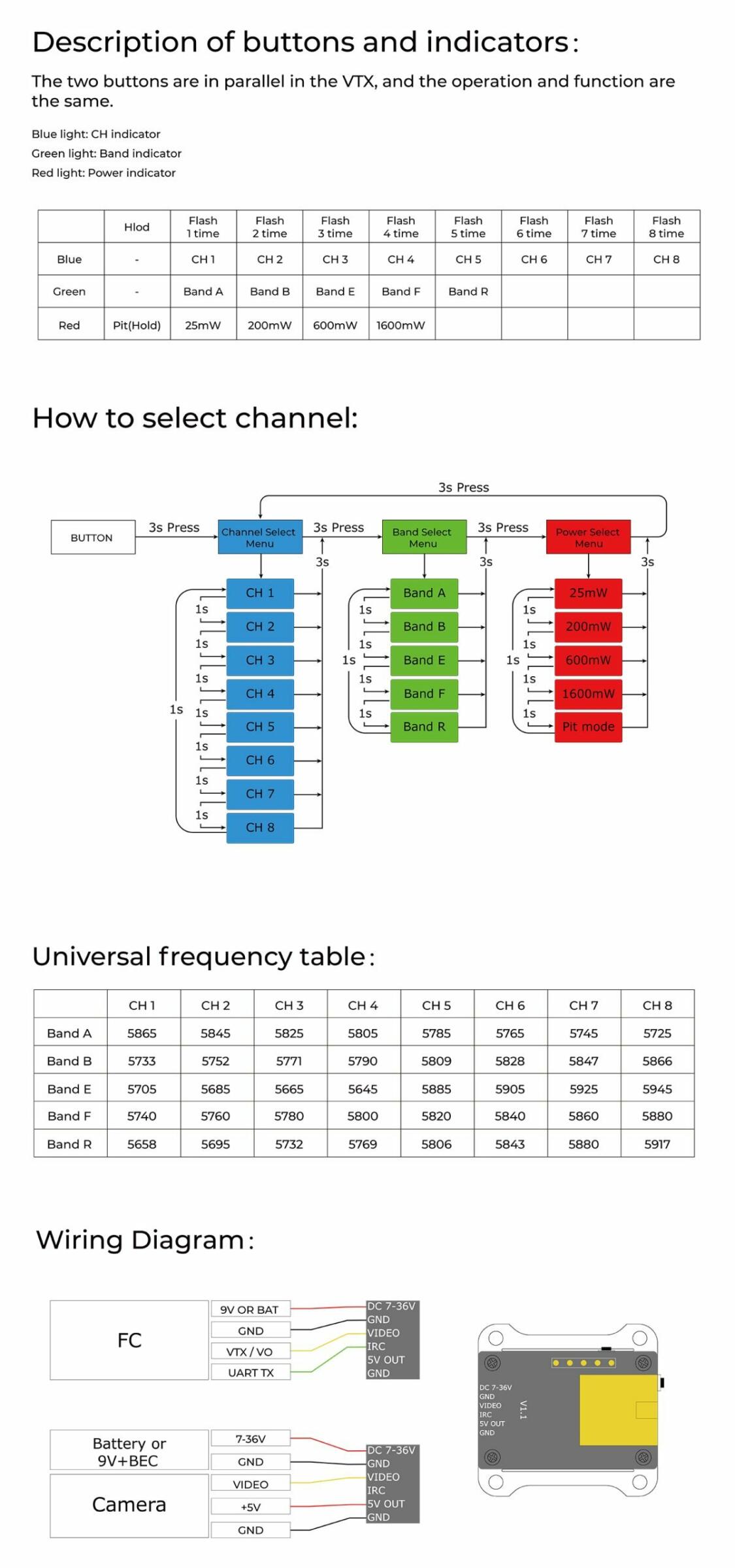

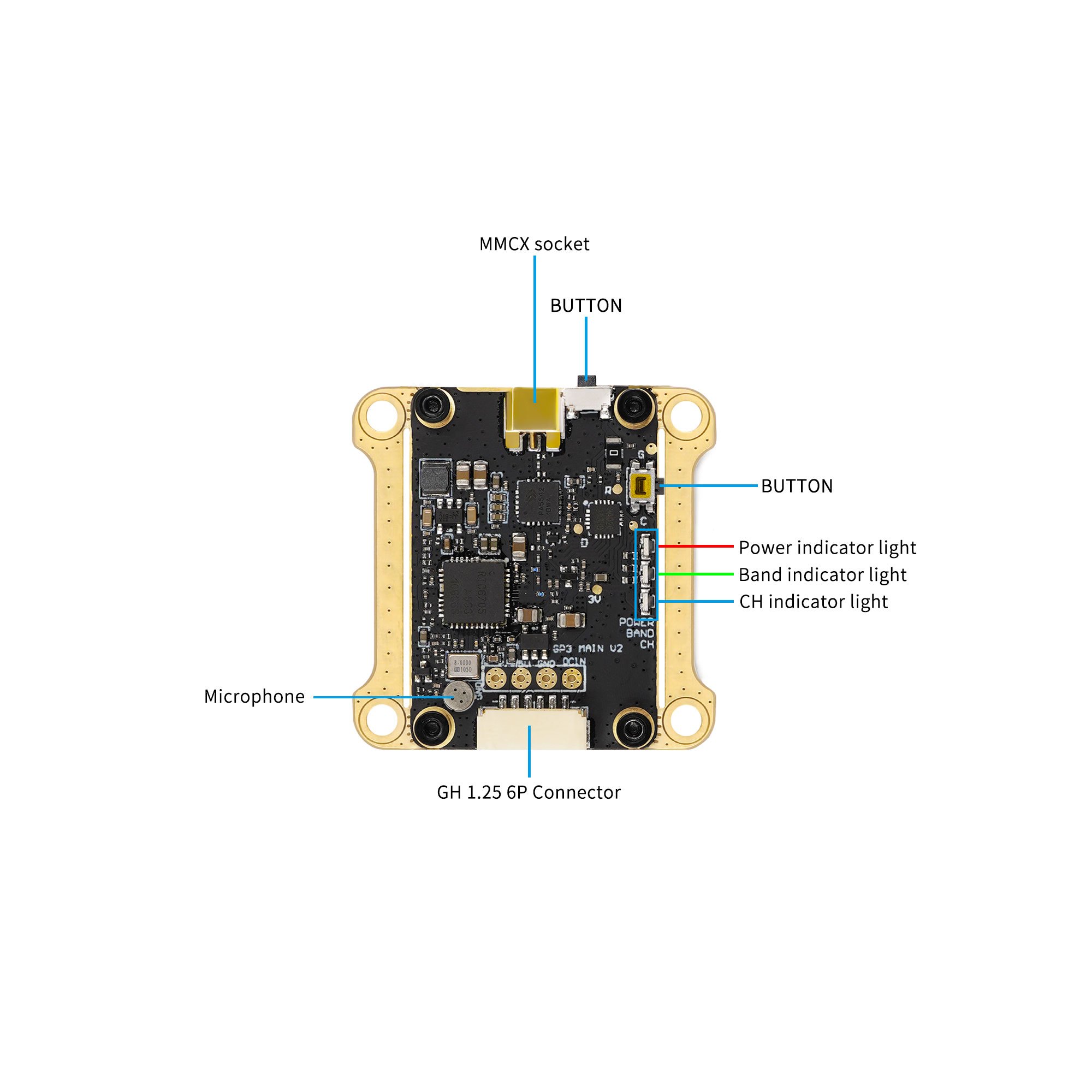

This VTX utilizes the IRC Tramp protocol, allowing you to easily change your channel, band, and power level directly from your flight controller’s OSD or radio menu. This eliminates the need for physical buttons and makes on-the-fly adjustments simple. The RAD also includes a built-in microphone to capture the sounds of your FPV flight.
Important Usage & Power Warning
- Always install the antenna before powering on the VTX to prevent permanent damage.
- Ensure constant airflow during operation to prevent overheating, especially at high power levels.

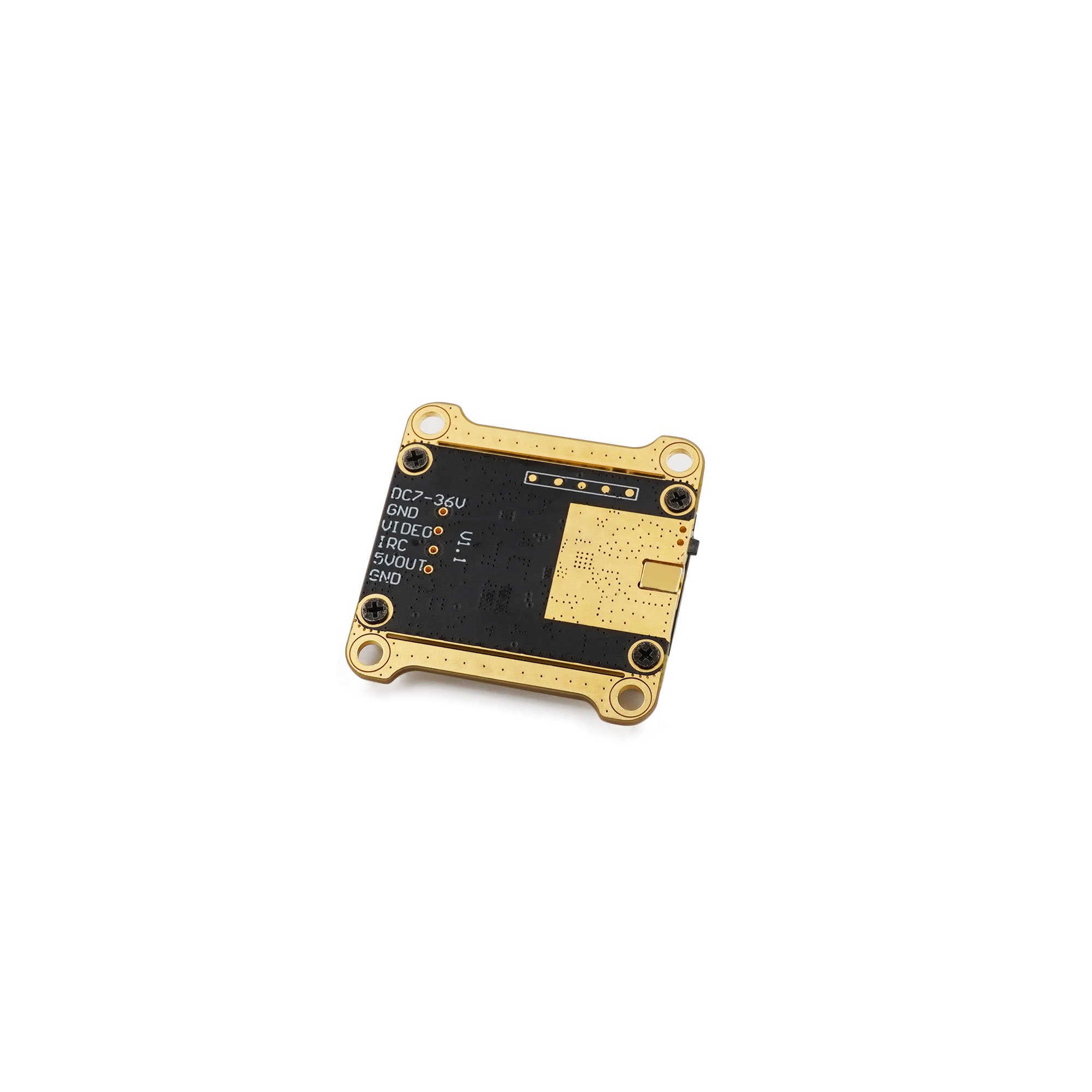

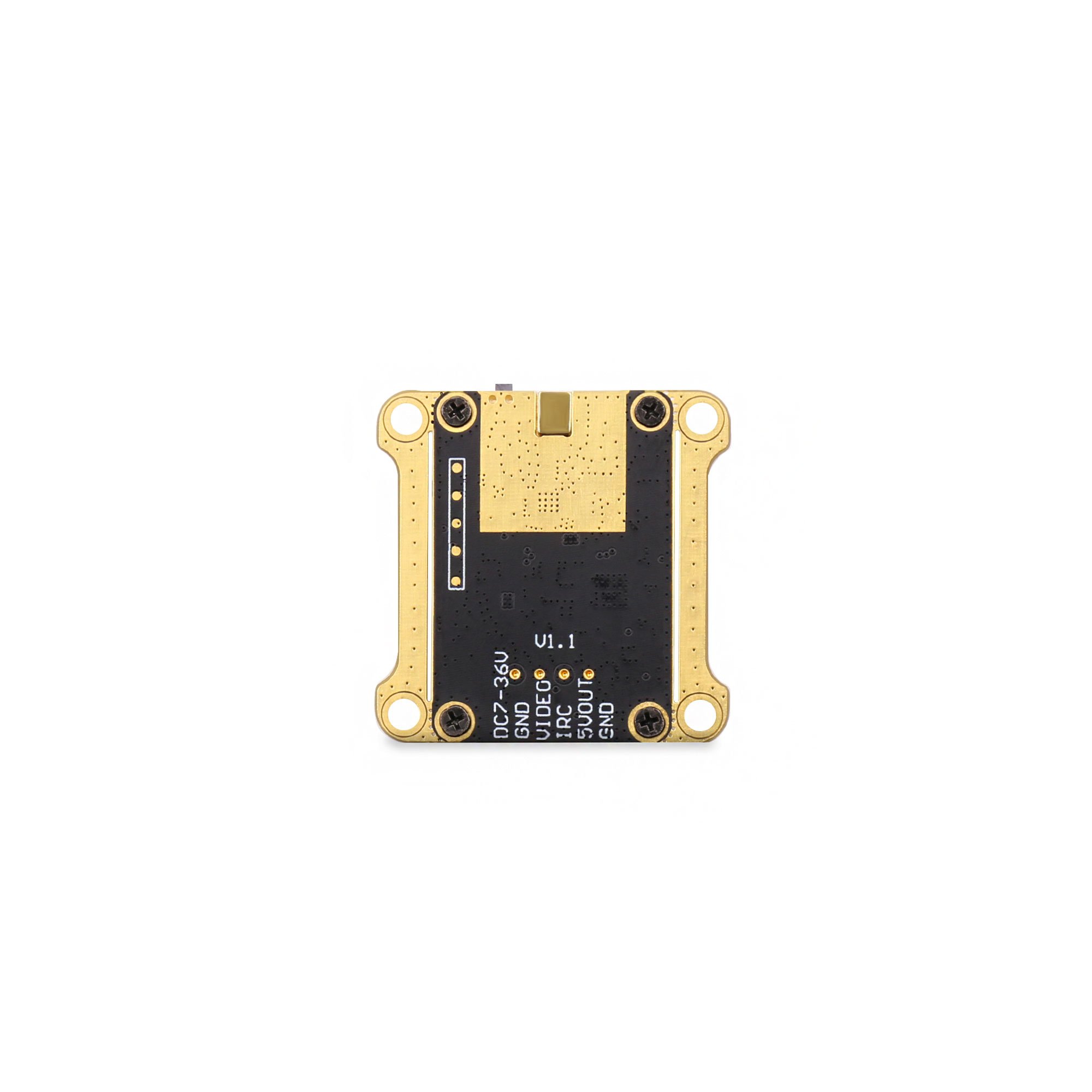

- The 5V Output pad is ONLY for powering a low-current device like an FPV camera or a cooling fan. Do NOT connect your main battery or power input to the 5V Out pad.
Specifications
- Brand: GEPRC
- Model: RAD VTX 5.8G 1.6W
- Input Voltage: 7V – 36V (2-8S LiPo)
- Output Power: PIT / 25mW / 200mW / 600mW / 1600mW
- Protocol: IRC Tramp
- Antenna Connector: MMCX
- BEC Output: 5V @ 600mA

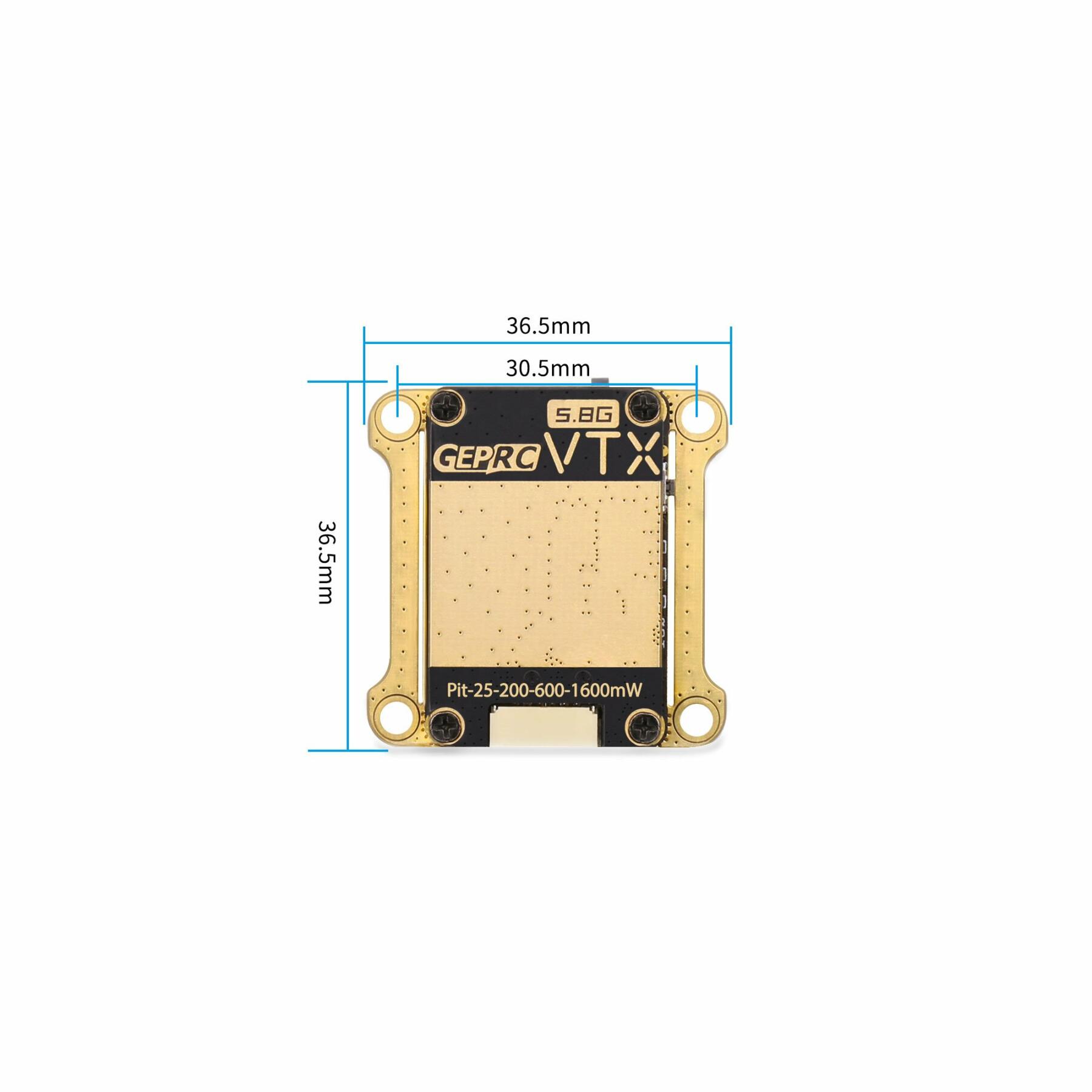

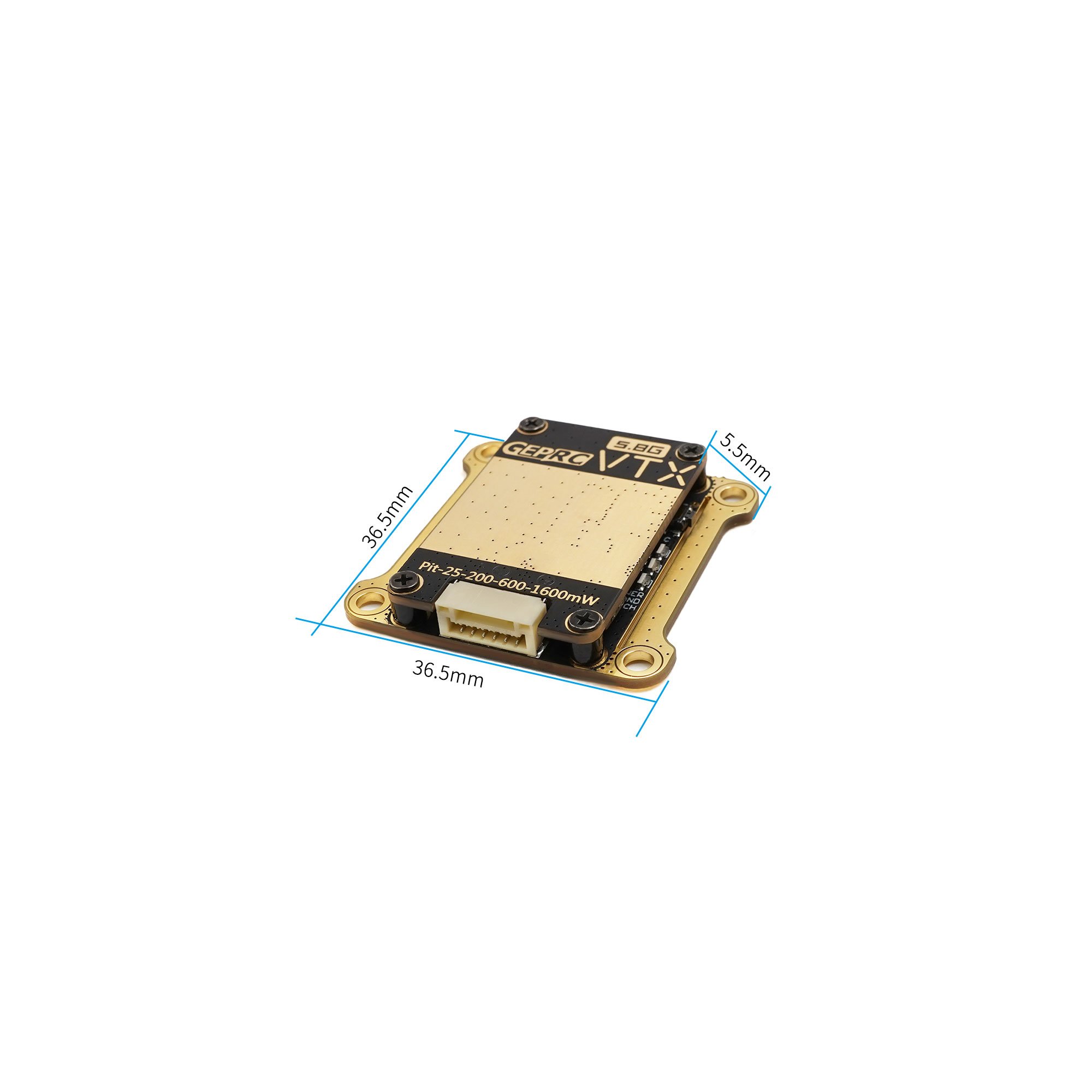

- Mounting Holes: 30.5mm x 30.5mm (M3)

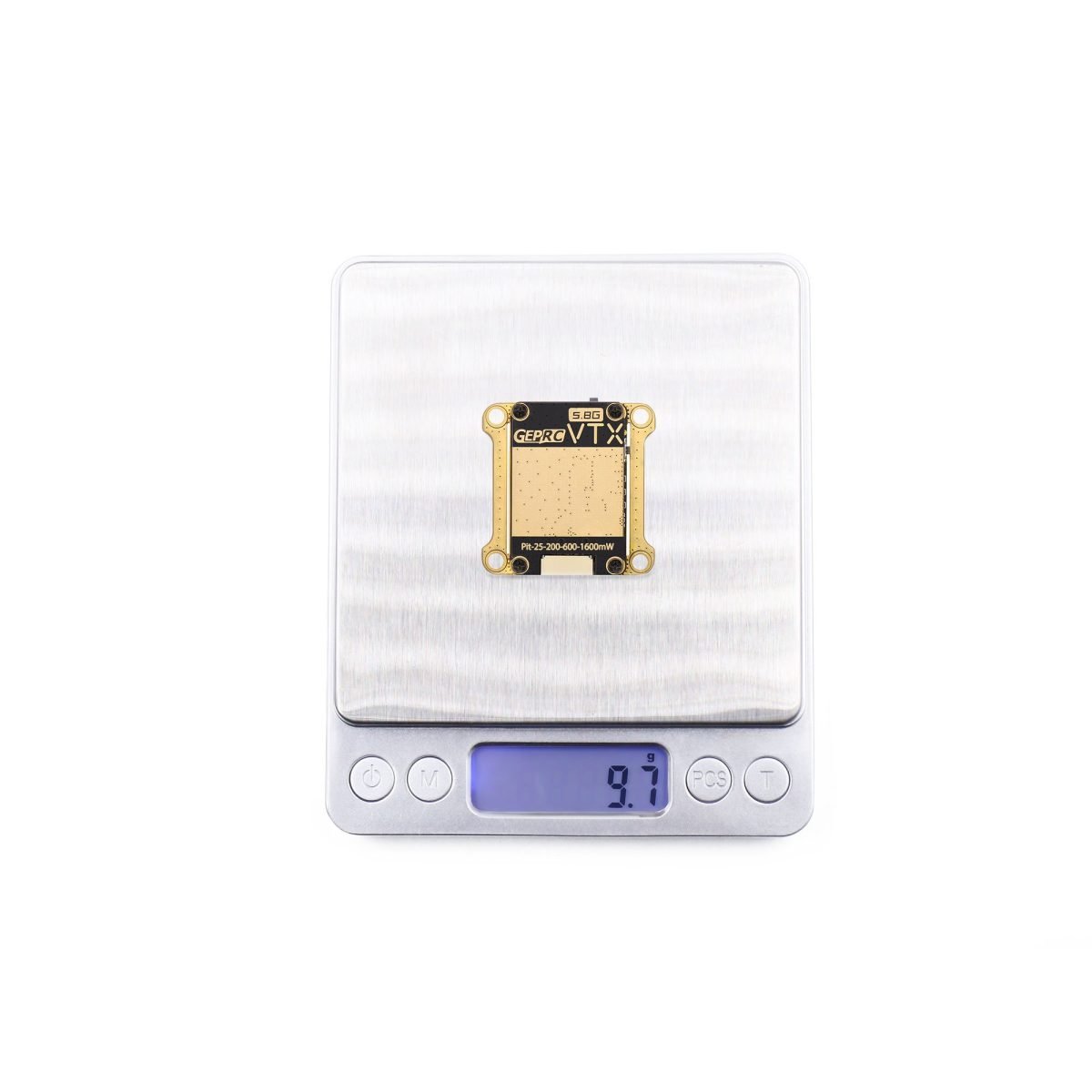

- Weight: 9.7g

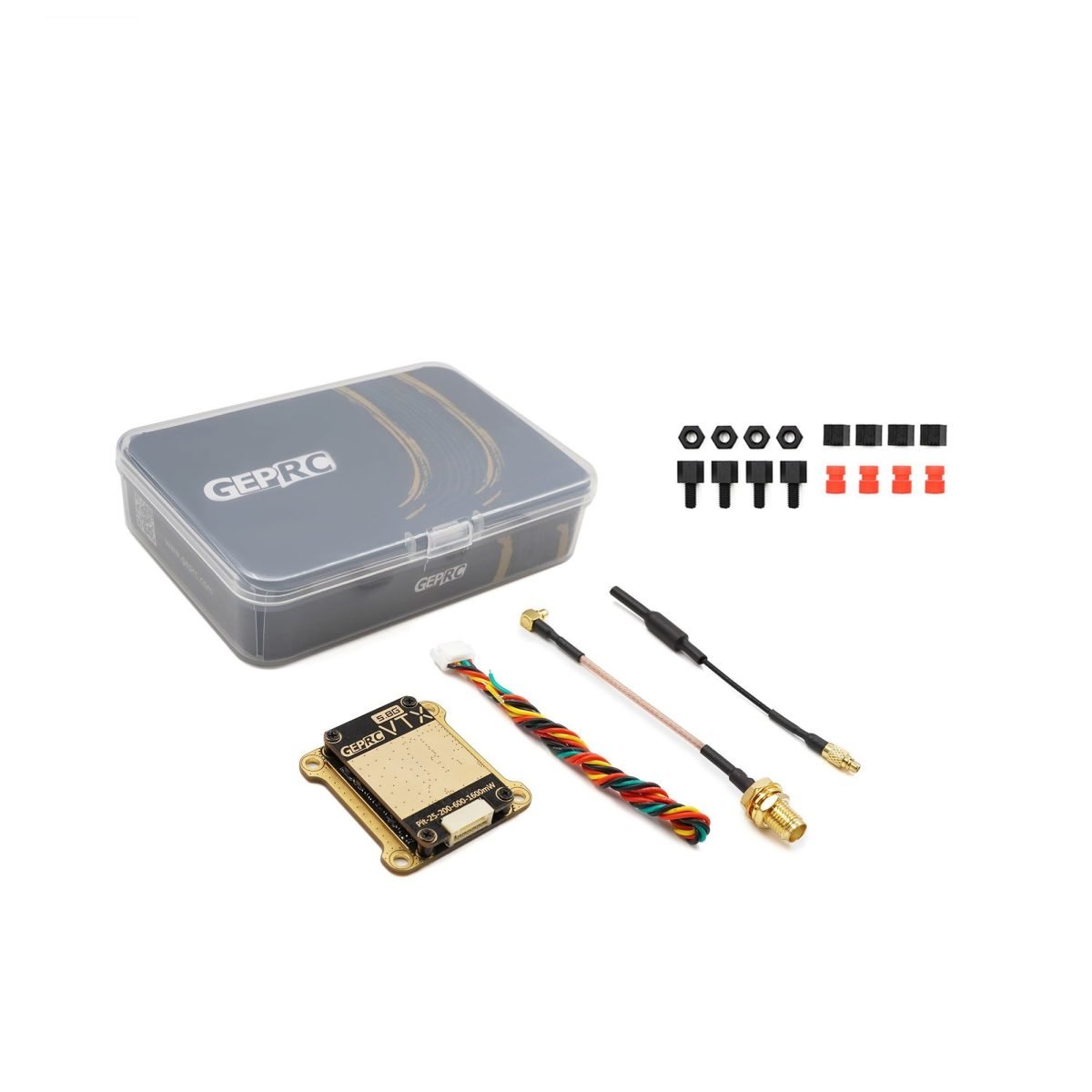

What’s in the Box?
- 1x GEPRC RAD VTX 1.6W
- 1x 72mm MMCX Copper Tube Antenna
- 1x MMCX to SMA Female Pigtail Cable
- 1x GH 1.25*6P Connecting Cable
- 1x Matching Screw Package
