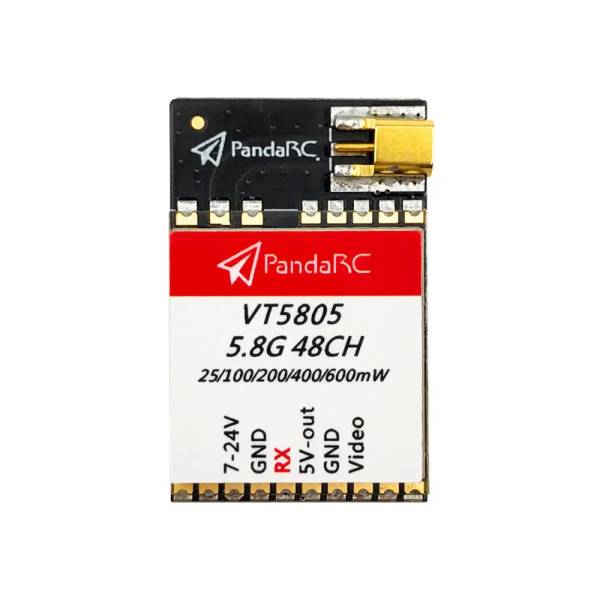

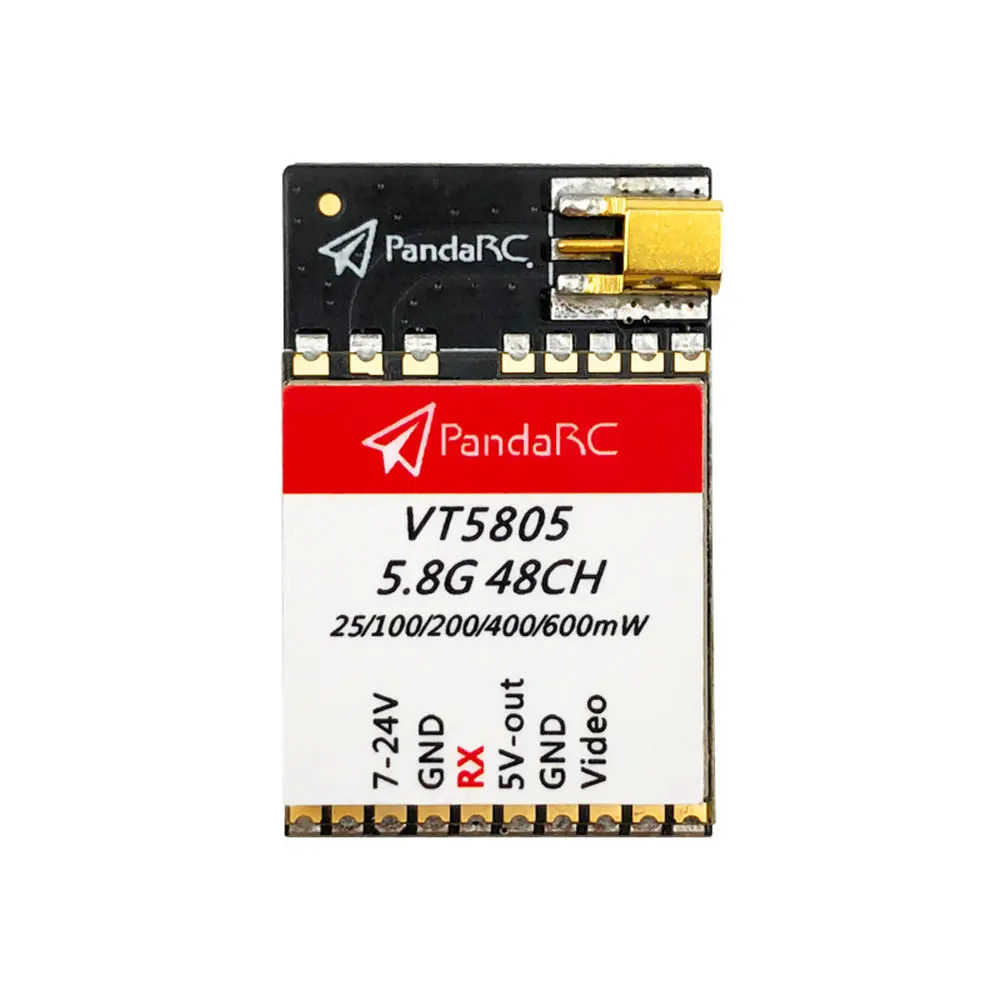

PandaRC VT5805 5.8G 48CH 25/100/200/400/600mW FPV Transmitter
Check out all of our PandaRC Products
Specifications
Output Power: 25/100/200/400/600mw switchable
Frequency: 5.8G 48CH
Output voltage: 7-24v

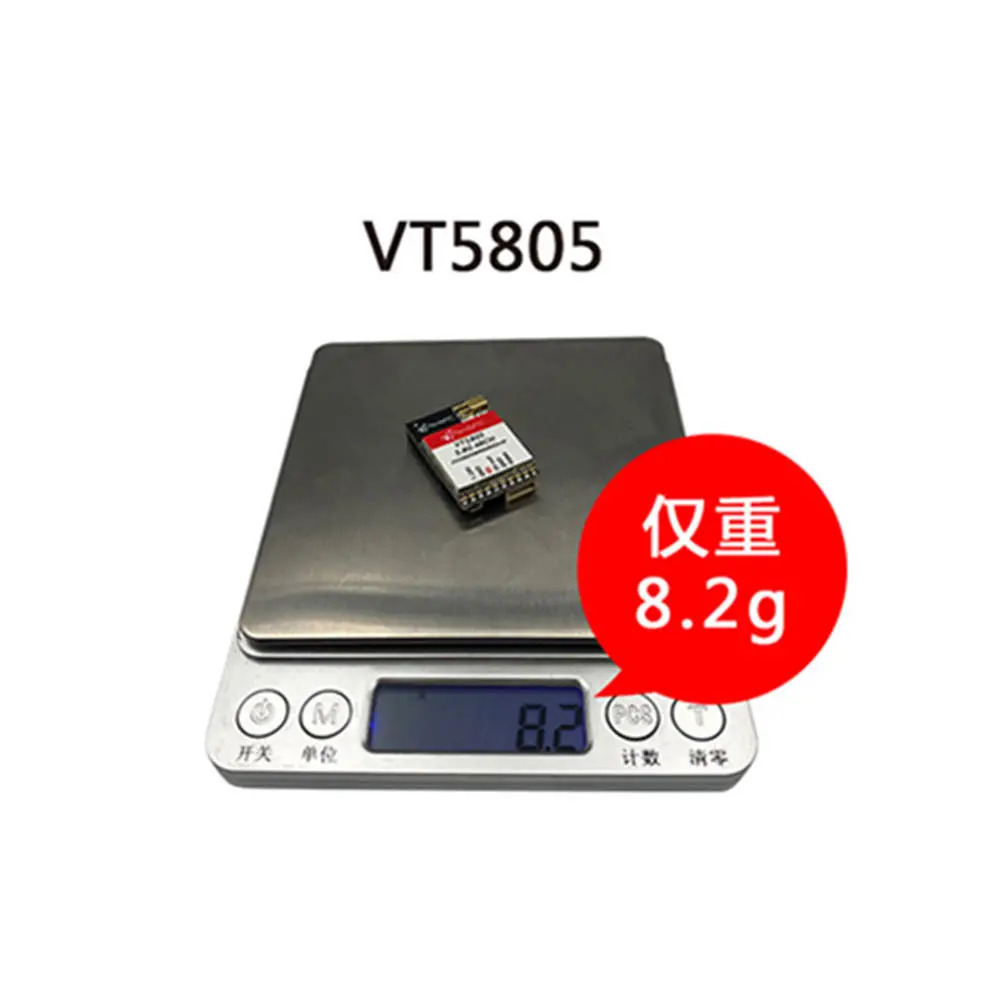

Weight: 8.2g

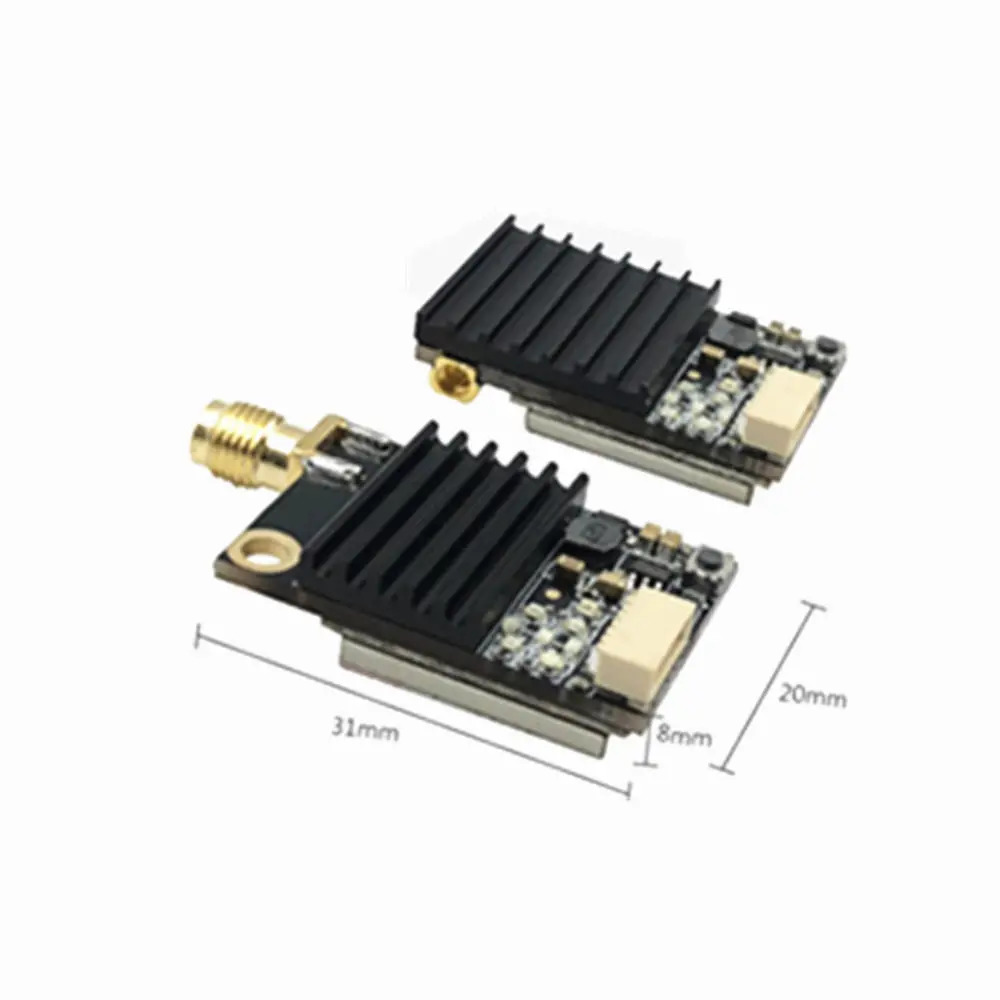

Size: 20x31x8mm

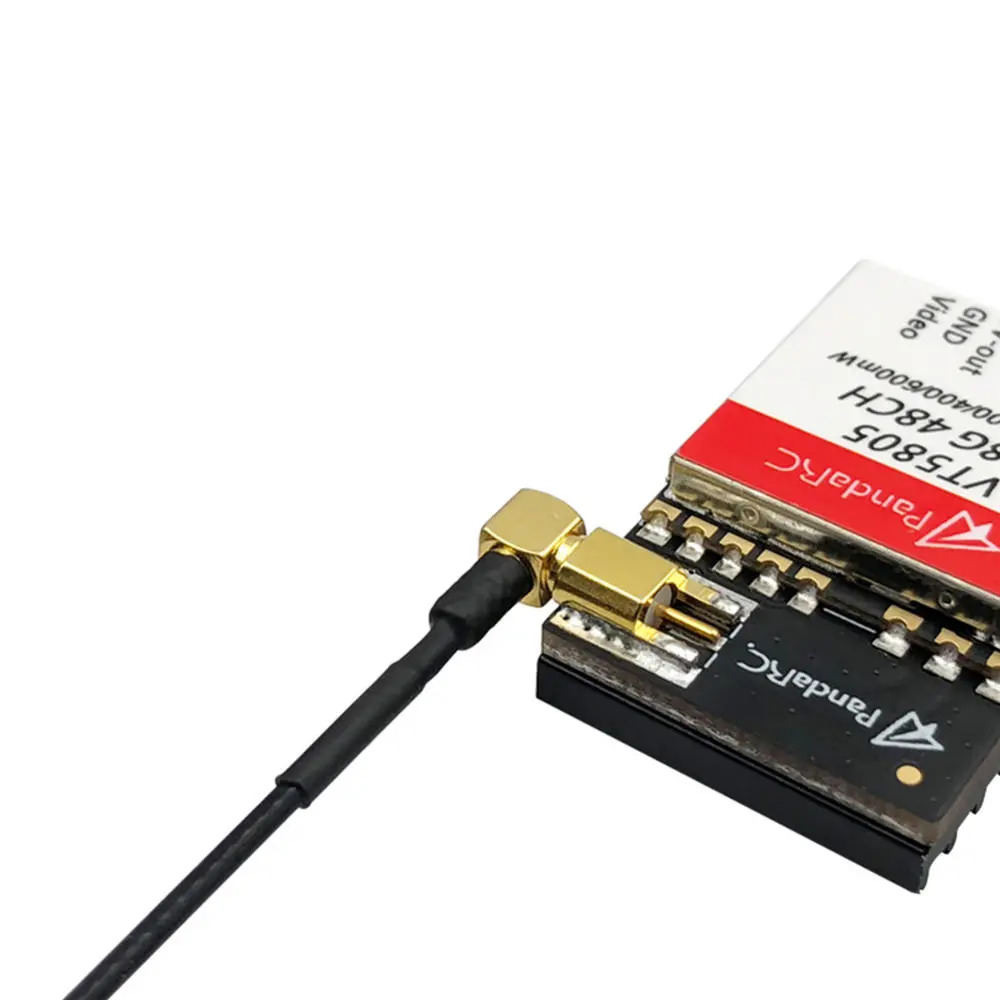

Connector: MMCX
Frequency and power control methods:
Image transmission supports OSD decoding and tuning;
Key frequency control: short press once, change the channel number CH (CH1-CH8),
Long press the button for 2 seconds and then press the button to change the frequency group FR (A, b, E, F, r, L);
Long press the button for 2 seconds and then press the button to change the frequency group FR (A, b, E, F, r, L);
Button power control: long press the button for 10 seconds and then press the button to change the power level to 25/100/200/400/600mw;
Power indication: indicated by red LED light
Features
The pre-installed heat sink on the back for more stable image transmission
Transmission distance ≥0.5km@25mw, ≥1km@200mw, ≥2km@600mw (original antenna)

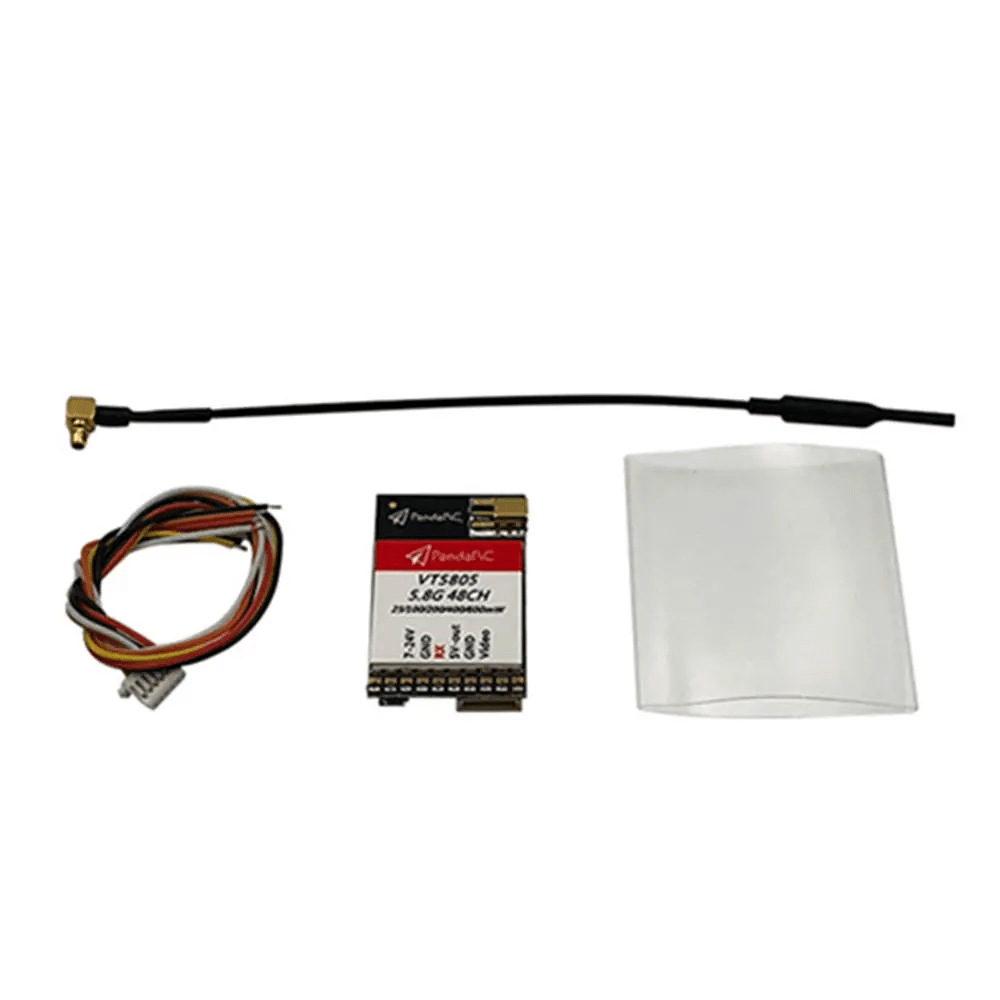

Package includes
1 x PandaRC VT5805 5.8G 48CH 25/100/200/400/600mW FPV Transmitter MMCX
