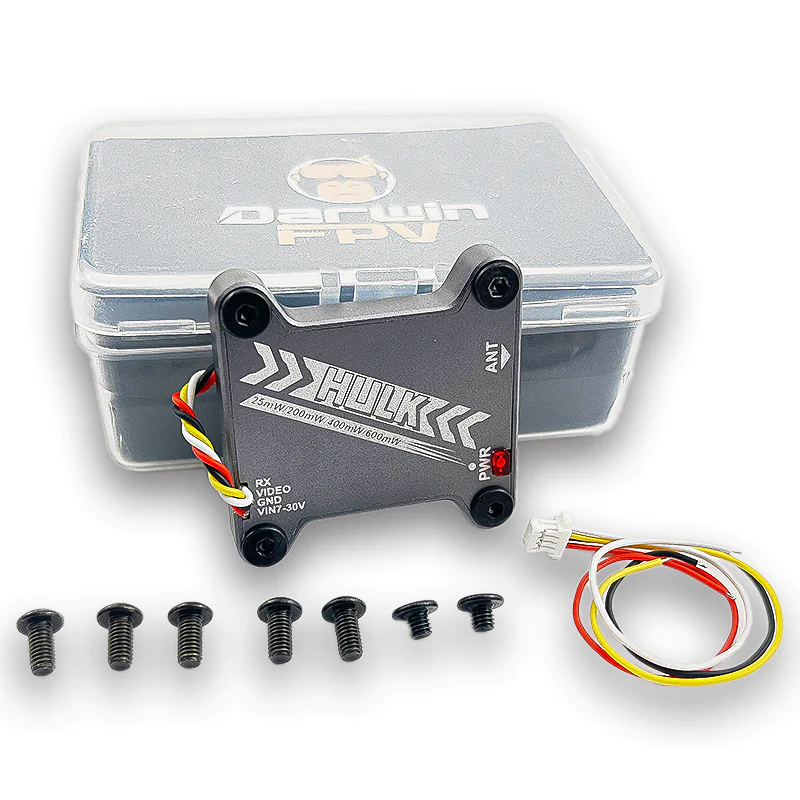

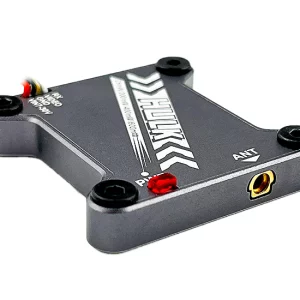

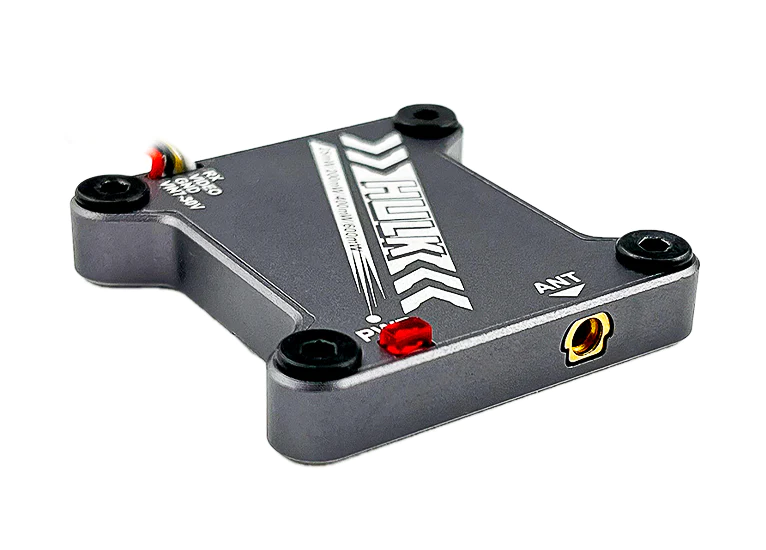

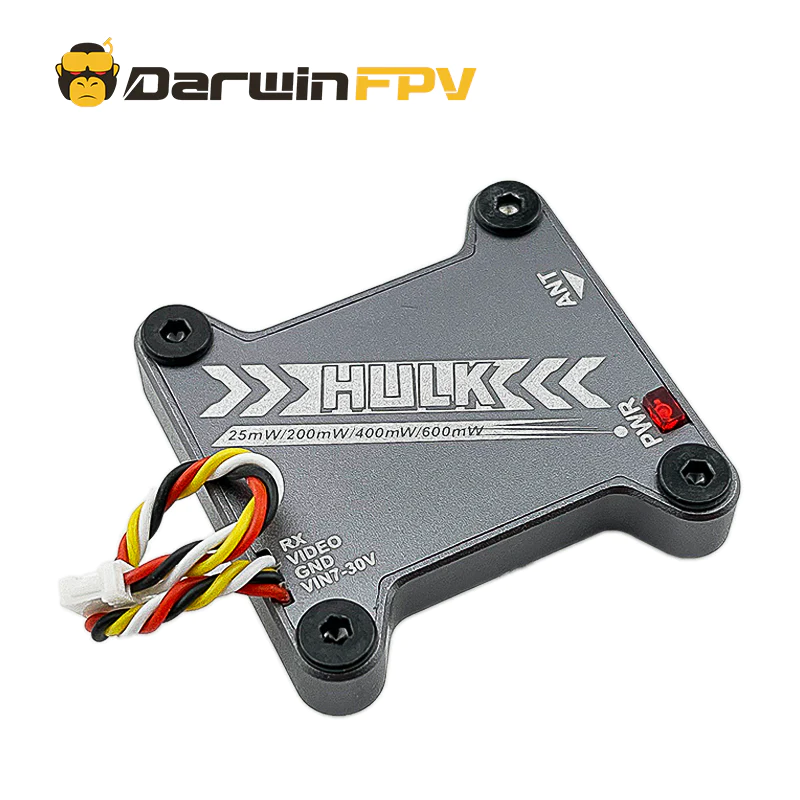

DarwinFPV 5.8G HULK VTX 40CH
See all of our DarwinFPV Products and all of our Video Transmitters!
The HULK VTX utilizes an aluminum alloy potting technique and boasts an IP67 protection rating, providing exceptional resistance to water, dust, and heat. This feature enables the device to operate efficiently even in unfavorable conditions such as rainy and snowy weather and other demanding environments. Additionally, it supports the SmartAudio protocol, with adjustable output power options ranging from 25mW to 600mW, catering to diverse needs. The MMCX connector is the mainstream antenna type, and the installation hole measures 30.5×30.5mm.
Features
- Dependable and secure: The VTX incorporates high thermal conductivity silica gel and is encased in an aluminum alloy shell to enhance heat dissipation, ensuring a more robust performance.
- Suitable for all-weather conditions: The VTX is fully enclosed, resulting in outstanding waterproof and dustproof capabilities, with an impressive IP67 protection rating. It can effortlessly handle a range of harsh environments, including rain, snow, and more. Even after being immersed in fresh water for over 30 minutes, it continues to function effectively.
Note
â‘ To prevent corrosion, ensure that any drone that comes in contact with seawater is promptly rinsed with fresh water and dried.
â‘¡ Before powering on the device, verify that the VTX antenna is properly installed to avoid damage.
â‘¢ To prevent damage, adhere to the recommended input voltage range of 7-30V for the VTX.
â‘£ For optimal transmission distance, it’s recommended to use an antenna with a superior standing wave and gain.
⑤ During operation, the VTX generates high temperatures on its surface. To avoid burns, do not touch it.
â‘¥ To prevent static electricity buildup during use and transportation, exercise caution.
The specifications of the VTX:
Model | HULKÂ VTX |
Frequency | 5.8GÂ 40CH |
Transmitting Power | 25mW/200mW/400mW/600mW(Adjustable) |
Power supply | DC 7-30V |

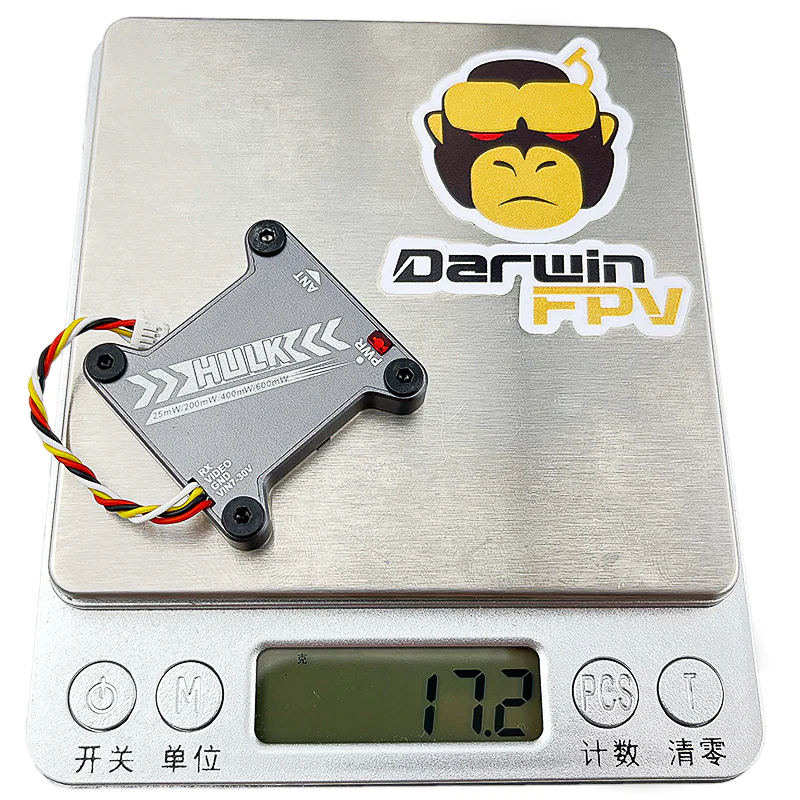

Weight | 15.9g(Antenna Not Included) |

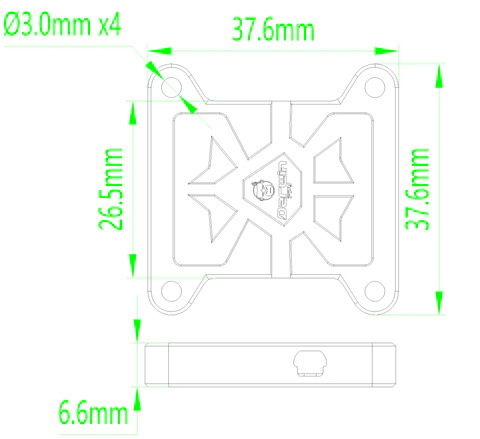

Center distance of mounting holes | 30.5mm x 30.5mm |
Size | 37.6mm x 37.6mm x 6.6mm |
