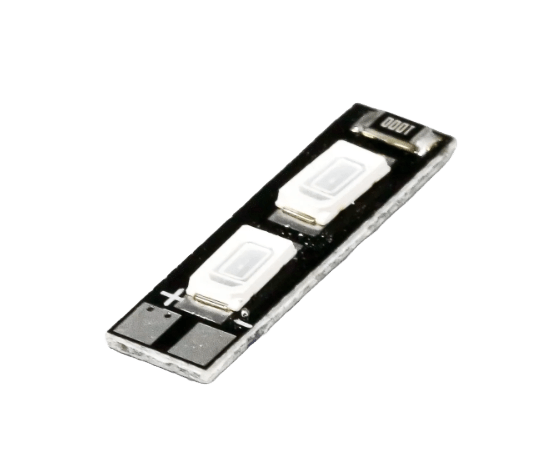

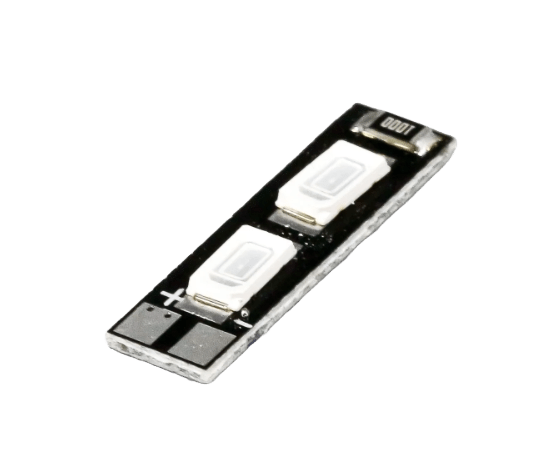

Tiny’s LEDs 2-3s Micro LEDs

Enhance your micro FPV drone with Tiny’s powerful, bright LEDs. These compact LED boards are specifically designed to be a perfect fit for 2-inch and 3-inch FPV drones, providing excellent visibility for orientation, line-of-sight flying, or simply adding a touch of custom style to your build. They are a simple and effective drone part for any micro FPV drone kit.

Bright Illumination for Micro Drones. Each board features two high-intensity 5730 LED chips that produce a vibrant and powerful light, making your FPV drone much easier to see in the air. This is perfect for maintaining orientation during complex freestyle maneuvers or for keeping track of your quad when flying with friends.

Compact & Easy to Install With a tiny footprint of just $6.3\text{mm}\times 21.75\text{mm}$, these LED boards can be easily mounted on the arm or frame of most micro FPV drones without adding significant weight or bulk. They are designed to be powered directly from your FPV drone’s 2S or 3S battery source, making for a simple and straightforward installation.

IMPORTANT: These LEDs Get Extremely Hot! Please be aware that these high-power LEDs can get extremely hot during operation. To prevent burns or damage to your FPV drone, allow the LEDs to cool down completely before handling your quad after a flight. Ensure they are mounted with adequate airflow and away from sensitive components like receiver antennas or plastics that could melt.

Key Features:

• High-Intensity Illumination: Two powerful 5730 LEDs create a brilliant light for high visibility on micro drones.
• Wide 2S-3S Compatibility: Works directly with your main LiPo battery voltage for simple, clean wiring on small builds.
• Ultra-Compact & Lightweight: A tiny footprint and sub-gram weight add style without a performance penalty.
• Multiple Color Options: Available in a variety of vibrant colors to match your build.

Specifications

• Brand: Tiny’s LEDs
• Input Voltage: 2S – 3S LiPo
• LED Chips: 2x 5730
• Dimensions: $6.3\text{mm}\times 21.75\text{mm}$
• Weight: $\sim 0.4\text{g}$
• Application: 2-3″ Micro FPV Drones

What’s in the Box?

• 1x Tiny’s LEDs 2-3s Micro LED Board (in your selected color)
