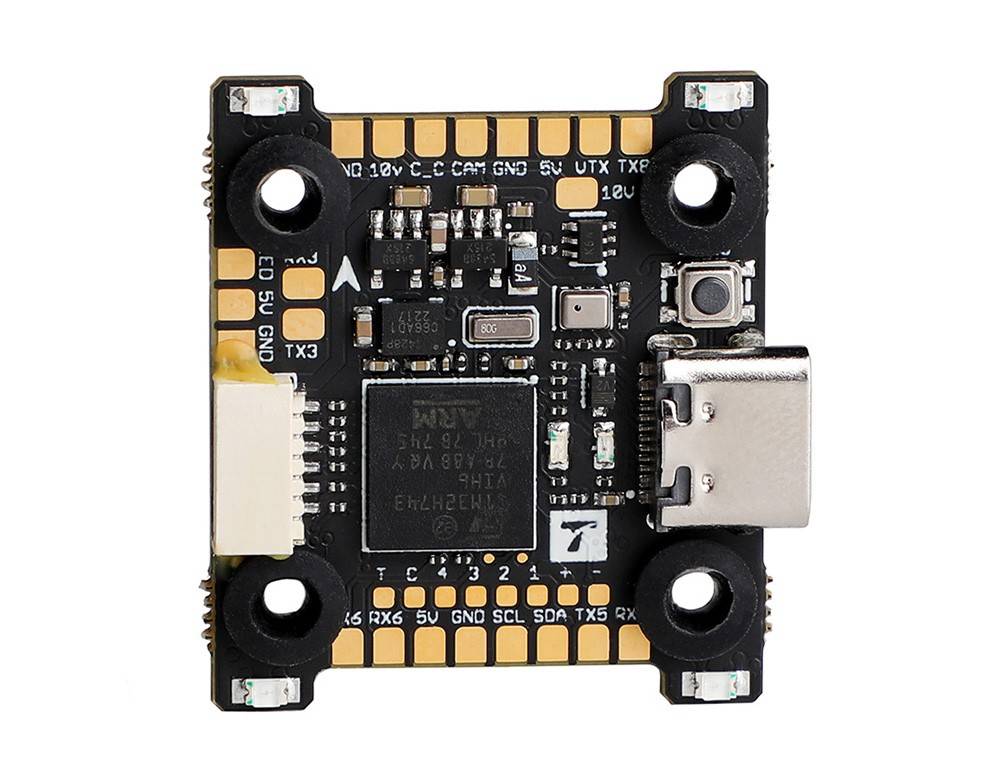

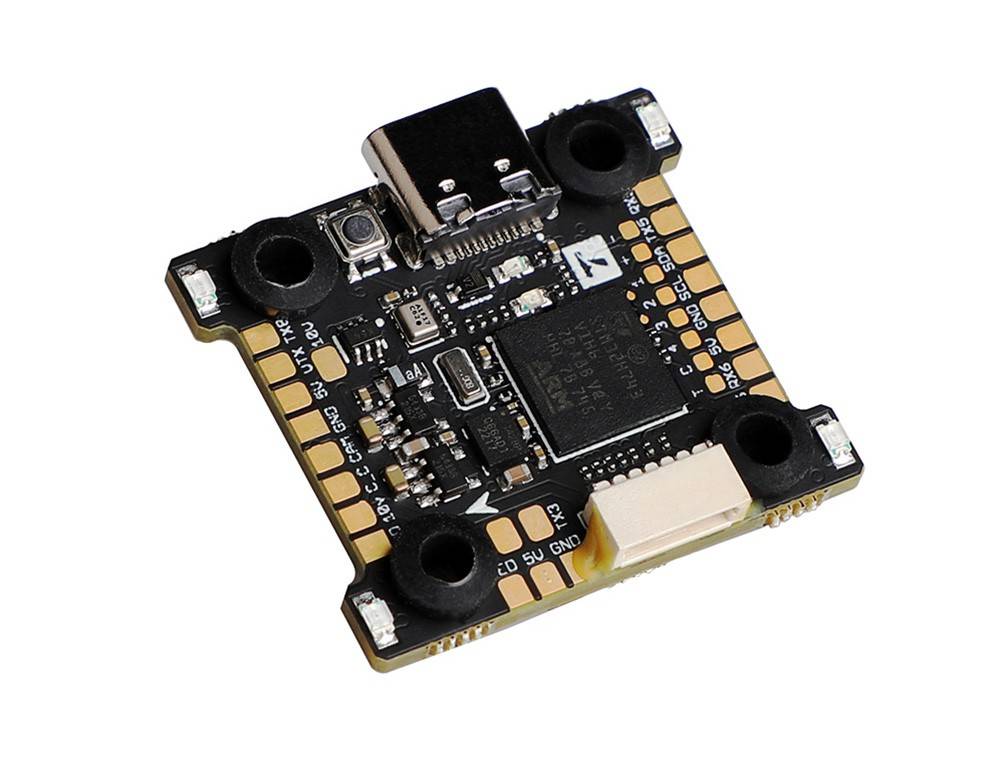

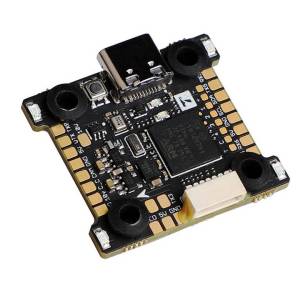

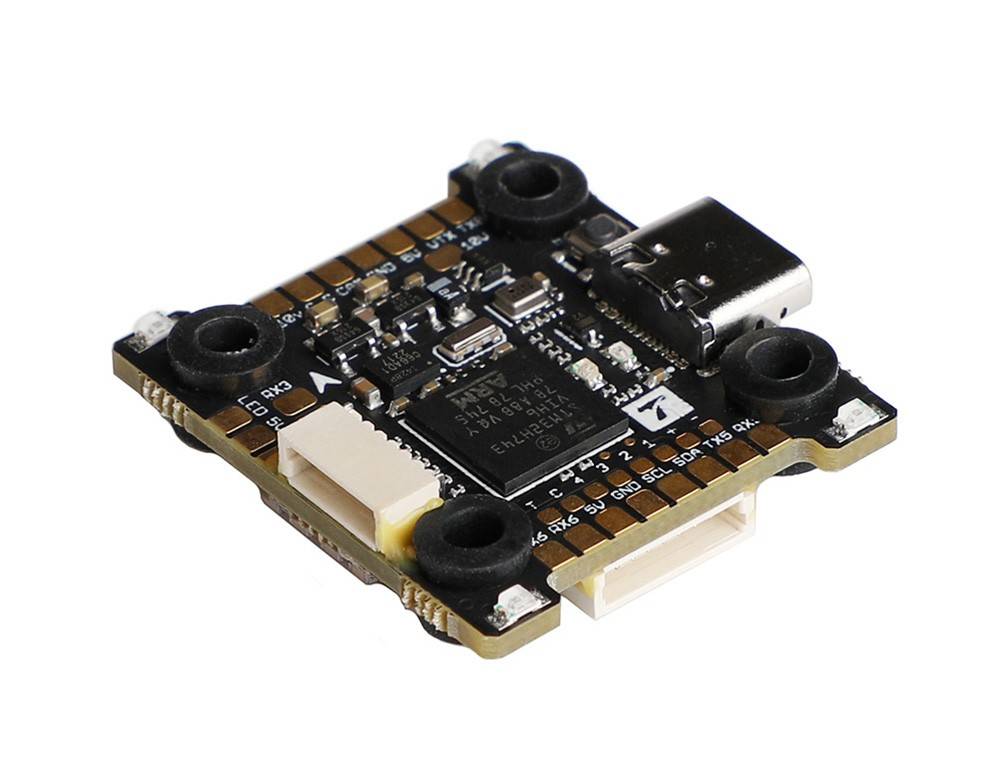

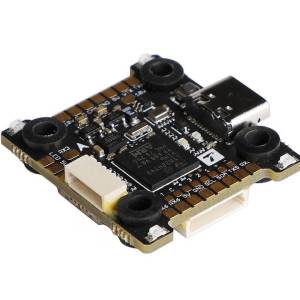

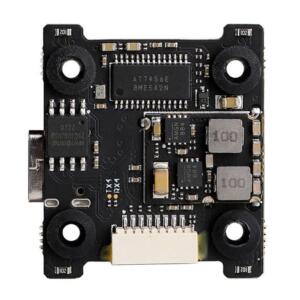

T-Motor Dual BEC H7 Mini Flight Controller

Experience flagship performance in a compact 20x20mm package with the T-Motor H7 Mini Flight Controller. This feature-packed board is engineered for pilots who demand the best, combining a powerful H7 processor, a choice of modern gyros with isolated power, and a robust dual BEC system. It’s the ultimate high-performance brain for your FPV racing drone, cinematic rig, or demanding freestyle build.

Flagship H7 Power & Isolated Gyro

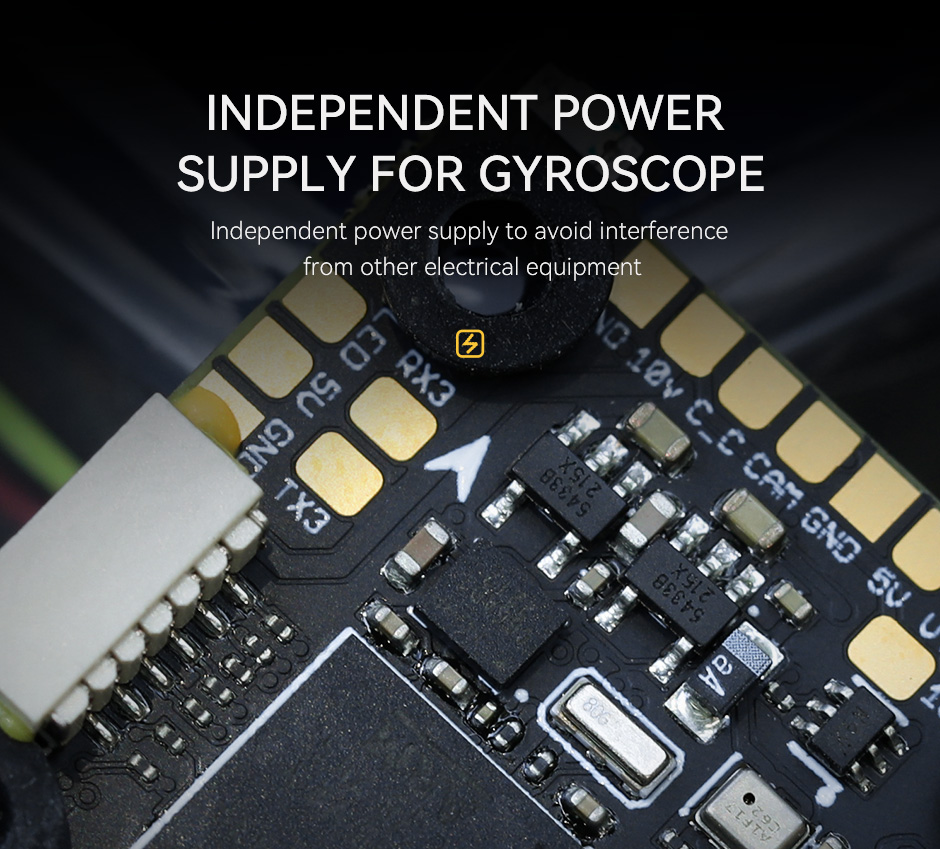

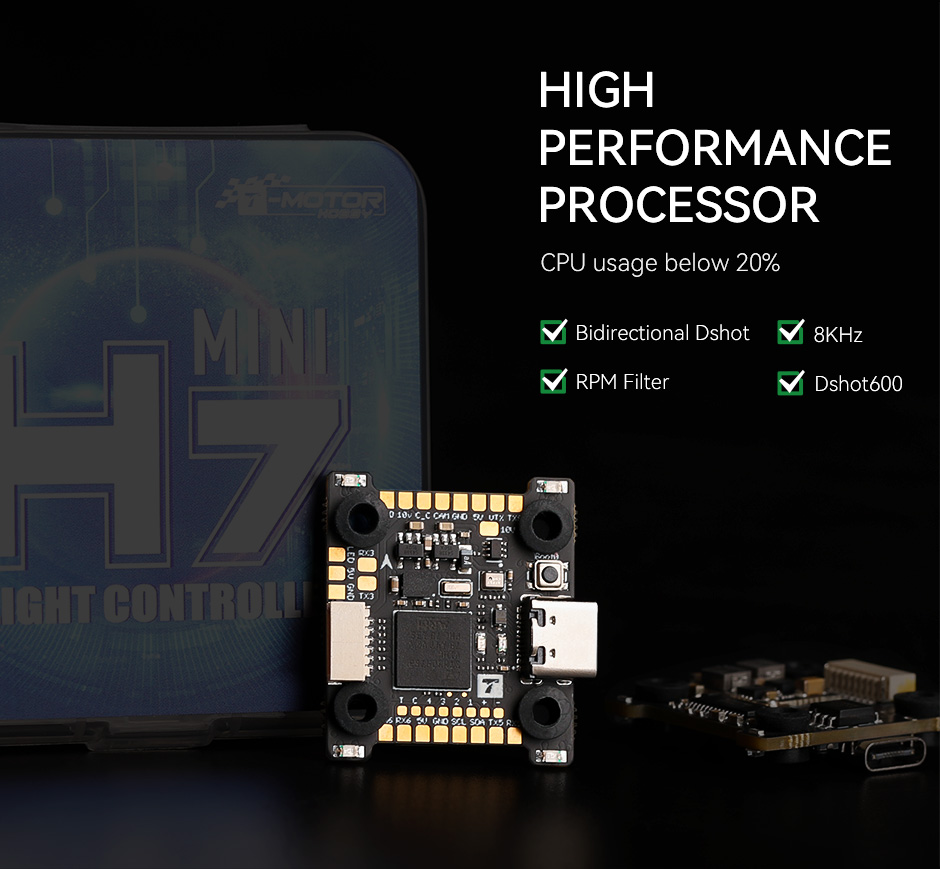

At the core of this flight controller is a top-of-the-line STM32H743 MCU running at a blazing-fast 480MHz, providing unparalleled processing power for the most demanding flight firmware features. A standout feature is the gyroscope’s independent power supply, which isolates it from electrical noise from other components. This results in a cleaner signal and a smoother, more locked-in flight experience.

Ready for Any FPV System

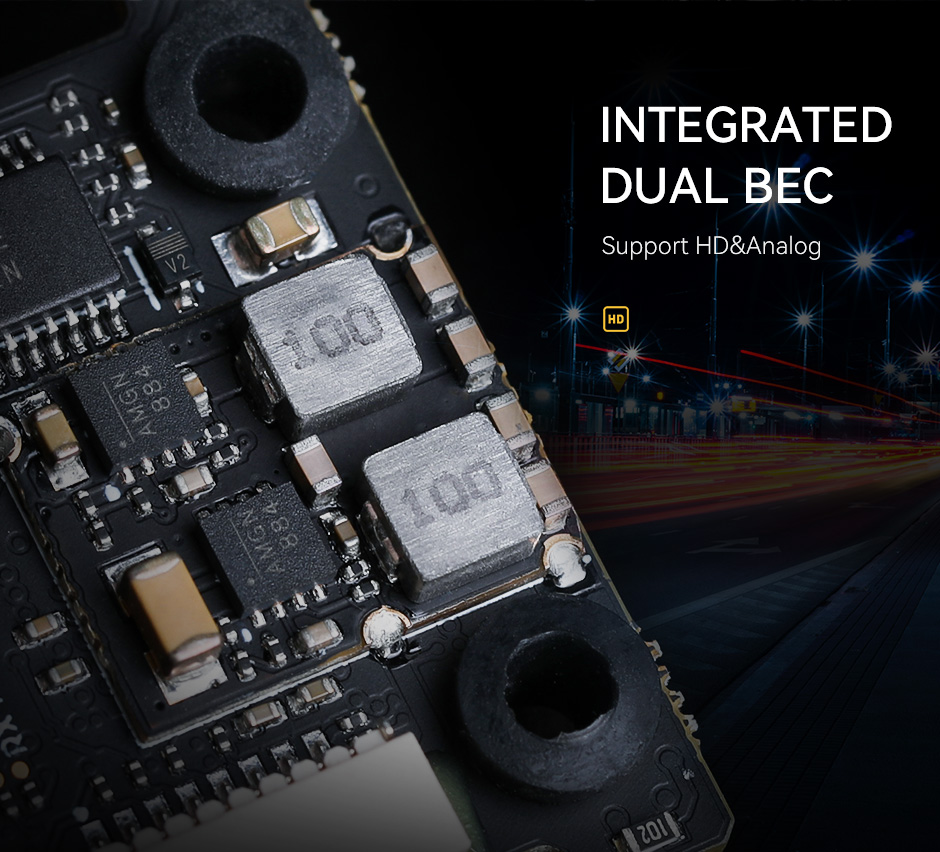

This flight controller is built for both digital and analog FPV systems. It features a powerful dual BEC system, including a dedicated 10V @ 1.5A BEC designed to provide clean, stable power to modern, power-hungry digital VTXs like the DJI O3 Air Unit. The board also includes a high-precision DPS310 barometer for altitude sensing and 16MB of blackbox flash for easy tuning.

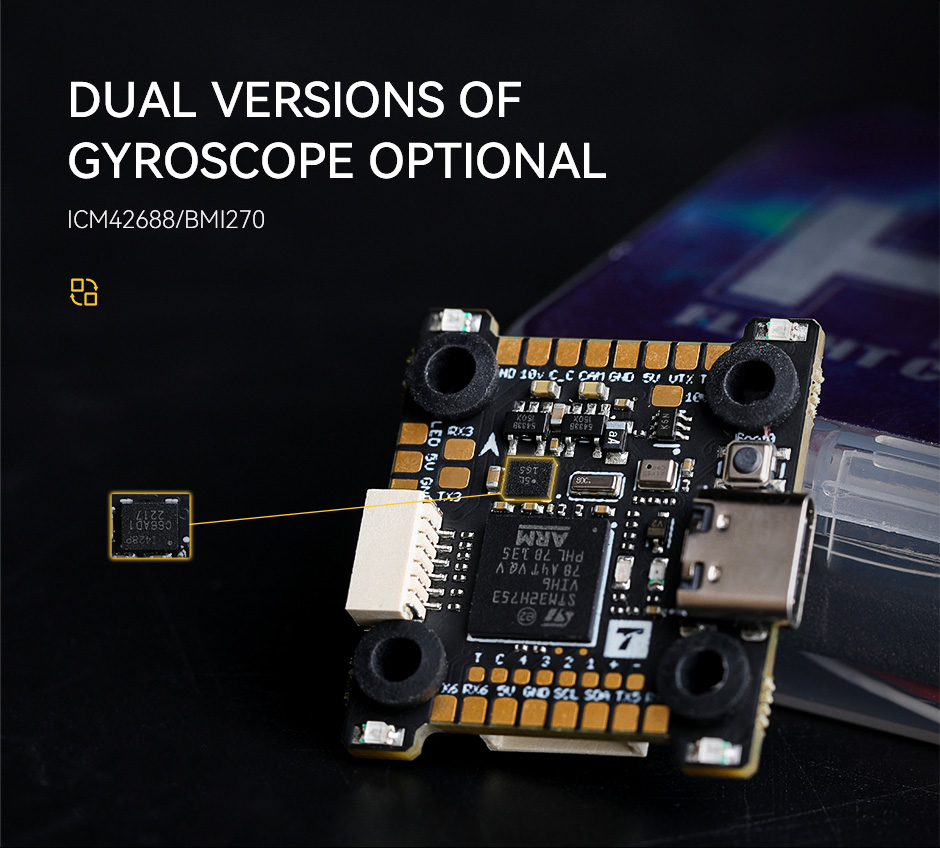

Customize Your Performance: Choose Your Gyro

The T-Motor H7 Mini allows you to choose between two of the best gyros on the market to suit your preference. Please select your desired version from the dropdown menu:

• ICM42688P: A modern, reliable gyro known for its excellent all-around performance and stability.
• BMI270: Another top-tier gyro, favored by many pilots for its exceptional resilience to noise and frame vibrations.

Key Features:

• Blazing-Fast H743 MCU: A top-of-the-line 480MHz processor provides unparalleled performance for all modern flight firmware features.
• Isolated Gyro Power: A dedicated power supply for the gyro results in an ultra-clean signal for the smoothest possible flight performance.
• Choice of Modern Gyros: Select either the ICM42688P or BMI270 to match your preference and build requirements.
• Digital HD Ready: A powerful 10V/1.5A BEC provides clean, reliable power for DJI O3 and other power-hungry digital VTXs.
• Massive Connectivity: With 7 available UARTs and 11 PWM outputs, this board can handle even the most complex builds, including hexacopters or planes.
• Onboard Barometer & Blackbox: Includes a high-precision DPS310 barometer and 16MB of blackbox flash for easy tuning.

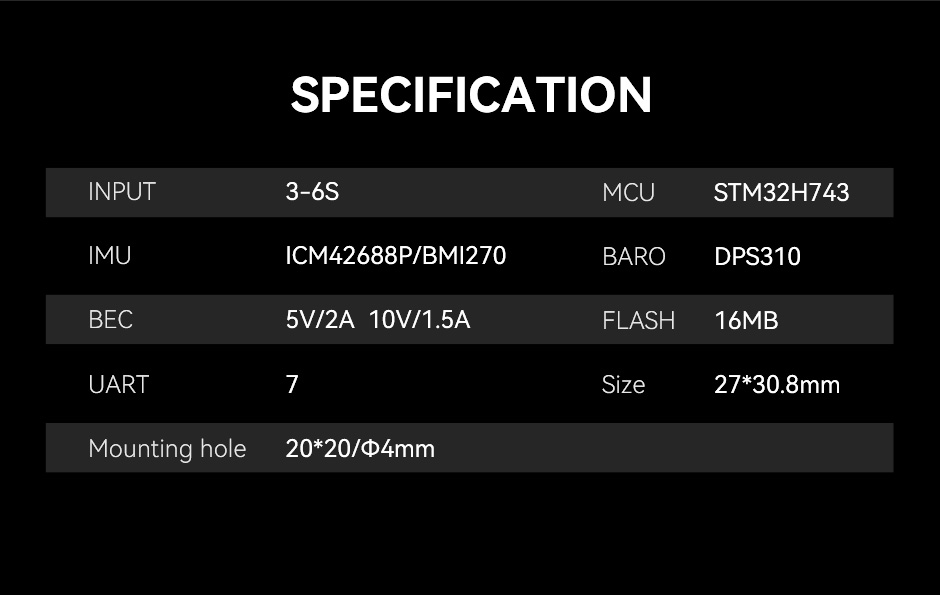

Specifications

• Brand: T-Motor
• MCU: STM32H743 @ $480\text{MHz}$
• Gyro Options: ICM42688P or BMI270
• Barometer: DPS310
• Blackbox: 16MB Onboard Flash

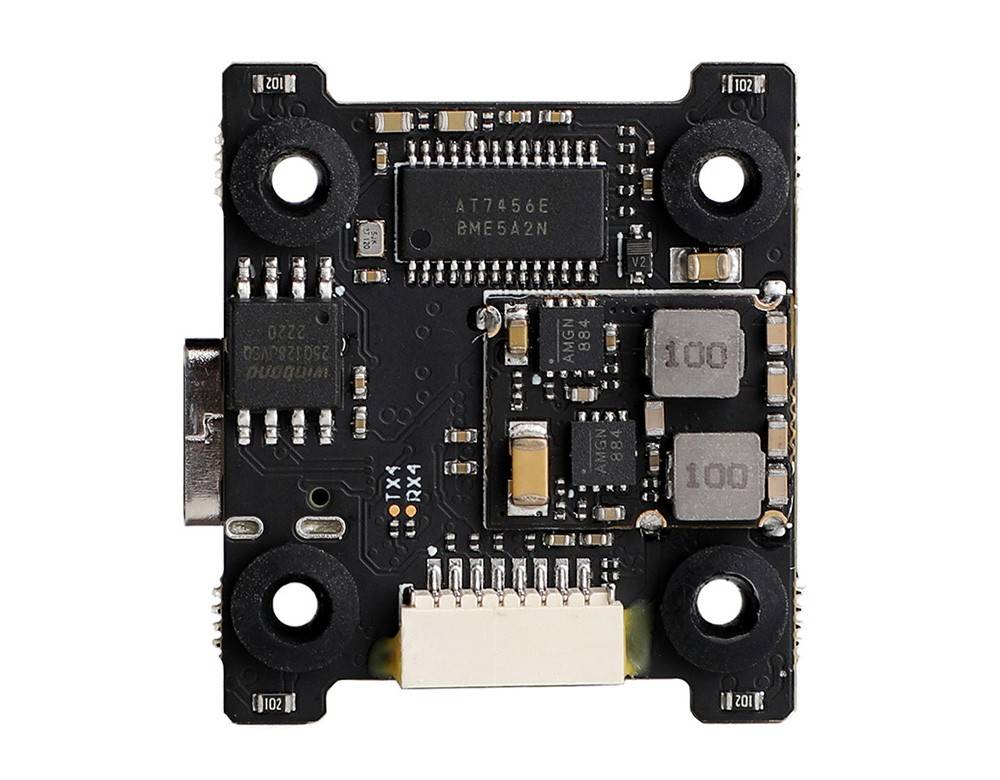

• OSD: AT7456E
• BEC Outputs: $5\text{V}/2\text{A}$ & $10\text{V}/1.5\text{A}$
• UARTs: 7
• PWM Outputs: 11
• Mounting: $20\text{x}20\text{mm}$ (M3 with grommets)
• Weight: $5\text{g}$

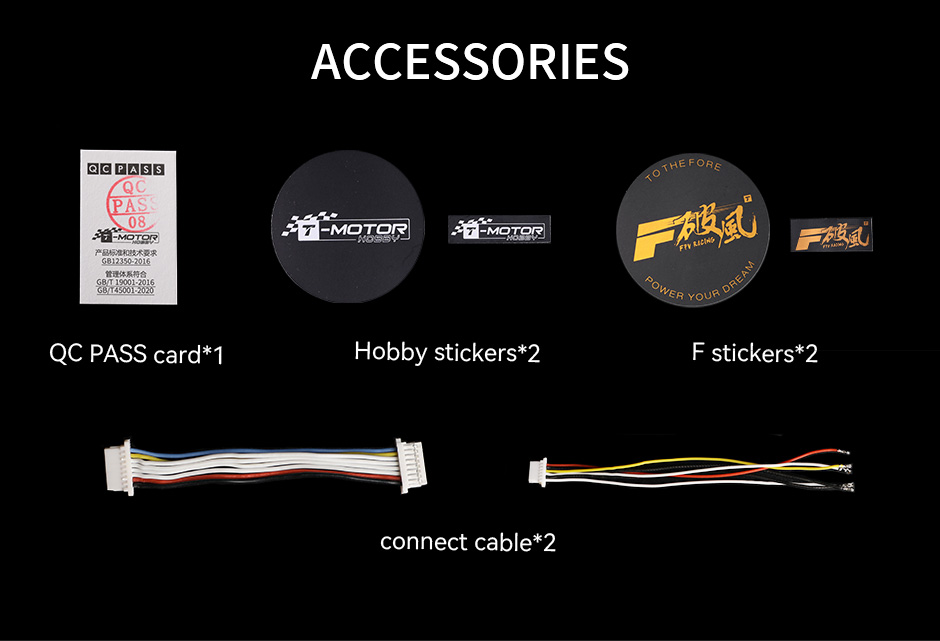

What’s in the Box?

• 1x T-Motor H7 Mini Flight Controller (in your chosen Gyro version)
• 1x Set of FC Connecting Cables
• 1x Set of Mounting Grommets
• 2x Sticker Sets
