Spedix GS40F 40A 3-6S BLHeli32 4-in-1 Mini ESC
Check out all of our Speedix Products, and all of our ESCs!

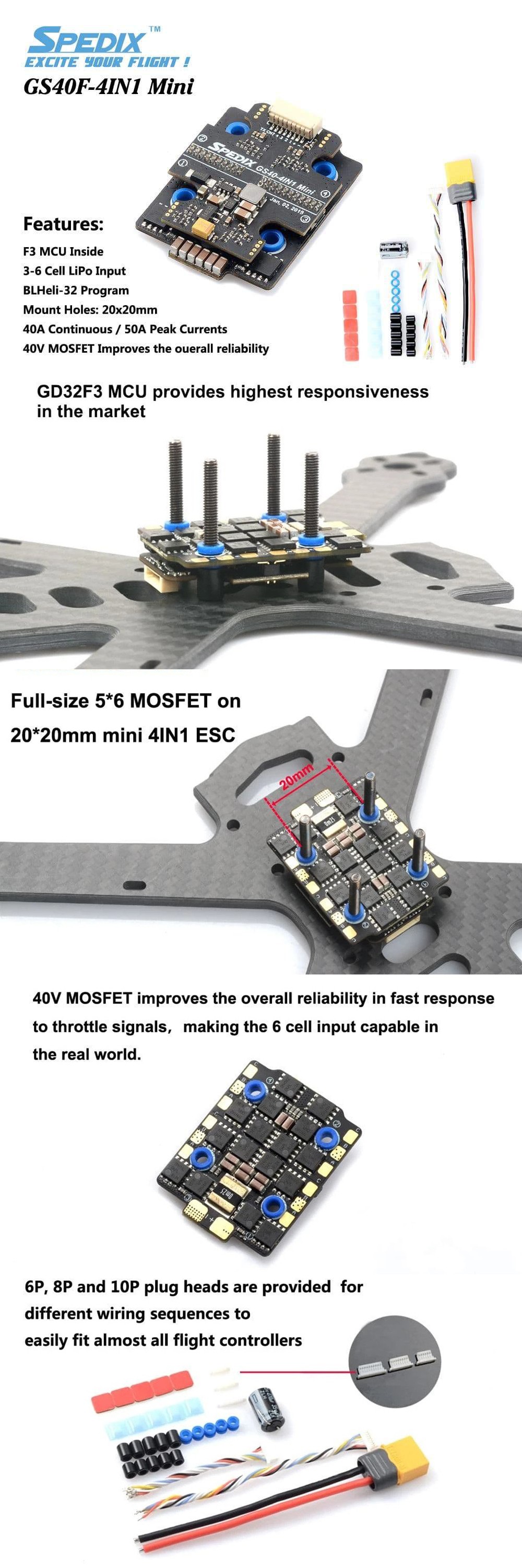

Experience next-level reliability in a compact package with the Spedix GS40F Mini 4-in-1 ESC. This electronic speed controller solves a common weak point of mini ESCs by using an innovative double-deck design to house full-size MOSFETs on a 20x20mm board. It’s a high-performance drone part designed for pilots who need a durable and responsive power system for their FPV drone kit or custom build.
Full-Size MOSFETs, Mini 20×20 Size

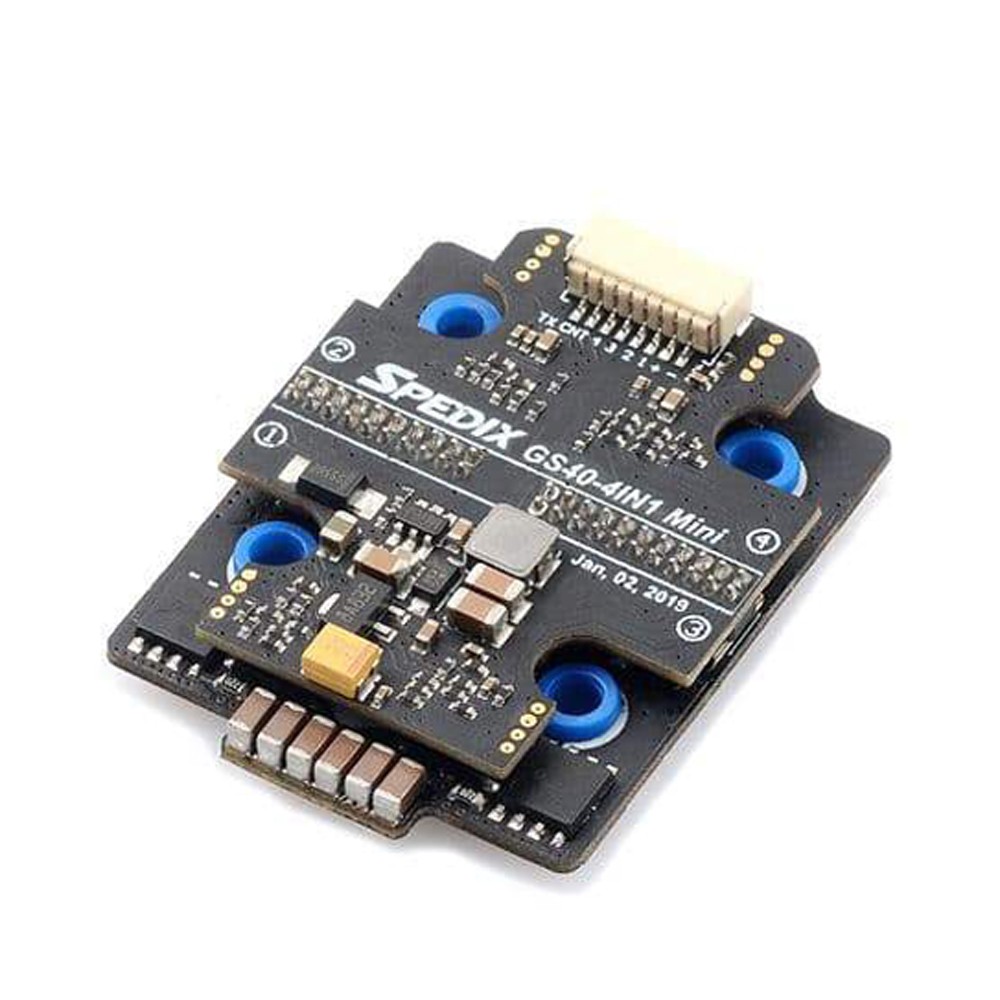

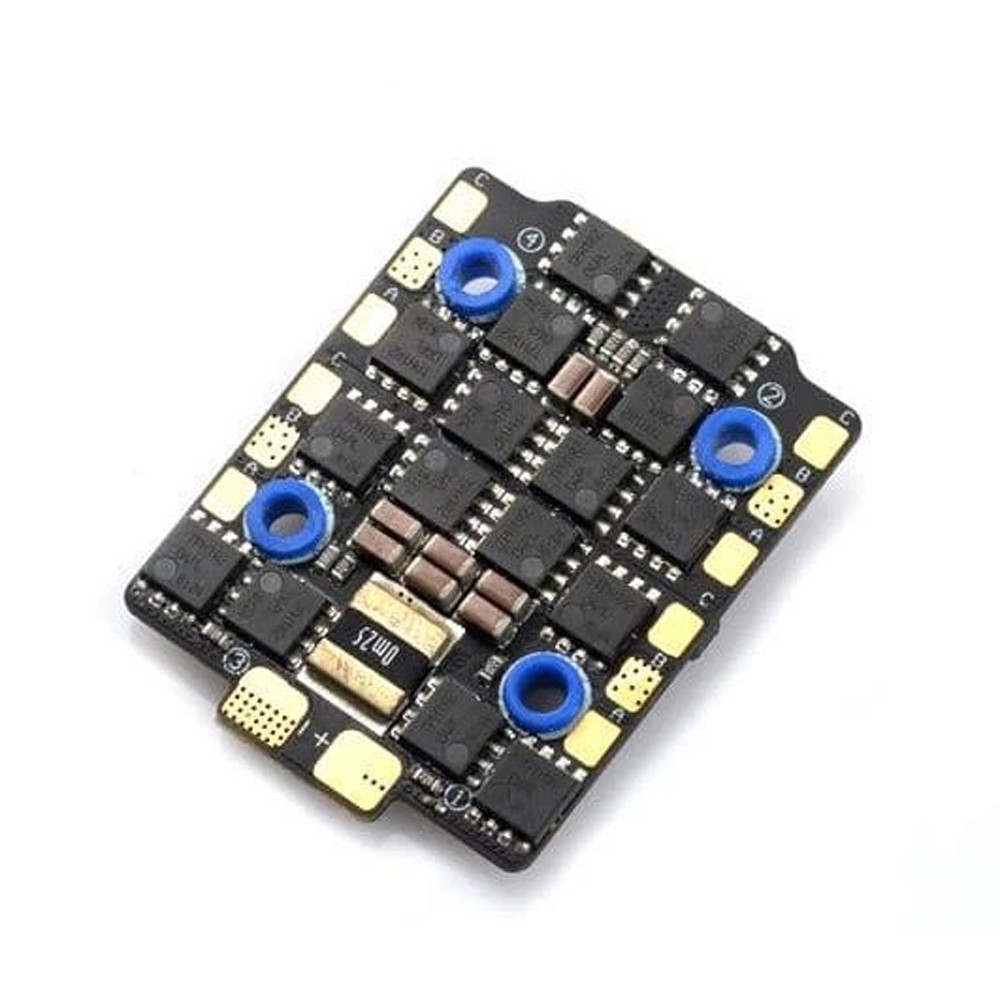

The standout feature of the GS40F is its unique stacked-board design. This clever engineering allows for the implementation of robust, full-size 5x6mm MOSFETs, components typically found only on larger 30x30mm ESCs. This results in significantly improved reliability, better heat dissipation, and the ability to handle the high-current demands of modern FPV drone motors without compromise.
Powerful & Responsive BLHeli_32 Performance
Powered by a fast GD32F3 MCU and running on modern BLHeli_32 firmware, the Spedix GS40F delivers the highest level of responsiveness and performance. This 32-bit platform supports advanced features like bi-directional DShot for RPM filtering, variable PWM frequencies, and more. With a continuous current rating of 40A and support for 3-6S LiPo batteries, this ESC has plenty of power for nearly any 5-inch FPV drone build.
Specifications
- Brand: Spedix
- Model: GS40F Mini 4-in-1
- Input Voltage: 3-6S LiPo
- Continuous Current: 40A
- Burst Current: 50A (for 10 seconds)
- Firmware: BLHeli_32
- MCU: GD32F3
- MOSFETs: Full-size 5x6mm
- Mounting Holes: 20x20mm (M3)
- Dimensions: 40x31x8mm
What’s in the Box?
- 1x Spedix GS40F Mini 40A 4-in-1 ESC
- 1x XT60 Power Pigtail
- 1x ESC-to-FC Wiring Harness
- 1x Set of Mounting Grommets
