Upgrade your radio to the pinnacle of precision and feel with the RadioMaster AG02 CNC Hall Gimbals. This is the ultimate gimbal upgrade, precision-engineered from machined aluminum and featuring next-generation Hall effect sensors. With a lighter, more responsive design and unparalleled adjustability, the AG02 gimbals are for pilots who demand the most direct and accurate connection to their aircraft.

Next-Generation Performance The AG02 features a redesigned, lightweight structure that reduces rotational inertia by over 20% compared to previous generations, delivering a smoother and more responsive control feel. This is paired with next-generation low-noise Hall sensors that offer an ultra-fast response without compromising the accuracy and stability that RadioMaster gimbals are famous for.

Unparalleled Adjustability: Fine-tune your controls to perfection without ever opening your radio case. The AG02 gimbals offer adjustable travel on both the vertical and horizontal axes, as well as easy access for spring tension adjustments. This allows you to customize the stick feel to your exact preference quickly and easily.

Key Features:

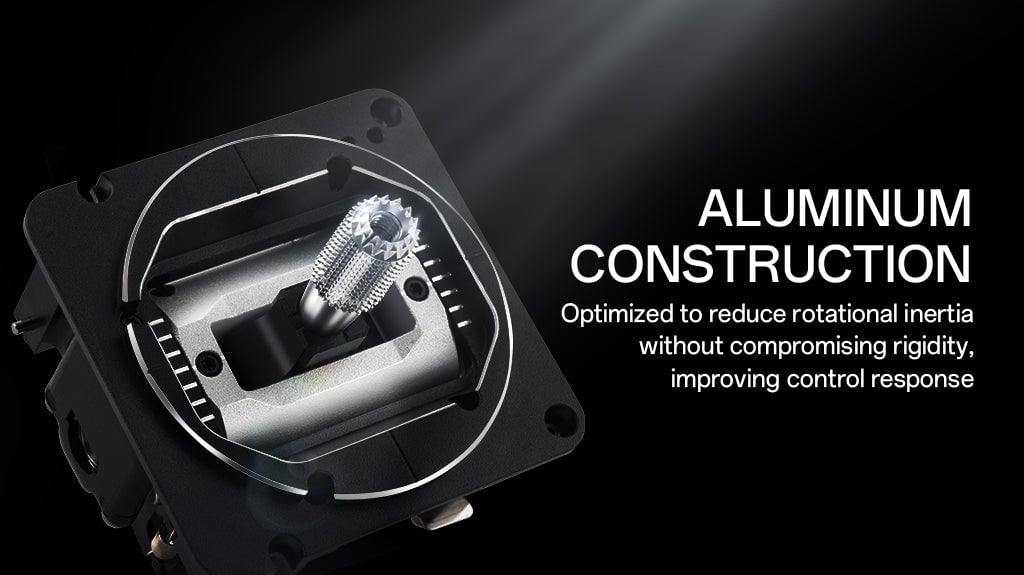

• Full CNC Aluminum Construction: A lightweight yet rigid design delivers a smoother and more responsive control feel.

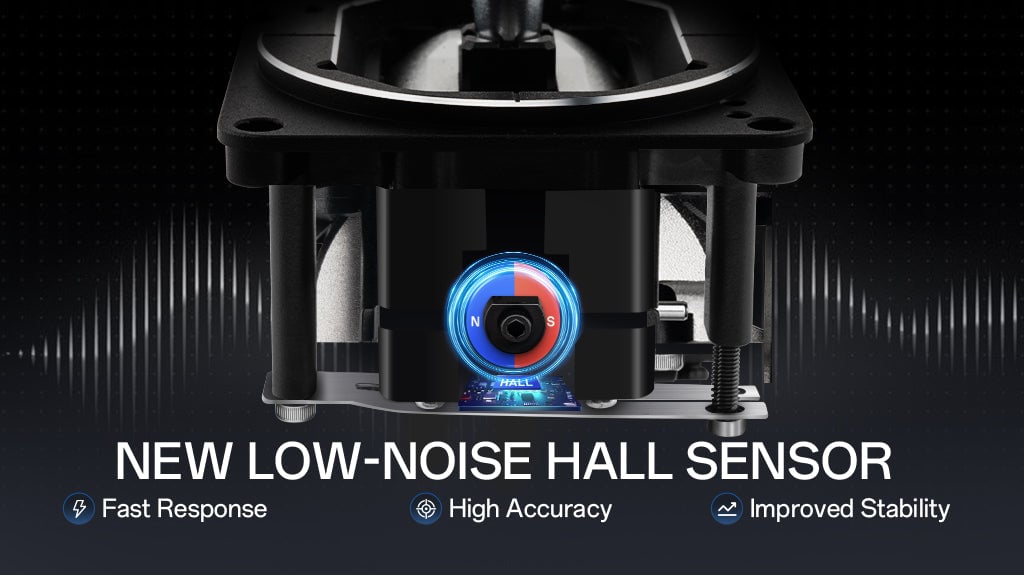

• Next-Generation Hall Sensors: Offer ultra-fast response without compromising accuracy or stability.

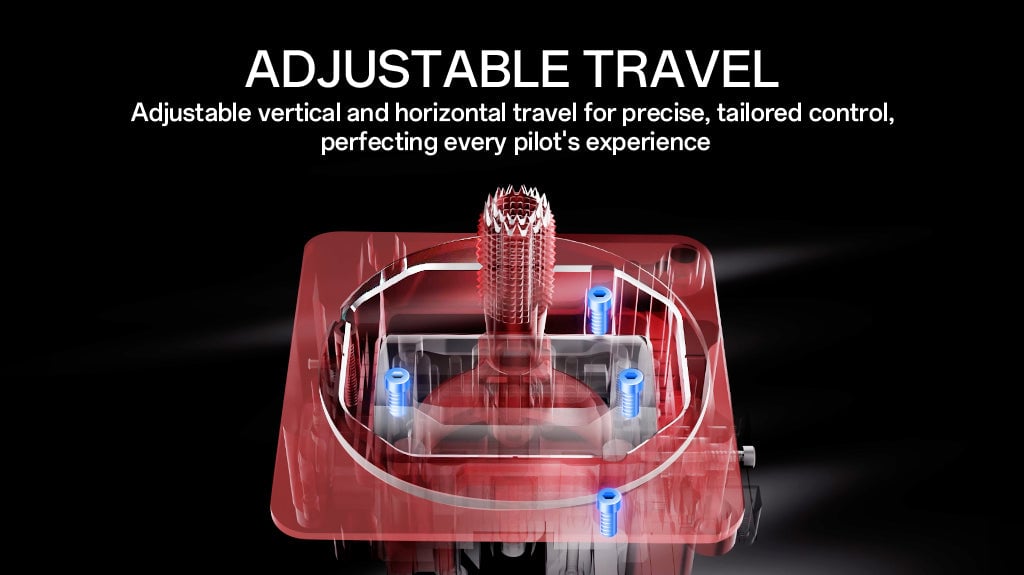

• Unparalleled Adjustability: Adjust vertical and horizontal stick travel, as well as spring tension, without disassembling your radio.

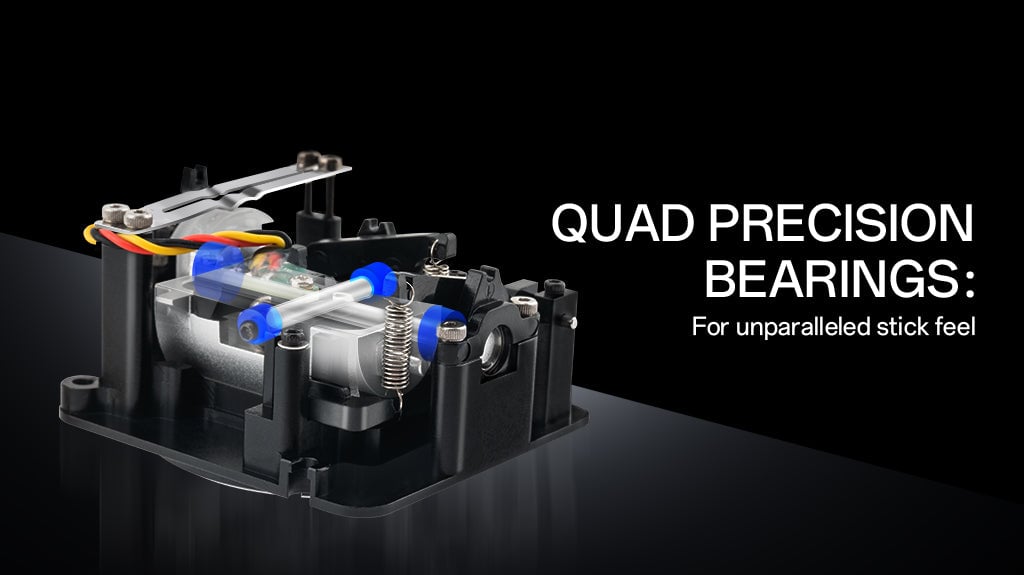

• Quad Precision Bearings: For an exceptionally smooth and precise stick feel.
• Direct Upgrade Path: Fully compatible with AG01 mounting, ensuring an easy installation in popular RadioMaster radios.

Choose Your Configuration

• Pair of Gimbals: The standard set of two gimbals (one throttle, one self-centering), perfect for a full upgrade on a standard Mode 2 or Mode 1 radio.
• Single Gimbal (Centering): A single, self-centering gimbal. Ideal for replacing a damaged gimbal or for custom setups requiring two self-centering sticks.

Compatibility Designed for a direct, drop-in upgrade for the following RadioMaster controllers:

• RadioMaster TX16S (All versions)
• RadioMaster Boxer
• RadioMaster TX15

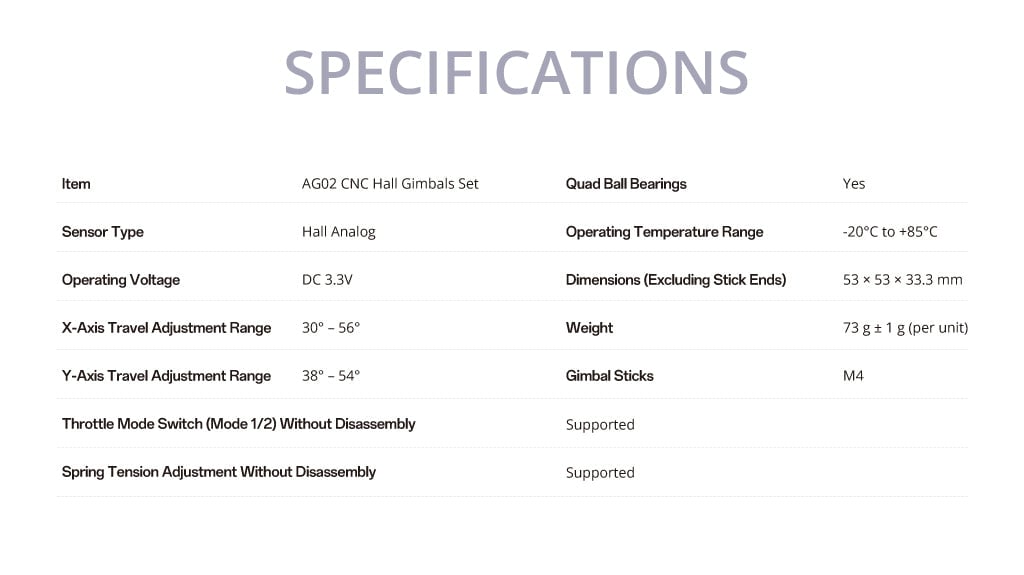

Specifications

• Item: AG02 CNC Hall Gimbals Set
• Sensor Type: Hall Analog
• Operating Voltage: DC $3.3\text{V}$
• X-Axis Travel Adjustment Range: 30∘–56∘
• Y-Axis Travel Adjustment Range: 38∘–54∘
• Quad Ball Bearings: Yes

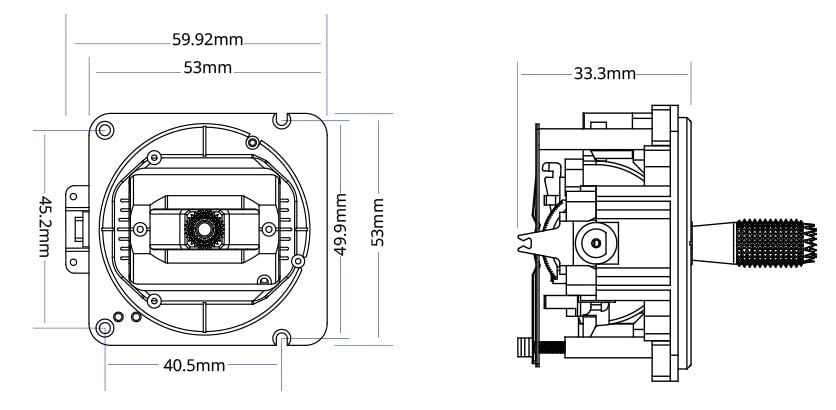

• Dimensions (Excluding Stick Ends): $53\times 53\times 33.3\text{ mm}$
• Weight: $73\text{ g}\pm 1\text{ g}$ (per unit)
• Gimbal Sticks: M4 Thread

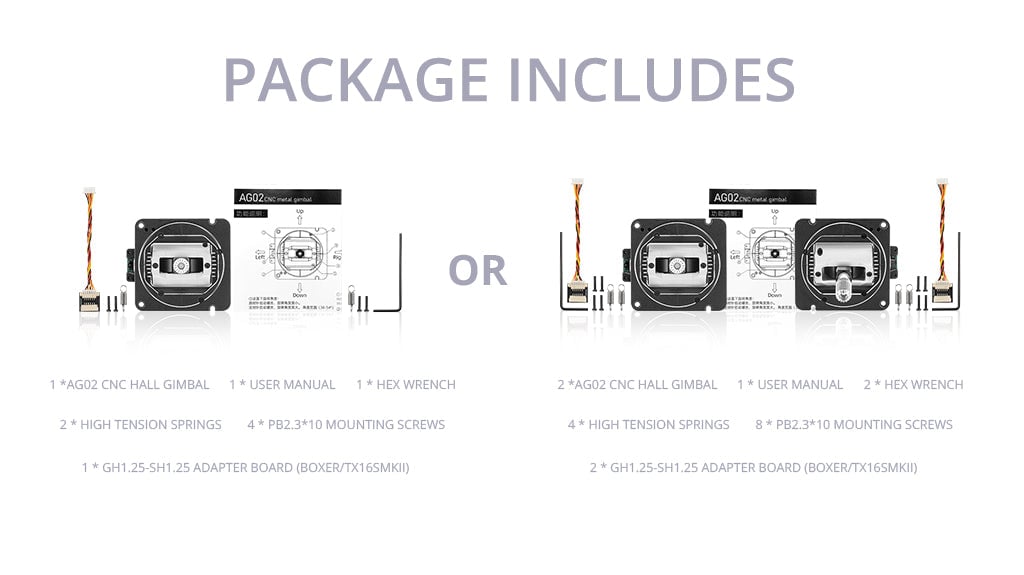

Package Includes (Contents vary based on selection)

• If “Pair” is selected:
  • 1x Pair of AG02 CNC Hall Sensor Gimbals
  • 4x High Tension Springs
  • 2x GH1.25-SH1.25 Adapter Boards (for Boxer/TX16sMKII)
  • 8x Mounting Screws
  • 2x Hex Wrenches
  • 1x User Manual
• If “Single (Centering)” is selected:
  • 1x AG02 CNC Hall Gimbal (Centering)
  • 2x High Tension Springs
  • 1x GH1.25-SH1.25 Adapter Board
  • 4x Mounting Screws
  • 1x Hex Wrench
  • 1x User Manual
