SpeedyBee Nano 915M ExpressLRS ELRS Receiver

Nano 915M ExpressLRS ELRS Receiver

Please Check Out All Our SpeedyBee Products!

Push your FPV exploration to the limit with the SpeedyBee Nano 915M ExpressLRS Receiver. Engineered for pilots who demand extreme range without sacrificing weight, this receiver delivers exceptional 915MHz long-range capability in a package that weighs a mere 0.7g.

Please Check Out All Our SpeedyBee Products!

Ultra-Compact 915MHz Performance

Designed for weight-sensitive builds, from micro-long-range quads to cinematic rigs, the Nano 915M combines the powerful SX1276+ESP8285 chipset with 50mW output power. The 915MHz frequency offers superior signal penetration through obstacles compared to standard 2.4GHz systems, ensuring you stay connected even miles out.

Featherlight Design with Professional Antenna

Every gram counts. With a footprint of just 11x17mm, this receiver is smaller than a postage stamp. Despite its size, it includes a high-performance 138mm T-antenna (connected via a secure IPEX1 connector) to ensure maximum signal reception and reliable control. Whether you are building a sub-250g long-range explorer or a full-sized freestyle quad, this receiver provides the “digital lifeline” you need.

Key Features:

• Superior Range: 915MHz frequency provides excellent penetration and extended range.

• ExpressLRS Protocol: Industry-leading low latency and high refresh rates.

• Ultra-Lightweight: Receiver weighs only 0.7g (3.7g with antenna).

• Reliable Tech: Powered by the optimized SX1276+ESP8285 chipset.

• Telemetry: 50mW output power for reliable telemetry data return.

Ideal Applications:

• ✔ Long-Range Micro Drones: Go further with extended flight distances.

• ✔ FPV Exploration: Reliable links for mountain surfing and bando diving.

• ✔ Cinematic Quads: Uninterrupted control for smooth footage.

• ✔ Sub-250g Builds: Full long-range features without the mass penalty.

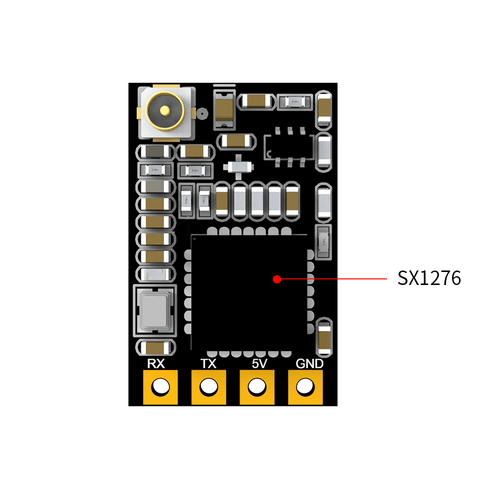

Technical Specifications:

• Frequency: 915MHz

• Protocol: ExpressLRS (ELRS)

• Chipset: SX1276+ESP8285

• Power Output: 50mW

• Input Voltage: 5V

• Dimensions: 11×17mm

• Weight: 0.7g (receiver only), 3.7g (with antenna)

• Antenna: T-antenna (138×104mm)

• Default Firmware: SpeedyBee Nano 915MHz RX 3.4.2

What’s in the Box?

• 1x SpeedyBee Nano 915M Receiver

• 1x T-Antenna (138×104mm)
