Matek Servo PDB, w/ 12A BEC – 9-55V to 5/6/8V
The Servo PDB with a 12A BEC is a high-power distribution board designed for RC airplanes, capable of stepping down input voltages from 9V to 55V to servo-friendly levels of 5V, 6V, or 8V. It boasts high efficiency, overcurrent protection, and thermal shutdown, making it a reliable choice for large-scale models requiring stable and substantial power delivery.
Check out all of our Matek Products!
Specifications
- 9V to 55V Operating Input Range

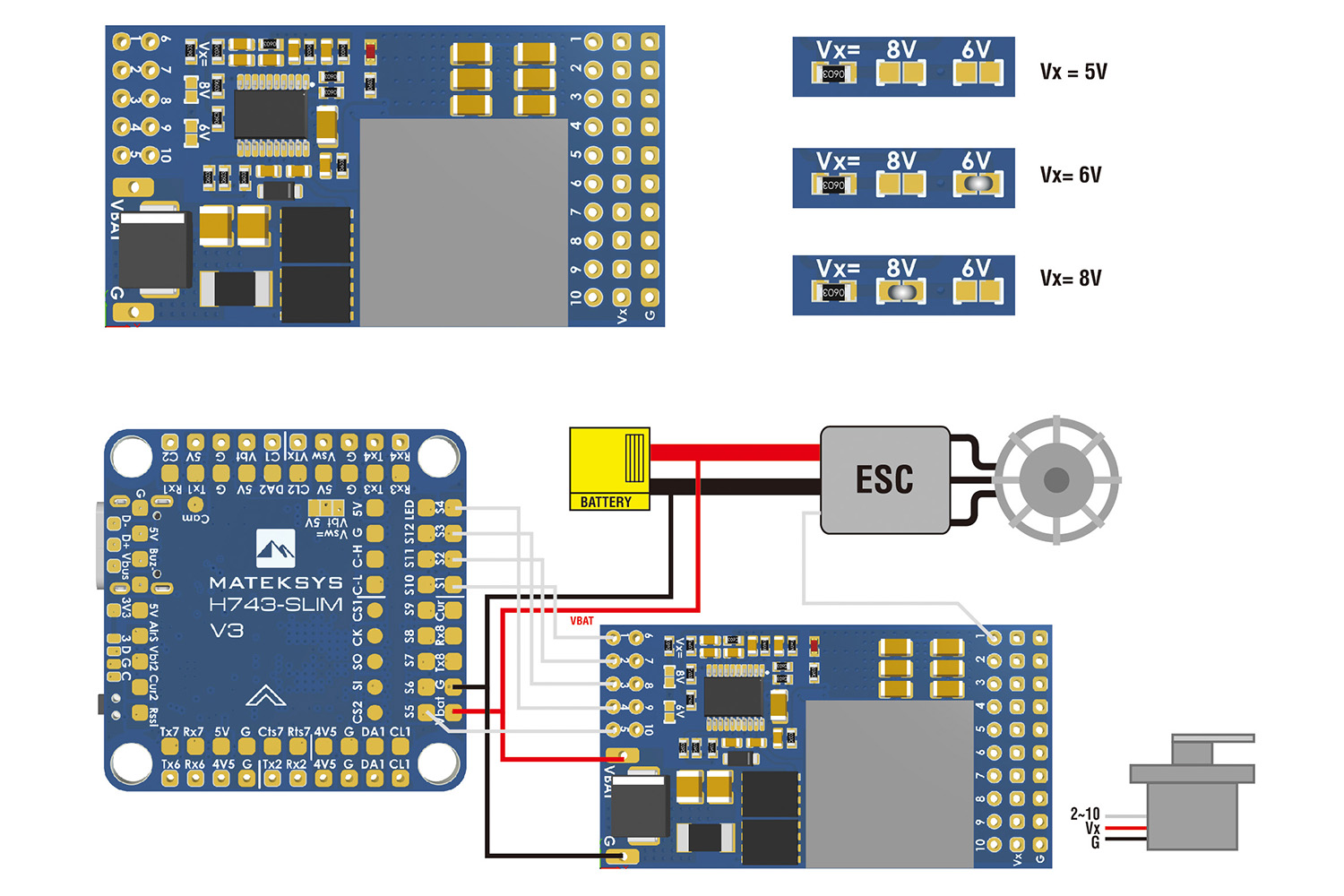

- Vx for servos, 5V, 6V, 8V Adj. Default is 5V.
- Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%
- Supports continuous output current of up to 12A, peak current of 20A.
- Standby current: 5~10mA
- No protection for reversed input polarity
- Thermal Shutdown
- Output Short-circuit tolerant (2 seconds)
- Overcurrent protection &Â self-recovery
- Dropout voltage: 2VÂ (Input>=10V is required for stable 8V output)
- Pins distance: 2.54mm

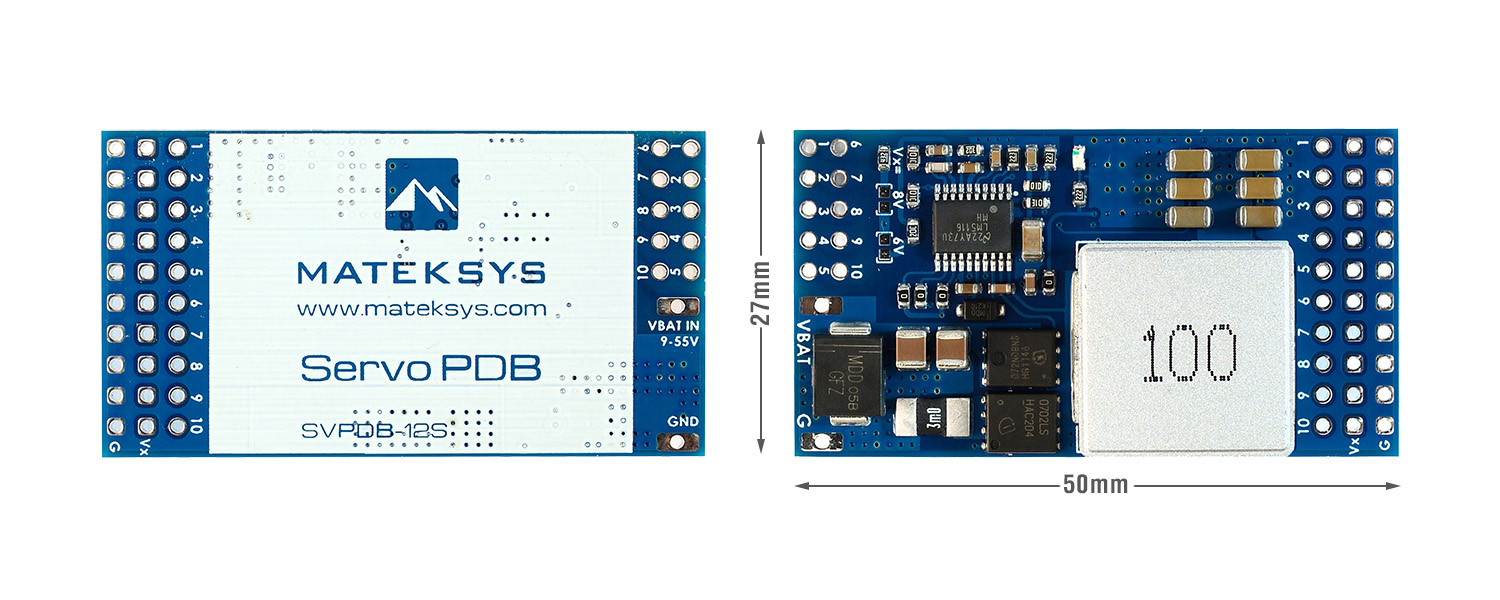

- Size & Weight: 50 x 27 x 8mm, 18g
- Packing: 1x SVPDB-12S, Dupont 2.54mm pins shipped unsoldered
Applications
- Flight controllers without dedicated BEC for servos

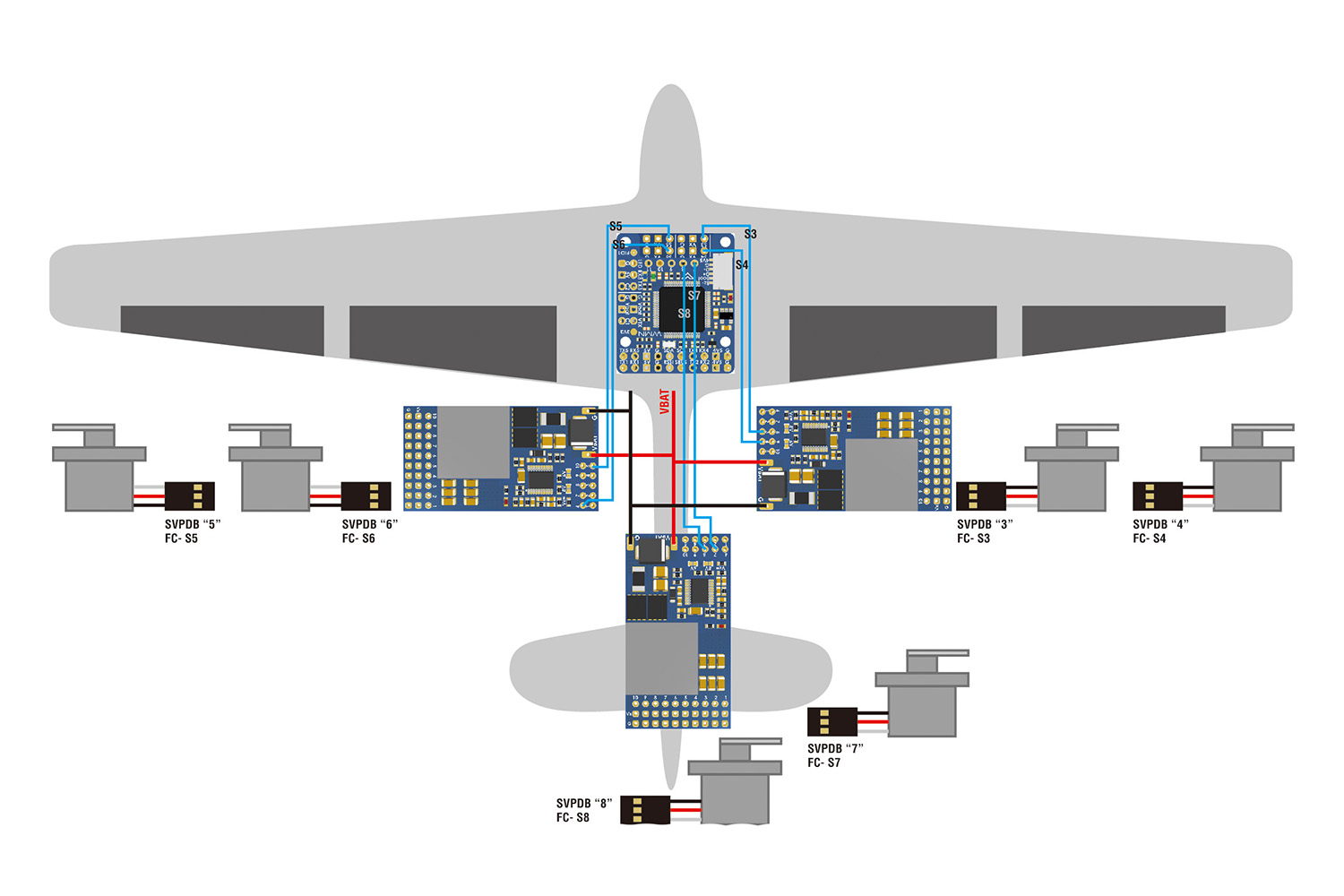

- Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane
