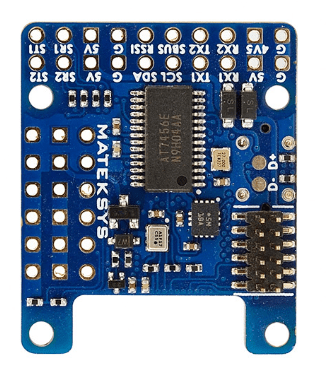

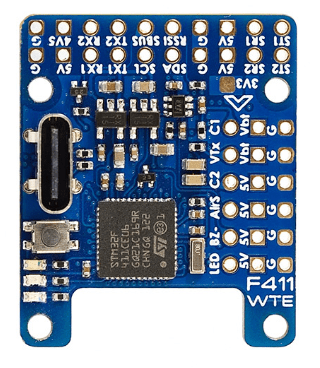

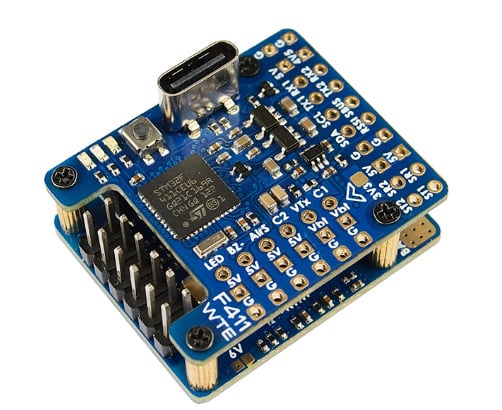

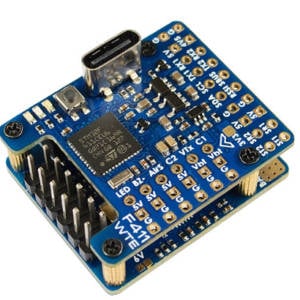

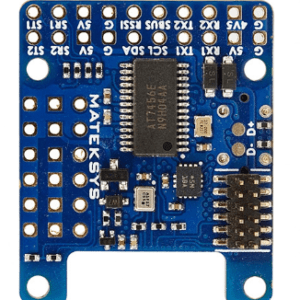

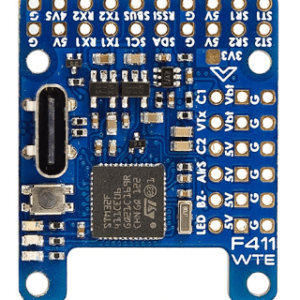

The Matek F411-WTE Wing Flight Controller is a compact, INAV-ready unit with a 100MHz STM32F411CEU6 MCU, BMI270 IMU, SPL06-001 Barometer, and AT7456E OSD, featuring 2 UARTs, 6 PWM outputs, and built-in inverter for SBUS input, making it a versatile choice for your flying projects.
Additional Specifications:
- Voltage Input: 6-30V DC (2-6S LiPo)
- Current Sensing: 132A (90A continuous, 132A burst)

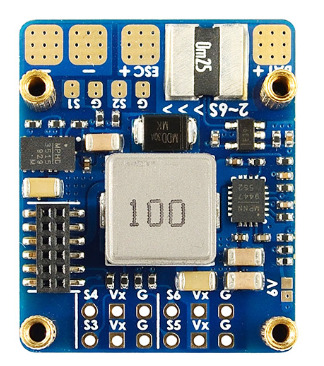

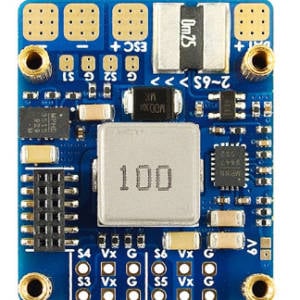

- BECs: 5V 1.5A for FC & Peripherals; Vx 5A for servos (5V/6V option); Vbat for VTX and camera (ON/OFF switchable); LDO 3.3V 200mA

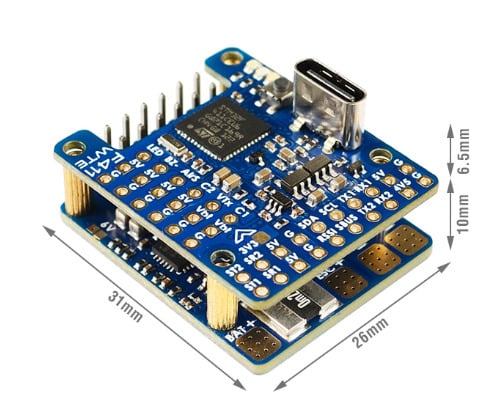

- Size: 31x26x16.5mm; Mounting: 22x22mm, M2
- INAV Firmware: MATEKF411TE (INAV4.1 or newer)
The package includes the flight controller and a pin set. Check out our full range of Flight Controllers and other Matek Products!
