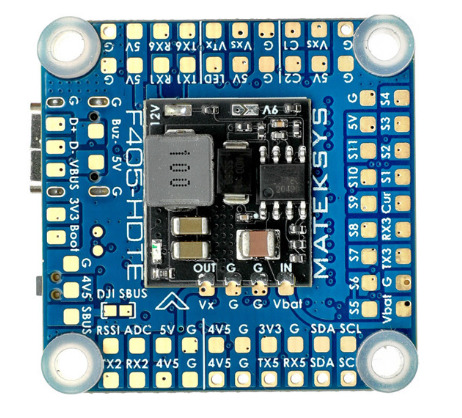

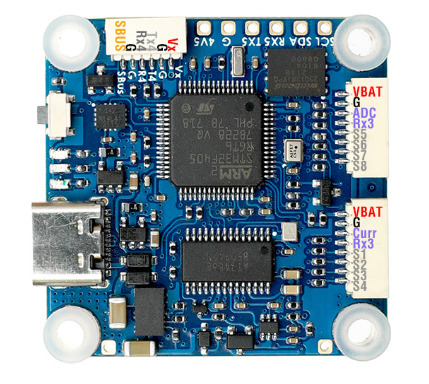

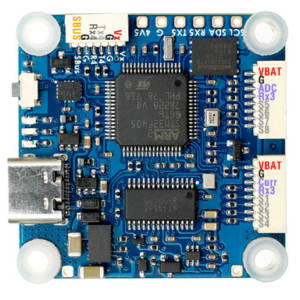

Matek F405-HDTE Flight Controller
The Matek F405-HDTE Flight Controller is a high-performance 30×30 class board loaded with features for both digital and analog systems, offering wide voltage input, multiple UARTs, PWM outputs, and connectors for easy integration, solidifying Matek’s reputation for quality and performance in flight control technology.
Key Features:
- STM32F405 MCU with 1MB flash compatible with ArduPilot/INAV/BetaFlight.
- Advanced ICM42688-P IMU and SPL06-001 Barometer.
- Broad input voltage range (9-60V) with a dedicated BEC for DJI OSD or analog VTX.
- Supports up to 8 motors and 3 servos in INAV/BF multirotor mixer.
- Convenient SH1.0 connectors for plug-and-play with ESCs and HD systems.
Specifications:
- Input Voltage: 3-12S
- Multiple UARTs and PWM outputs, along with ADC inputs.
- BEC output ranges from 9~16V, adapting to various power requirements.
- Compact size (36x36x5mm) and lightweight (7g), with a standard 30x30mm mounting pattern.
Included in the Package:
- Matek F405-HDTE Flight Controller
- Installation accessories like silicon grommets and cables.
