Holybro Tekko32 F3 ESC
Check out our entire Holybro line of products.

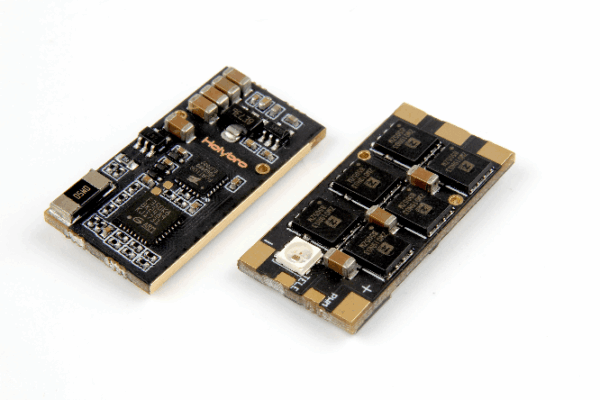

Experience the incredibly smooth and responsive power of 32-bit with the Holybro Tekko32 F3 35A Individual ESC. This premium, arm-mounted ESC is engineered for high-performance FPV drones, combining a powerful F3 MCU with advanced BLHeli_32 firmware to deliver a top-tier flight experience.
Advanced 32-bit Performance
What sets the Tekko32 F3 apart is its advanced 32-bit platform. Running on a fast F3 MCU, it supports BLHeli_32 features like Auto Timing, which provides a smooth and efficient motor response.2 It also has full ESC telemetry support, allowing it to send critical data like voltage, current, and motor RPM back to your flight controller for OSD display.
Feature-Packed & Builder-Friendly
This isn’t just a bare-bones ESC. It features an onboard, programmable WS2812B RGB LED, allowing you to customize the look of your quad and add bright, visible indicators.3 The slim 15x30mm form factor is perfect for a clean arm-mounted build, and the built-in current sensor provides even more valuable data for your flight.
Key Features:
- Advanced 32-Bit Performance: A powerful F3 MCU and BLHeli_32 firmware deliver a smooth, fast, and responsive flight feel.
- 35A 6S Power: Provides 35A of continuous current on up to 6S LiPo, perfect for demanding 5-inch motor and prop combinations.
- Onboard RGB LED: A programmable WS2812B LED is built directly into the ESC for custom lighting and indicators.
- Full ESC Telemetry: Capable of sending voltage, current, and RPM data back to your flight controller.
- Built-in Current Sensor: Provides accurate current draw information from each motor.
- Slim & Lightweight: A narrow 15mm width and 3.6g weight are ideal for clean arm-mounted builds.
Specifications:
- Input Voltage: 3-6S LiPo
- Continuous Current: 35A
- MCU: F3
- Firmware: BLHeli_32
- Telemetry: Yes (TELEM)
- Current Sensor: Yes
- LED: On-Board WS2812B RGB
- Size: 15 X 30 X 5mm
- Weight: 3.6g
Package includes:
- 1x Tekko32 F3 35A ESC
- 1x Electrolytic Capacitor 220uf 35V
- 1x Set of Signal Wires (26AWG)
- 1x Set of Power Wires (18AWG)
