HGLRC T-Rex 35A 3-6S ESC BLHeli_32

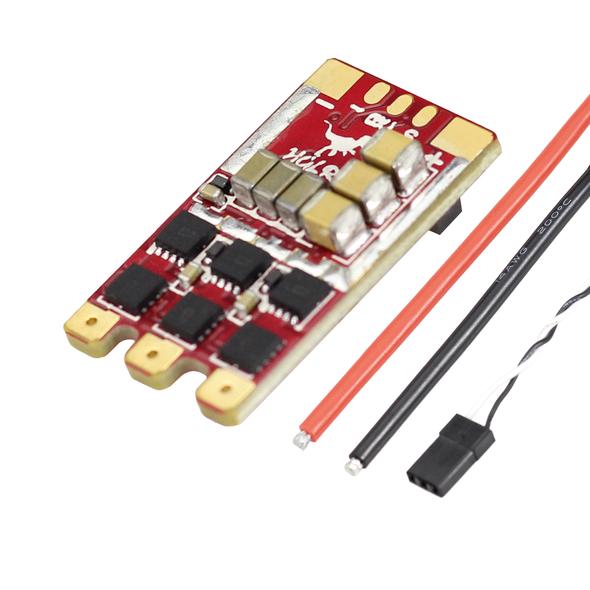

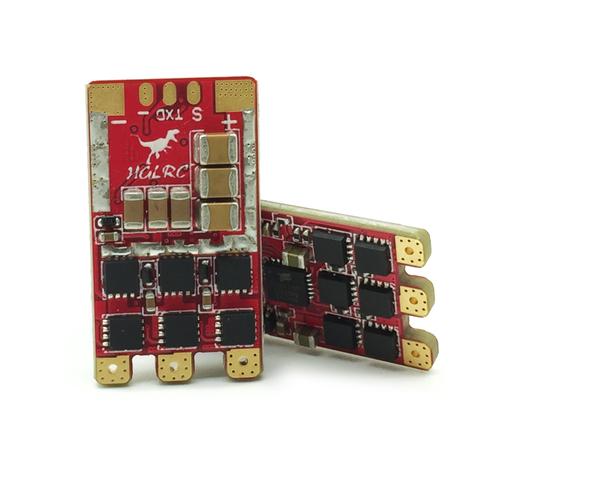

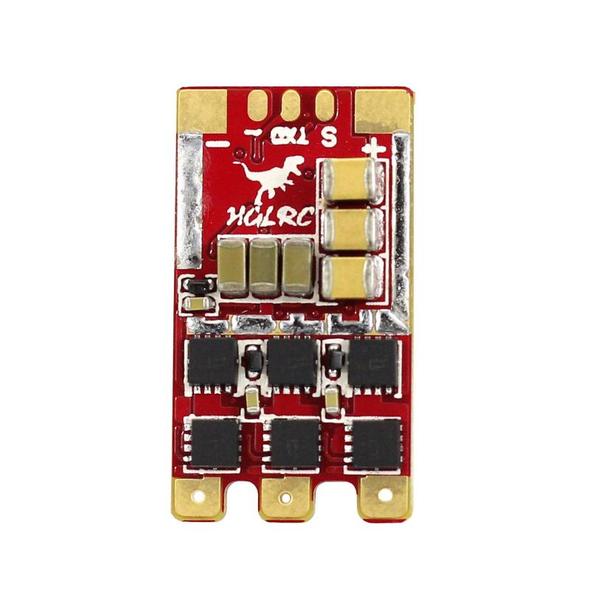

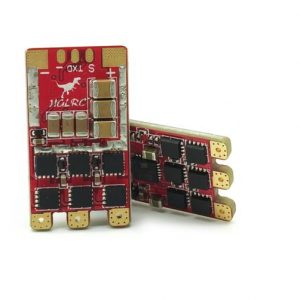

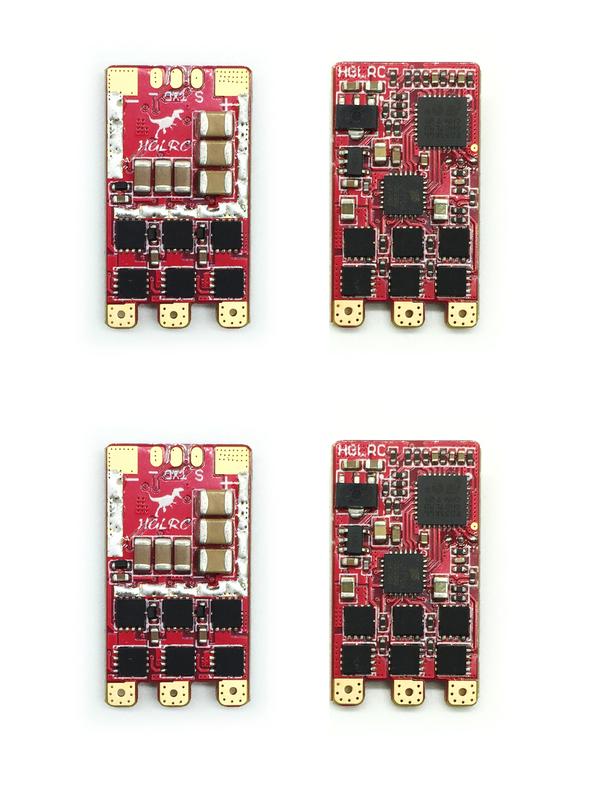

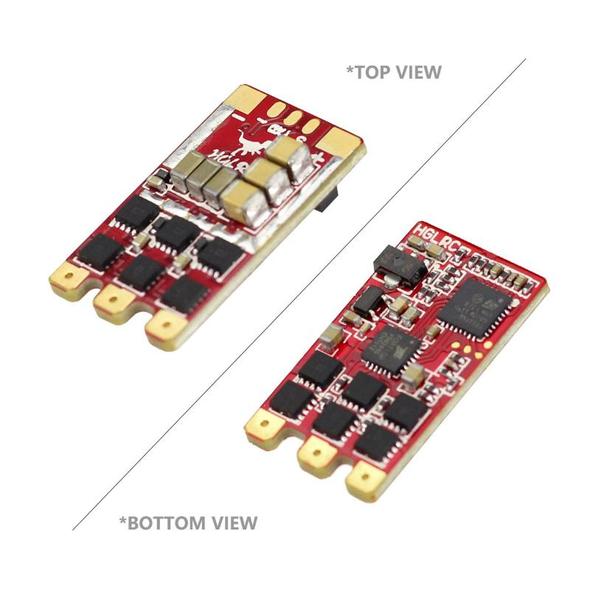

The T-Rex 35A ESC by HGLRC is a high-quality single ESC made with imported Japanese Toshiba MOSFETs and Murata ceramic capacitors. It features all the cutting edge specs such as BLHeli_32 and DSHOT1200 protocol.
Features:
- Supported Protocols: Analog Signals – MULTISHOT, ONESHOT42, ONESHOT125 / Digital Signals – DSHOT150, 300, 600, 1200.
- Imported Japanese Toshiba MOSFETs and Japanese Murata Ceramic Capacitors.
- 3oz High-TG PCB board: Reduces Heat Soak and improves system efficiency.
- Silicone Signal and Power Wires provides high heat-resistance and flexibility.
- Ultra-Small / Ultra-Light footprint.
Specifications:
Input voltage: 3-6S Lipo
Work current: 35A
Burst Current:45A
BEC: NO
Size(mm)L*W: 27*15
MOS: ALL N FET, TOSHIBA COMPANY
Copper: 3OZ*6 18OZ
Firmware: 32bit ESC with BLHELI_32 firmware
Protocol: DSHOT1200 / DSHOT600 / 300 / 150 / Oneshot125 / 42,MultiShot Damped mode
Weight: 3.4g(no include wire)
MCU: STM32F051
Package included:
1 x T-Rex 35AMP ESC BLHeli_32
