GOKU HDF4 EVO 40A 2-6S AIO DJI PLUG & PLAY ( 20mm X 20mm )
FLYWOO new top GOKU series AIO is finally here! GOKU HDF4 40A FC is an economical and durable all-in-one AIO, which can meet most of your FPV needs.
Use powerful F411 chip and BLHELI_S ESC firmware, integrate DUAL BEC, black box, support 2 complete hardware serial ports, and 1 Soft serial port. I2C and other functions are all open.
This is currently the most integrated and powerful F411 AIO board on the market. It brings pilots a more stable and smoother flight.! Perfect for 3”-5” ultralight quad! It will be the most powerful F411 AIO board in 2021.
GN411EVO HD BLHELI_S 40A
Specification:
MCU: STM32F411
IMU: MPU6000 (SPI)
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
2 hardware UARTS (UART1,2)
1 Software serial port
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
PPM and PWM receivers are not supported.

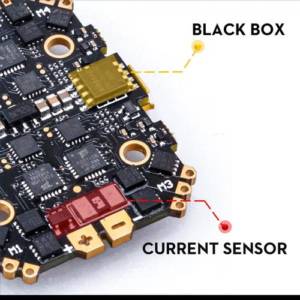

Onboard 8Mbytes for Blackbox logging

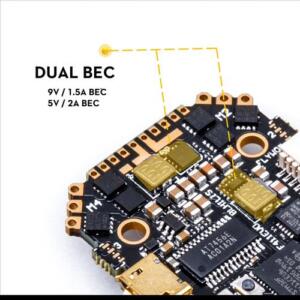

9V Power Out: 1.5A max
5V Power Out: 2.0A max
3.3V Power Out: 0.5A max
Dimensions: 41x32mm
Mounting Holes: Standard 20mm square to center of holes
Weight: 8.5g
Built-in 20A/40A BL_S 4in1 ESC
Support BLheli / BLHELI_S
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input Voltage: 2-6S Lipo
Continuous Current: 40A
Firmware: BLHELI_S
