GOKU H743 Pro 55A 32Bit 128K 30×30 Stack

Check out all of our Flywoo products!

Build without compromise using the Flywoo GOKU H743 Pro 55A Stack, the new flagship flight controller and ESC combo designed for professional cinematic rigs, X8 cinelifters, and high-performance freestyle drones. At its core lies the blazing-fast STM32H743 chip (480MHz) paired with Dual Gyroscopes, delivering the computing headroom needed for complex filtering, precise navigation, and ultra-smooth flight characteristics.

Unmatched Processing & Stability

Future-proof your fleet. The 480MHz Cortex-M7 core ensures you never hit a CPU load limit, even when running the most demanding features of Betaflight, INAV, or Ardupilot. The integration of Dual ICM42688P Gyroscopes significantly reduces noise and latency, resulting in a flight feel that is locked-in and vibration-free.

Built for Professionals (X8 & Long Range Ready)

The GOKU H743 Pro is an I/O monster. It features 8 motor outputs, making it natively ready for X8 heavy-lift cinelifters without complex remapping. With 7 UART ports, dual camera switching, and a dedicated barometer, it is the ultimate brain for long-range GPS builds. The robust Dual BECs (10V/3A & 5V/3A) ensure your DJI O4/O3 Air Units, GPS, and peripherals receive clean, stable power.

Massive Data Logging & AM32 ESC

Analyze every micro-vibration with the industry-leading 512MB Blackbox. This massive onboard storage allows for full-resolution logging of long flights without the need for SD cards. The stack is completed by the GOKU G55M 55A 4-in-1 ESC, running the smooth and efficient AM32 firmware, capable of PWM frequencies up to 128K for precise motor control.

Key Highlights:

• H7 Power: 480MHz STM32H743 chip for unlimited computing potential.

• Dual Gyros: Two ICM42688P gyros for superior noise reduction and stability.

• X8 Ready: 8 Motor outputs support X8 Cinelifter configurations natively.

• Massive Storage: 512MB onboard Blackbox for extensive flight logging.

• AM32 ESC: 55A Continuous current with 128K PWM frequency support.

• Versatile: Fully compatible with Betaflight, INAV, and Ardupilot.

Specifications:

GOKU H743 PRO Flight Controller

• MCU: STM32H743VIH6 (480MHz)

• Gyroscope: 2x ICM42688P (Dual)

• Blackbox: 512MB Onboard

• Barometer: DPS310 / SPL06

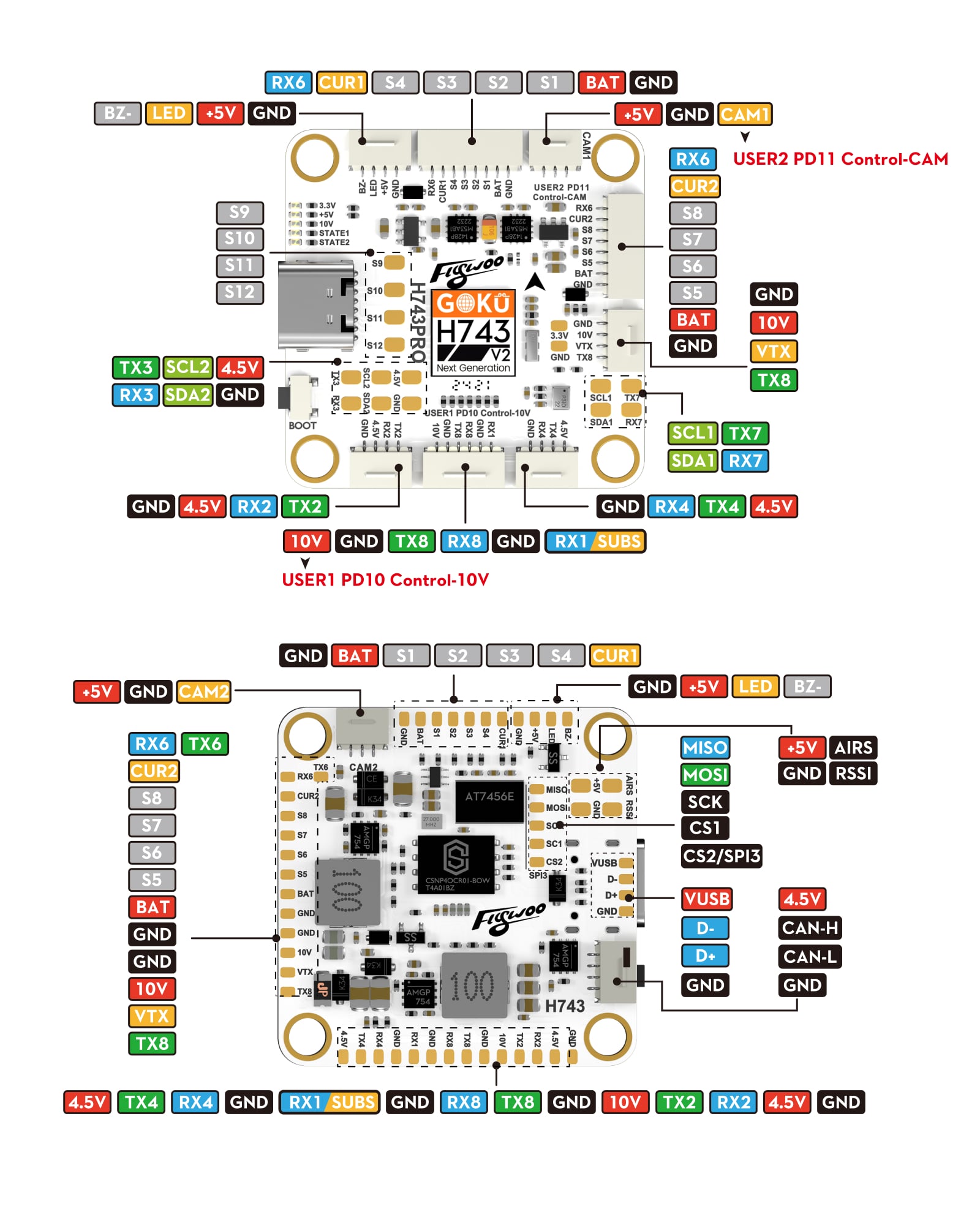

• UARTS: 7 (1/2/3/4/6/7/8)

• Input Voltage: 7.4V-26V (2-6S LiPo)

• BEC: 10V/3A and 5V/3A

• Mounting: 30x30mm (M3)

• Weight: 9.9g

• Firmware Target: Flywoo H743PRO (BF/INAV/Ardupilot)

GOKU G55M AM32 4in1 ESC

• Continuous Current: 55A

• Input Voltage: 3-6S LiPo

• Firmware: AM32 (Target: AT32DEVF421)

• PWM Frequency: 24k – 128k

• Protocol: Dshot300 / Dshot600

• Weight: 15g

What’s in the Box?

• 1x GOKU H743 PRO FC & G55M 55A ESC Stack

• 1x XT60 Power Cable

• 1x Capacitor

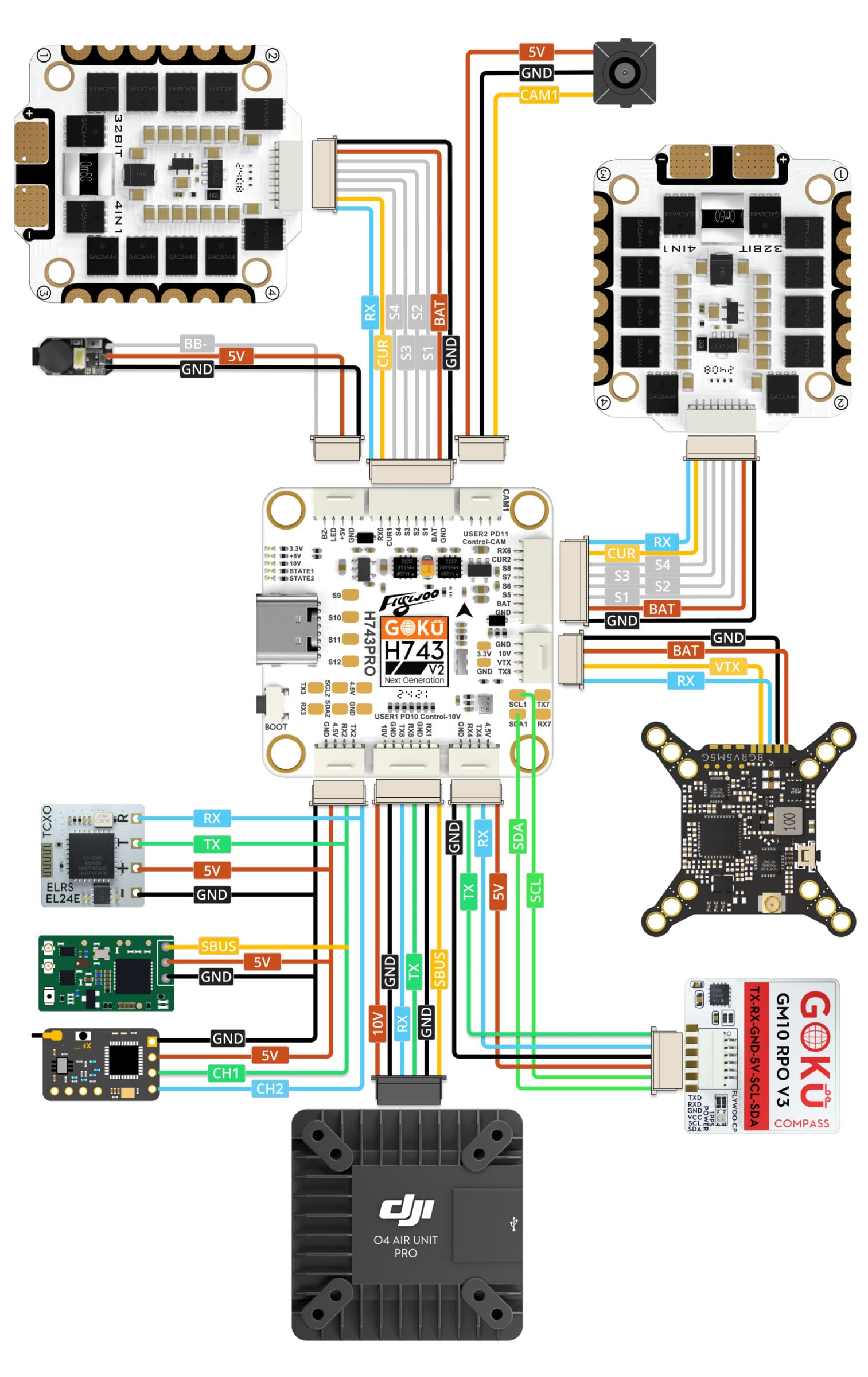

• 1x Full Cable Set (FC-ESC, DJI O4/O4P, Buzzer, RX, GPS, Camera, VTX)

• 1x Mounting Hardware Kit (Shock-absorbing balls, Nylon studs, Nuts)
