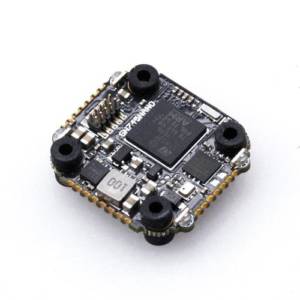

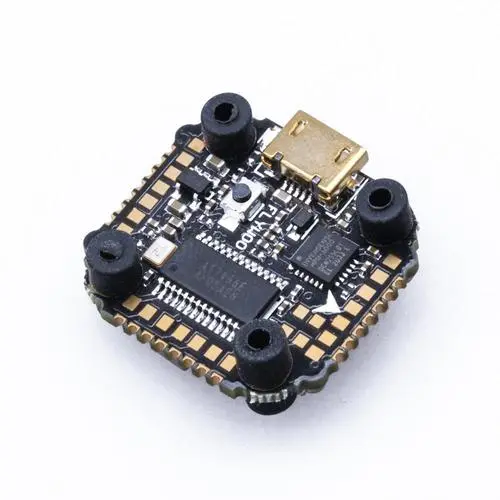

Flywoo Goku F745 Nano 16×16 Flight Controller

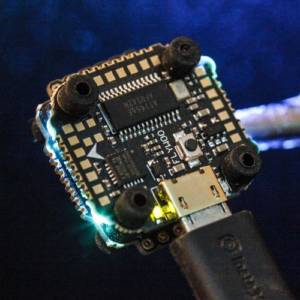

It is specifically designed to be pin-mounted to the Goku BS13A / 20A / 35AÂ 4in1 16×16 ESCs but can also be soldered via pads. The programmable WS2812 LED on each corner provides low-profile lighting for this tiny FC.

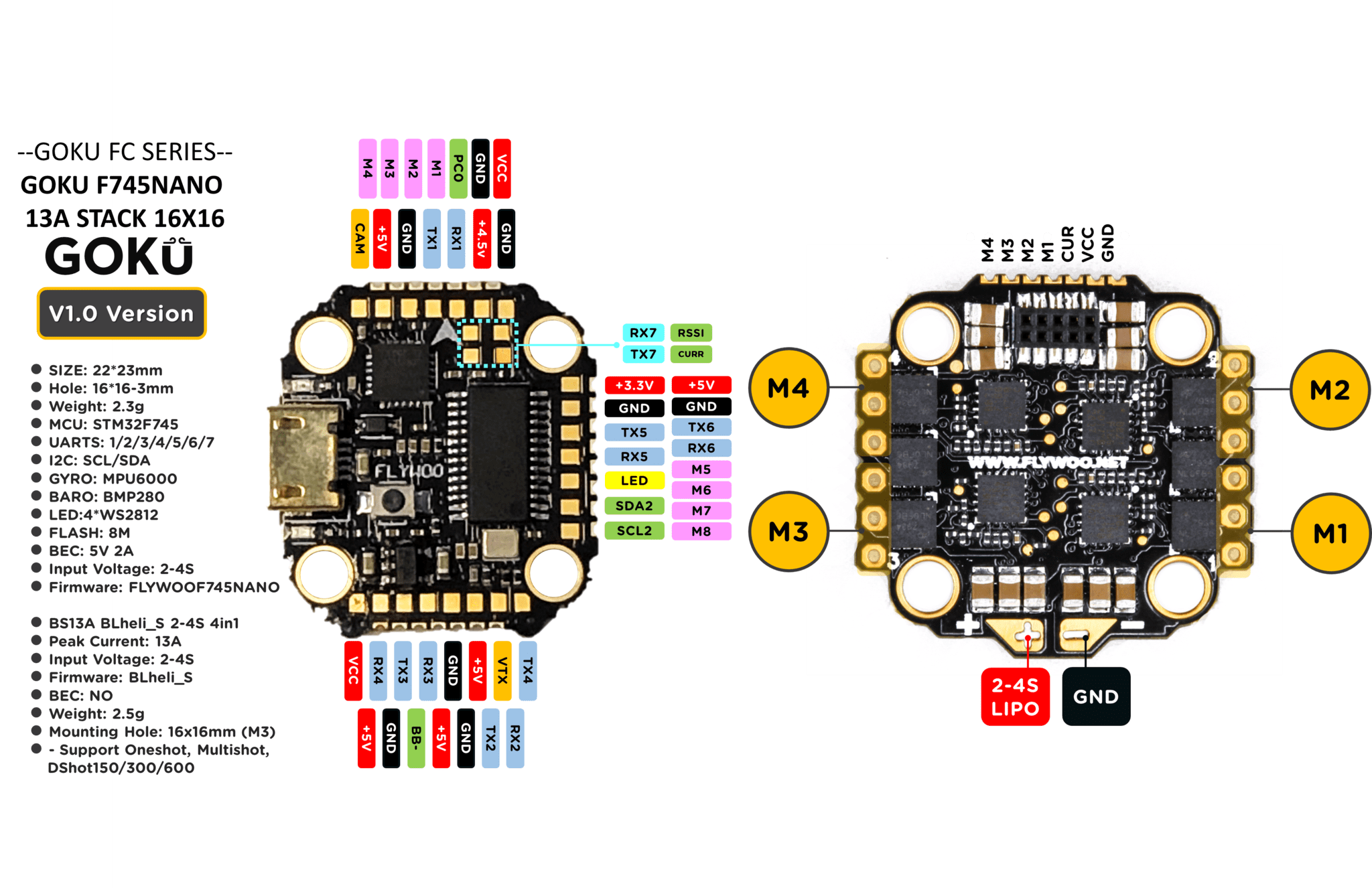

Specifications:
- SIZE: 22*23mm Weight: 2.3g
- Hole: 16*16-3mm
- MCU: STM32F745
- UARTS: 1/2/3/4/5/6/7
- I2C: SCL/SDA
- GYRO: MPU6000
- BARO: BMP280 BEC: 5V 2A
- LED:4*WS2812 FLASH: 8M
- Input Voltage: 2-4S
- Firmware: FLYWOOF745NANO
