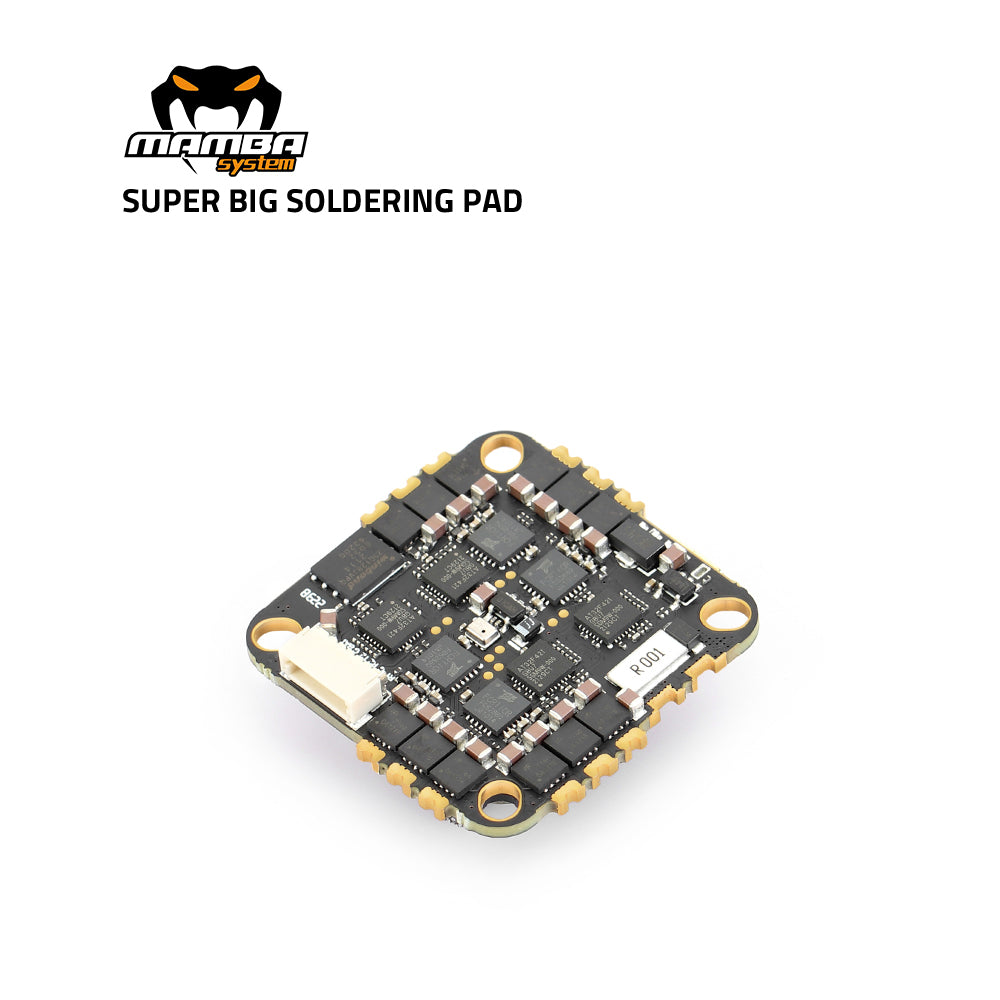

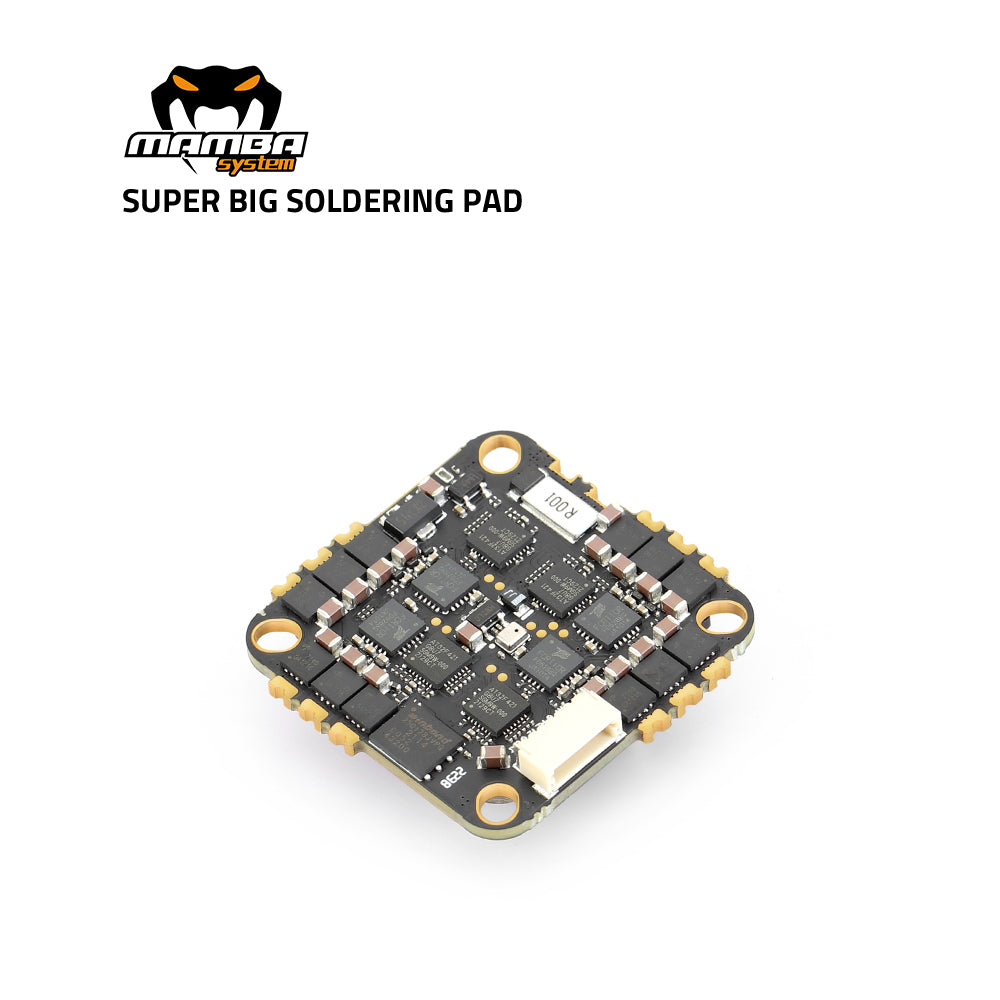

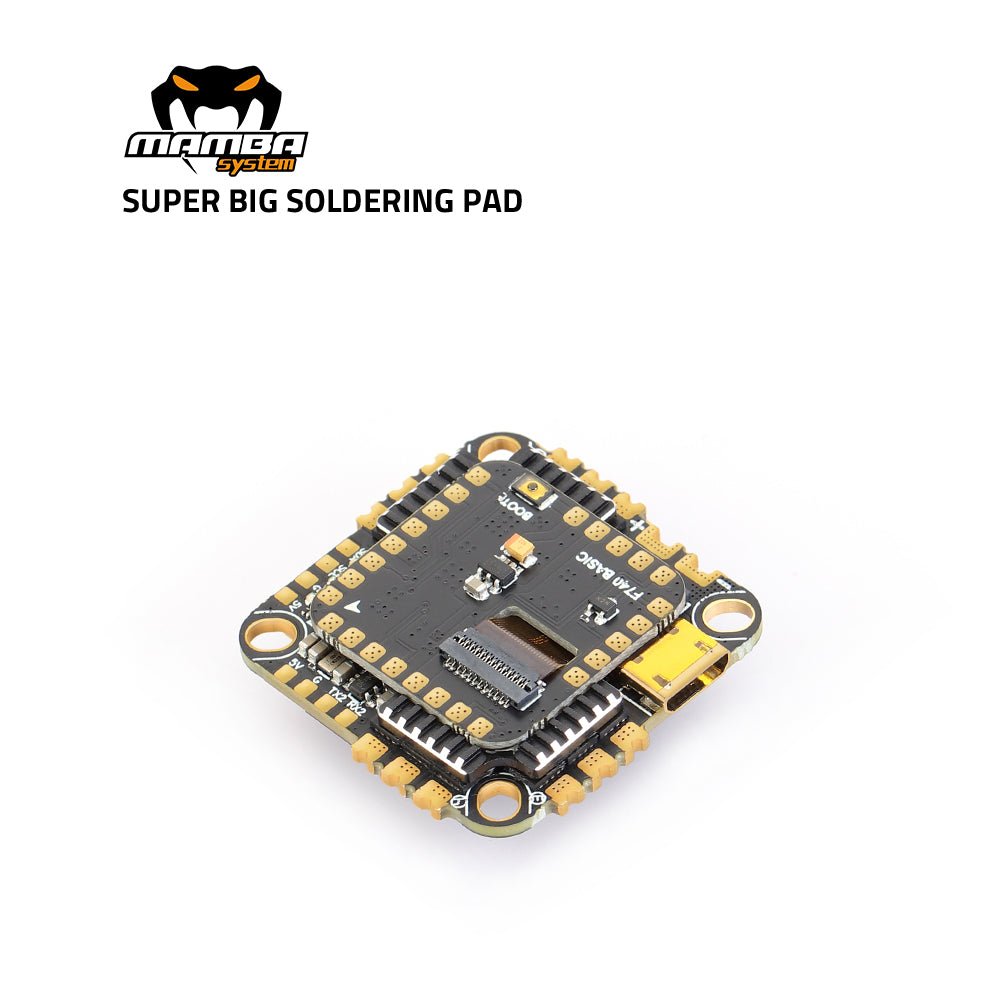

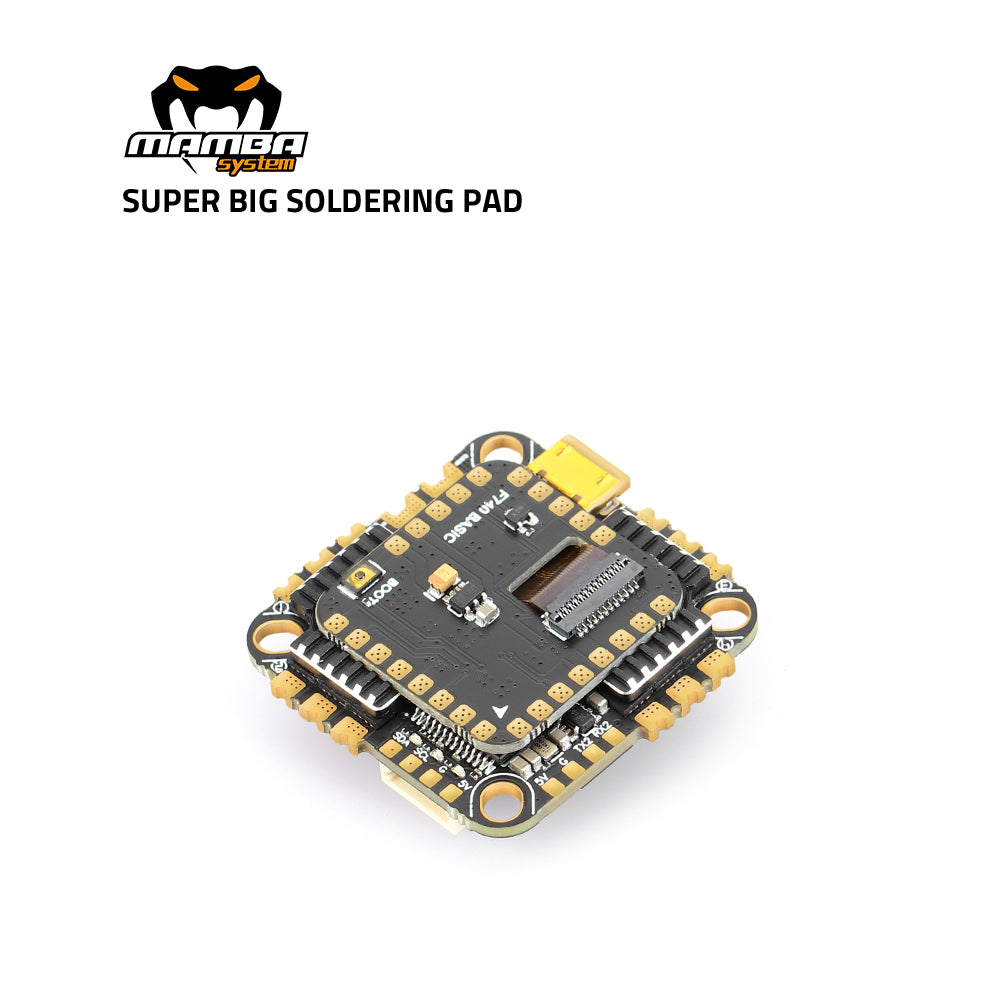

Diatone Mamba MK4 F740 AIO 40A 6S 32bit ALL IN ONE AIO FC & ESC – 25.5mm/M2

Check out all of our Diatone Products!

Specification:

FC Specifications

Target：MAMBA F722_2022B
MCU: 216MHz STM32F722
GYRO: ICM-42688-P
Barometer: Yes
OSD: Yes
Blackbox: 16 M Flash Memory
Uarts: 6 Set
Motor Signal:4 Set
ESC Soft: Dshot300/600
ESC Telemetry: Yes
Power Led: Yes
LED Controller: BF LED
AIR UNIT Port: Yes
WIFI: No（Basic）/SpeedyBee (WIFI) Optional
F.Port: Yes
RSSI: No
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
BEC Protection: Yes
Receiver Protection: Yes
TVS Protection: Yes
BEC: 3.3V 0.5A&  5V 2A
Mounting size: 25.5×25.5mm/M2

ESC Specifications

Input: 3~6S Lipo (12.6~25.2V)
Continue Current: 40A×4
Burst current: 45A (10S)
Target：BLHeli_32 MAMBA F40_128K
SOFT: Dshot300/600
PWM:24~128K

Supply:

High Frequency 470uF/35V ×1
AIR UNIT sh1.0 ×1
16AWG 60mm ×2
AMASS Original XT60
