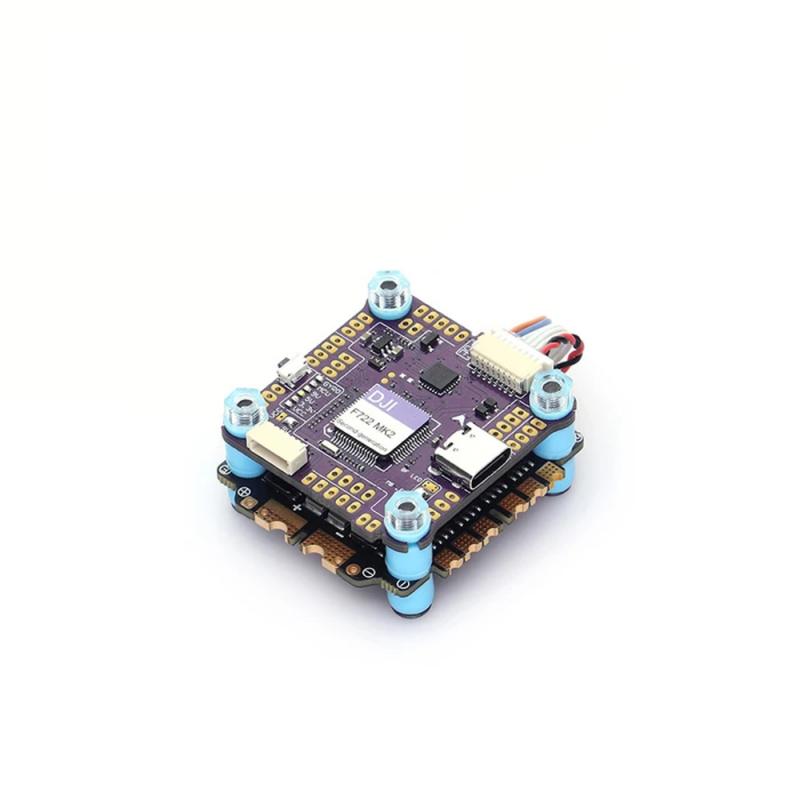

FC Specifications:

• MAMBA DJI F722 MK2
• MCU: 216MHz STM32F722RET6
• IMU: MPU6000
• Barometer: Yes
• OSD: Yes
• Blackbox: 16M Flash Memory
• Uarts: 6Set
• ESC Soft: Dshot300/600/1200
• ESC Telemetry: Yes
• Power Led: Yes
• LED Controller: BF LED/MB LED（ 4 Set 2812 LED）
• F.Port: Yes
• RSSI: Yes
• Buzz: Yes
• Input: 3~6S Lipo (12.6~25.2V)
• TVS Protection: Yes
• BEC:3.3V 0.5A& 5V 3A & （DJI）9V 3A
• MOUNTING: 30.5mm, M3

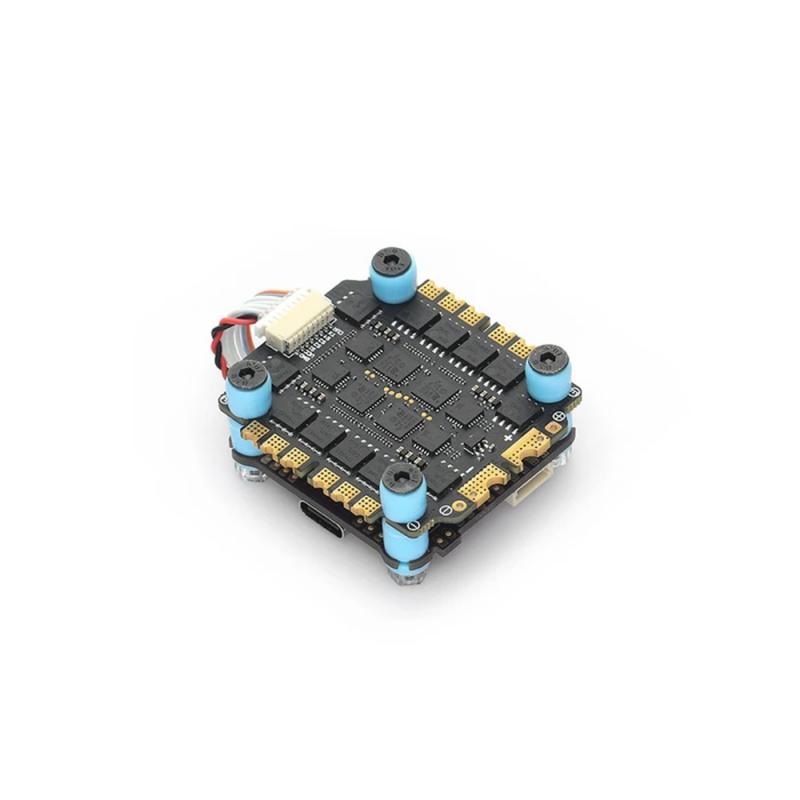

• ESC Specifications:
• MAMBA F50_BL32
• INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
• CONTINUE CURRENT:50A×4
• BURST CURRENT:60A (10S)
• BEC: No
• Target：BLHeli_32 MAMBA F50_BL32
• SOFT: Dshot300/600/1200
• TVS Protection: Yes
• MOUNTING: 30.5mm/M3

Supply :

• High-Frequency 470uF/35V ×1
• 8pin sh1.0 ×2
• 12AWG 100mm ×2
• AMASS Original XT60
