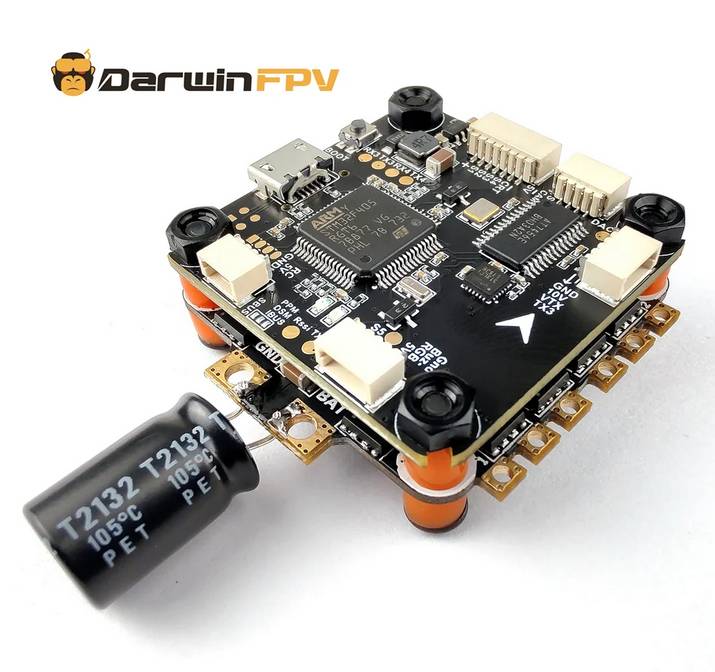

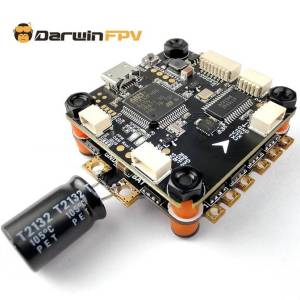

DarwinFPV FC 50A ESC Stack
Get incredible power and a rich feature set at an unbeatable value with the DarwinFPV 50A 30x30mm Stack. This electronics combo pairs a powerful 50A 6S-capable 4-in-1 ESC with a versatile F4 flight controller, making it the perfect core for a budget-friendly yet high-performance 5-inch FPV drone. It’s an ideal choice for pilots building their first FPV drone kit or for anyone looking for a durable, powerful, and affordable stack.
Massive Power on a Budget

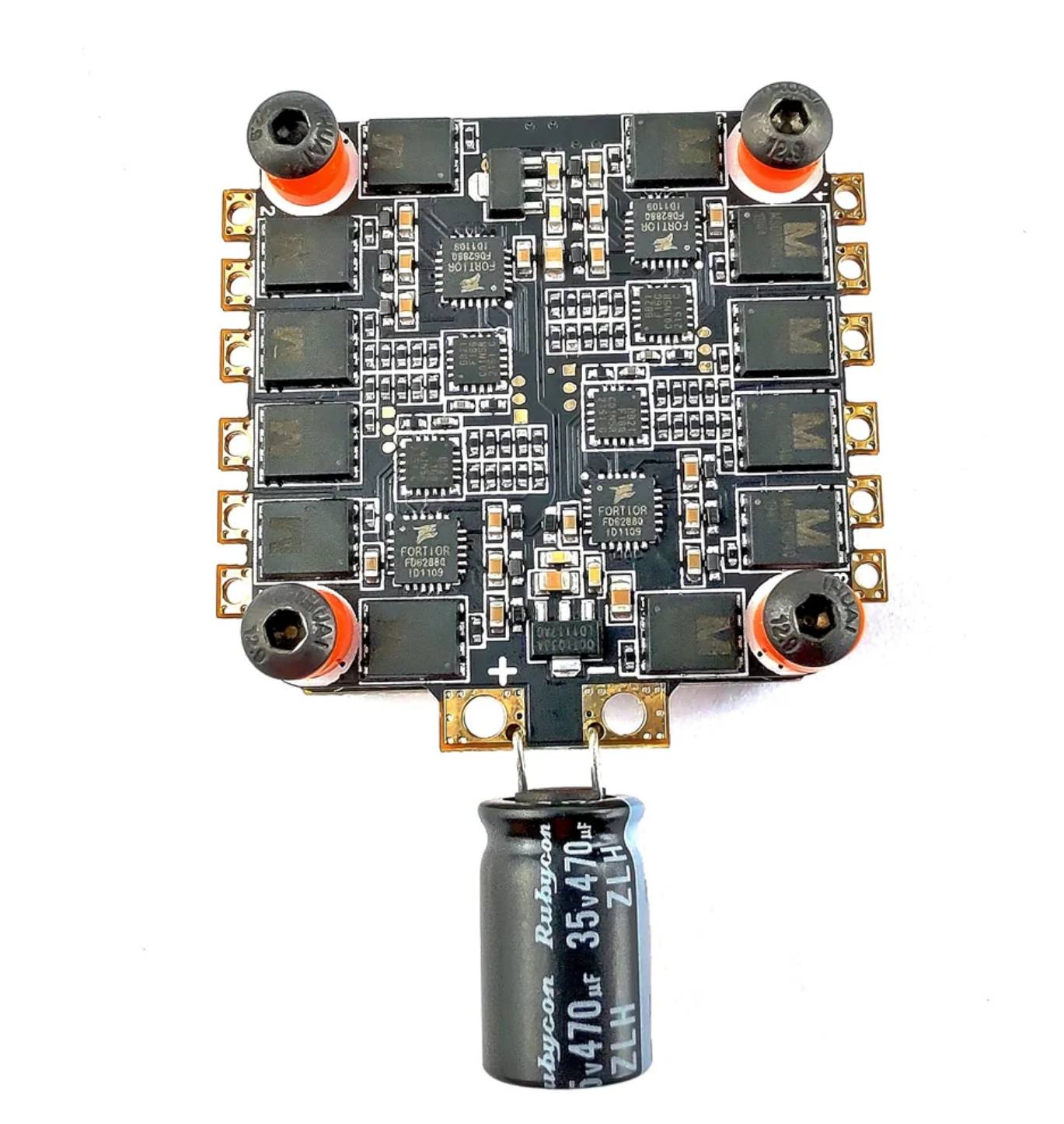

The centerpiece of this stack is the robust 4-in-1 ESC. It delivers a massive 50A of continuous current per motor (60A burst) and can handle up to a 6S LiPo battery. This provides plenty of power to run nearly any 5-inch motor and propeller combination, giving your FPV drone the authority needed for aggressive freestyle and racing.
Feature-Packed Flight Controller

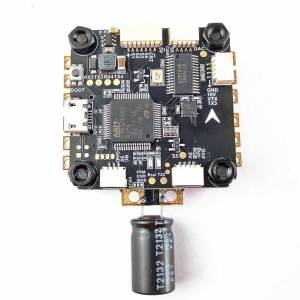

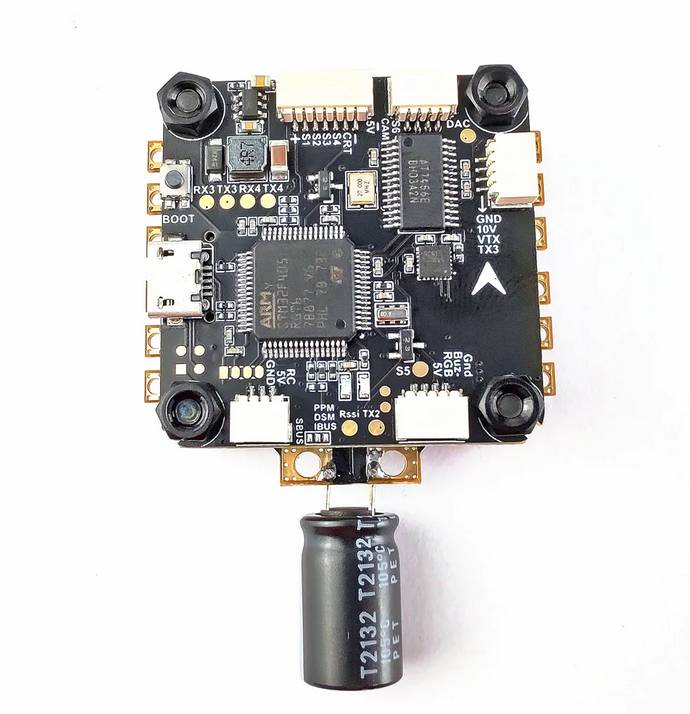

The F4 flight controller is packed with features typically found on more expensive boards. It boasts multiple dedicated BEC outputs, including a 10V @ 1A circuit perfect for providing clean power to your FPV camera and video transmitter. It also supports a barometer for altitude sensing and a black box for easy flight data logging and tuning.
Reliable & Easy to Build With
This pre-matched stack simplifies the building process and ensures component compatibility. The flight controller runs on the proven MATEKF405 firmware target, and the ESCs use reliable BLHeli_S firmware with support for DSHOT600, providing a stable and easy-to-configure flight experience in Betaflight.
Specifications
Flight Controller (FC):
- MCU: STM32F405
- Gyro: MPU6500
- Input Voltage: 3-6S LiPo
- BEC Outputs: 10V 1A, 4.5V, 3.3V
- OSD: AT7456E
- Firmware Target: MATEKF405
- Mounting: 30.5mm x 30.5mm
4-in-1 ESC:
- Input Voltage: 2-6S LiPo
- Continuous Current: 50A x 4
- Peak Current: 60A (10s)
- Firmware: BLHeli_S
- Supported Protocols: DSHOT300/600
- Mounting: 30.5mm x 30.5mm

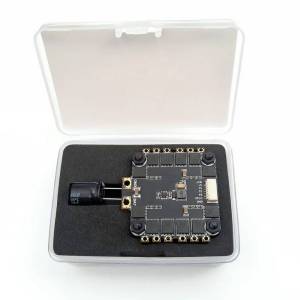

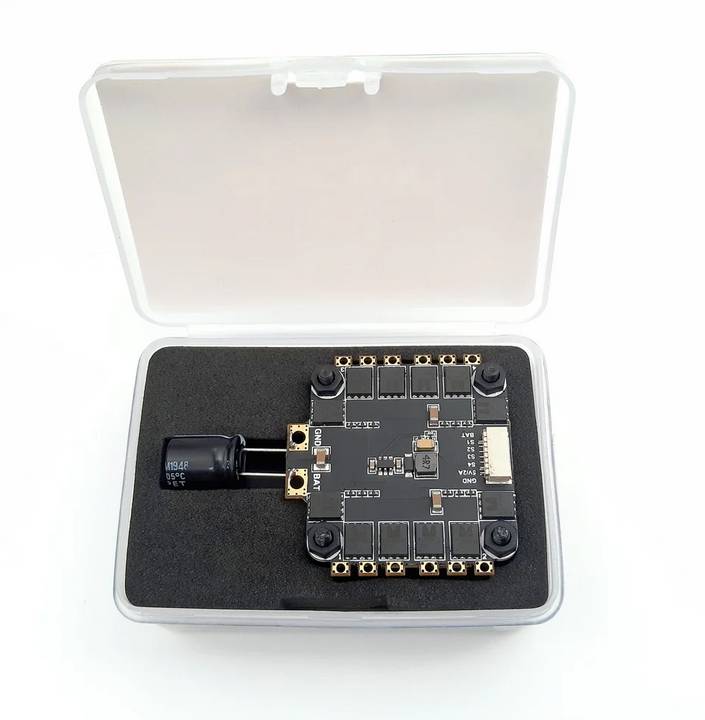

What’s in the Box?
- 1x DarwinFPV F4 Flight Controller
- 1x DarwinFPV 50A 4-in-1 ESC
- 1x ESC to FC Wiring Harness
- 1x XT60 Power Pigtail
- 1x Capacitor
- 1x Set of Mounting Hardware
