Aikon 20×20 FC AK32 35 4in1 ESC COMBO F4 FT
Features
- Conveniently located ESC signal ground and telemetry pads
- Quick connection cable for 4-in-1 ESCs,
- Works out of the box with the Aikon AK32PIN 4-in-1s
- Onboard voltage regulator up to 6S
- 32khz Capable
- 168mhz F4 Processor
- Software serial: SOFTSERIAL1 for VTX control
- Onboard OSD and Blackbox
- LED outputs
Specifications
- Battery: 2-6s
- Mounting Holes: 20*20mm
- Firmware: Betaflight AIKONF4 Target

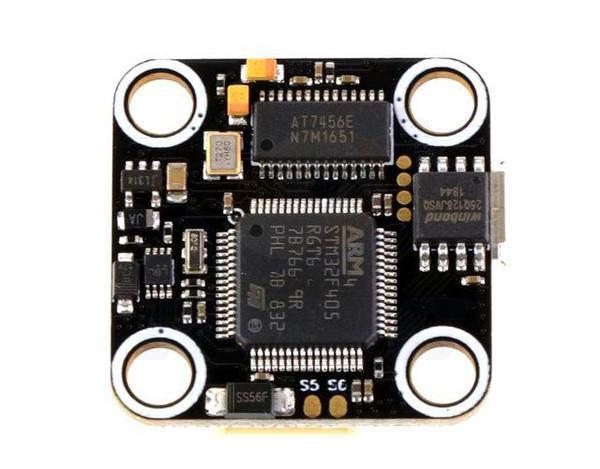

- MCU: STM32F405
- IMU: ICM-20602
- Blackbox: SPI 16MB
- Weight: 7g

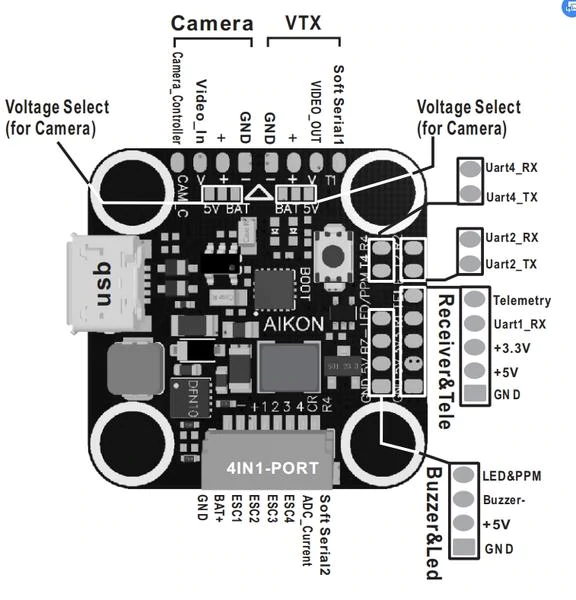

- Hardware UARTS:
- UART1 for SerialRX
- UART3 for S.PORT
- UART4 for ESC telemetry
- UART2 available for CRSF or general use
Included

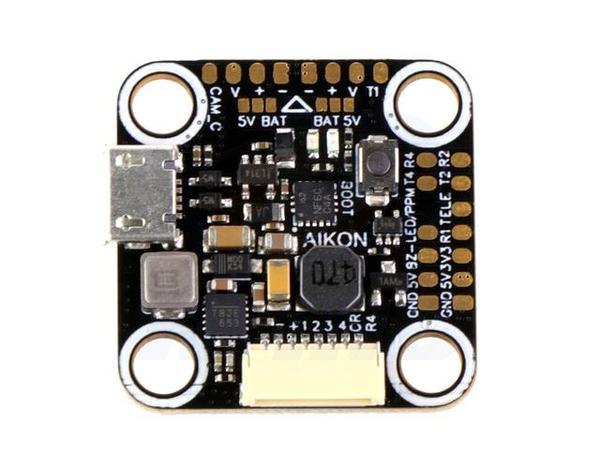

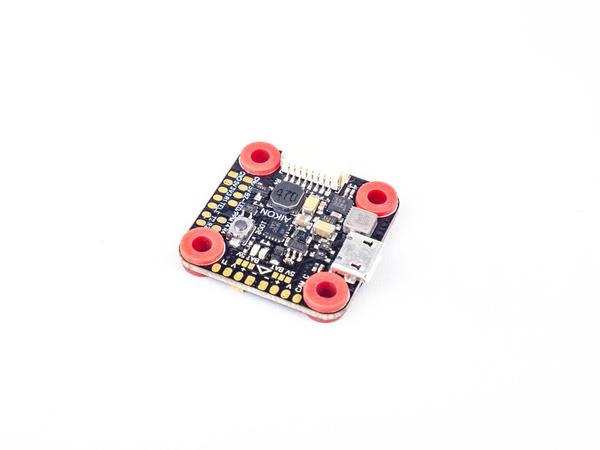

- Aikon F4 Mini 2020 FC
- 4x Red Grommets/Gummies
- 1x Silicone 8pin cable with bare leads
- 1x Silicone 8pin cable with connectors for 4-in-1
- Paper Manual

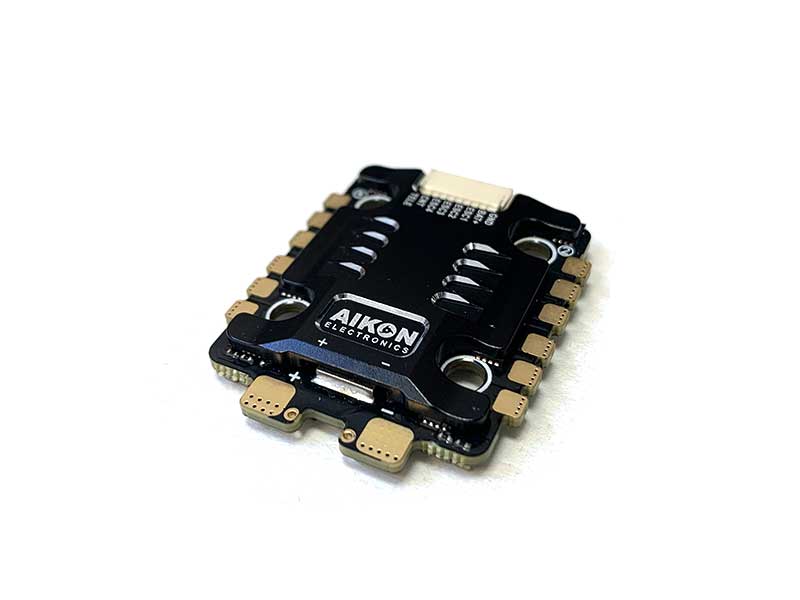

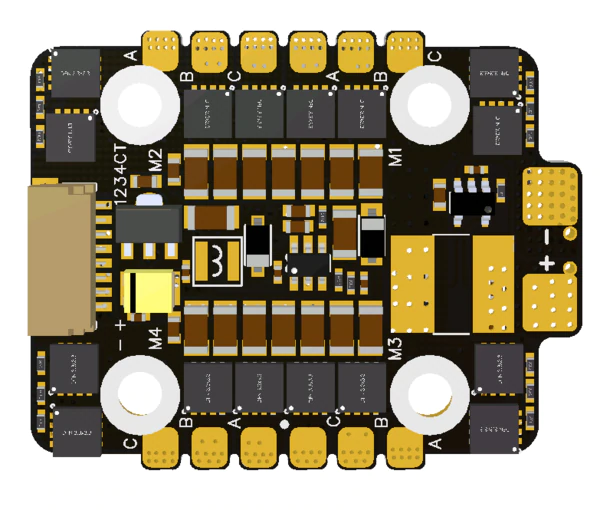

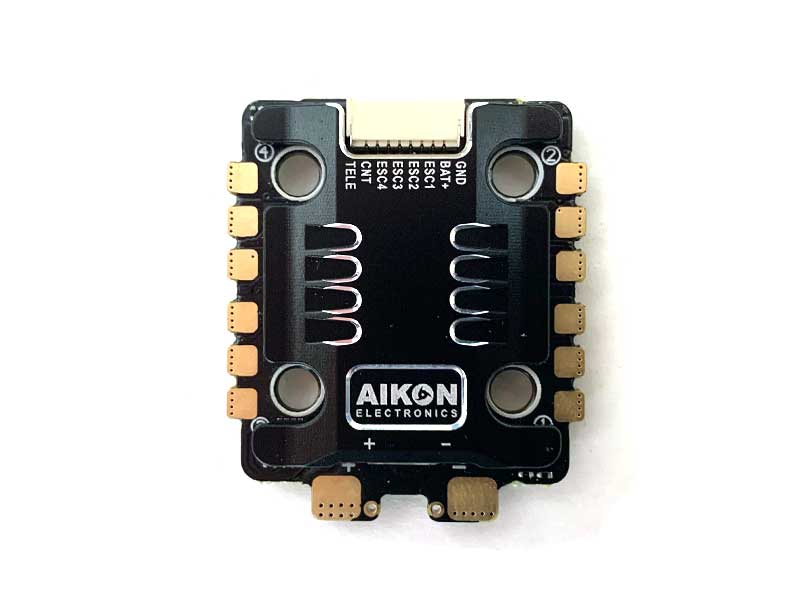

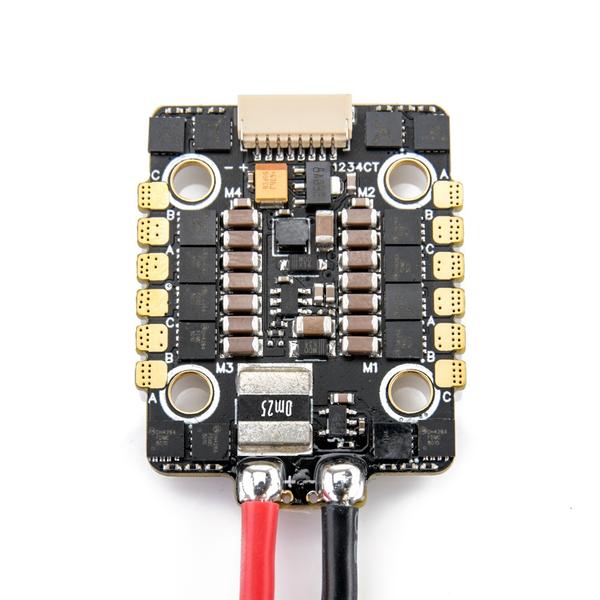

Description for the (AIKON AK32PIN 35 4in1 6s 20×20)
The Aikon AK32 35A 4IN1 BLHeli32 comes with STM32F051 micro processor with latest BLHeli_32 firmware. It supports 6s input, comes with current sensor to monitor the current output.
What makes the AK32 different?
- New BLHeli_32 code base
- Programmable PWM frequency of up to 48KHz
- Auto-timing for higher efficiency and reliability
- Voltage/Current limiting
- Adjustable “Brake on Stop” force
- Improve direction change in Bidirectional mode
- ESC Telemetry
- Configuring from FC using DShot commands
Specifications:
Battery: 2-6s
Constant Current: 35A
Burst Current: 45A
Size: 36*36mm
Firmware: BLHeli32
MCU: STM32 F051
Bootloader: Yes
Weight( with/wire): 16g
Signal wire length: 100mm
