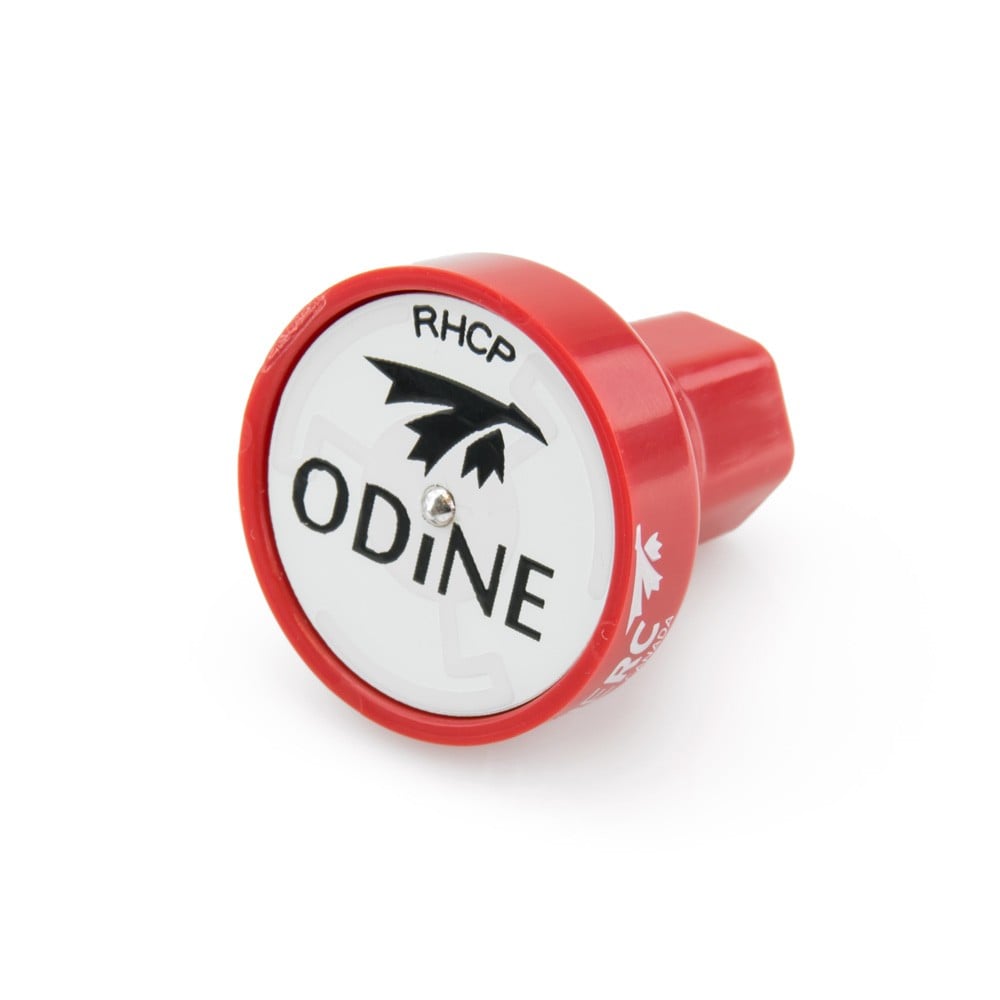

TrueRC Odine 5.8Ghz Antenna – RHCP
See all of our TrueRC Products! Also, see all of our 5.8GHz Antennas!
Experience the pinnacle of compact omnidirectional performance with the TrueRC ODiNE 5.8GHz antenna. Evolving from the legendary Pagoda design, the ODiNE has been re-engineered by TrueRC to maximize signal efficiency in an incredibly small and durable package. It’s the perfect high-performance antenna for the video transmitter on your FPV freestyle or racing drone.
Engineered for Maximum Efficiency
The ODiNE achieves an incredible 98% radiation efficiency, one of the highest in its class. This means that nearly all of your video transmitter’s power is converted into a clean, usable signal, resulting in a clearer picture and better range with less breakup. This top-tier performance is achieved through the use of microwave-grade PCBs and a unique design where the strong polycarbonate case is an integral part of the antenna’s RF tuning, not just a protective afterthought.
Compact & Durable Design
With its “stubby” form factor, the ODiNE is perfect for modern FPV drones where durability and a low profile are essential. The antenna is extremely lightweight at only 5.4 grams and is housed in a tough polycarbonate shell that can withstand serious impacts, protecting the delicate internal elements from crash damage.
Key Features:
- 98% Radiation Efficiency: Provides the highest possible signal quality and range from your VTX, as almost no power is wasted as heat.
- Compact & Stubby Form Factor: Low profile reduces drag and makes the antenna less likely to be damaged in a crash or by a race gate.
- Excellent Gain & Signal Clarity: A 1.5dBic gain and high-quality design provide a strong, clear signal with excellent penetration.
- Durable Polycarbonate Housing: A tough, injection-molded shell protects the internal PCB elements from impacts.
- Engineered by TrueRC: Carries the reputation and performance guarantee of one of the most trusted brands in FPV antennas.
Important Compatibility Note:

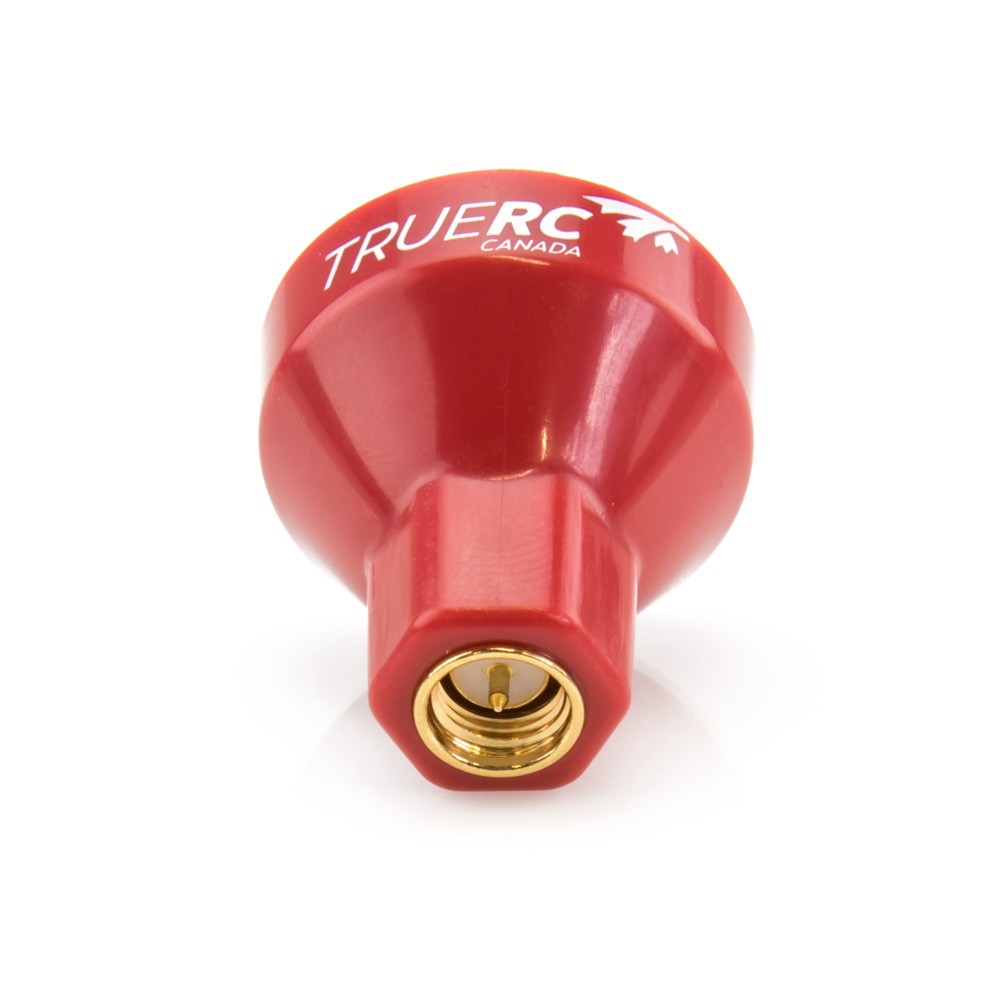

This is an RHCP (Right-Hand Circular Polarized) antenna with a standard SMA connector. For best performance, it must be paired with an RHCP antenna on your FPV goggles.
Specifications:
- Brand: TrueRC
- Bandwidth: 5.6GHz-6.0GHz
- Gain: 1.5dBic
- Radiation Efficiency: 98%
- Polarization: RHCP
- Weight: 5.4g
- Dimensions: 23mm (Diameter) x 24mm (Height)
- Connector: SMA
Includes:
- 1x TrueRC ODiNE 5.8GHz Antenna (RHCP, SMA)
