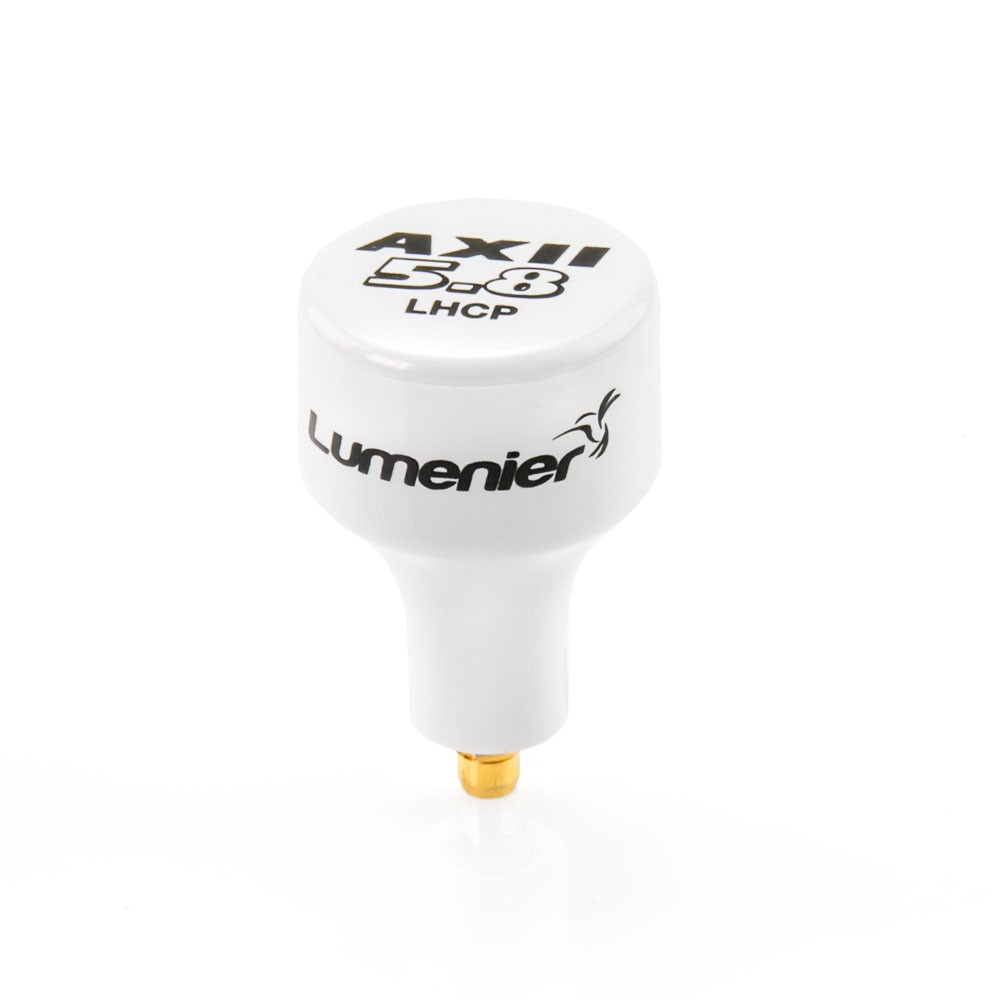

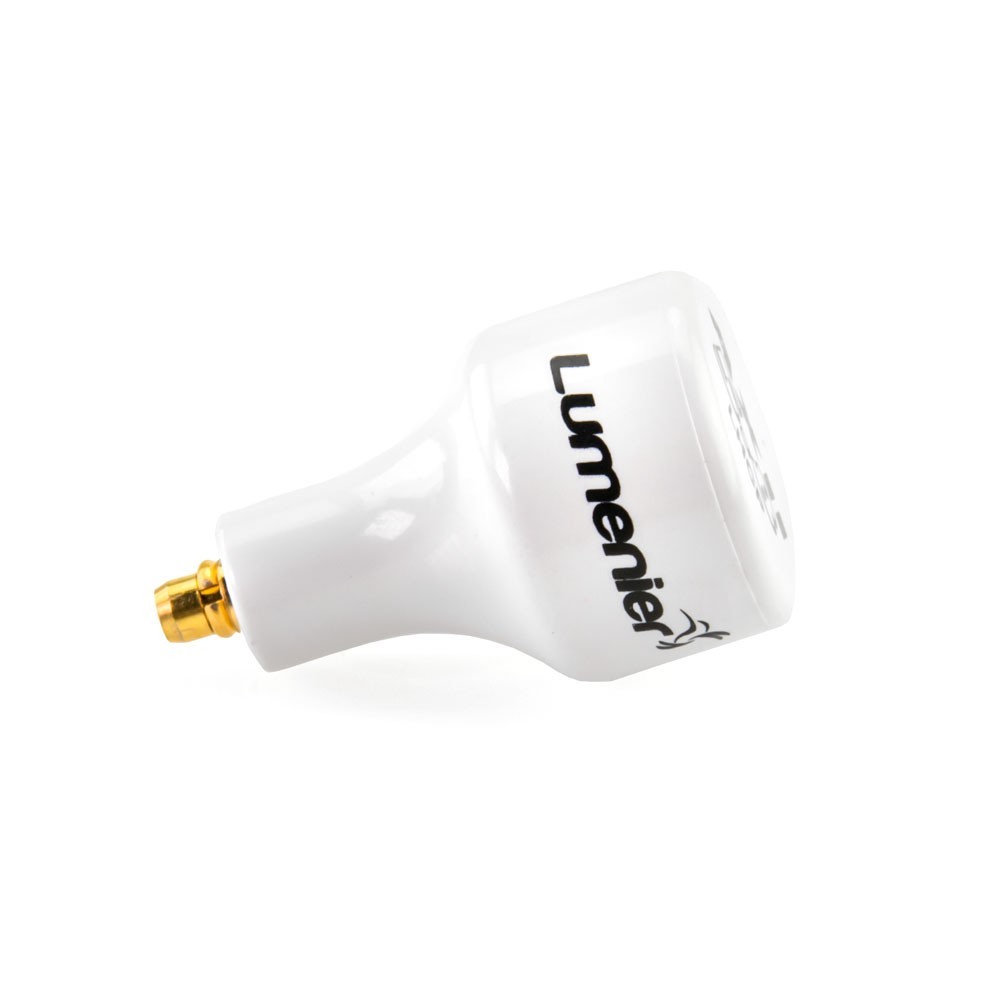

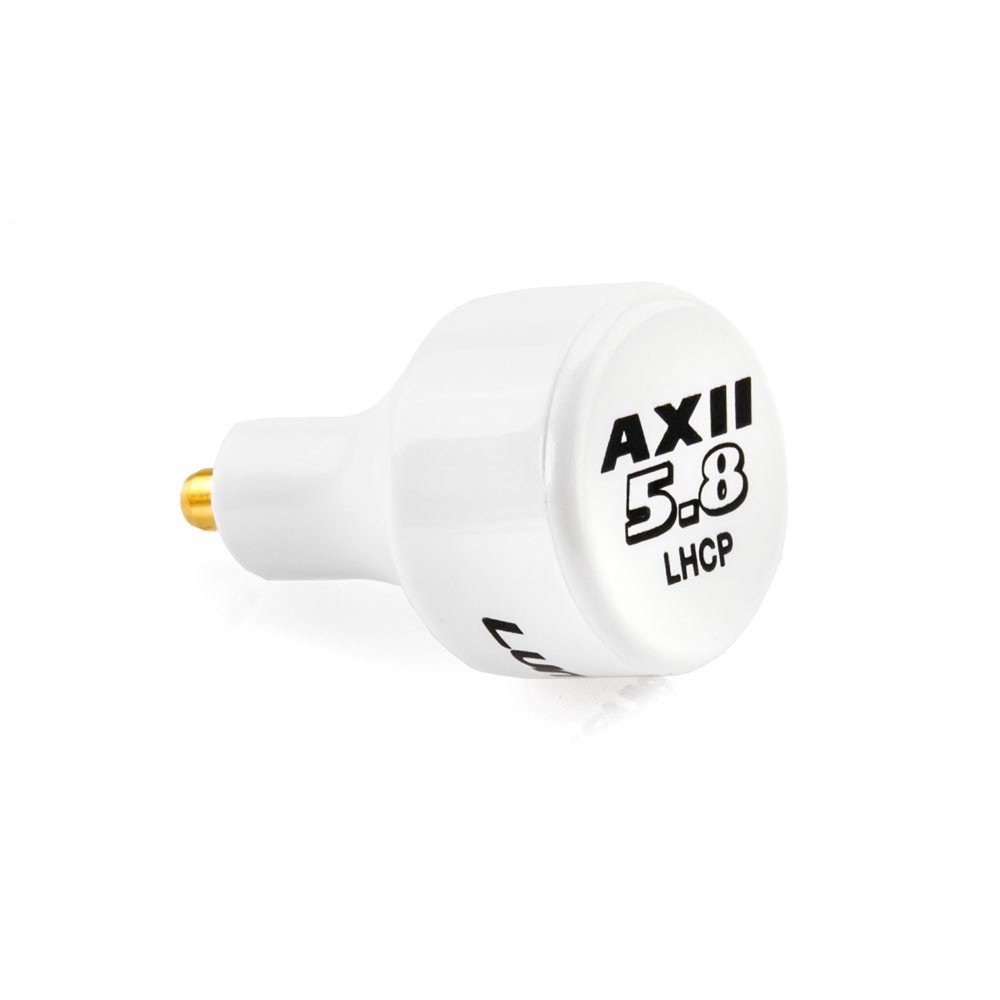

Lumenier Micro AXII Stubby MMCX 5.8GHz Antenna (LHCP)
Check out all of our Lumenier products, and all of our 5.8GHz antennas!
Get the ultimate in build flexibility and performance with the Lumenier Micro AXII Stubby 5.8GHz antenna. This innovative antenna features a direct MMCX connector, allowing you to plug it straight into your video transmitter for an ultra-compact, low-profile setup. For more traditional mounting, simply use the included 145mm extension cable. It’s two antennas in one, delivering top-tier performance for any FPV drone build.
Two Ways to Mount, One Great Performance

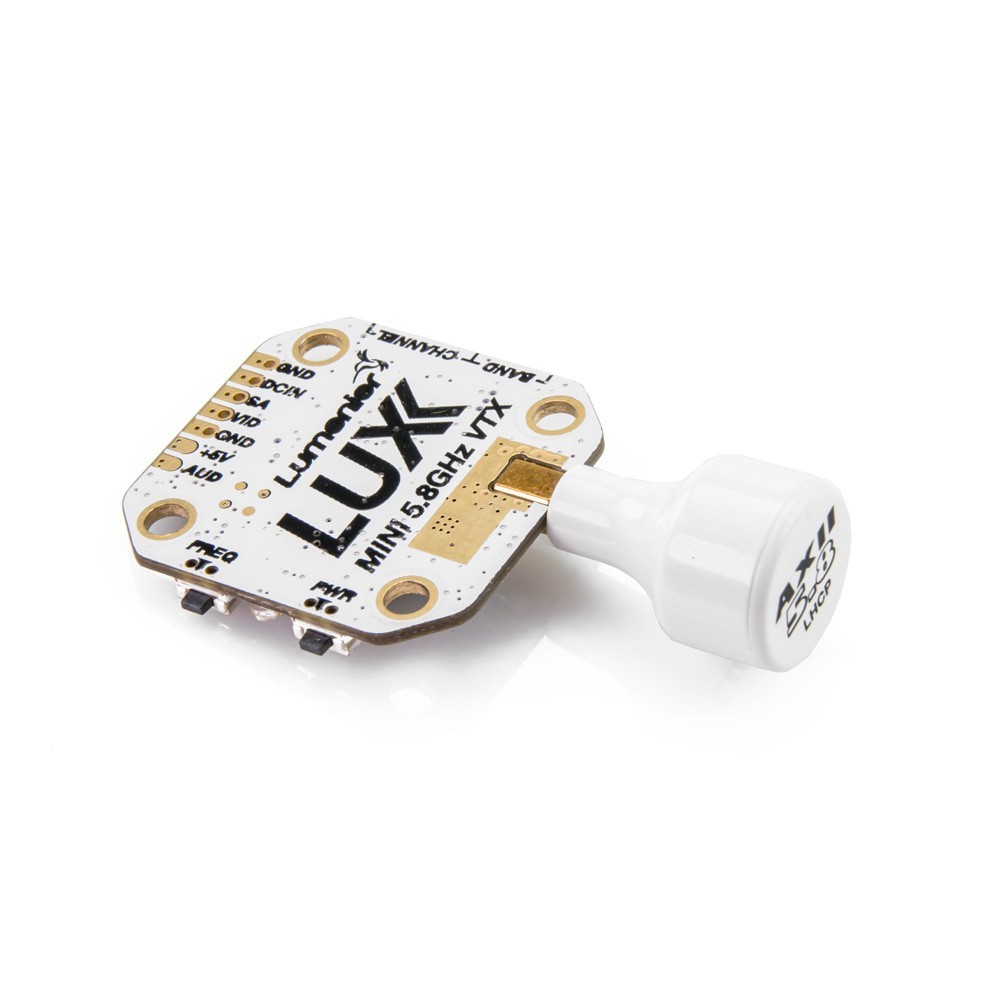

The beauty of the Micro AXII Stubby is its versatility. For tiny whoops, racing drones, or any build where a low profile is critical, plug the stubby antenna directly into your VTX. This creates the smallest and lightest possible circularly polarized antenna setup. Need to position your antenna for better reception on a freestyle or long-range rig? Just use the included MMCX-to-MMCX extension cable to mount it anywhere on your frame.
Uncompromised AXII Performance
Despite its innovative form factor, the Stubby contains the same high-performance internals as the celebrated Micro AXII. Developed in a collaboration between Lumenier and renowned antenna designer Hugo of TrueRC, it features a market-leading 98% radiation efficiency and a near-perfect axial ratio. This means you get a crystal-clear video signal with maximum range and outstanding rejection of multipath interference.
Key Features:
- Versatile Direct-Mount or Cable Mount: Can be used as a super low-profile “stubby” or as a cabled antenna with the included extension, fitting any build style.
- Lumenier & TrueRC Collaboration: Expertly engineered for unparalleled performance and reliability.
- 98% Radiation Efficiency: Delivers a powerful and clear video signal with maximum range by converting nearly all VTX power into a usable signal.
- Excellent Multipath Rejection: A near-perfectly circular signal provides a cleaner picture, especially around obstacles.

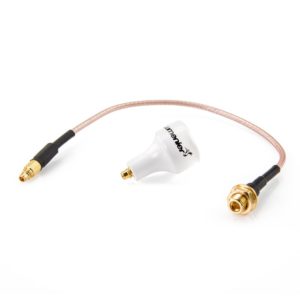

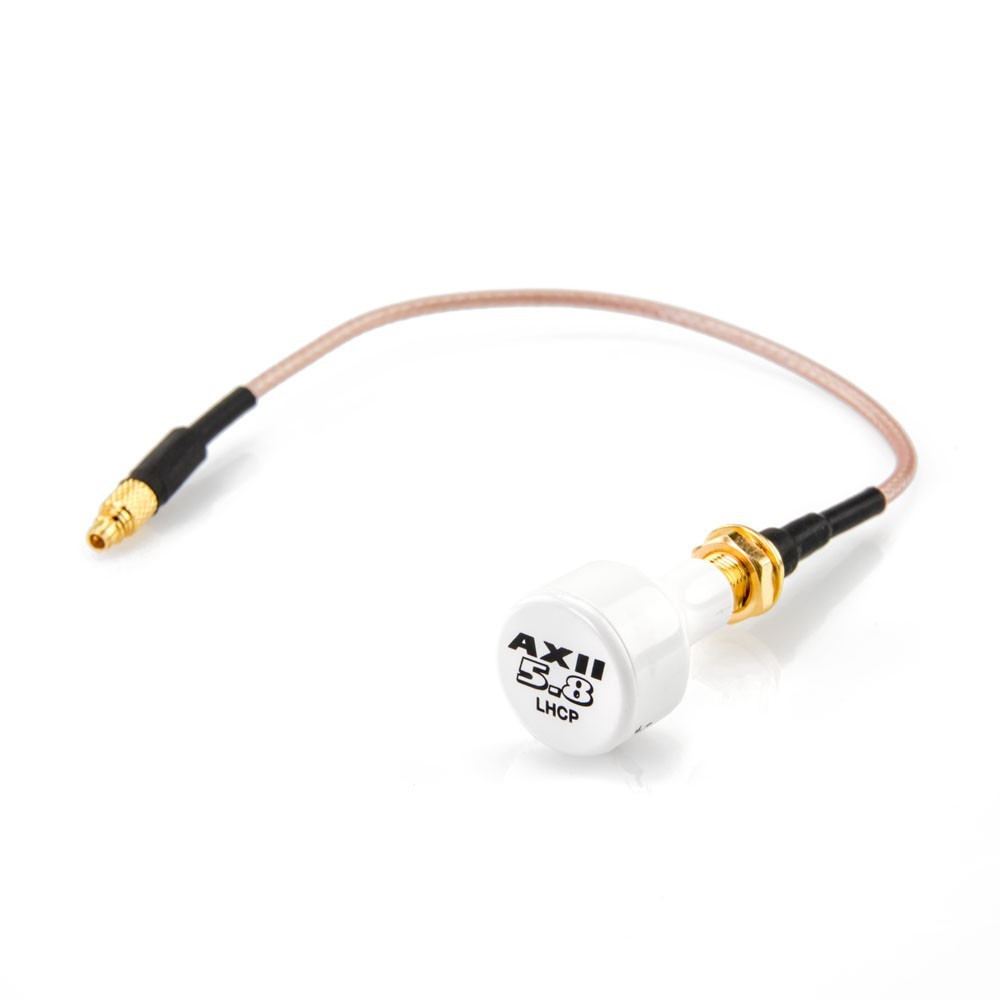

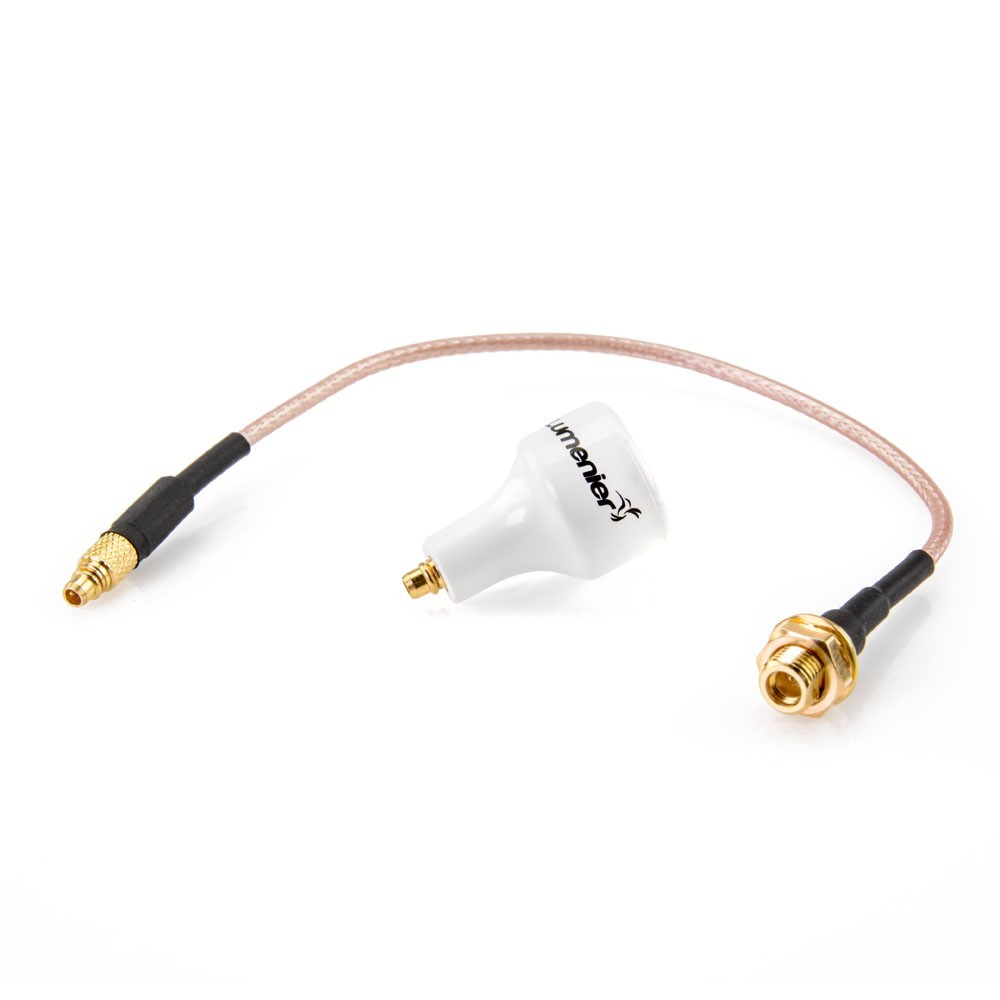

- Includes 145mm Extension Cable: Adds incredible mounting flexibility right out of the box.
- Durable Polycarbonate Shell: Protects the sensitive antenna elements from crash damage and daily abuse.
Important: Check Your Connectors & Polarization
This is an LHCP (Left-Hand Circular Polarized) antenna with an MMCX connector. For best performance, it must be paired with an LHCP antenna on your FPV goggles.
Specifications

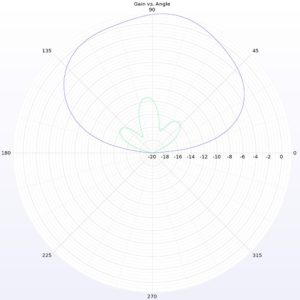

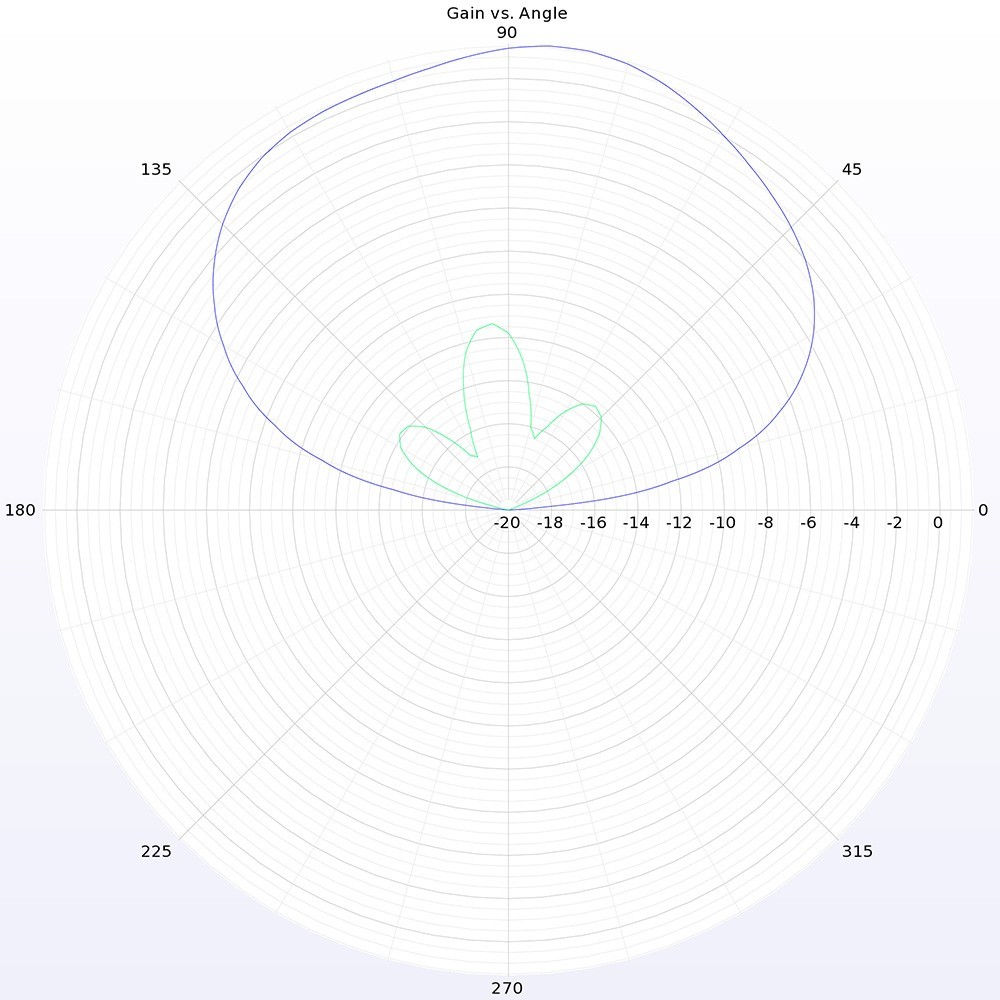

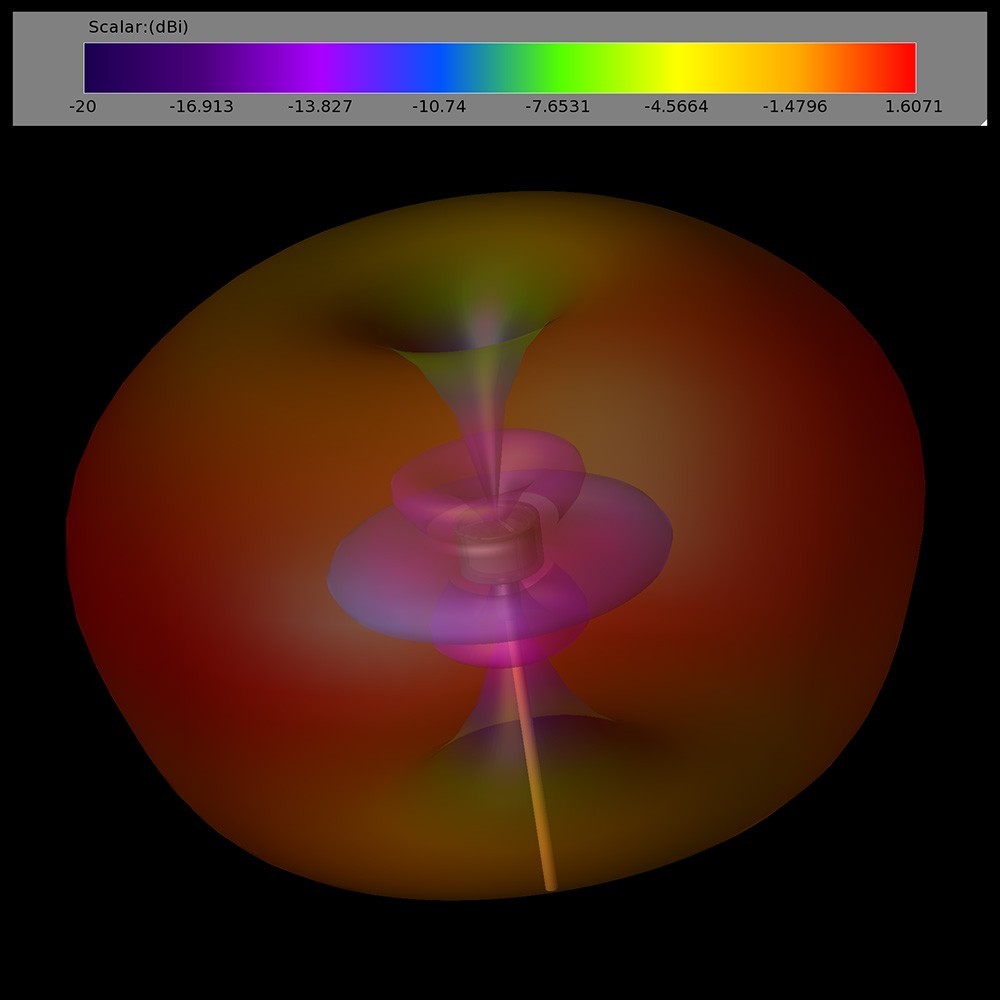

- Gain: 1.6dBi
- Cross-Polar Rejection: -10 to -28dB
- Bandwidth: 5.5GHz-6.0GHz
- Radiation Efficiency: 98%
- SWR: <=1.5:1
- Weight: 2g (Stubby antenna only)

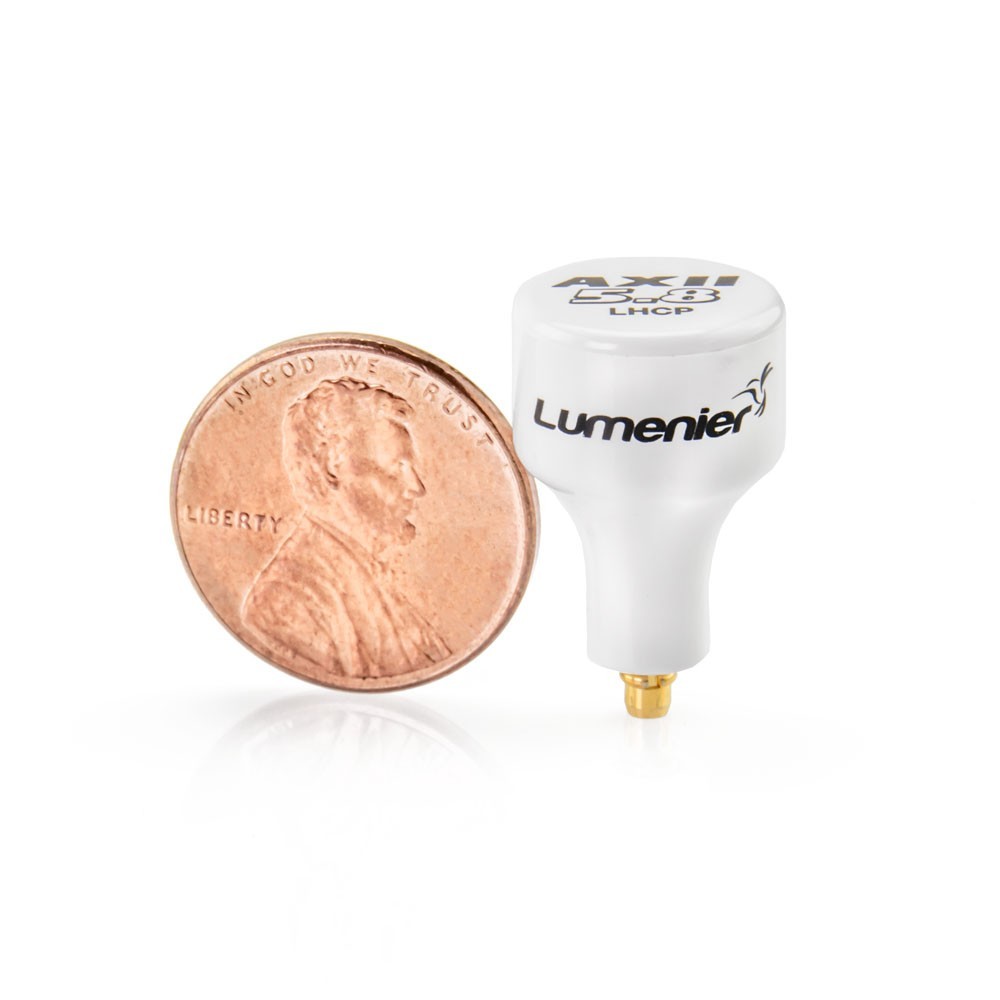

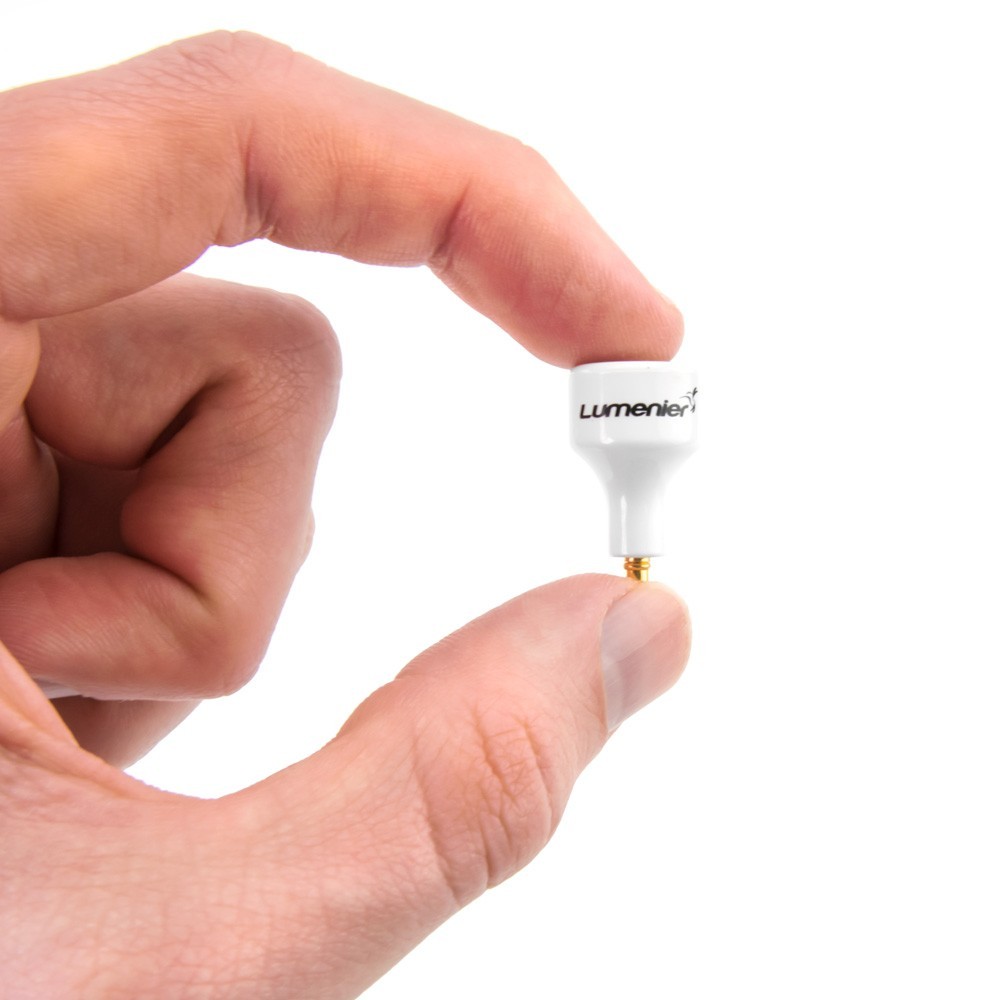

- Size: 22.1mm x 13.5mm
- Connector: MMCX
- Polarization: LHCP
Includes
- 1x Lumenier Micro AXII Stubby MMCX 5.8GHz Antenna (LHCP)
- 1x MMCX Female to MMCX Male 145mm Adapter Cable
