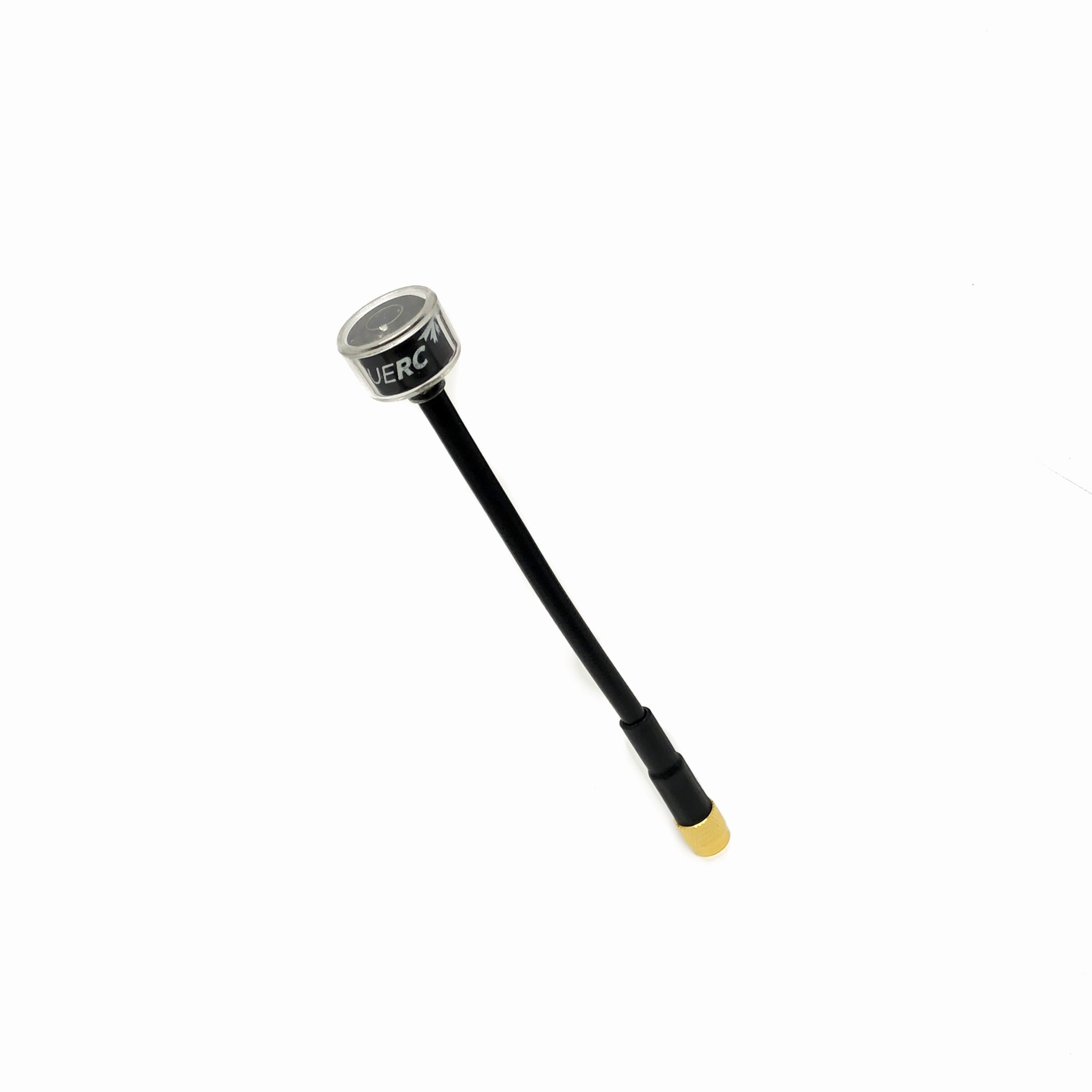

TrueRC OCP 5.8Ghz SMA Long Antenna – RHCP
See all of our TrueRC Products! Also, see all of our 5.8GHz Antennas!
The OCP 5.8 is our new everyday omni antenna. The proven design has great signal, is durable, and looks amazing. Available in U.FL, SMA, SMA (FLEX), SMA Long, and MMCX connectors!
Get a MyFPVStore 3D printed Connecter Wrench for your SMA Connection!
Features
- Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
- A clear indication of polarization direction
- Excellent axial ratio and efficiency
- Heavy-duty coax cable that can be bent to shape
- Knurled True-SMA for easy tightening
Specs:
- Gain:Â 1.6dBic
- Cross-Polar Rejection: -10 to -20dB, (3.2%)
- Bandwidth:Â 5.6GHz-6.0GHz
- Radiation Efficiency: 98%
- SWR: <=1.2:1
- Weight: 9.8 g
- Dimensions(head): 16.5mm dia. X 10.7mm height.
- Length:123mm
- Cable: Heavy-duty semi-rigid RG402 coax.
- Connector: Reinforced True-SMA male.
Patent pending.
