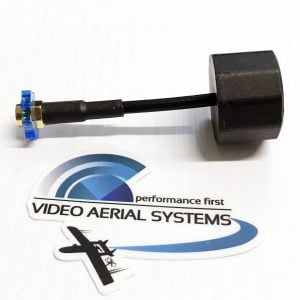

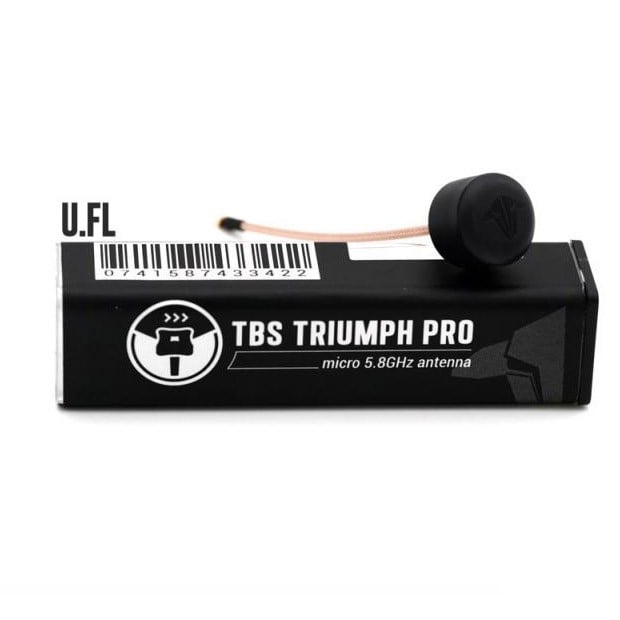

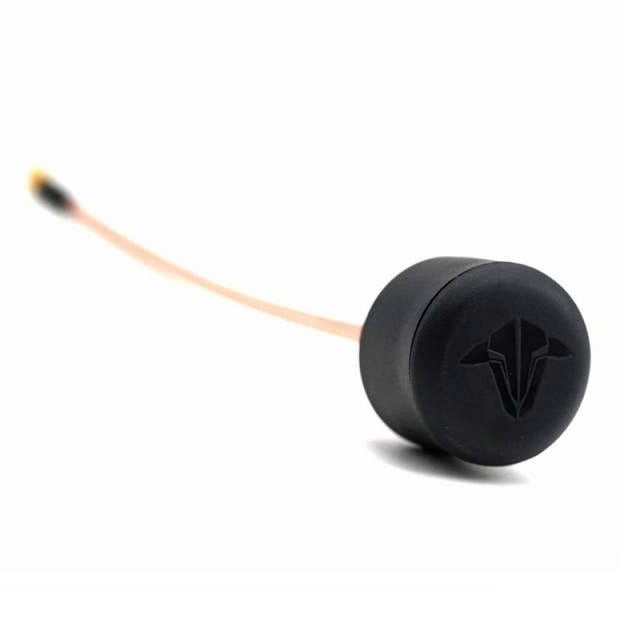

TBS Triumph Pro 5.8GHz FPV Antenna RHCP (MMCX 90°)
Check out all of our Team Blacksheep products!
Continuing the tradition of the TBS Triumph and following the tradition of VideoAerialSystem’s “Performance First” mantra, TBS is proud to present the TBS Triumph Pro! We managed to decrease the size of the TBS Triumph design while maintaining range and durability. The circular signal rejection signal consistency was further improved over the traditional TBS Triumph, making this antenna better in every way!

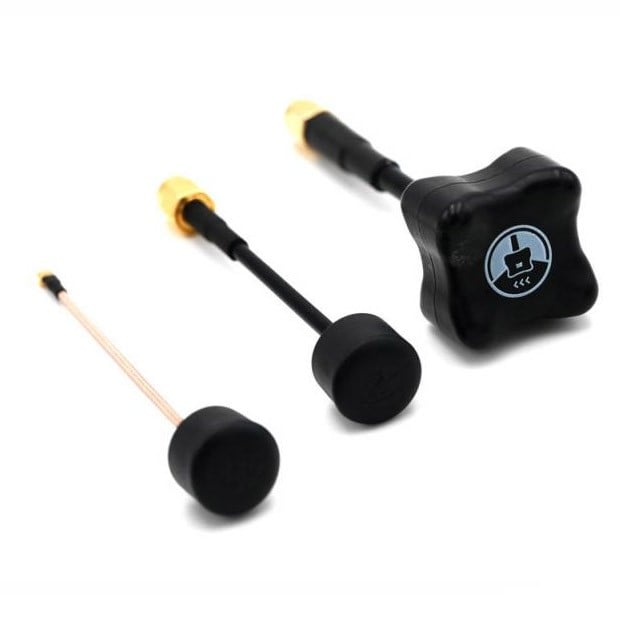

The microstrip antenna design together with a rigid and ultrasonic-welded enclosure allow mounting in exposed places, where signal propagates better. The antenna comes in 4 connector flavors: u.FL, MMCX, MMCX 90º and SMA.
We have learned that TBS doesn’t just make any product to get it out on the shelves, they spend the time to make sure quality matches perfection!
Check Out the MMCX Straight Version
Features:
- Manufactured and tested to highest standards
- Best in class range and signal quality
- Incredibly small and low weight
- Ultrasonic welded and foam infused cover for ultimate crash-protection
- Double-jacket semi-rigid cable for heavy impact resistance
Technical specifications:
- Frequency range: 5500-6000MHz
- Gain: 1.26dbic
- Axial Ratio: 0.74
- Cable: RG402 (heavy duty)
- Weight: 11.5g
- Height: 85mm, 3.3 in
- Connector: MMCX 90°
- Dimensions (PDF)
Package contents:

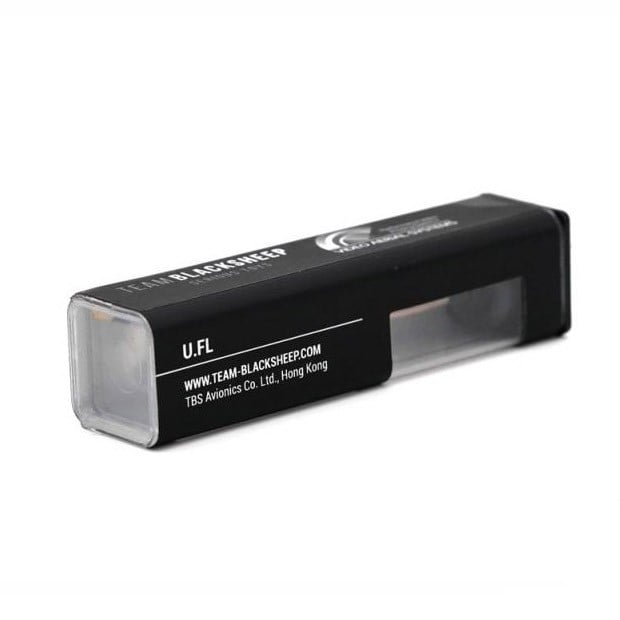

- 1x TBS Triumph Pro MMCX 90°
