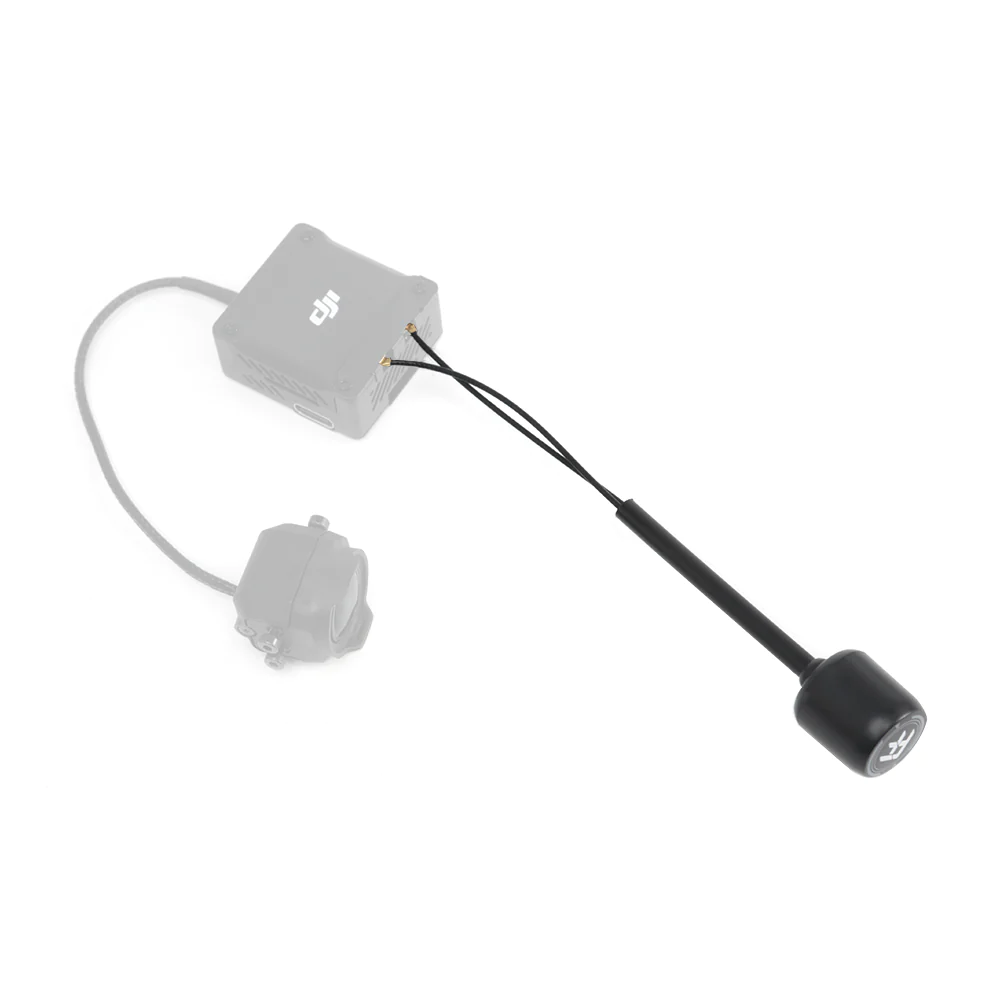

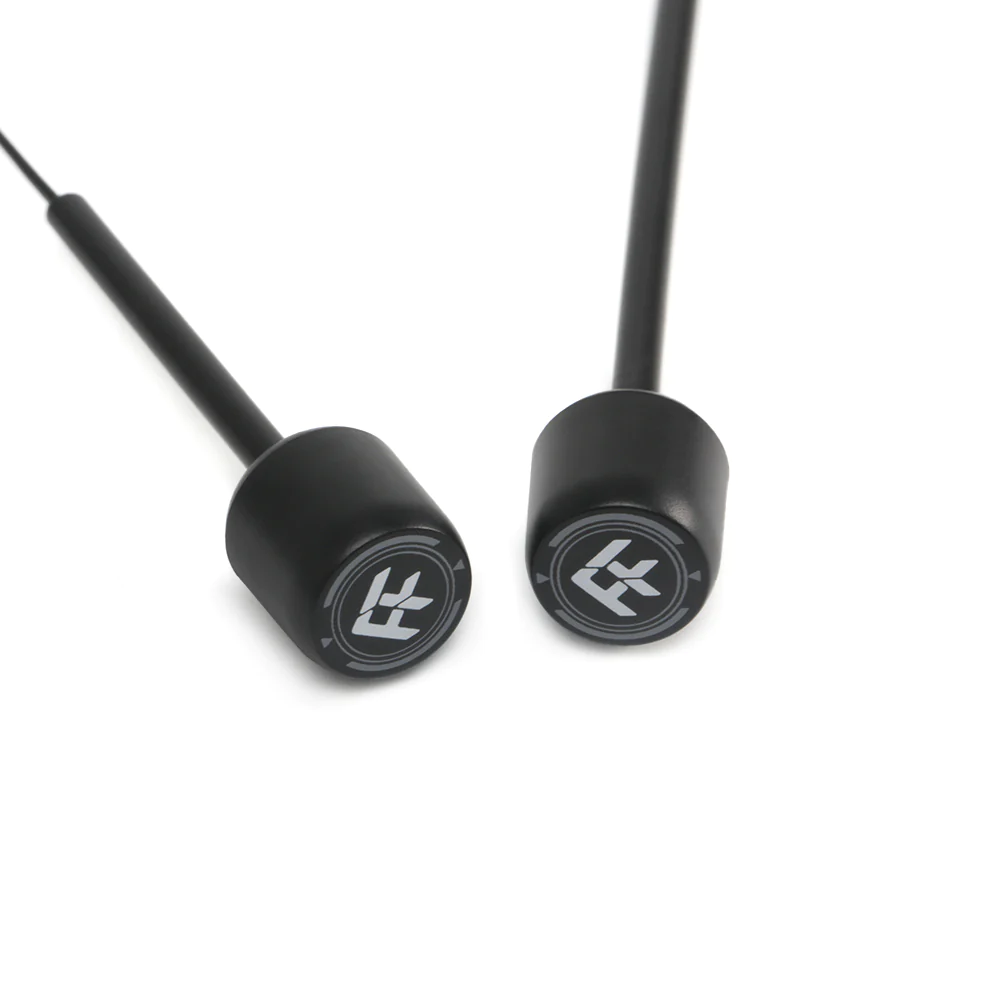

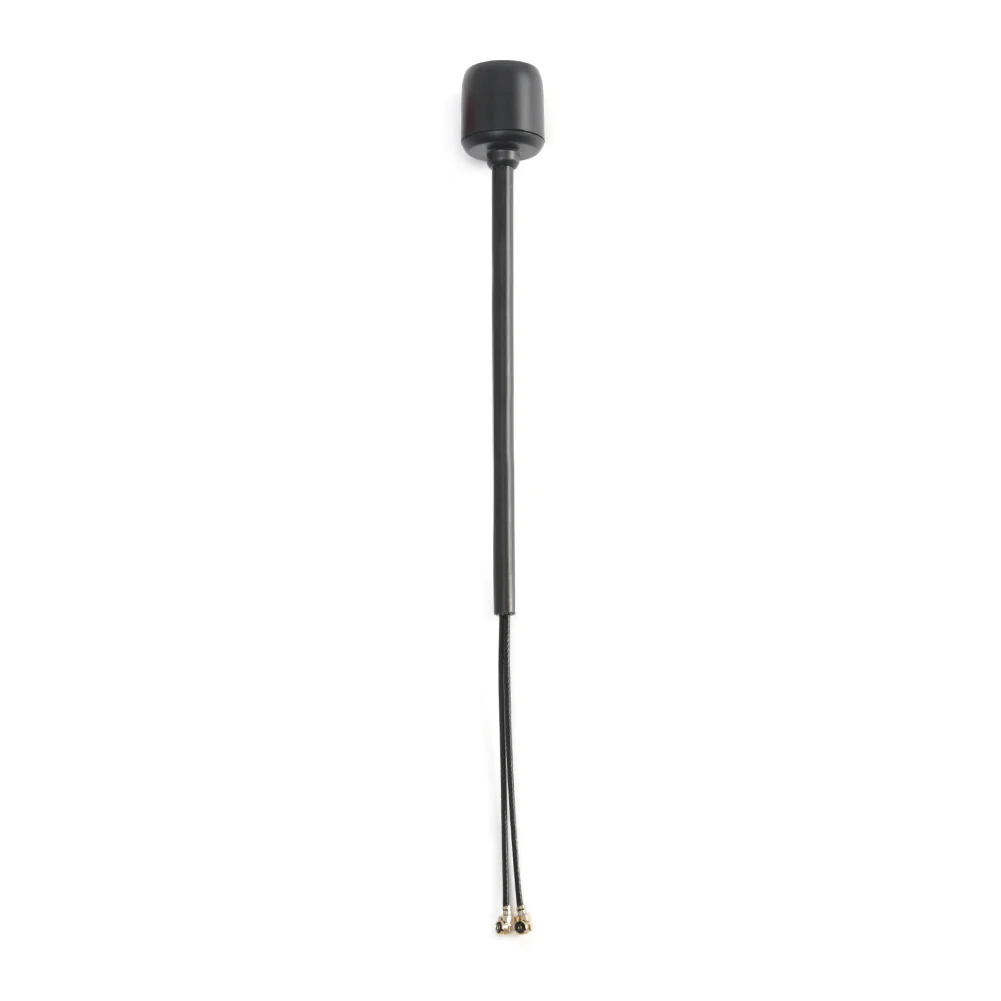

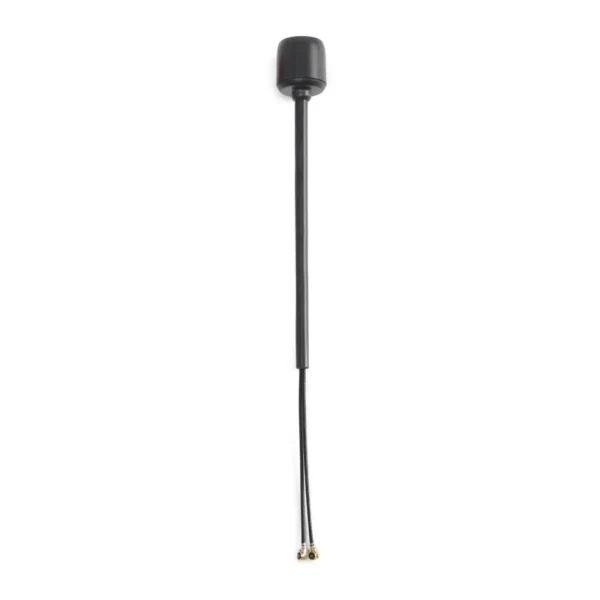

Dual-Band 5.8Ghz/2.4Ghz UFL Antenna For DJI O3
The FlyFishRC Dual-Band 5.8Ghz/2.4Ghz UFL Antenna is a top-tier accessory for the DJI O3 Air Unit, meticulously engineered to enhance your flying experience. This dual-band, dual-polarized omni-directional antenna seamlessly integrates 2.4G and 5.8G technology, offering compatibility and performance on par with the original equipment. Designed to excel in environments where interference is a concern, it ensures reliable long-distance transmission, making it an ideal choice for pilots aiming for extended range and clear signal quality.

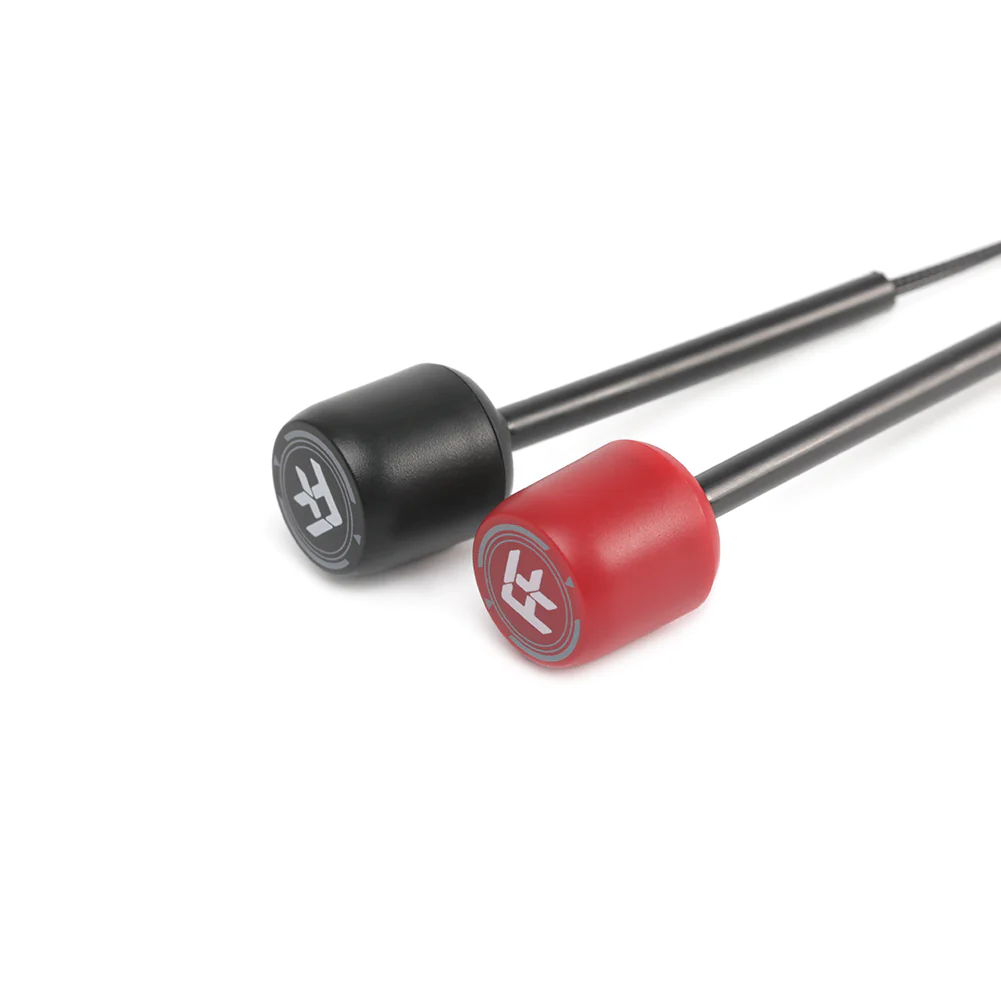

Lightweight and compact, thanks to its I-PEX dual connector, this antenna is available in both red and black, with varying lengths to match different flight needs, whether it’s for racing, freestyle, or long-range FPV flights. Constructed from durable, impact-resistant polycarbonate, it combines a sleek appearance with the ruggedness required for the demands of drone flying.
With specifications designed to optimize your flying experience, including a frequency range that covers both 2.4GHz and 5.8GHz bands, gains of 2.5dBi and 3.8dBi respectively, and a VSWR of ≤1.6, this antenna ensures superior performance. Its linear polarization and 50Ω impedance are perfectly matched to the needs of FPV pilots, offering a significant upgrade in terms of both reliability and quality.
Whether you’re navigating the complexities of indoor courses or exploring the vastness of outdoor landscapes, the FlyFishRC O3 Dual-Band Antenna stands out as a premium choice for enhancing your DJI O3 Air Unit’s performance. With its combination of advanced technology, thoughtful design, and durable materials, it represents a significant step forward in FPV antenna technology.
Specifications:
Frequency Range：2400-2500MHz/5700-5900MHz
Gain：2.5dBi/3.8dBi
VSWR≤1.6
Polarization： Linear
Impendance:50Ω

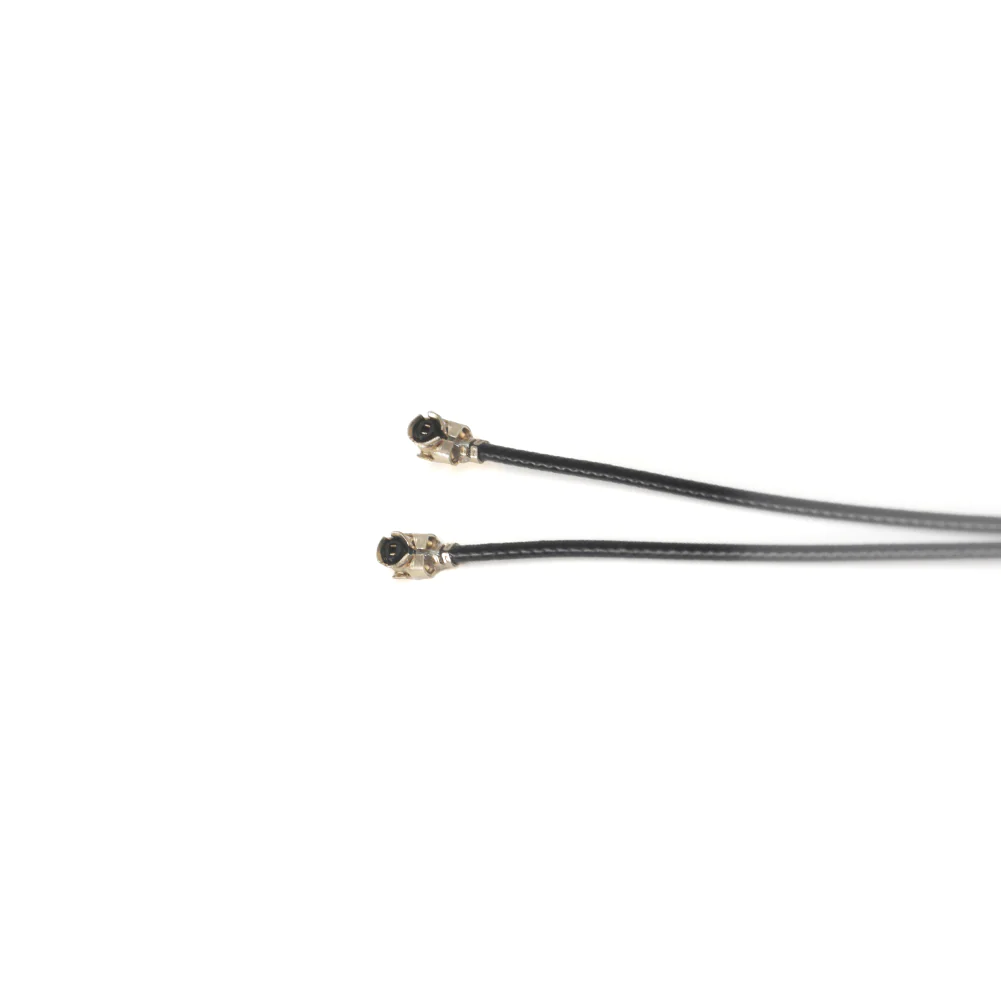

Connector： IPEX*2
Cable： RF1.13

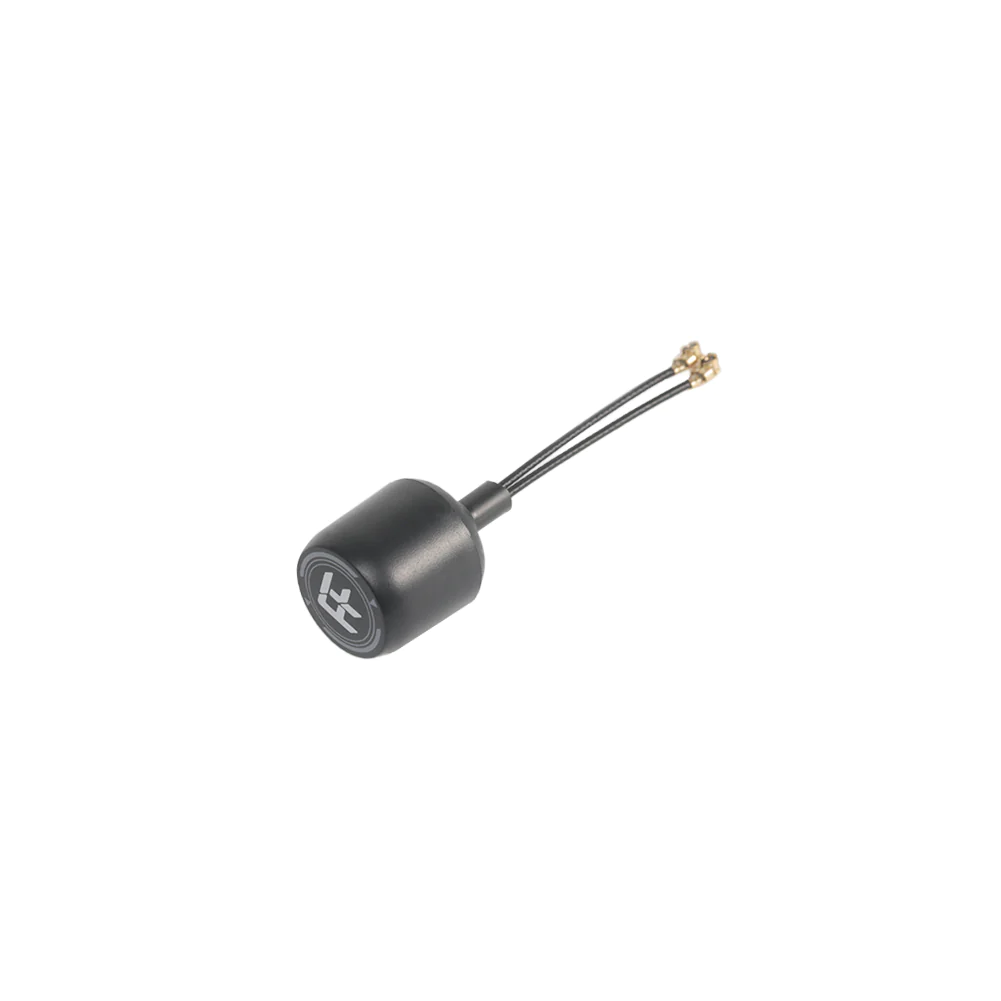

40mm Stubby weight：2.4g
95mm weight：3.3g
145mm weight：3.9g
Size：Φ16*17mm
Includes:
1x FlyFishRC O3 Dual-band Antenna
