Happymodel Moblite6 Ultralight 1S 65mm Brushless Whoop – SPI Frsky

Check out all of our other HappyModel products! Also, take a look at our selection of Pre-Built Drones!

Features

• The lightest 1s 65mm brushless whoop
• Powerful and efficiency
• The lightest 1s AIO 5IN1 F4 flight controller
• New Unibell EX0802 brushless motors
• VTX power switchable 25mw~200mw
• Low profile Canopy design

Specifications

• Brand Name: Happymodel
• Item Name: Moblite6 1S 65mm ultra-light brushless whoop
• Wheelbase: 65mm
• Size: 80mm*80mm*25mm

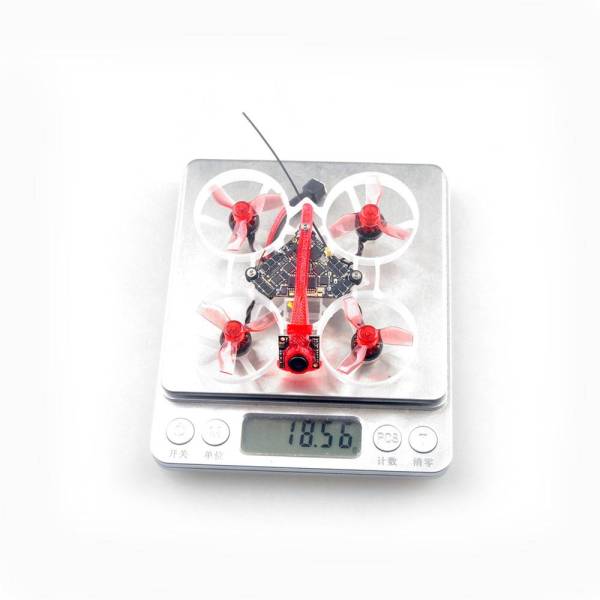

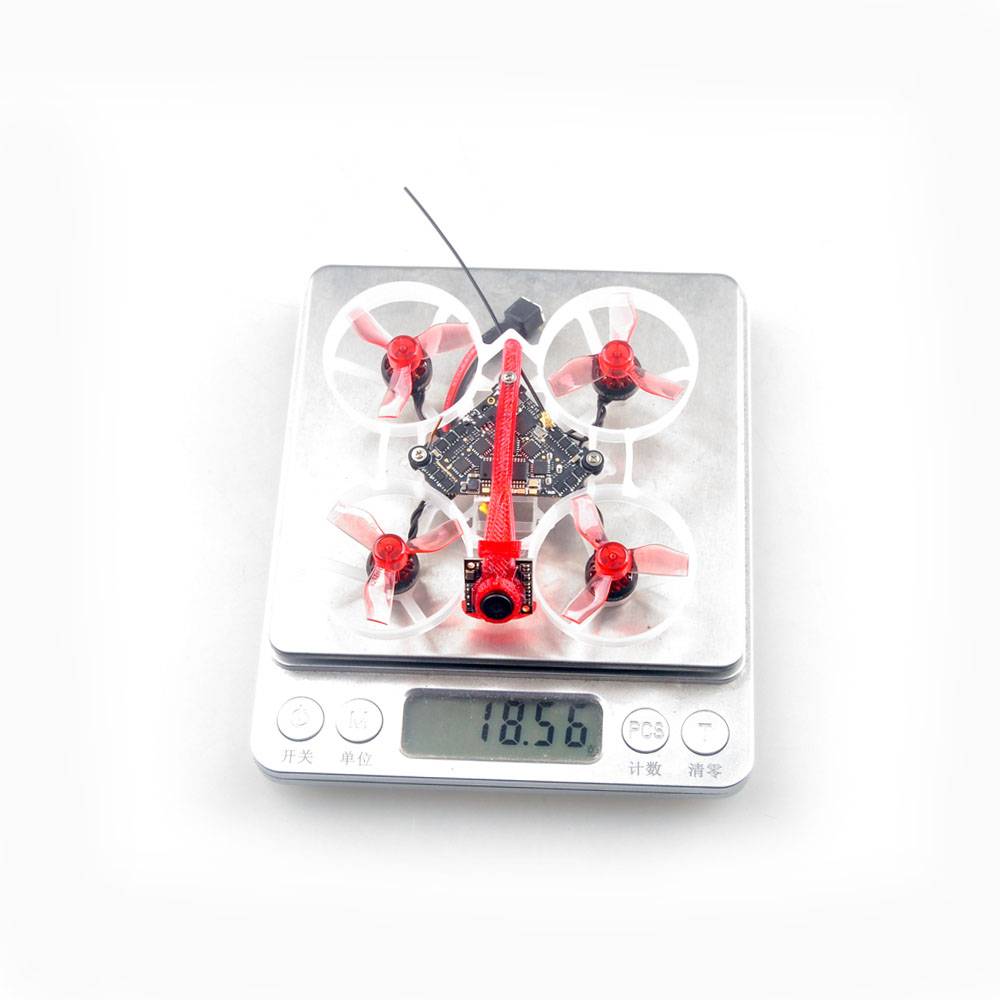

• Weight: 18.5g (without battery)
• Weight:26g(with Original 1s 300mah Lipo battery )

Motor

• Mode: EX0802 19000KV
• Configu-ration:9N12P
• Stator Diamter:8mm
• Stator Length:2mm
• Shaft Diameter:Φ1mm
• Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
• Weight(g):1.7g
• No.of Cells(Lipo):1S only

Flight Controller

• (Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4F
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
• Sensor: MPU-6000(SPI connection)
• Original whoop size compatible
• Power supply: 1S battery input (DC 2.9V-4.35V)
• Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
• Built-in Betaflight OSD(SPI Control)
• Built-in 5.8G VTX
• Built-in SPI Frsky receiver
• Built-in 5V 1A BEC

Onboard 4-in-1 ESC

• MCU upgraded to EFM8BB21
• Power supply: 1S LiPo/LiPo HV
• Current: 5A continuous peak 6A (3 seconds)
• Support BLHeliSuite programmable
• Factory firmware: O_H_50_REV16_8.HEX
• Default protocol: DSHOT600

Onboard Frsky SPI D8 Receiver Version

• SPI BUS receiver Frsky D8 compatible
• Compatible Non-EU transmitter D8 model
• Channels: 8ch
• Failsafe support
• No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m

Onboard 5.8GHz VTX

• Output power: 25mw~200mw switchable
• Frequency: 40CH
• Input voltage: 3.3V 5.5V
• Current consumption: 300mA(type)
• Frequency: 5.8GHz 5bands 40 channels(include Race band)
• Smart audio ready

Runcam Nano 4 Lite

• Model: RunCam Nano4 Lite
• Image Sensor: 1/3″ CMOS
• Horizontal Resolution: 800TVL
• Lens : 2.1mm(M8) FOV 160°
• Signal System: PAL/NTSC Non-Switchable
• S/N Ratio: >50dB
• Electronic Shutter Speed: Auto
• Auto Gain Control (AGC): Auto
• Min. Illumination: 0.01Lux@1.2F
• D-WDR: Auto
• Day/Night: Color
• Power:DC 3-5.5V
• Current: 170mA@5V 180mA@3.3V
• Housing Material: ABS
• Net Weight: 1.0g
• Dimensions: L14mm*W12mm*H9mm

Lipo Battery

• Capacity:300mAh
• Voltage:3.8v
• Continuous Discharge Rate: 30C
• Size: 57mmx12mmx7mm
• Weight: 7.5g
• Connector: PH2.0

Includes

• 1 x 65mm Frame (Mobula6 frame)
• 1 x Option1: DiamondF4 FR built-in SPI Frsky receiver
• 4 x EX0802 KV19000 Unibell brushless motor
• 1 x Gemfan 1219 31mm propeller(4cw+4ccw)
• 1 x Runcam Nano4 Lite
• 1 x Built-in 5.8G 40ch 25mw-200mw VTX
• 2 x 1s 300mah Lipo battery
• 1 x 1S USB charger
• 1 x Propeller disassemble tool
• 1 x Screwdriver

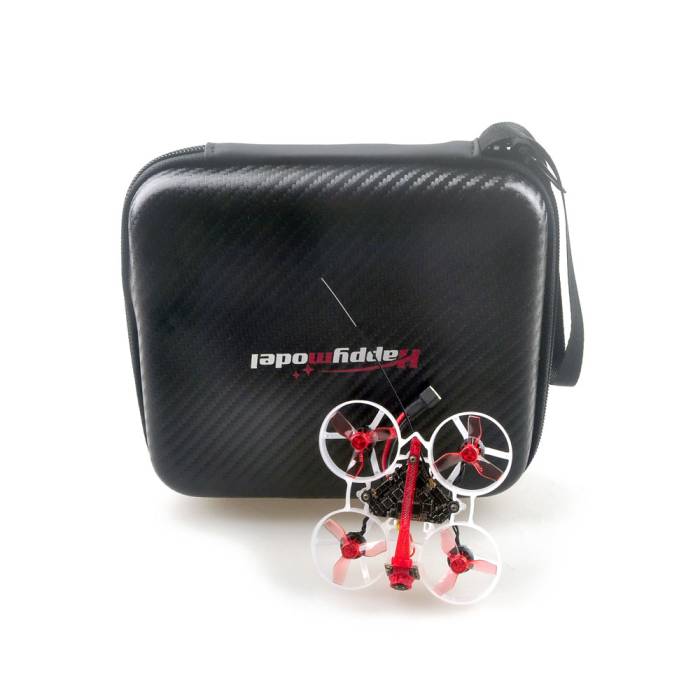

• 1 x Happymodel Carry case
