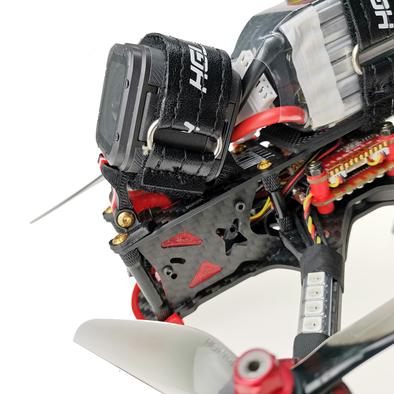

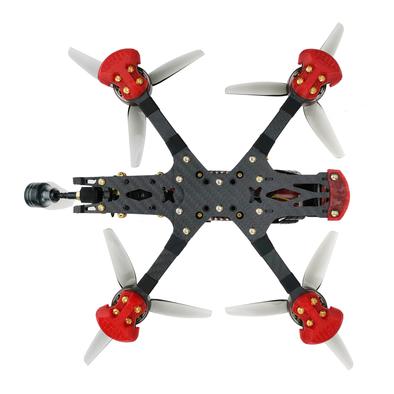

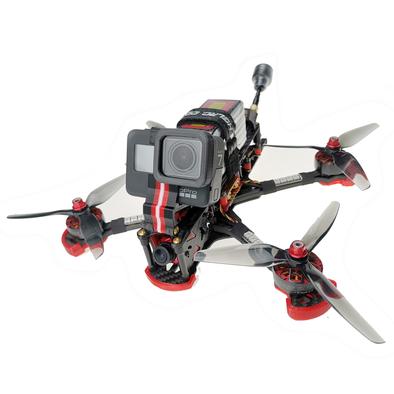

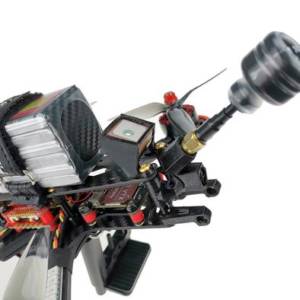

HGLRC Sector 5 V3 Freestyle FPV Racing Drone – 6s 1900Kv Caddx Ratel Version

HGLRC Sector 5 V3 Freestyle FPV Racing Drone – 6s 1900Kv Caddx Ratel Version

Check out all of our HGLRC Products

Features:

-Pre-installed LEDs and GPS.

Control the LED lights easily with the press of a button on the Zeus F722 FC. The Sector5 V3 also supports GPS rescue with one of the most stable GPS – HGLRC M80 installed.

-No Props in view

No more props in view with the V3. Enjoy the clear view of flying!

-Adjustable camera mount angle

Adjust the angle of the camera mount from 25°, 30°, 35° to 40° to suit your needs.

-Capacitor slot to hide the capacitor for a neater look

Cannot find the capacitor in the drone? it is “hidden” somewhere 🙂

-A complete range of TPU parts

All the STL files of the TPU parts used in this drone will be available for free! You can always print spare parts by yourself if you have a 3D printer. Check the files here

HGLRC Sector 5 V3 Freestyle FPV Racing Drone Caddx Ratel Version

Net Weight:442.4g(Weight without receiver)

Sector 5 V3 Freestyle Frame 5 inch
Type:5″ frame
Wheelbase:218mm
Support for Propellers up to 5.2 inches!
Overall size:172.5 * 136.7mm
Weight:177.9g（contain TPU）

F722 Flight Controller
MPU: MPU6000
CPU: STM32F722 RET6
Input Voltage:3-6S Lipo
BEC Output:5V/3A,9V/2A
Weight:7.6g

60A BL32 3-6S 4in1 ESC
CPU: STM32F051
Input Voltage:3-6S Lipo
Steady Current:60A
Peak Current:65A（10 Sec）
Weight:18g

MT VTX 800MW
Output power: PIT/25/100/200/400/800mW
Input:DC 7-28V
Antenna:MMCX
Weight:5.2g

Caddx Ratel FPV Camera
Image Sensor:1/1.8 ” 1200TVL CMOS
Lente:2.1mm
Input Power:DC 5V
Dimensions:19mm*19mm*19mm
Net weight:8g

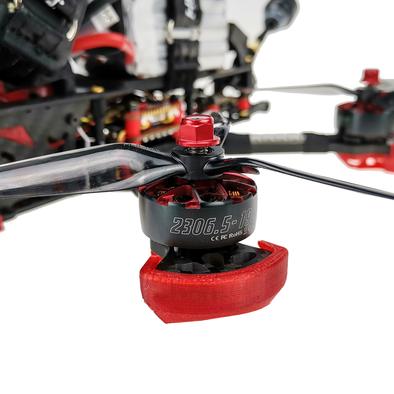

HGLRC 2306.5 Brushless Motor

1900KV (6S) / 2550KV (4S)
No.of Cells(Lipo):16.8 V
Recommended Prop(inch):5Inch

M80 GPS
Power Supply:5V
Size:18.5mm x 18.5mm x 7.1mm
Weight:9.4g

W554A LED Lightboard
Motor Valtage:2-6S
LED Voltage:5V
Overcurrent:50A
Size:34.8×7.9mm
Weight:5.2g（4 pcs）

Package Includes:

1x F722 Flight Controller
1x 60A BL32 3-6S 4in1 ESC
1x MT VTX 800mW
1x Caddx Ratel FPV Camera
1x Sector 5 V3 Freestyle Frame Kit
4x 2306.5 1900KV Motor
1x M80 GPS
4x W554A LED Lightboard
8x EthixS5 propeller
1x Hammer Antenna
4x Battery Strap
1x Receiver
