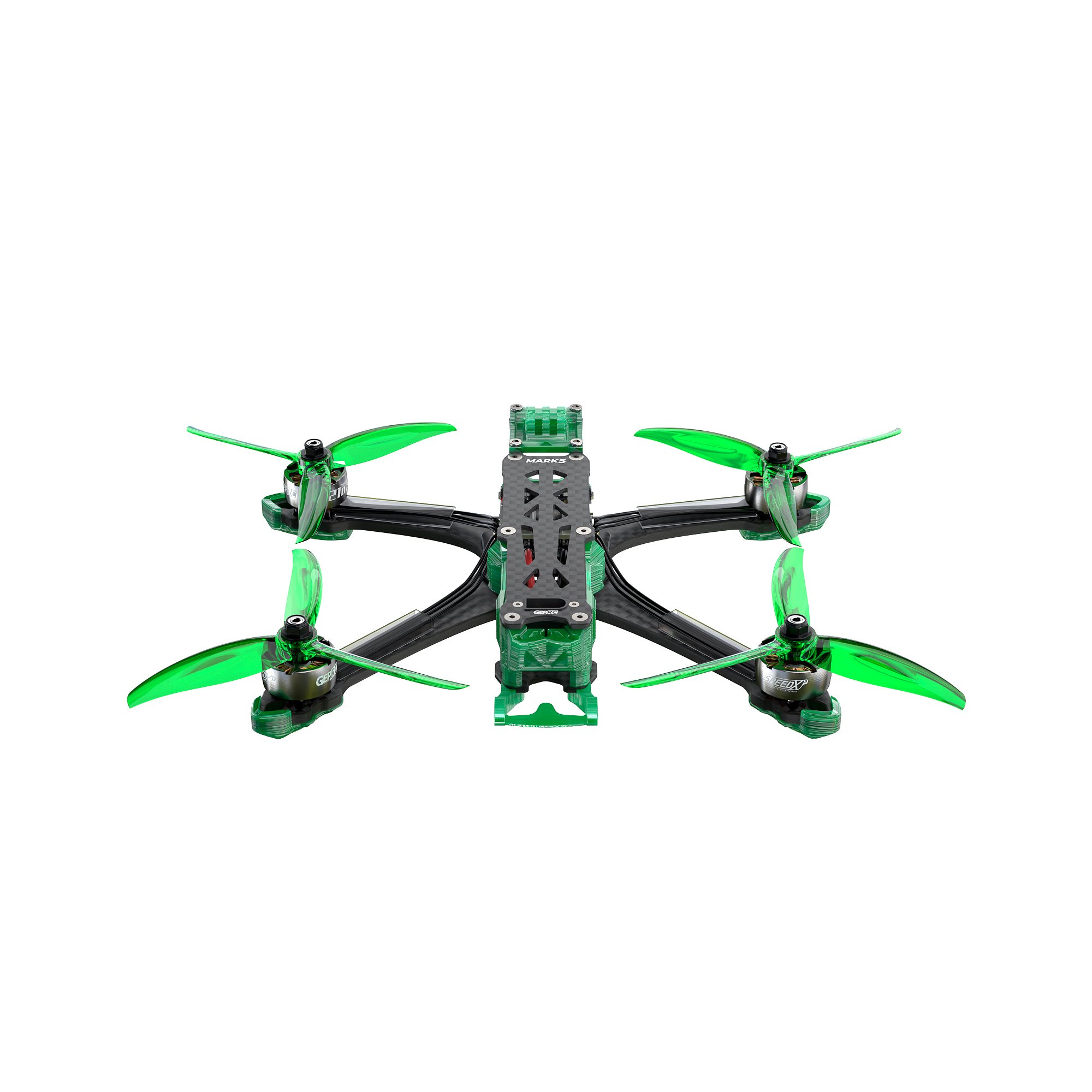

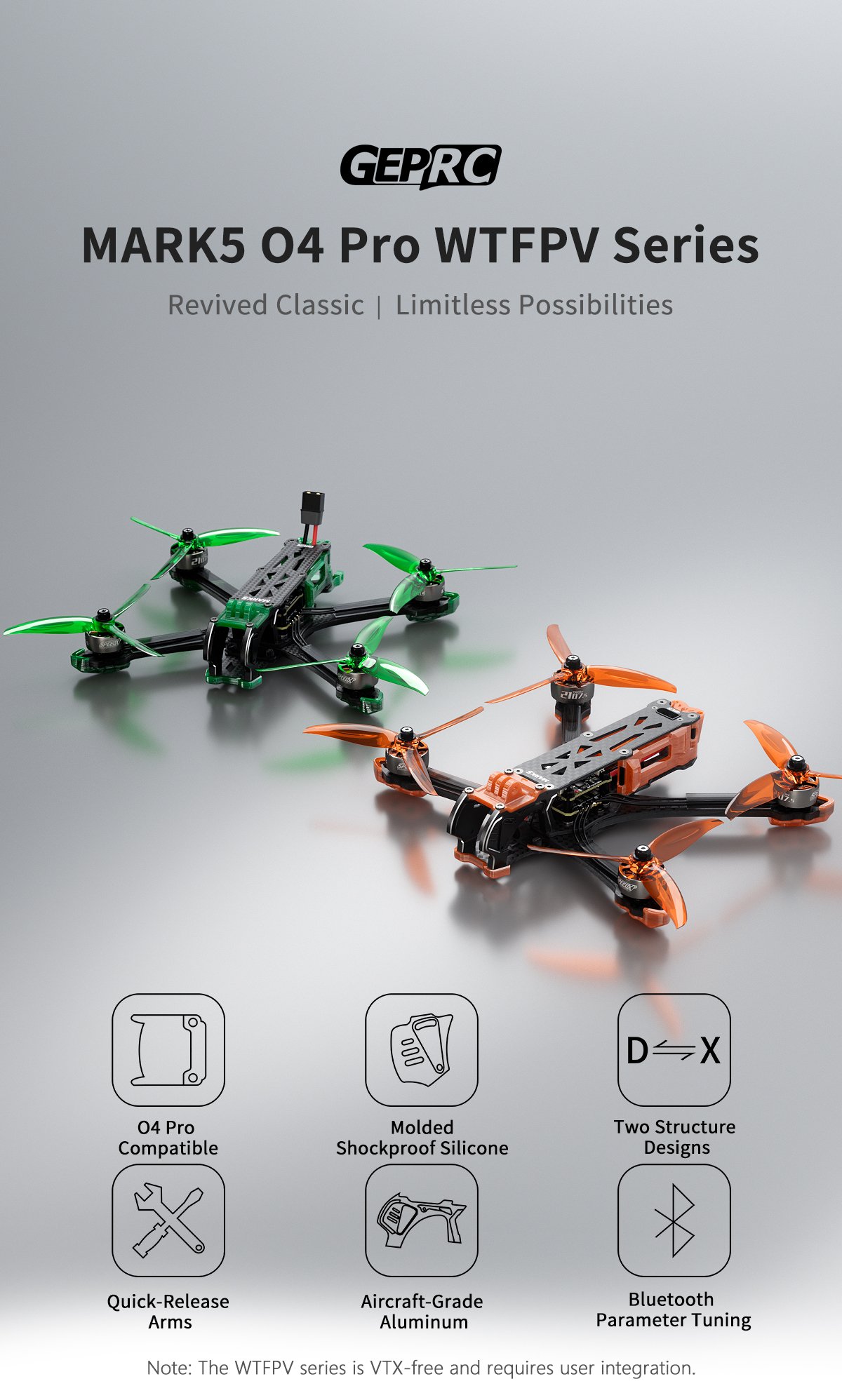

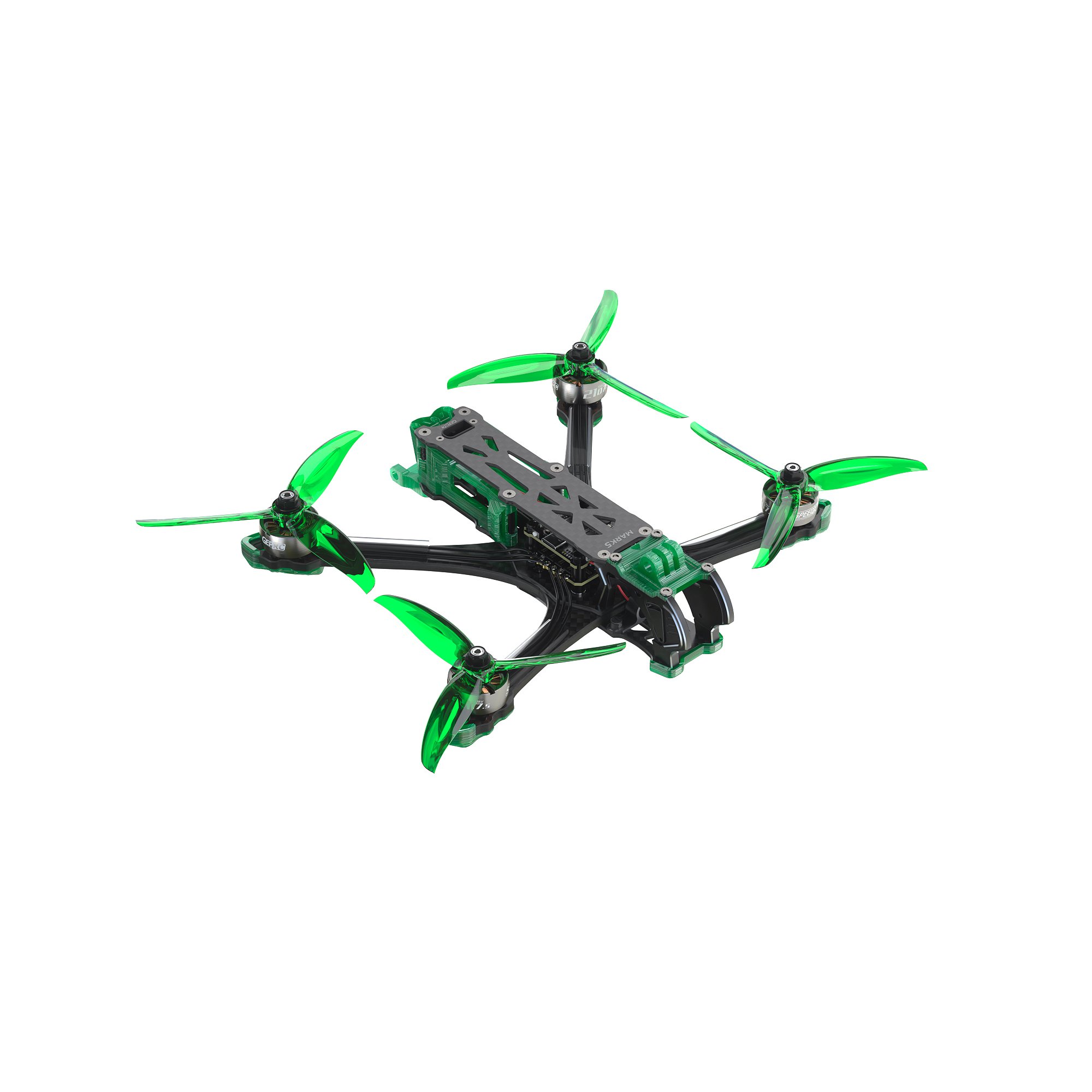

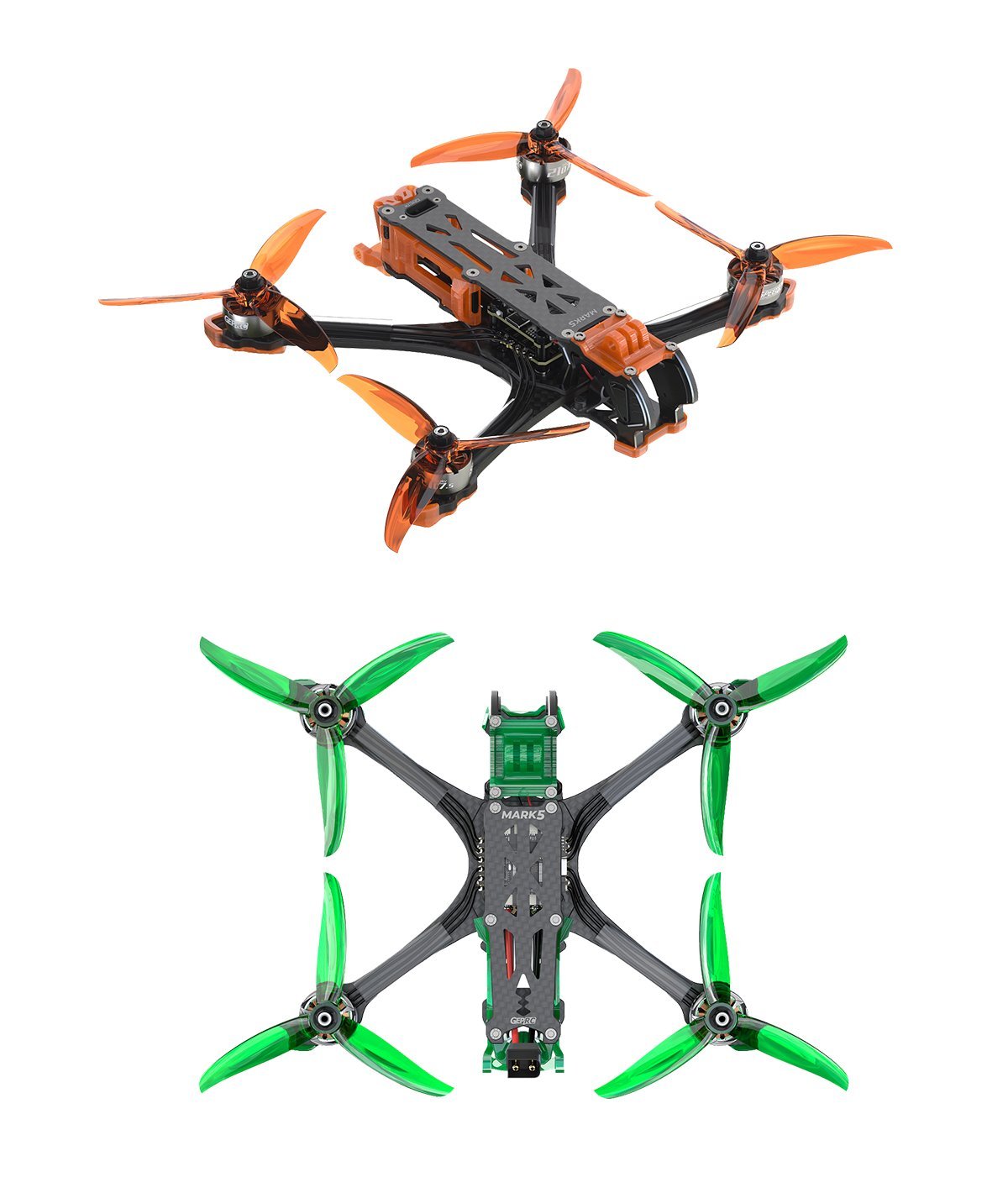

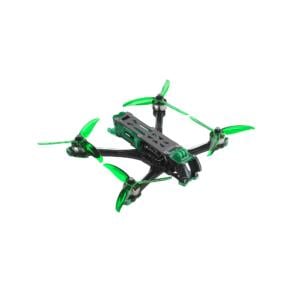

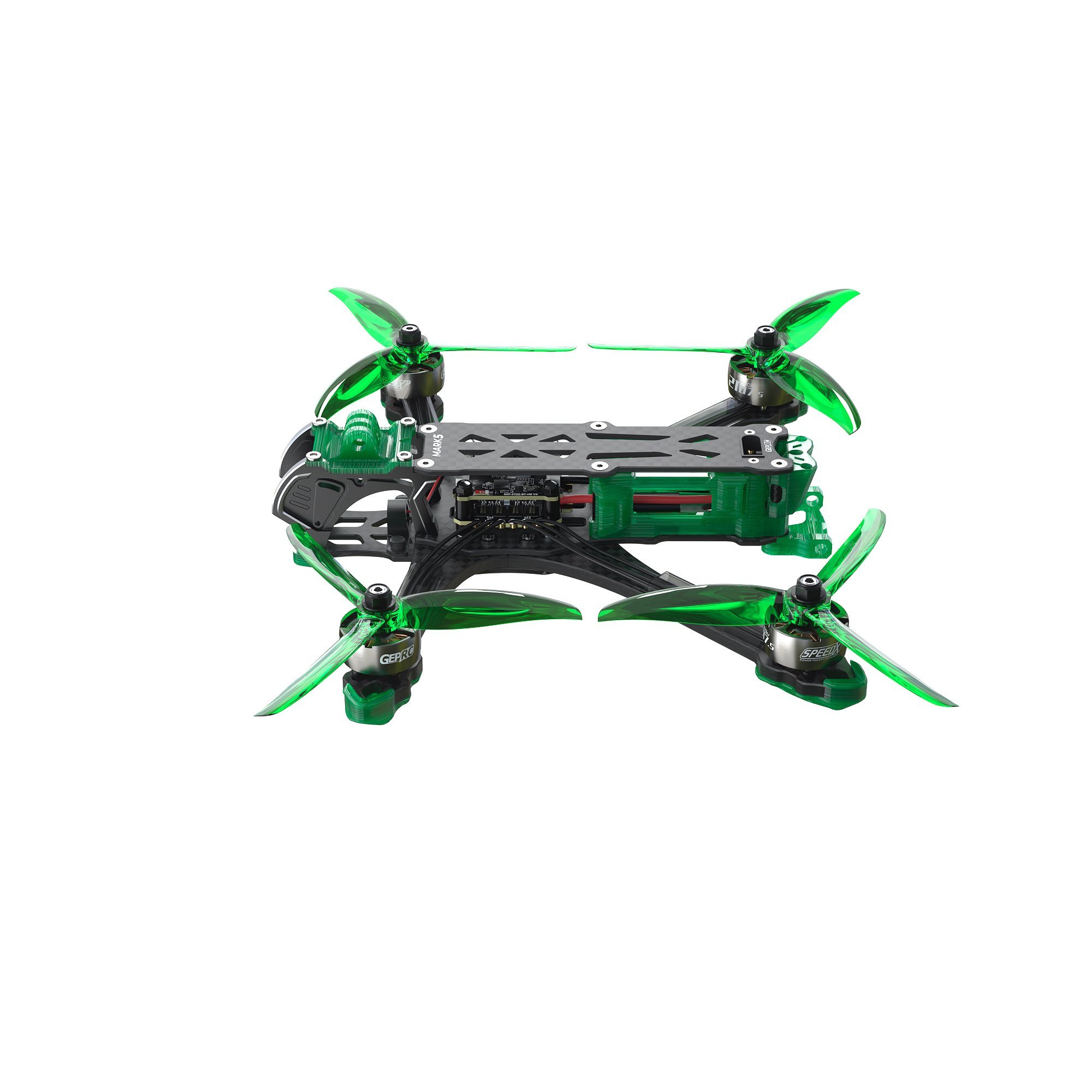

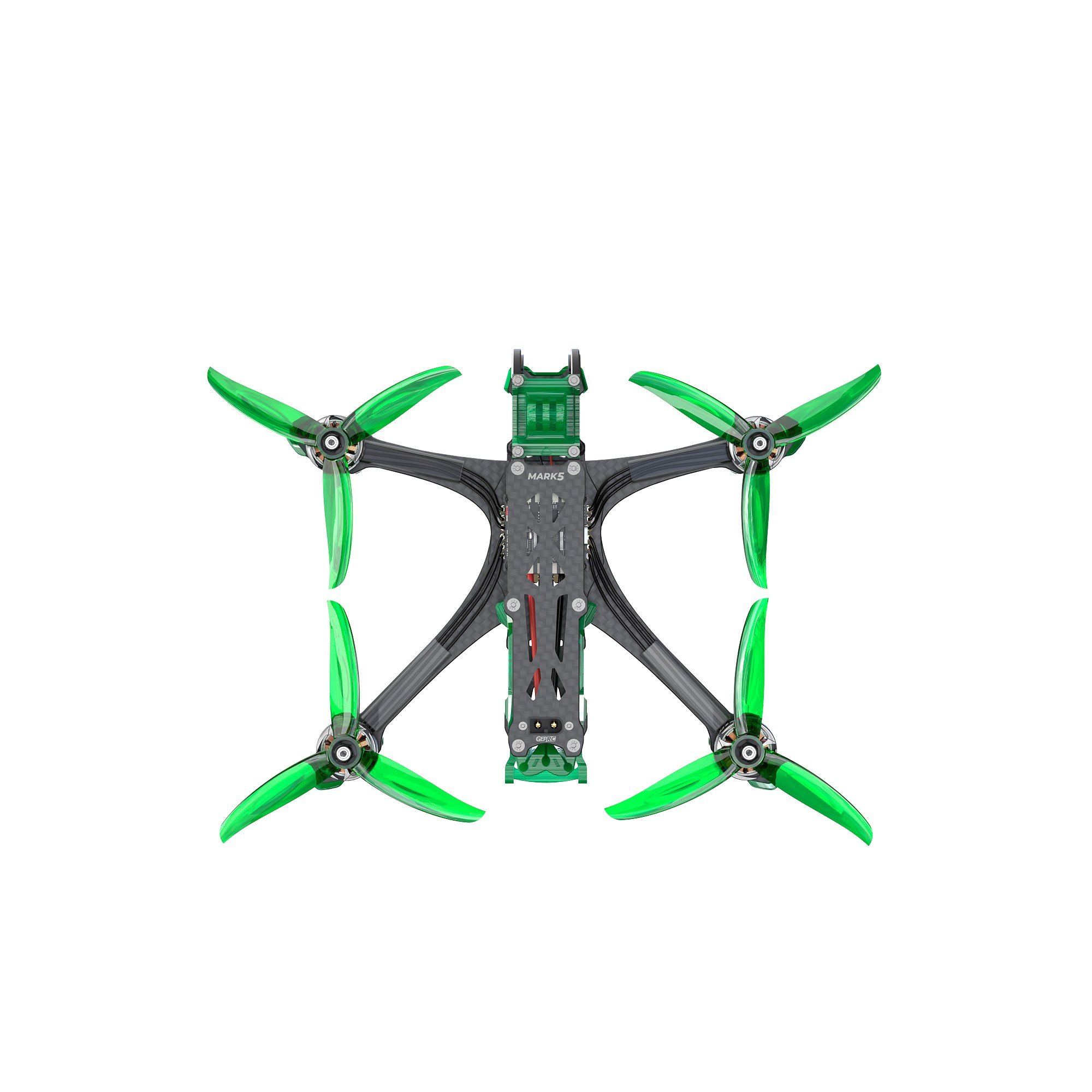

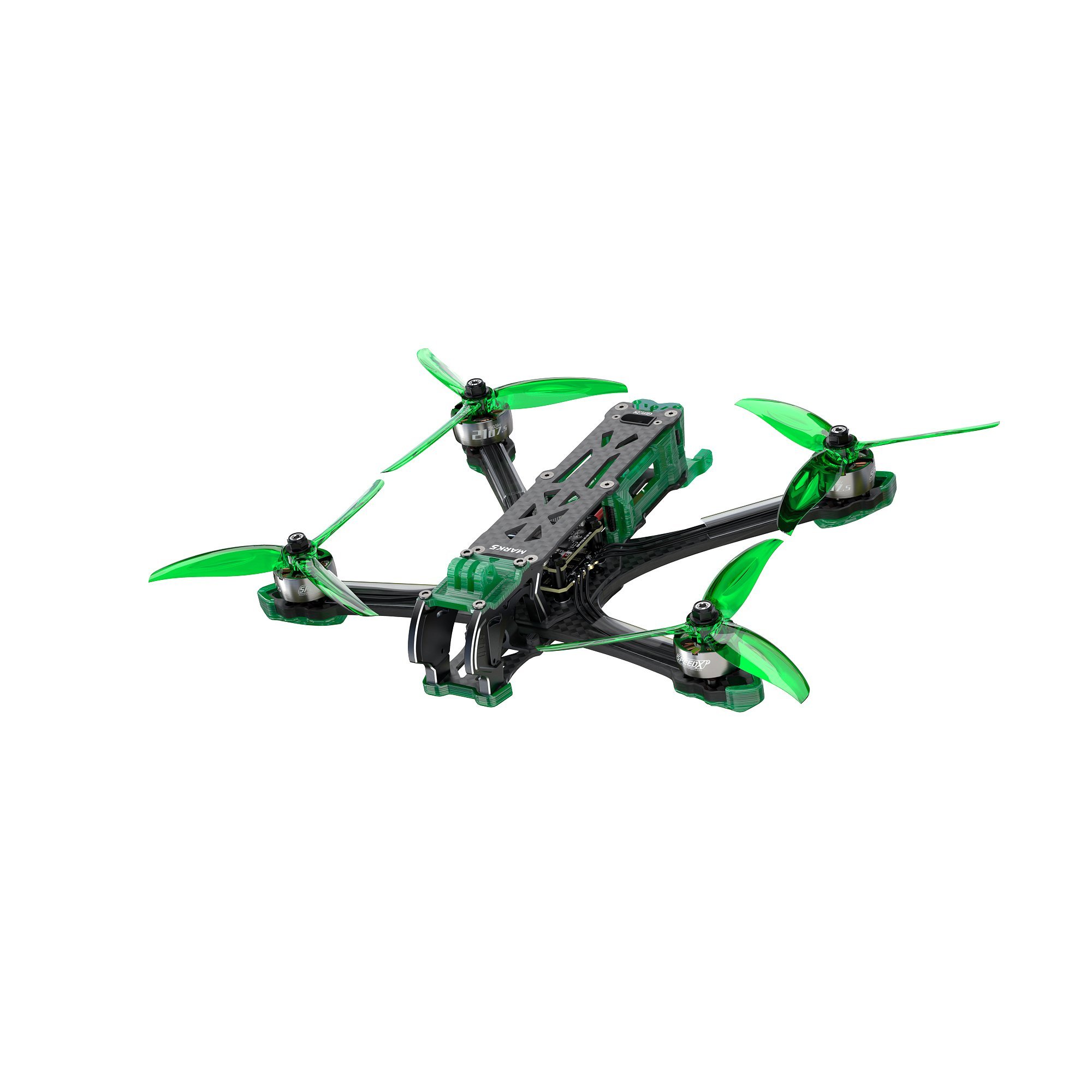

GEPRC MARK5 O4 Pro DC WTFPV Drone
Take control of your FPV experience with the GEPRC MARK5 O4 Pro DC WTFPV Drone, a professionally pre-built platform ready for your preferred FPV video system. The “WTFPV” (What The FPV) edition provides the perfect foundation for pilots who want the high-quality MARK5 DC frame and power system, but wish to install their own VTX and camera. It’s the ideal choice for builders who want a head start on a new build, combining the quality of a custom build with the convenience of a pre-assembled core.
Your FPV System, Your Choice
This FPV drone arrives expertly assembled without a Video Transmitter (VTX) or camera, giving you complete freedom. Whether you’re a fan of analog, or dedicated to a specific digital FPV system like DJI, Walksnail, or HDZero, this airframe is ready for your installation. All the complex assembly of an FPV drone kit is done for you; just add your video drone parts and receiver to get in the air!
Pro-Grade Cinematic Platform

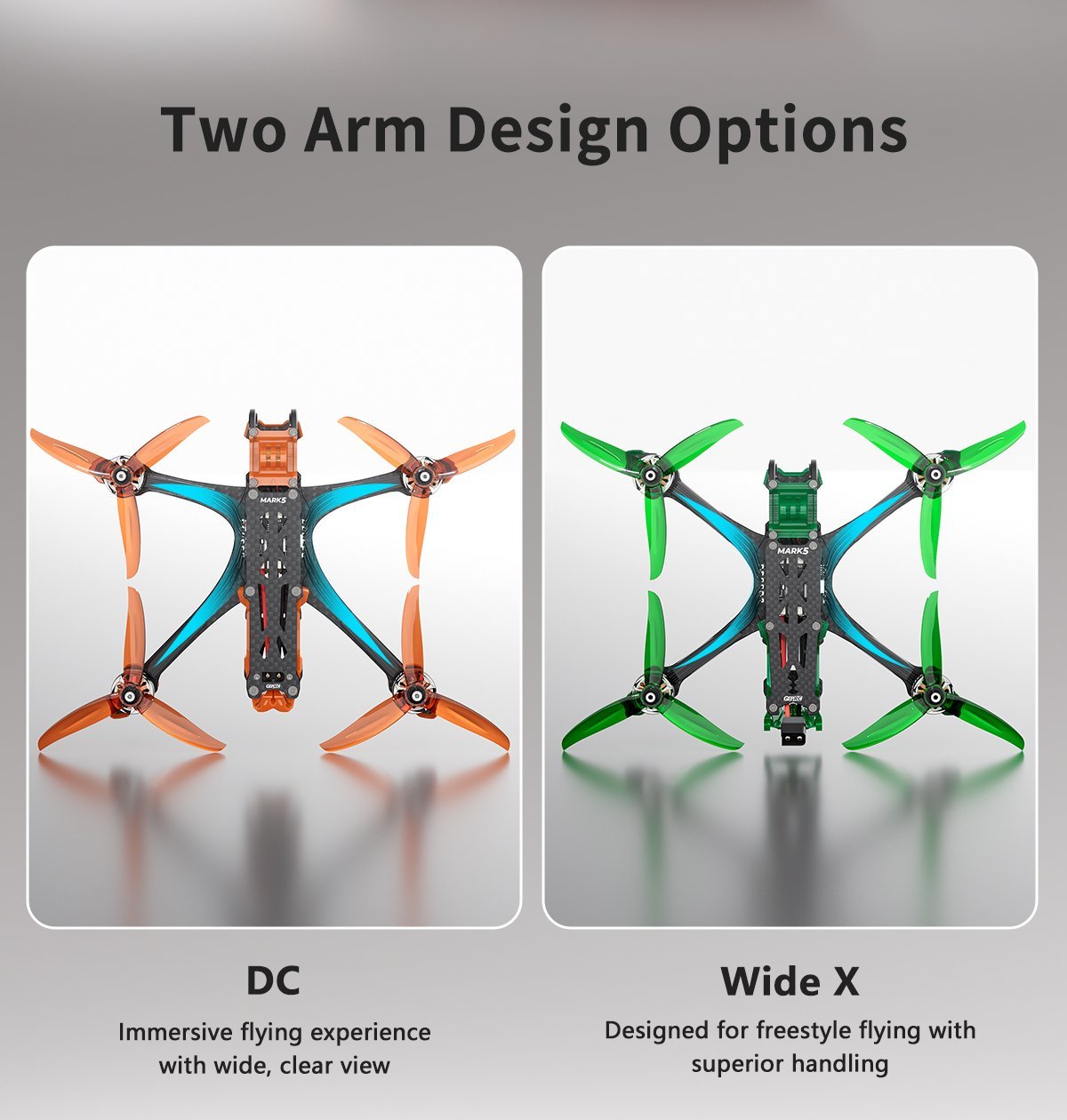

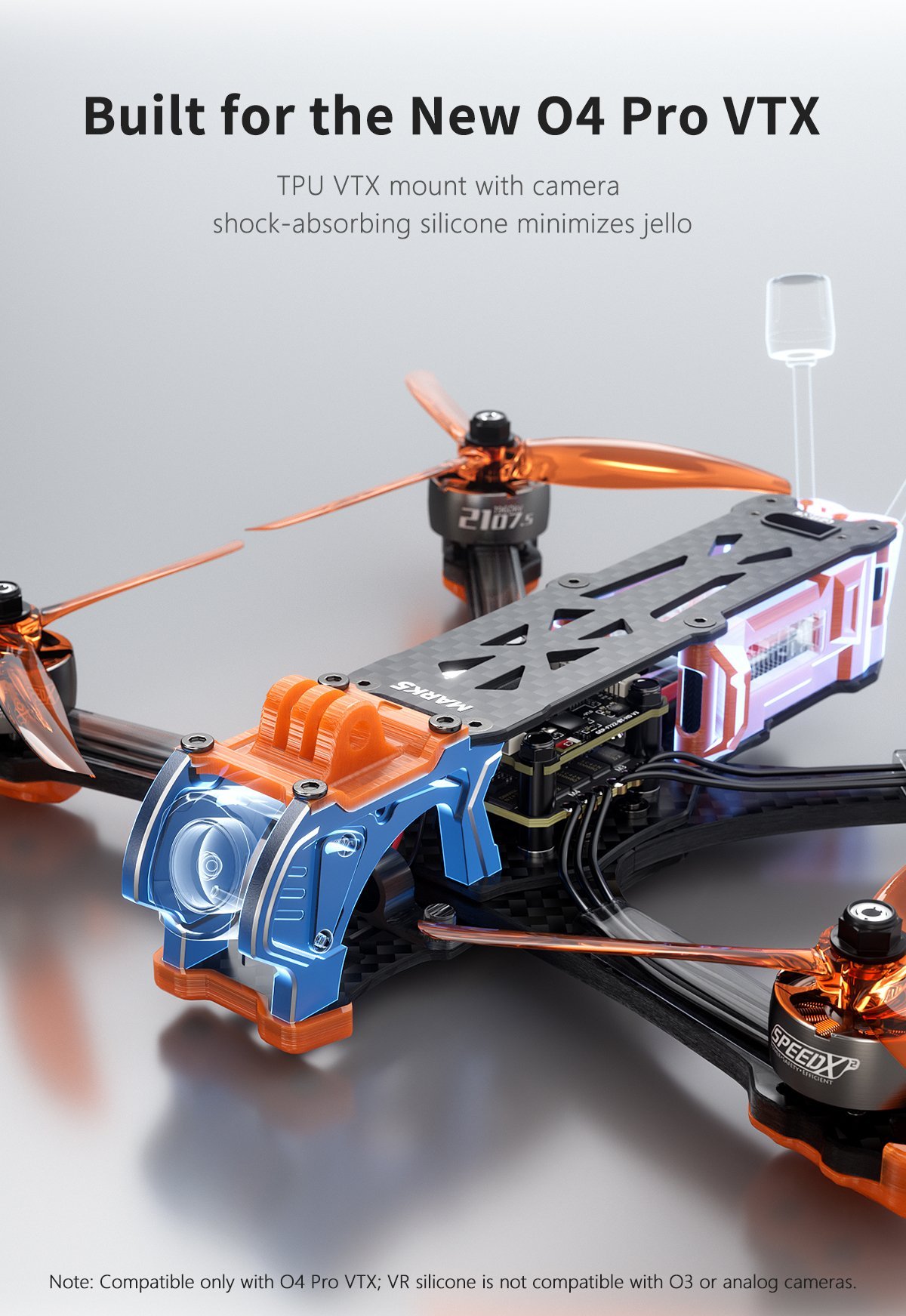

Built on the cinematic “Deadcat” (DC) frame, this model ensures your propellers stay completely out of view for flawless video capture. The frame is constructed from durable 3K carbon fiber and features a newly designed aluminum camera mount with custom shock-absorbing silicone to minimize vibrations. Powered by the proven TAKER F722-BT-HD V3 flight stack and SPEEDX2 2107.5 1960KV motors, you get a stable, smooth, and responsive flight experience right out of the box.

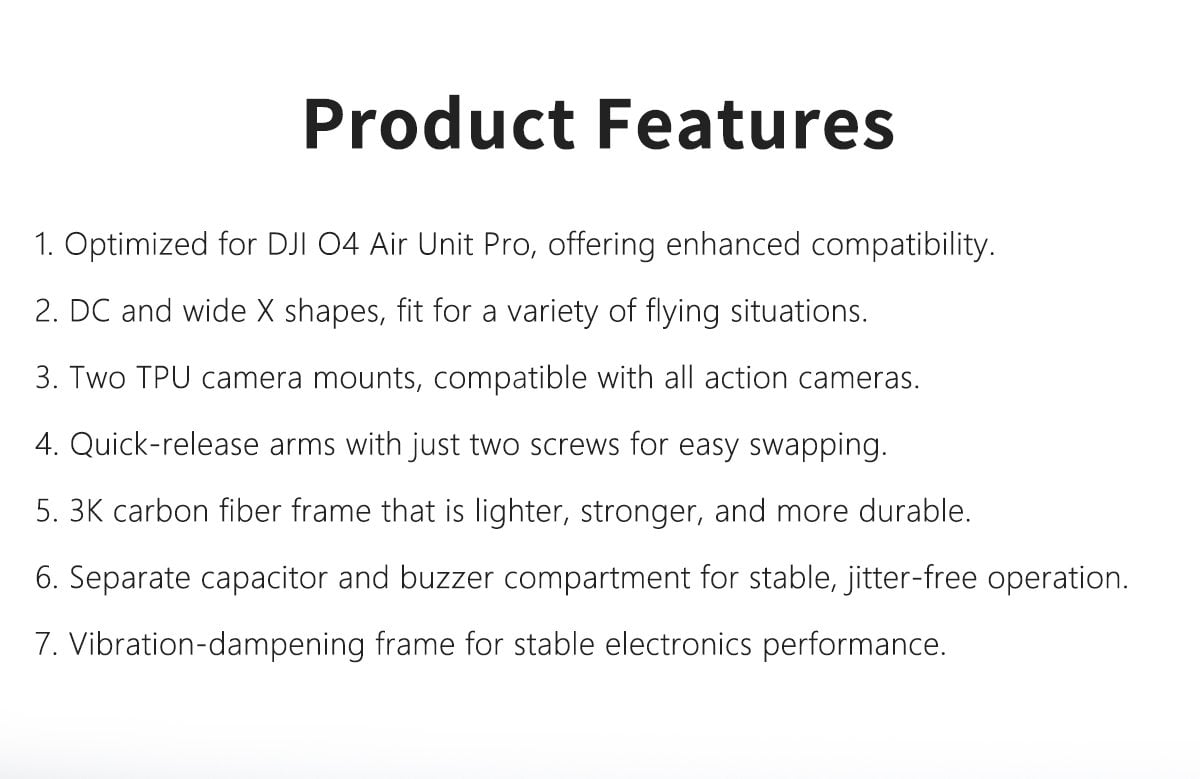

Features at a Glance
- Bring Your Own FPV System: Comes without a VTX or camera, allowing for full customization.
- Cinematic DC Frame: “Deadcat” style frame guarantees a clear, prop-free camera view.
- High-Performance Core: Includes the TAKER F722 BT 50A stack and SPEEDX2 2107.5 motors pre-installed.
- Premium Build Quality: 3K carbon fiber frame with an aluminum camera mount and silicone damping for stability.
- Easy Maintenance: Features quick-release arms with a simple two-screw swap.
- Universal Camera Support: Includes two TPU camera mounts to fit all popular action cameras.

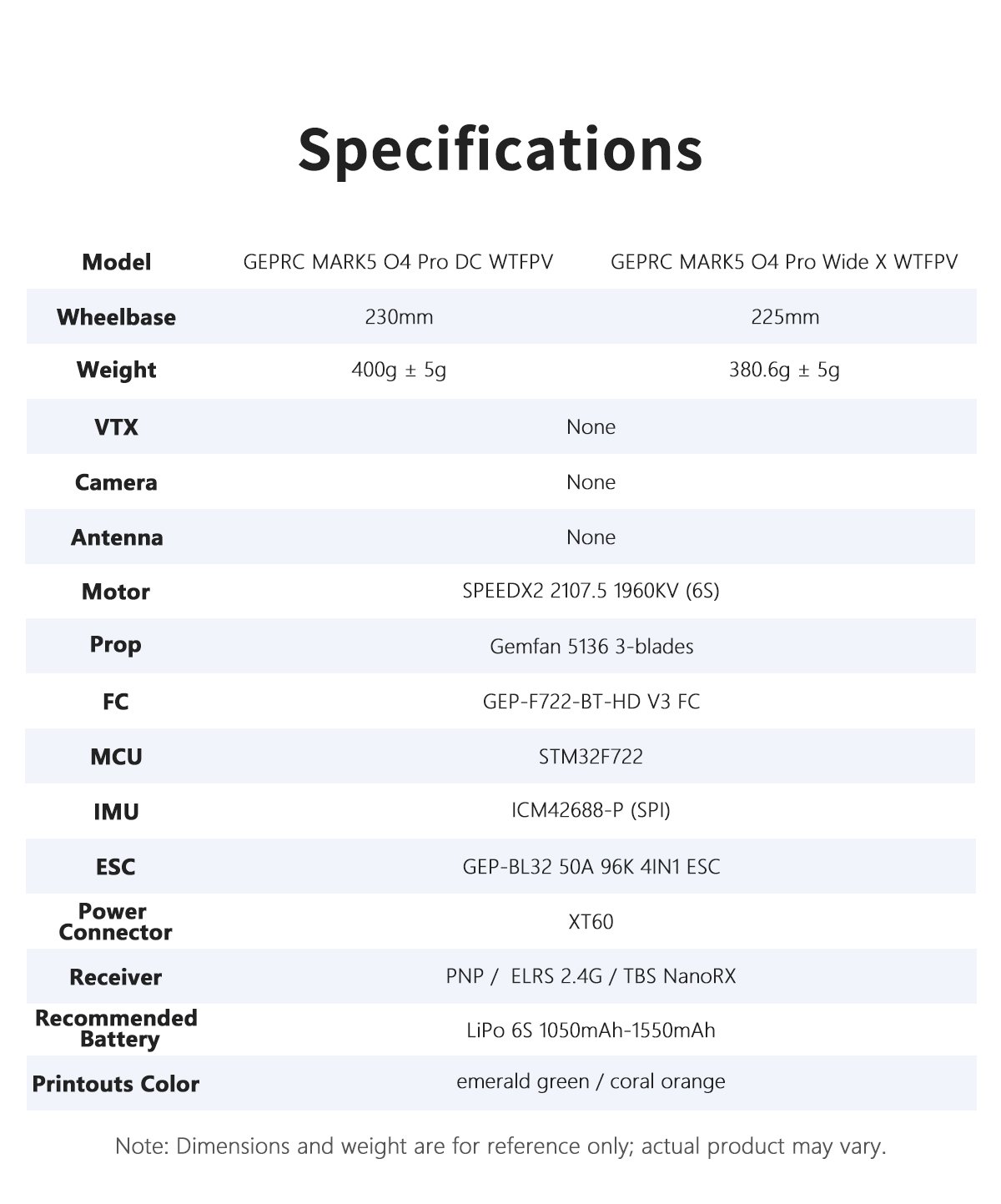

Specifications
- Model: MARK5 O4 Pro DC WTFPV
- Wheelbase: 230mm
- Frame: GEP-MK5D-O4 Pro (DC Version)

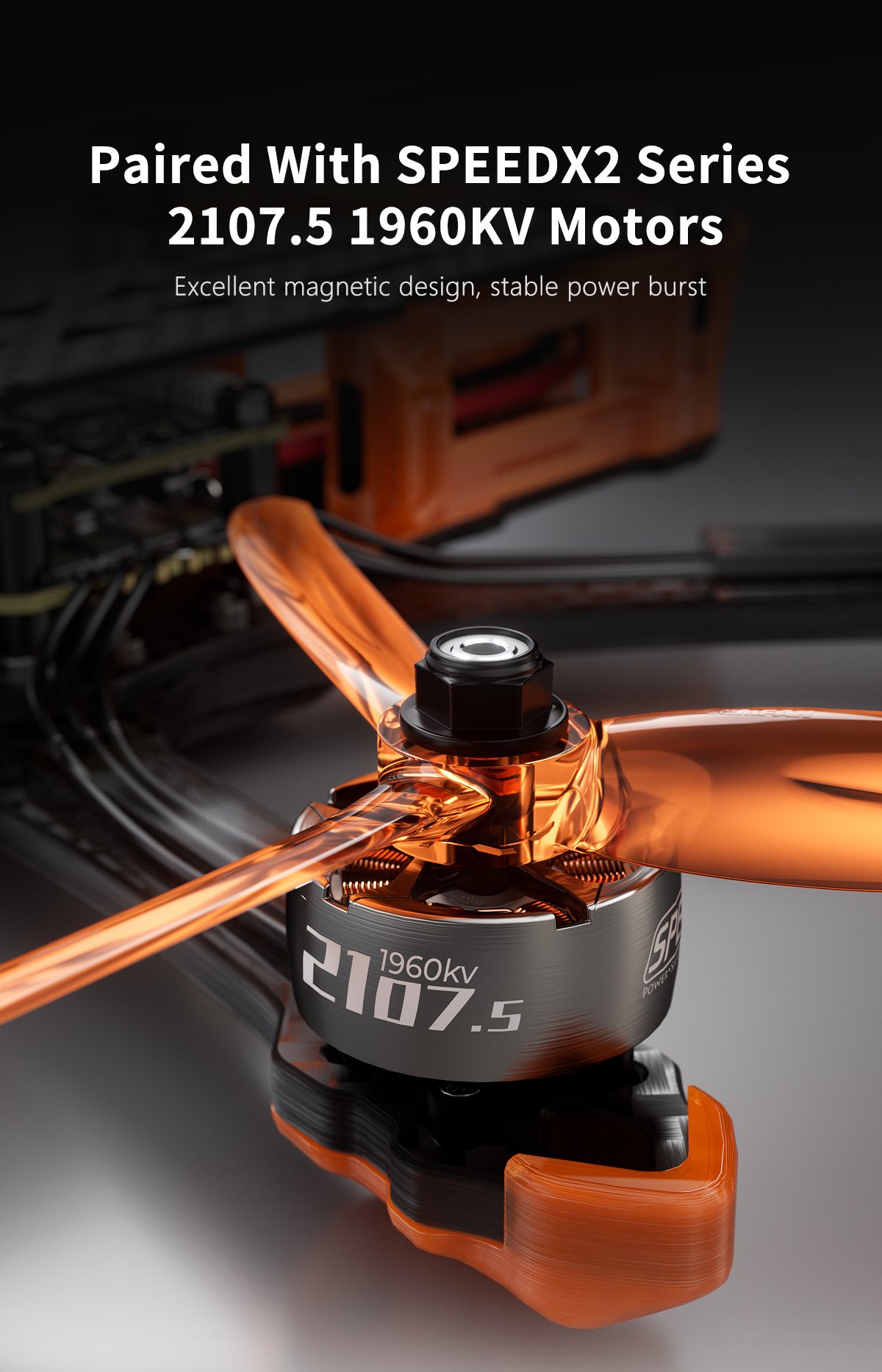

- Motor: SPEEDX2 2107.5 1960KV
- Propeller: Gemfan 5136

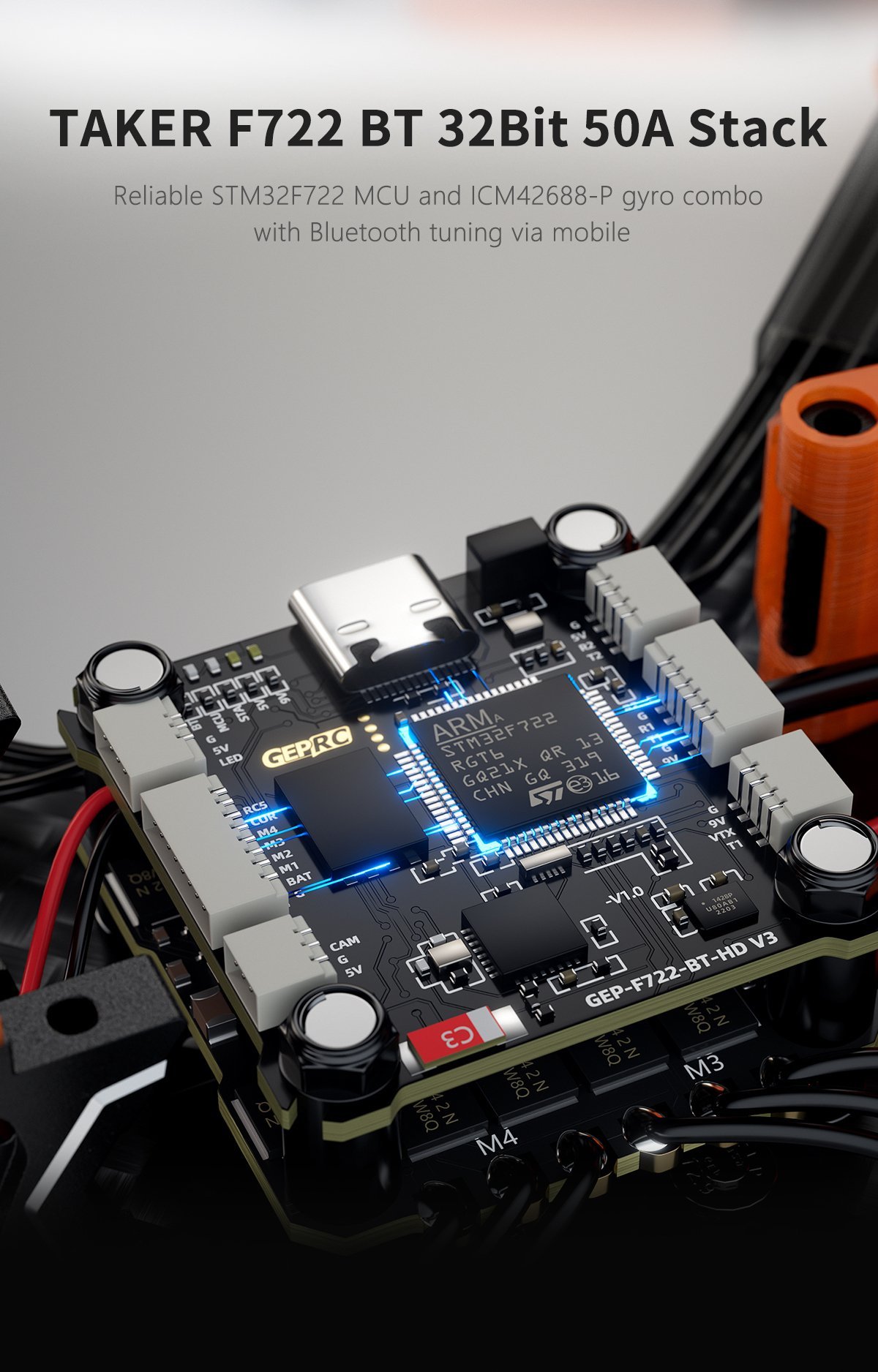

- Flight Controller: GEP-F722-BT-HD V3
- ESC: GEP-BL32 50A 96K 4IN1
- Power Connector: XT60
- Receiver: PNP (Plug-N-Play – No receiver included)
- Recommended Battery: LiPo 6S 1050mAh – 1550mAh
- Weight: 392.8g ± 5g

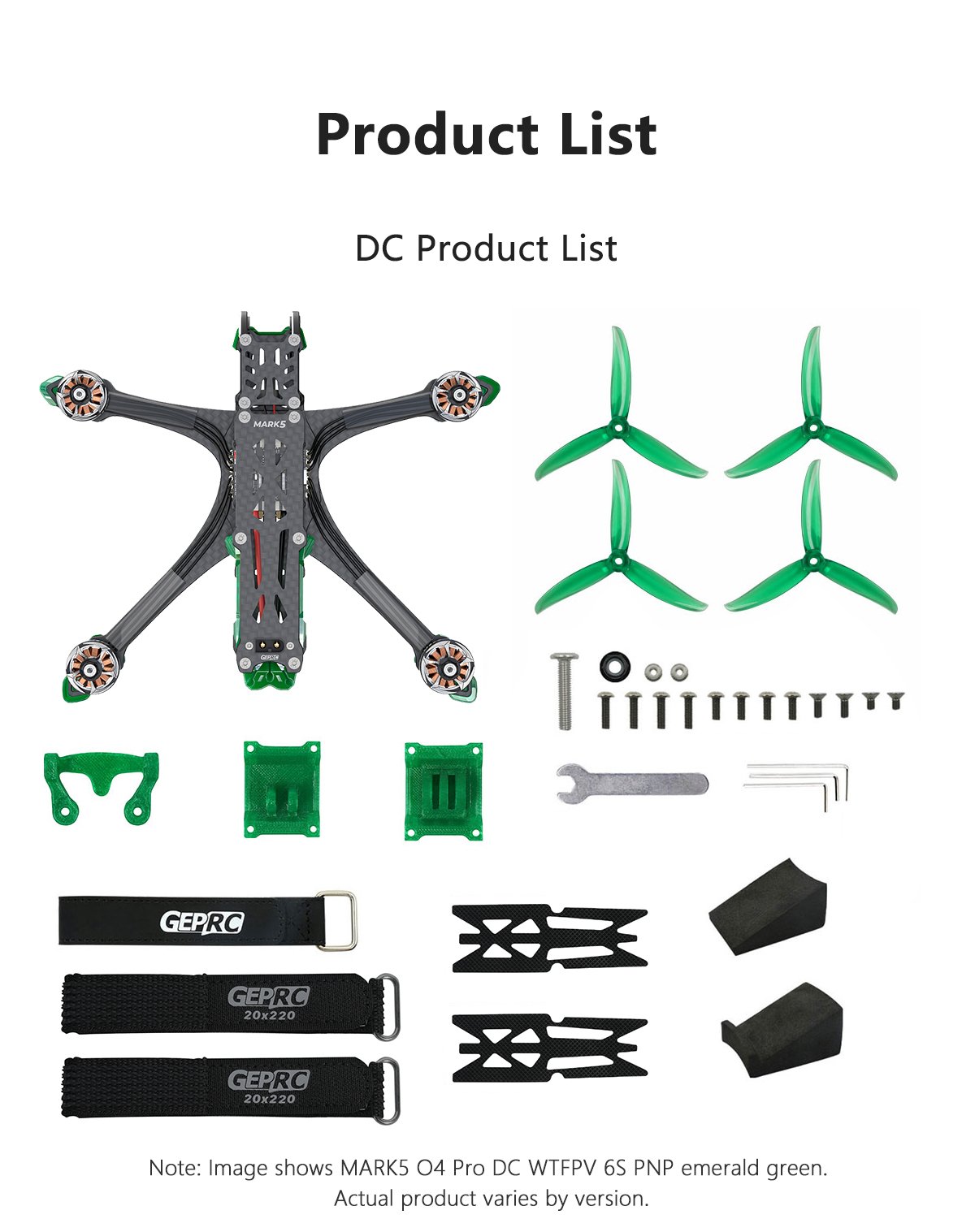

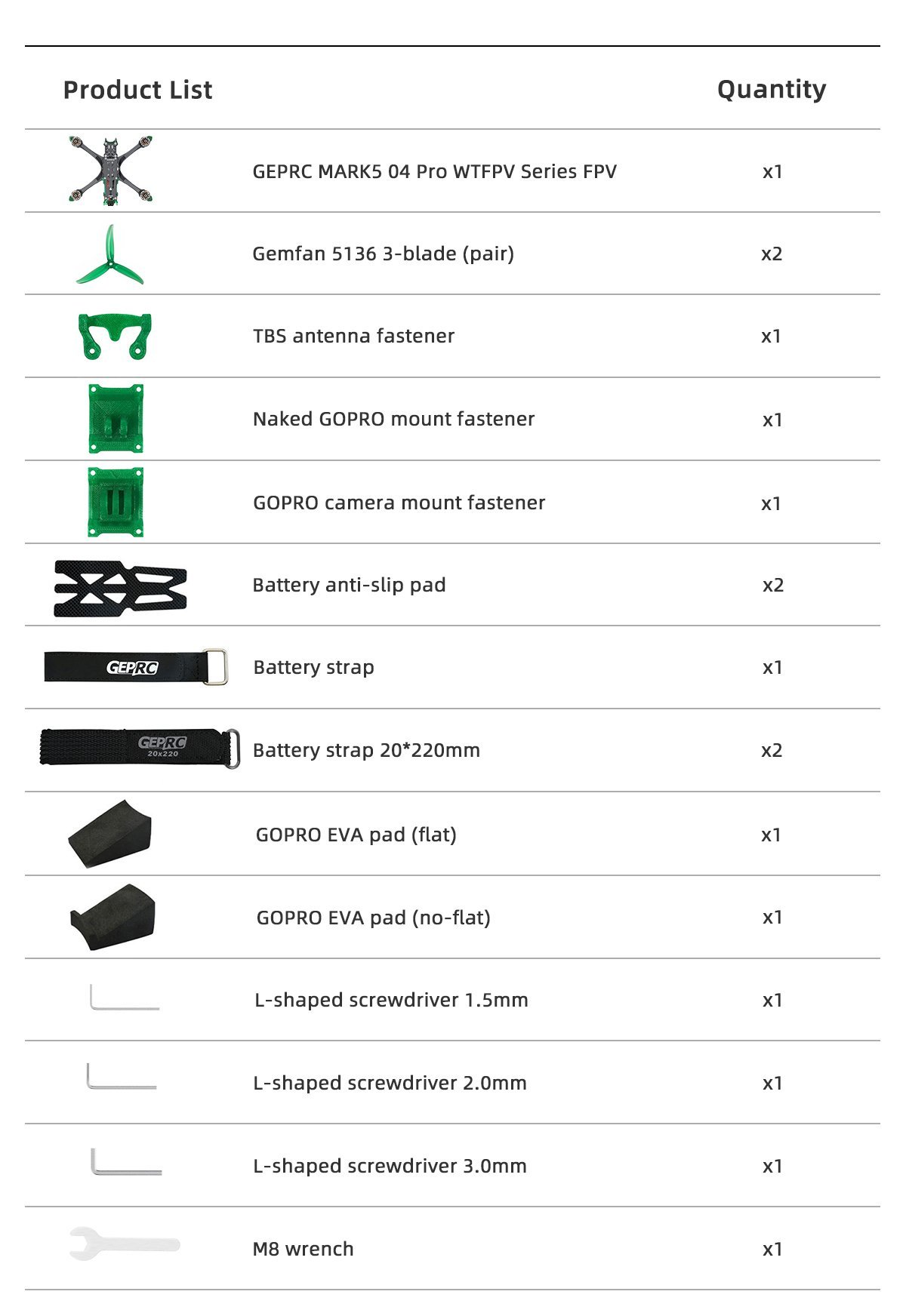

What’s in the Box?
- 1x GEPRC MARK5 O4 Pro WTFPV Drone (DC Version)
- 2x Gemfan 5136 Propeller Sets (4x CW, 4x CCW)
- 1x 15*250mm Battery Strap
- 2x 20*250mm Battery Straps
- 2x Battery Anti-slip Pads
- 1x Set of 3D Printed Parts

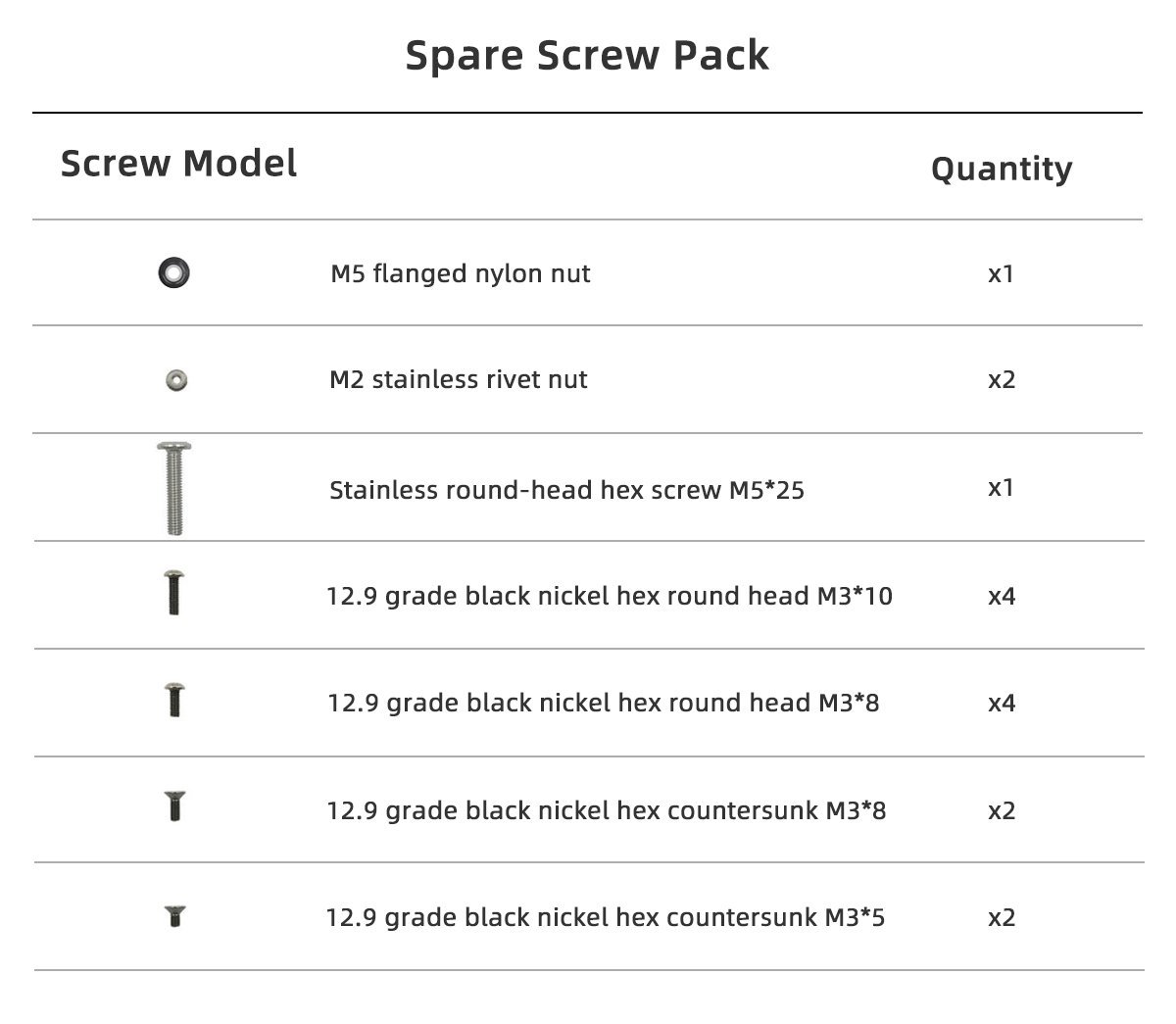

- 1x Spare Screw Pack
- 1x L-shaped Screwdriver 1.5mm
- 1x L-shaped Screwdriver 2mm
- 1x L-shaped Screwdriver 3mm
- 1x M8 Wrench
Note: This WTFPV model does not include a Video Transmitter (VTX), FPV Camera, or Antenna. It is also a Plug-N-Play (PNP) drone, so a radio receiver is not included. You must provide and install your own FPV system and radio receiver.
