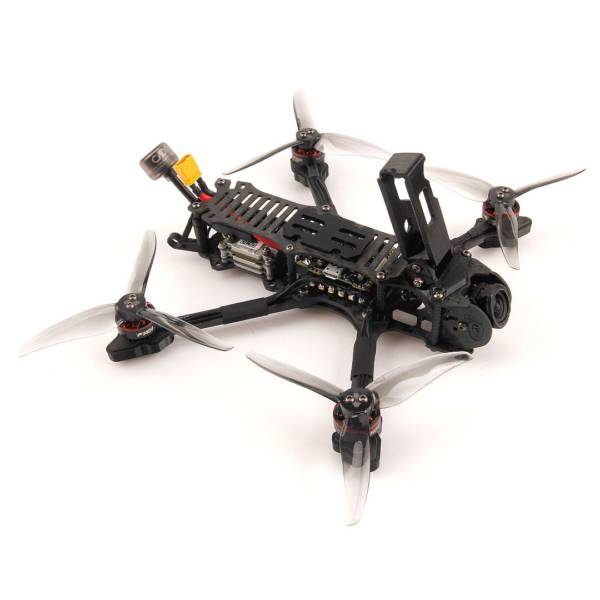

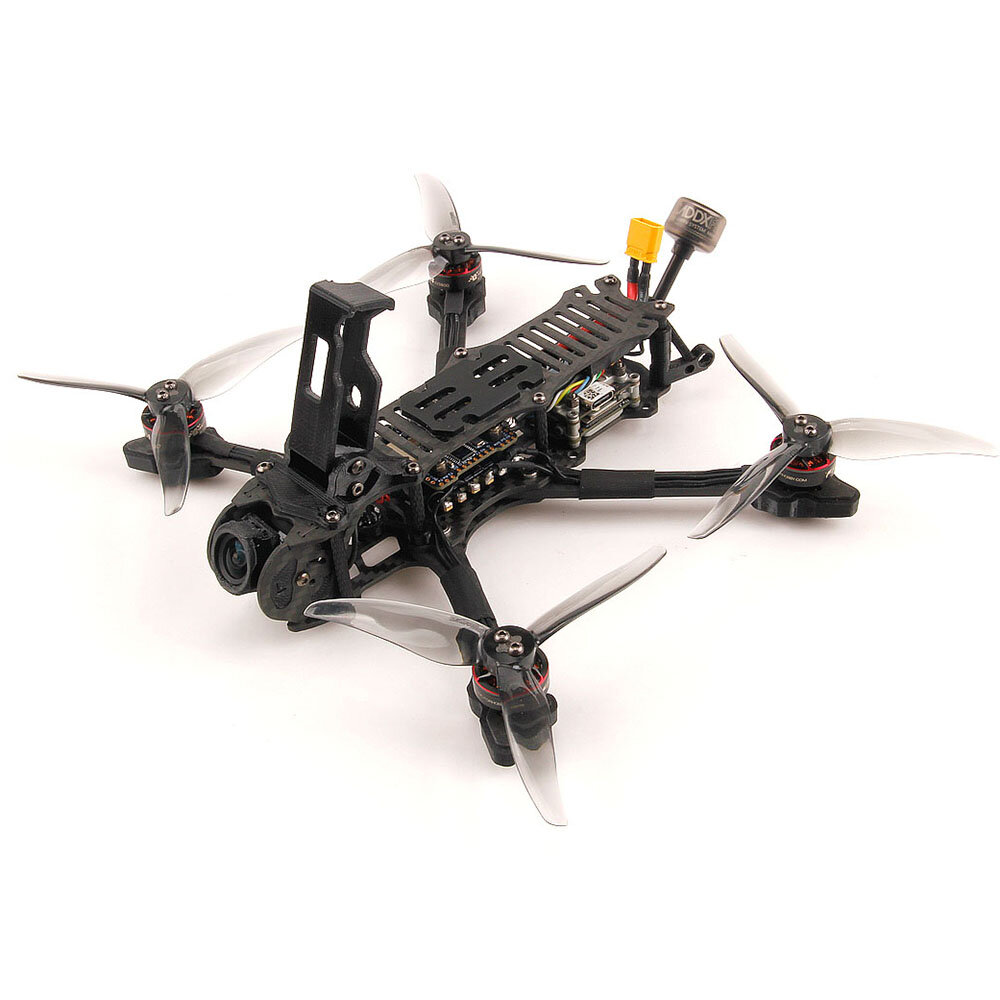

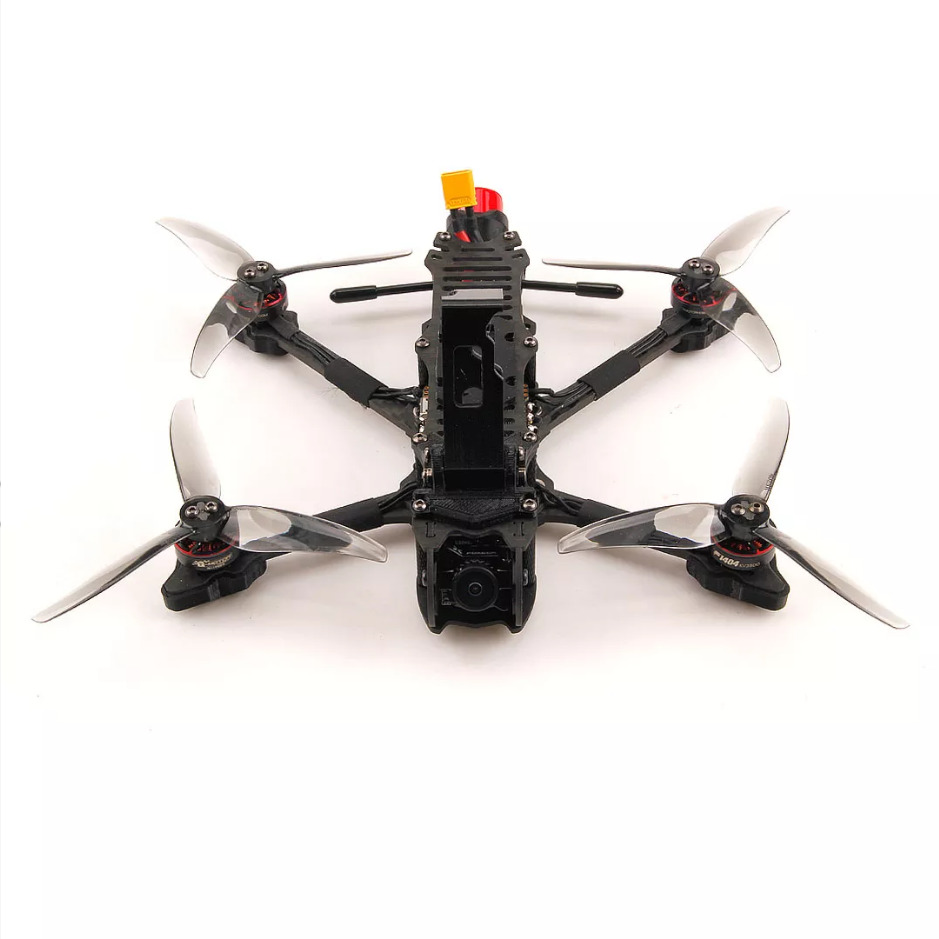

Holybro Kopis Freestyle 4″ FPV Drone – PNP

Features

Frame: 3k carbon fiber
- Bottom Plate: 2mm
- ARM: 3mm
Flight Controller: Kakute F7 mini V3
ESC: Tekko32 F4 4in1 mini 45A ESC
Motor: F1507 KV3800
Propeller: T3140
Buzzer included.
Wheelbase: 180mm
Battery plug: XT30
Recommend battery: 650~850mAh 4s

Analog VTx version

5.8G VTx: Atlatl HV Micro
Foxeer Lollipop 3 2.5Dbi Stubby Omni FPV Antenna
FPV camera: 1200TVL Foxeer Micro Razer FPV Camera
Weight:166g(without battery)

CADDX FPV version

VTx: Caddx Polar Vista Kit starlight Digital HD FPV system
Weight:173g(without battery)

Specifications

Flight Controller: Kakute F7 mini V3	MCU: STM32F722RET6 32-bit processor,216MHz, 256Kbytes RAM, 512Kbytes Flash IMU: MPU6000 (SPI) Barometer: BMP280 USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART) 5hardware UARTS (UART1,2,3,4,6) Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported. Onbord 16Mbytes for Blackbox logging 5V Power Out: 1.0A max 3.3V Power Out: 0.2A max Dimensions: 30x30mm Mounting Holes: Standard 20mm square to center of holes Weight: 4g
ESC: Tekko32 F4 4in1 45A mini	F4 MCU with BLHELI32 firmware Maximum PWM output upto 96K (default 48K) Amperage meter scale ratio has been adjusted to 168. PWM input, TLM supported Voltage output (VBAT) NO output BEC Supports oneshot / Multishot / Dshot PWM Supports damped light Supports 3-6S lipo input Ext. cap needed for 6s (1000uf 35v for 6s usage.) Mounting holes: 20x20mm(M3) Size:30 x 39 mm Weight: 7.2g
Analog version： 5.8G VTx: Atlatl HV Micor	Output Power: 0.5mW (pit mode), 25mW, 200mW, 500mW, 800mW Audio: 6.5 MHz Mono Protocol: smart audio2.0 Antenna Connector: MMCX Input Voltage: 7 to 28 volts (2-6S LiPo) Dimensions: 30x26mm Mounting Holes: 20x20mm (M3) Weight: 3.6g
HD version： Caddx Polar Vista Kit starlight Digital HD FPV system	Dimensions: Module: 30.45 x 29 x 13mm Weight: 29g (inc. camera); Module: 19g Antenna Connector: u.FL Operating Frequency: 5.725-5.85GHz Transmitter Power (EIRP) FCC/SRRC/MIC: <20dBm; CE: <14dBm I/O Interface: USB-C, IPEX, 3-in-1 Port Min. Latency: Low Latency Mode (720p 120fps): 21-28ms High-Quality Mode (720p 60fps): 30-40ms Max Transmission Distance: FCC/SRRC: 4km; CE: 0.7km Input Power: 7.4-26.4vCamera Specifications: Color: Silver, Brown Sensor: 1/1.8″ Starlight CMOS Min. Illumination: 0.00003Lux Lens: F/1.6 & 8 Mega Shutter: Rolling shutter ISO: 100-25600 FOV: 162°(D);138°(H);75°(V) Aspect Ratio: 16:9

Includes:

1x Kopis FPV racing drone
8x T3140 Propeller
1x Battery strap(installed)
1x Naked GoPro camera mount

Manual:

Holybro_Kopis Freestyle 4″ _Manual

3D Print:

Holybro_Kopis Freestyle 4″ 3D Print.rar

Weight	1 lbs
Dimensions	10 × 10 × 4 in
Brand	Holybro
Flight Readiness	Plug-N-Play
