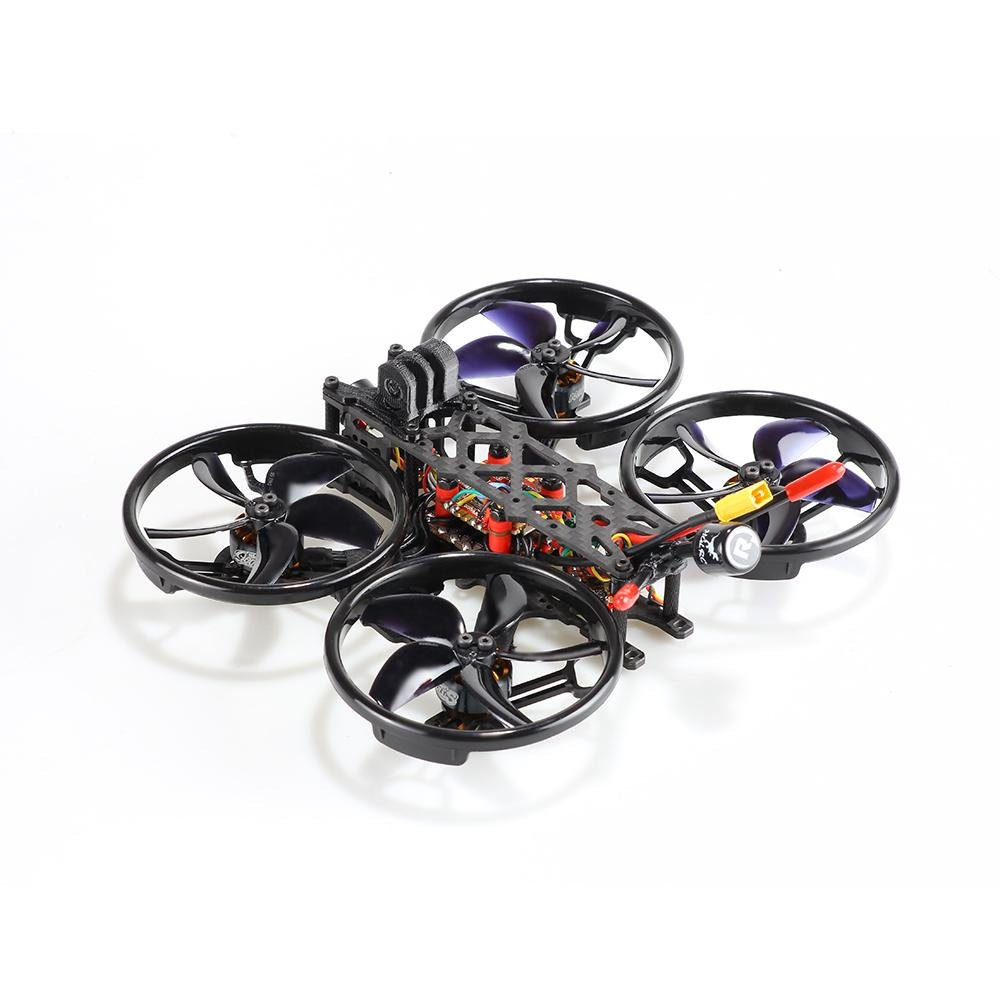

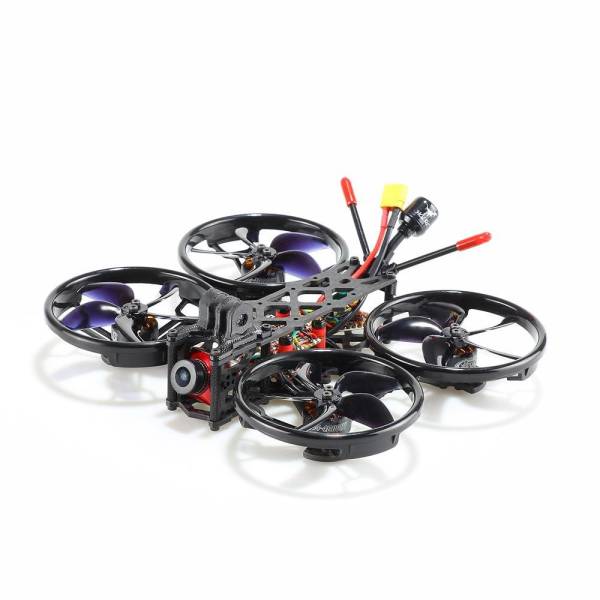

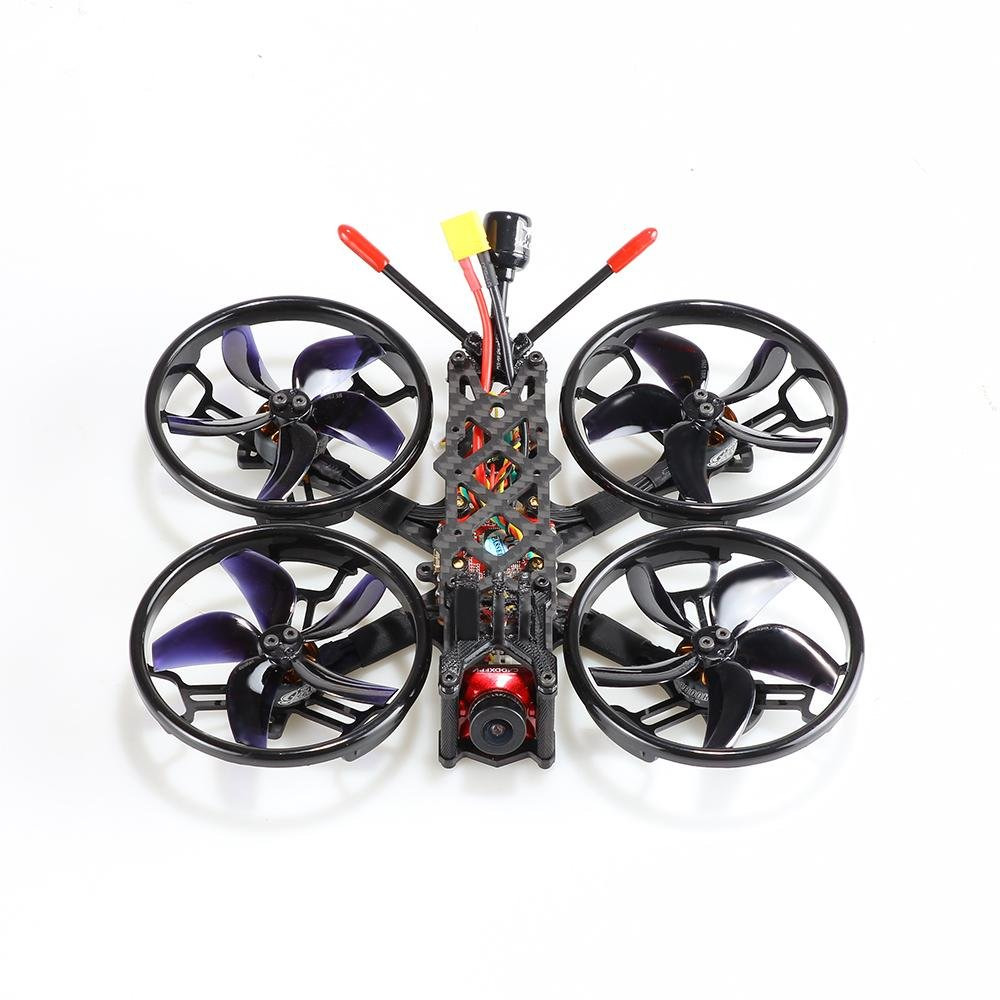

HGLRC Sector25CR 2.5” FPV Freestyle / Cinewhoop Sub250g – Analog Version

Specifications

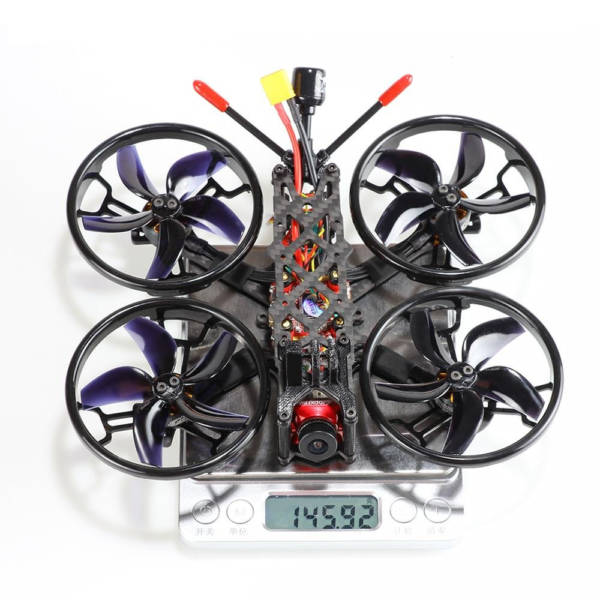

Net Weight:145.92g

Sector25CR Light Freestyle Frame Kit
Wheelbase:132mm
Type:2.5 Inches Freestyle Frame
Weight:34.5g

Zeus F722 mini flight controller
Gyro:MPU6000
CPU:STM32F722 RET6
Input voltage:3-6S Lipo
BEC output:5V/3A, 9V1A

Zeus 28A BL_S ESC
CPU:EFM8BB21F
Input voltage:3-6S
Continuous current:28A
Peak current:35A (10 seconds)

Zeus nano 350mW VTX
Output Power:PIT/25/100/200/350mW
Input Voltage:DC 5V
Antenna:IPEX

Caddx Ratel 2 FPV Camera
Image Sensor:1/1.8 ” 1200TVL CMOS
Input Power:DC 5-40V
Dimensions:19mm*19mm*20mm

AEOLUS 1404 3600KV Brushless Motor
Motor:KV3600
No.of Cells(Lipo):3-4S
Recommended Prop(inch):2.5 Inches

Gemfan D63 2.5 Inch 5-Blades Propeller
Quantity:4 CW & 4 CCW

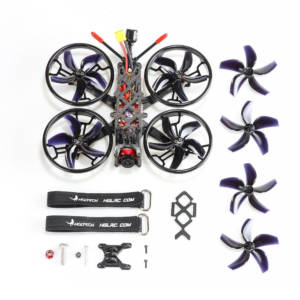

Package Includes:
1x Zeus F722 mini Flight Controller
1x Zeus 28A BL_S ESC
4x AEOLUS 1404 3600KV Brushless Motor
1x Sector25CR Light Freestyle Frame Kit
1x Zeus nano 350mW VTX
1x Caddx Ratel 2 FPV Camera
8x Gemfan D63 5-Blades Propeller
1x IPEX Mini Hammer Antenna RHCP
1x Black TPU GoPro fixing base
1x Black TPU Naked GoPro fixing base
1x Receiver(Optional)

Recommended battery：
4S:450mah-650mAh
