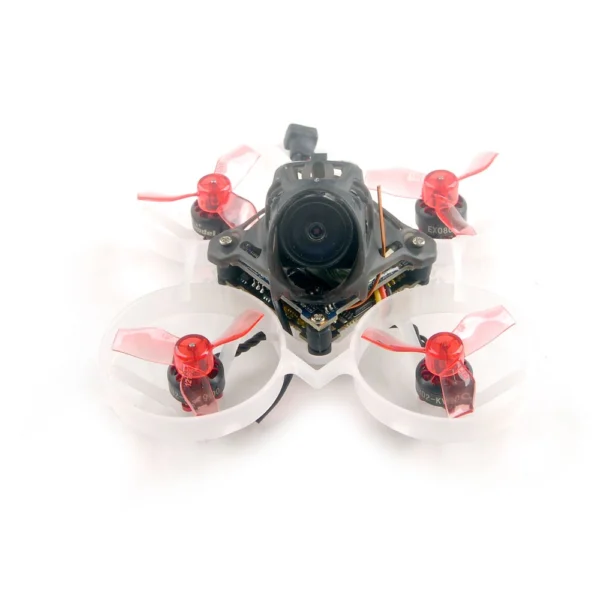

Happymodel Mobula6 HD 1S Brushless Whoop – 19000Kv FrSky XM+ Edition

Features

• AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX
• Extreme light 1S 65mm Brushless HD whoop only 27g
• Come with Runcam Split3-lite 1080P HD DVR
• Smooth and agile
• Compatible for 1S Lipo/LIHV
• Camera Angle adjustable

Specifications

• Brand Name: Happymodel
• Item Name: Mobula6 HD 1S 65mm Brushless whoop HD drone BNF FrSky version
• Wheelbase: 65mm
• Size: 80mm*80mm*40mm
• Weight: 27g
• Receiver option:
• Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)

Motor

• Mode: EX0802 19000KV
• Configu-ration:9N12P
• Stator Diamter:8mm
• Stator Length:2mm
• Shaft Diameter:Φ1mm
• Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
• Weight(g):1.7g
• No.of Cells(Lipo):1S only

Propellers

• Gemfan 1219-3
• Center Thickness:5mm
• Prop Disk Diameter:31mm
• Center Hole Inner diameter:1.0mm
• Weight:0.28g

FC

• (Frsky version) CRAZYBEE F4FR PRO V3.0 Firmware target: CrazybeeF4FR
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
• Sensor: MPU-6000(SPI connection)
• Board size: 28.5 * 28.5MM
• Power supply: 2-4S battery input (DC 7-17V)
• Built-in 10A(each) Blheli_S 4in1 ESC Dshot600 ready
• Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
• No RX version need to add external Receiver
• Built-in Betaflight OSD(SPI Control)
• Built-in Current meter Max 70A
• Current meter scale set to 470
• Built-in 5V 1A BEC
• Built-in voltage detection

Onboard 4-in-1 ESC

• MCU upgraded to EFM8BB21
• Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
• Support BLHeliSuite programmable
• Factory firmware: O_H_5_REV16_7.HEX
• Default protocol: DSHOT600

Diamond_VTX

• Output power: 25mw
• Frequency: 40CH
• Input voltage: 3.3V 5.5V
• Current consumption: 300mA(type)
• Frequency: 5.8GHz 5bands 40 channels
• With Race band Smart audio ready

Runcam Split3-Lite

• Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)
• Hole Distance of Installation: 25.5*25.5mm
• PCB Size: 29*29mm
• Lens Module Size: 14*14mm
• Lens Specs: M9
• Power Input: DC 5-20V(Non-direct power supply from the battery. Powered directly with the battery will generate surges and burn the camera.)
• Working Current: 450mA @5V

Lipo Battery

• Capacity:250mAh
• Voltage:3.8v
• Continuous Discharge Rate: 30C
• Size: 55mmx12mmx7mm
• Weight: 6.5gConnector: PH2.0

Video

Includes

• 1 x Mobula6 1S 65mm whoop Drone Frame
• 4 x EX0802 KV19000 brushless motor
• 1 x Gemfan 1219-3 Propellers(4cw+4ccw)
• 1 x Runcam Split3-lite 1080P HD Camera +DVR
• 1 x 5.8G 25mw 40ch VTX (Flight controller built-in)
• 1 x 1S 250mah 30C LiHV Battery
• 1 x 1S Lipo/LIHV USB Charger
• 1 x Propeller disassemble tool
