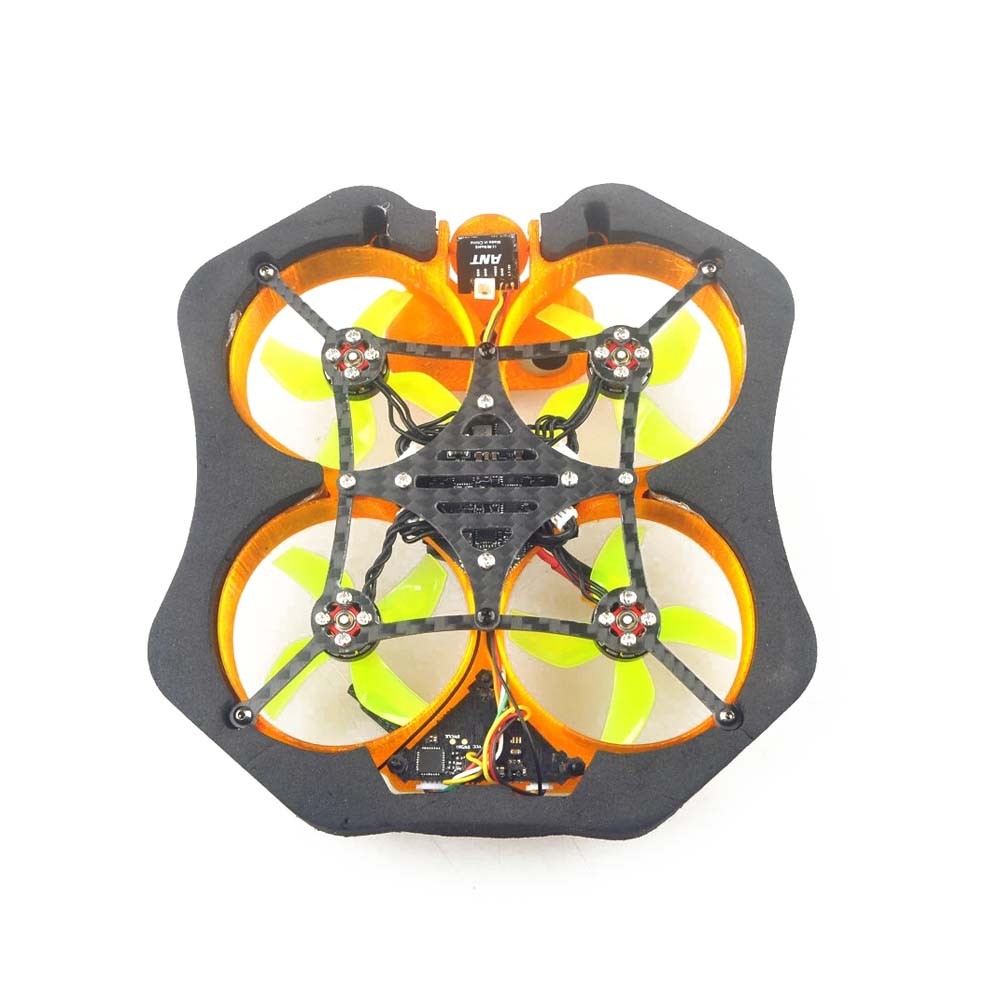

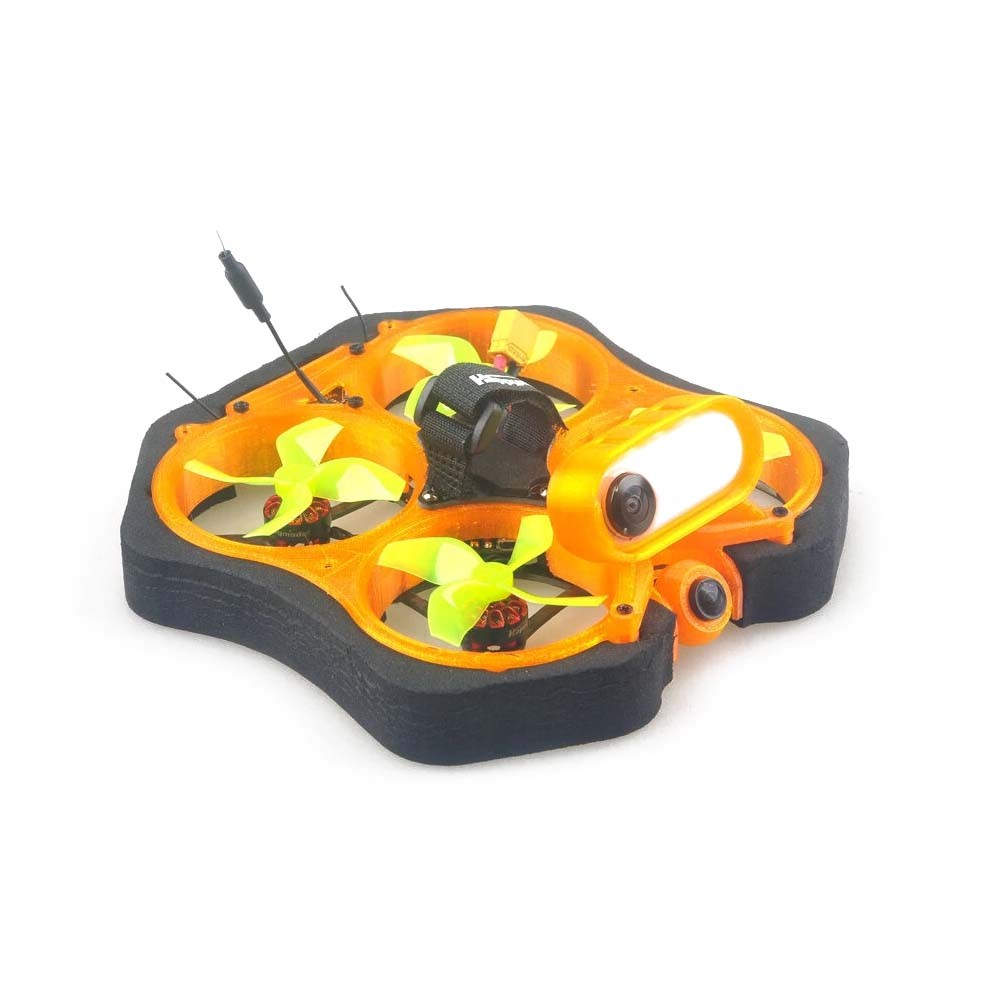

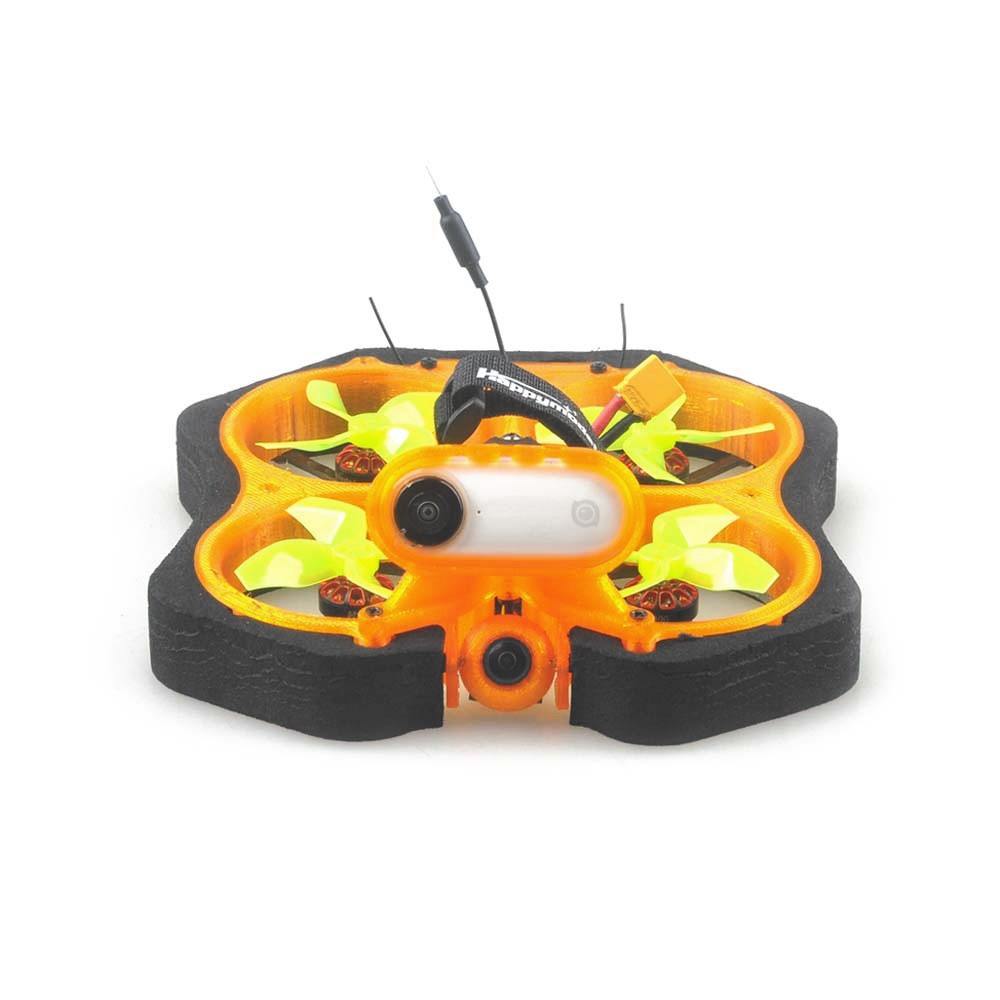

The CINE8 85mm Cinewhoop DIY Kit by Happymodel was designed to be very easy to build for beginners. No soldering work needed, simply plug and play, and you are ready to go!

At a very low cost, this DIY kit is equipped with high-performance and stable components, like the CRAZYBEE F4 V3.1 Flight Controller, Onboard 12A 4-in-1 ESC, 5.8G 40CH 400mw VTX, Caddx ANT 1200TVL Camera, and more!  The frame is made out of high-precision TPU 3D printing, fixed with carbon fiberboard, and the use of integral foam to prevent a collision. With the CINE8 DIY Kit every FPV pilot could enjoy the fun of building their own FPV Cinewhoop!

Receiver options: SPI Frsky, Crossfire

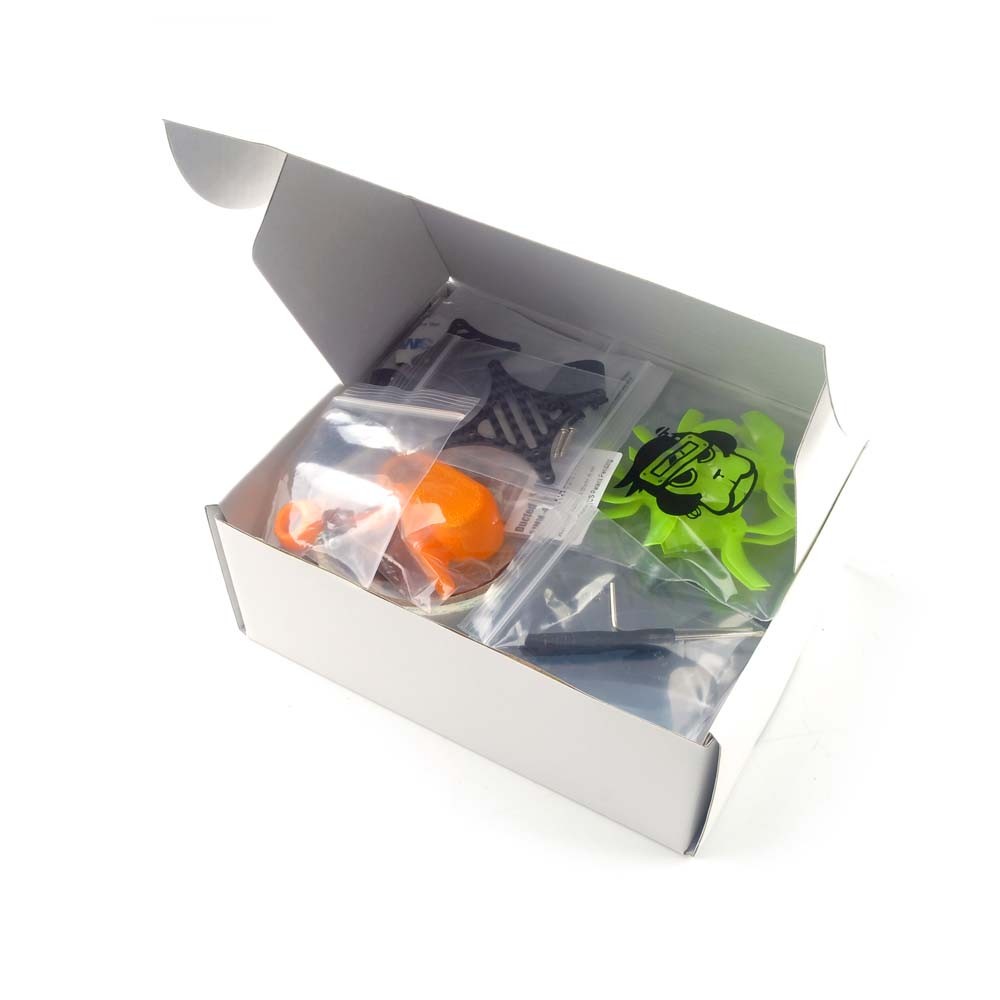

Note: This is a DIY Kit, the drone comes unassembled. Insta360 GO camera and SMO 4K camera NOT included.

Video

Features

• No Solder work needs and easy to build
• Very reliable and resistant to drops
• Stable and smooth flying

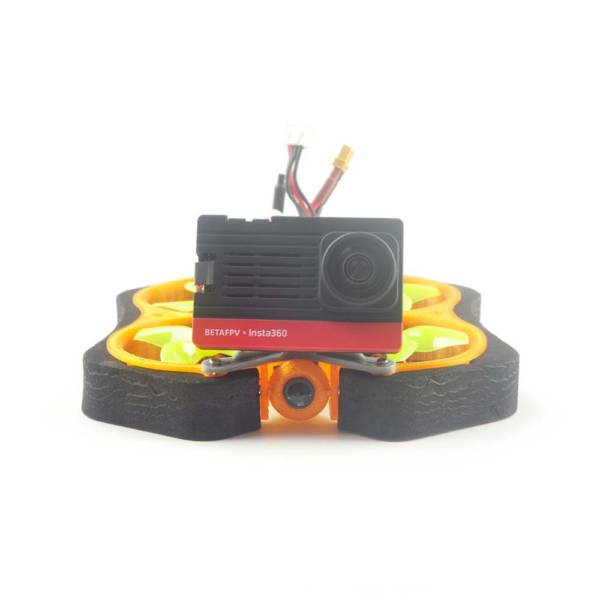

• Insta360 fixed mount ready
• Smooth and powerful
• Diversity SPI Receiver compatible Frsky/S-FHSS/Redpine protocol

Specifications

• Brand Name: Happymodel
• Item Name: Cine8
• Wheelbase: 85mm
• Size: 145mmx140mmx23mm
• Weight: 73g(without battery)
• Weight: 99g(with Insta360)

Receiver options

• Internal SPI Frsky version (Compatible with Frsky ACCST D8/D16, S-FHSS, Redpine)
• External TBS Crossfire Nano receiver version

EX1202.5 8000KV Motor

• Model: EX1202.5
• ItemName: 1202.5 8000KV 2-3 Brushless Motor
• No.of Cells: 2-3S Lipo
• Configu-ration:9N12P
• Stator Diamter:12mm
• Stator Length:2.5mm
• Shaft Diameter:Φ1.5mm
• Motor Dimension(Dia.*Len): Φ14×14.5mm
• Weight: 4.4g

Gemfan D51 2020 4-Blade Propeller

• Material: PC
• Weight:0.91g
• Pitch:2in
• Props Dia:50.3mm
• Center Thickness:4.5mm
• Center Hole Dia:1.5mm 3 holes

CRAZYBEE F4 V3.1 Flight Controller

• (Frsky SPI RX version) CRAZYBEEF4 V3.1 FC Firmware target: MATEKF411RX
• Sensor: MPU-6000(SPI connection)
• Board Size: 28.5×28.5mm
• Power Supply: 2-4S Battery input (DC 7V-17V)
• Built-in Betaflight OSD(SPI Control)
• Built-in 5V 1A BEC

Onboard 12A 4in1 ESC

• MCU Upgraded to EFM8BB21
• Power Supply: 2-4S LiPo/LiPo HV (7v/17v)
• Con. Current: 12A
• Burst Current: 15A (5 seconds)
• Support BLHeliSuite programmable
• Factory firmware: F_H_40_REV16_8.HEX
• Default protocol: DSHOT600

Onboard Frsky SPI D8 Receiver Version

• CC2500 Hardware
• Compatible with FrskyD FrskyX Frsky_X_LBT SFHSS REDPINE protocol
• Channels: 8ch
• Failsafe support
• Diversity 2.4G receiver system
• No ground interference: above 300meter

External TBS CRSF Nano Receiver

• Original TBS CROSSFIRE Receiver, CRSF Protocol, Official TBS transmitter compatible

5.8G 40CH 400mw VTX

• Output power: 25mw~400mw switchable
• Frequency: 40CH
• Input voltage: 3.3V 5.5V
• Current consumption: 400mA(type)
• Frequency: 5.8GHz 5bands 40 channels
• With Race band
• SmartAudio ready

Caddx ANT 1200TVL Camera

• Image Sensor: 1/3″ CMOS Sensor
• Horizontal Resolution: 1200 TVL
• TV System: NTSC or PAL
• IMAGE: 16:9 or 4:3
• Synchronization: Internal
• Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
• S/N Ratio : >52dB (AGC OFF)
• Video Output: CVBS
• Lens: 1.8mm
• Min. Illumination: 0.001Lux@F1.2
• Auto Gain Control: YES
• BLC: YES
• WDR: Global WDR
• DNR: 3D DNR
• Dimensions: 14*14mm(with a bracket to 19*19mm)
• Wide Power Input: DC 3.7-18V
• Work Temperature: -20℃~+60℃
• Weight: 2g (N.W.)

Lipo Battery

• Tattu 3S 11.4V 450mAh Lipo Battery

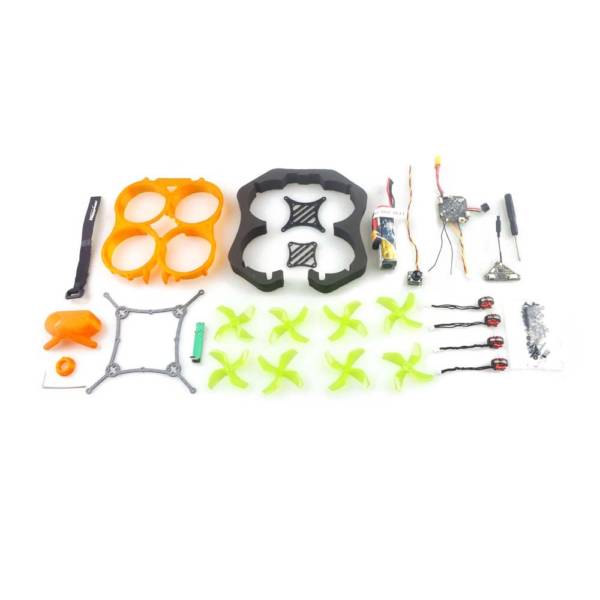

Includes

• 1 x Cine8 Frame
• 1 x 3D print TPU Insta360 go fixing mount for CINE8
• 4 x Happymodel EX1202.5 KV8000 brushless motor
• 1 x Gemfan D51(2020-4) Cinewhoop Props
• 1 x Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera
• 1 x 5.8G 25mw~400mw Whoop_VTX_HP

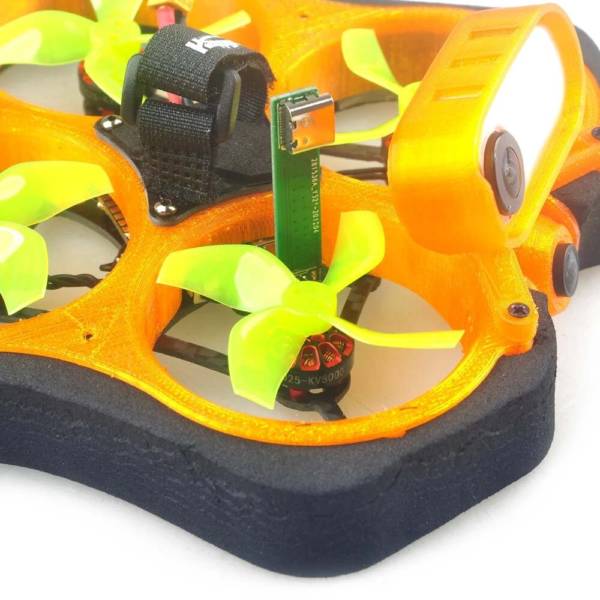

• 1 x TypeC USB Adapter
• 1 x Tattu 3S 11.4V 450mah battery
