HappyModel BNF Crux35 HD 3.5″ Quad w/ Caddx Vista & Nebula Nano – Choose RX
Check out all of our HappyModel Products!

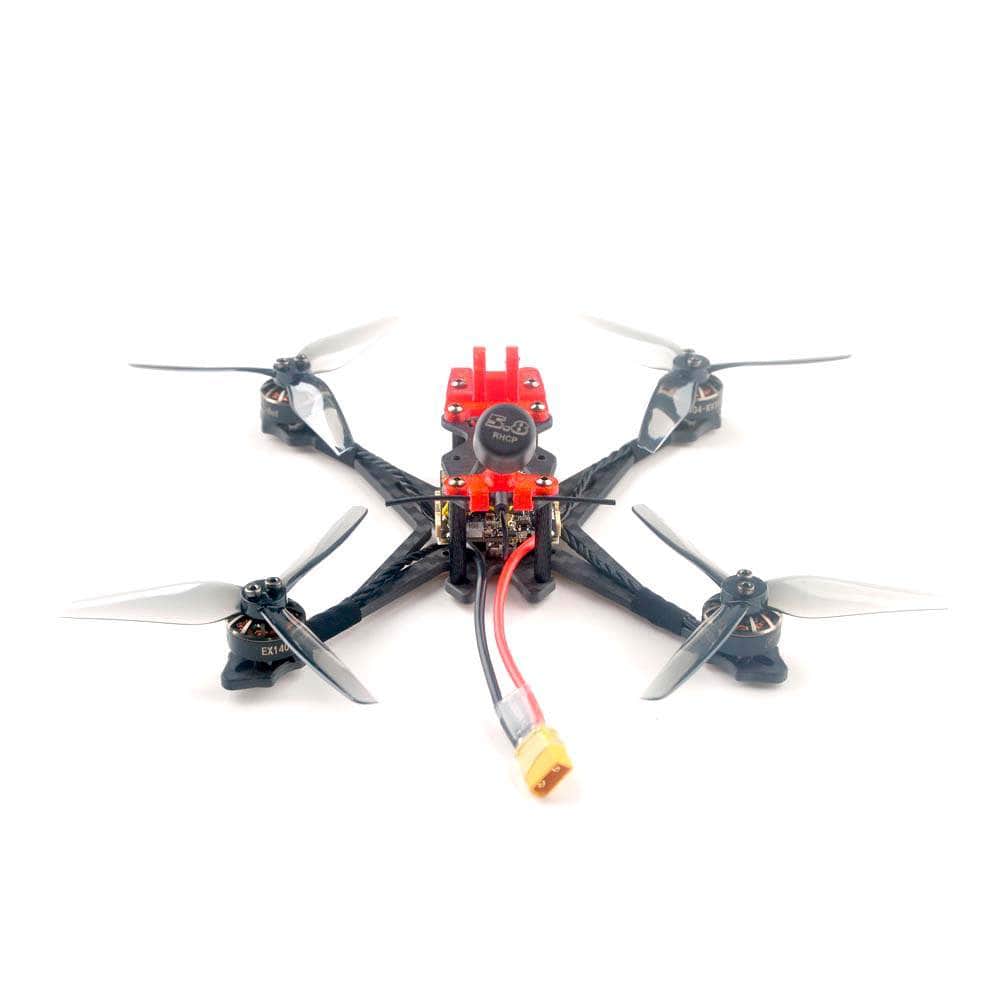

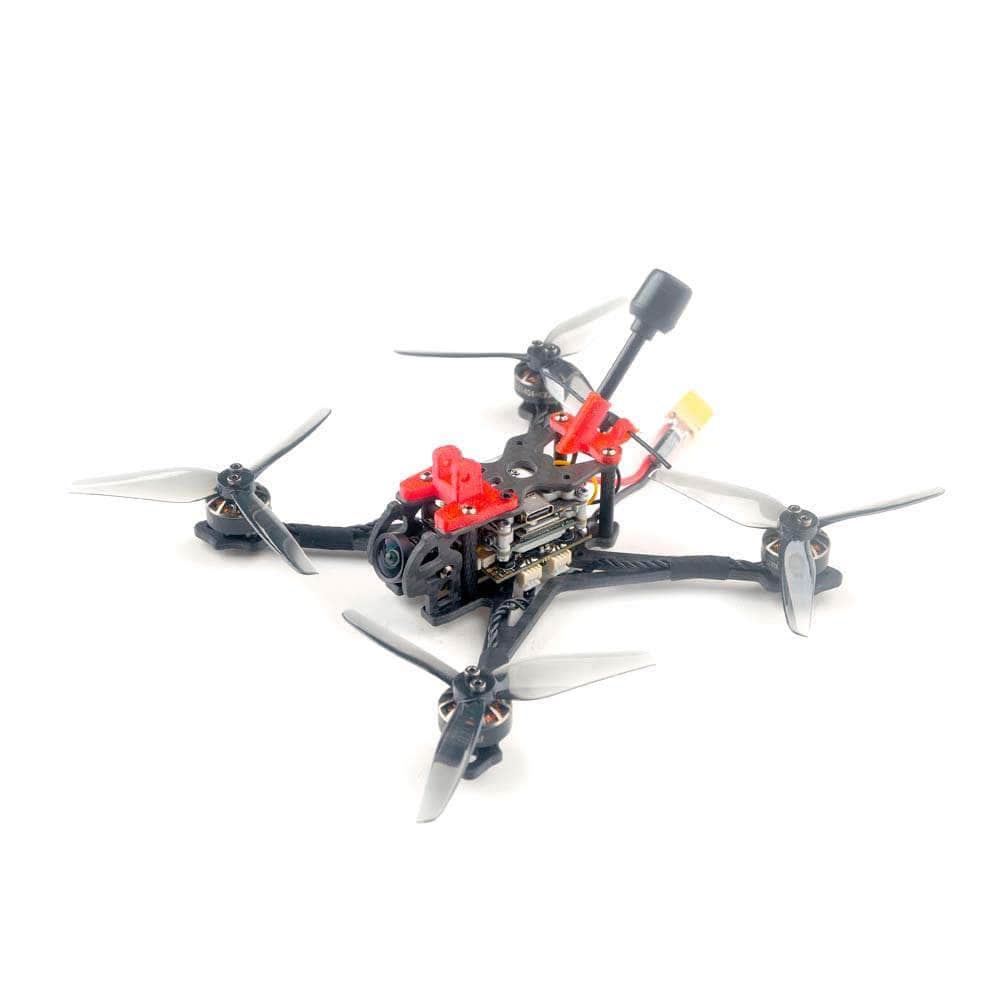

The Crux 35 is an ultra-lightweight 3.5Inch FPV freestyle and racing drone, the weight of the whole drone is only 87g for the analog version and 108g for the digital HD version. The Crux35 series drone use Happymodel’s EX1404 high-efficiency motor and HQPROP 3.5-inch three-blade propeller to ensure the largest thrust-to-weight ratio under the most efficient premise, which can bring you a smooth Freestyle flying experience.
Choose between FrSky and ELRS 2.4GHz receivers.
Specifications
- Weight: 108g
- Recommended Battery: 4S 750-1100mAH
- Propeller Size: 3.5″
HappyModel Crazyf411 20A AIO FC
- Input Voltage: 2-4S LiPo
- MCU: STM32F411CEU6
- Gyro: MPU-6000
- OSD: Yes
- UARTs: 2 Sets
- ESC Connections: No
- Firmware: MATEKF411RX
- BEC: 5V 1.5A
- Current Sensor: Yes
- Buzzer: Yes
- Barometer: No
- Black Box: No
- DJI Compatible:Â Yes
- Stack Size: 25×25
- Dimensions: 28.5×28.5mm
- Weight: 6.3g
HappyModel EX1404 3500KV Motor
- Kv: 3500Kv
- Input Voltage: 3-4S LiPo
- Configuration: 9N12P
- Motor Dimensions: Φ17.8mm x 17.6mm
- Stator Dimensions: Φ14mm x 4mm
- Shaft Diameter: 1.5mm
- Mounting Pattern: Φ9mm
- Weight: 8.7g
Caddx Vista w/ Nebula Nano
- Weight: 24g
- Vista Dimensions: 30x29x13mm
- Camera Dimensions: 14x14x21mm
- Operating Frequency: 5.725-5.850GHz
- Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm
- Min. Latency (end-to-end):720p 60fps: 32ms
- Max. Transmission Distance: FCC/SRRC: 4km, CE: 0.7km
- I/O Interface: USB-C,IPEX,3-in-1 Port
- Supported Flight Control System: F3,F4,F7
- Operating Temperature Range: 32° to 104° F (0℃ ~40℃)
- Input Power: 7.4-26.4V
- Power output: 25mW/200mW/500mW/700mW
- Hardware included:Vista/Nebula nano/Coaxial cable/Antenna
- Goggles: work with DJI goggles
- Camera:Sensor: 1/3”CMOS
- Lens: 2.1mm,f/2.1
- Shutter: Rolling shutter
- FOV: 150°[D],122°[H],93°[V]
Includes
- 1x HappyModel BNF Crux35 HD 3.5″ Quad w/ Caddx Vista & Nebula Nano
