DarwinFPV Darwin129 7″ Long Range – PNP
See all of our DarwinFPV Products! Check out all of our Pre-built drones too!
Specifications:

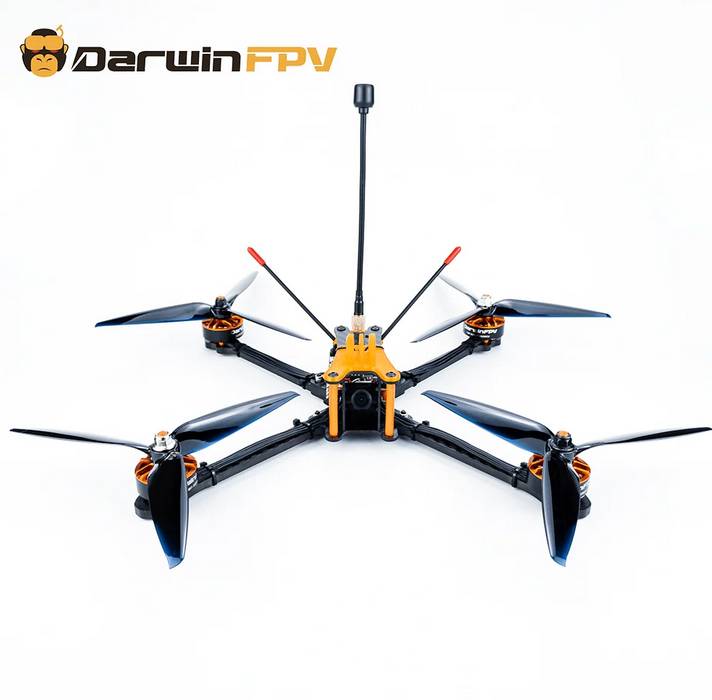

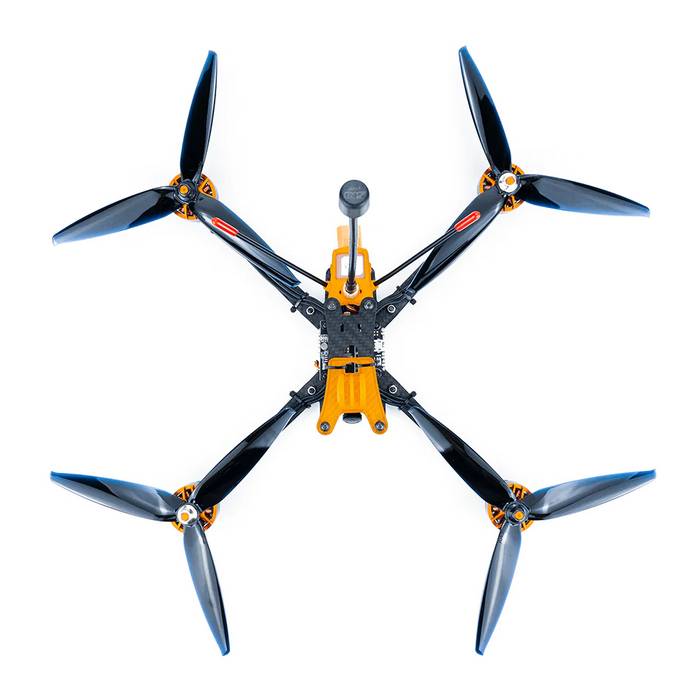

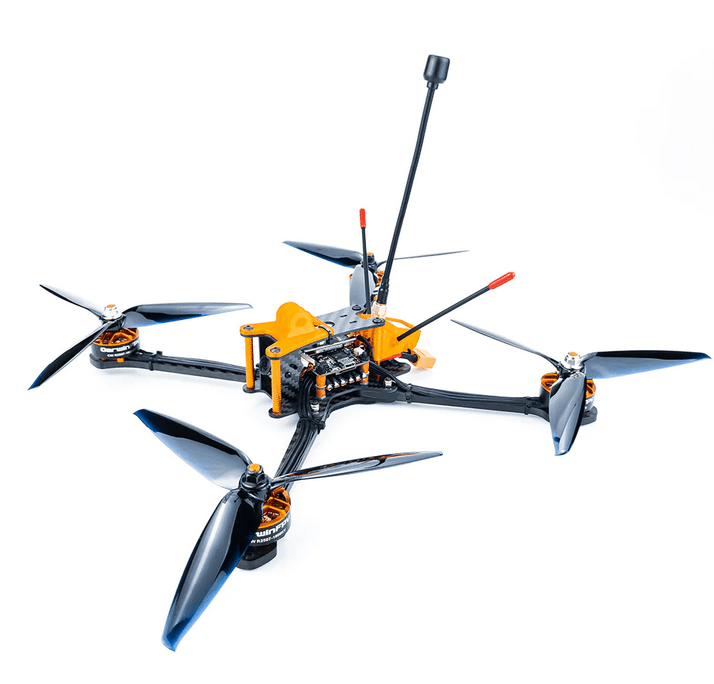

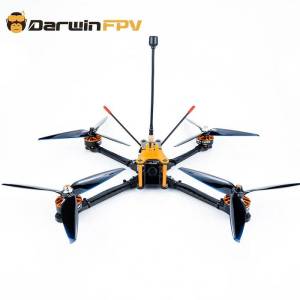

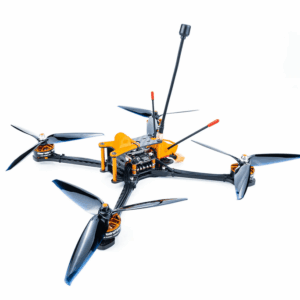

Introducing the Darwin129 7” Long Range PNP quadcopter, designed specifically for long-range flights. After numerous attempts and extensive experimentation, we are proud to present the upgraded version of Darwin129.
One of the major upgrades we have made is the replacement of GPS with M80, which offers faster search speed and improved accuracy. Additionally, we have added a tail buzzer and eight high-brightness RGB lights, making it easier to locate the drone in flight.
These are just a few of the enhancements we have made to the Darwin129, ensuring it offers exceptional performance and reliability for long-range flights.
- The motor cable has been changed to silicone cable with sufficient and it won’t melt during soldering.
- Add a battery pad to prevent effectively the battery from slipping off.
- The VTX antenna is specially designed for long-range flight, so the transmission distance is much longer.
- The flight controller supports Bluetooth function and can be connected to the mobile phone APP quickly. Make drone tuning much more convenient.
- VTX transmission power is increased to 800mW, the transmission distance is longer.
- The flight controller is installed with silicone dampers, which will reduce effectively the flight controller vibration.
Specification
- Item name: Darwin129 7” Long Range PNP
- Wheelbase: 280mm
- Motor: 2507 1800KV 3-5S Brushless Motor
- Flight Controller: F4 flight controller
- VTX: 5.8G 40CH 800mW VTX TX805
- Gemfan Flash 7040-3
Flash Durable 3 Blade
7040-Clear 2L2R
Camera upgraded to 1500TVL Darwin B19
Comes without battery,charger,receiver and remote controller.
2507 1800KV 3-5S Brushless Motor
Motor KV: 1800KV
Idle Current (Io/10V): 0.89A
Lipo Cell:3-5S
Weight: 39g
Max Continuous Current: 42 A
Max Continuous Power: 840 W
Max thrust: 1488 g(4 S/7″)
Configu-ration: 12 N/14 P
Motor Resistance (RM):0.0586 Ω
Stator Diameter: 25 mm
Stator Thickness: 7 mm
Motor Diameter: 30.8 mm
Motor Body Length: 20 mm
Overall Shaft Length: 35 mm
Prop adapter shaft: M 5
Bolt holes spacing:16 mm
Bolt thread:M 3
Propeller:7”
4In1 50A Blheli_S ESC
Continuous current: 50 A
Peak current: 60 A (10 S)
Lithium battery section number: 3-5 S
BEC: 5 V 2 A
ESC weight: 10.8 g
Firmware: BL_S
Maximum support throttle signal: DSHOT 600
Mounting hole: M3 30.5 * 30.5 mm

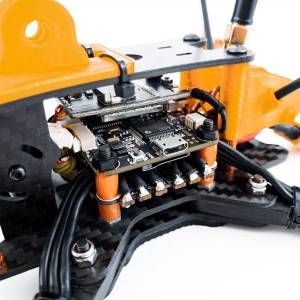

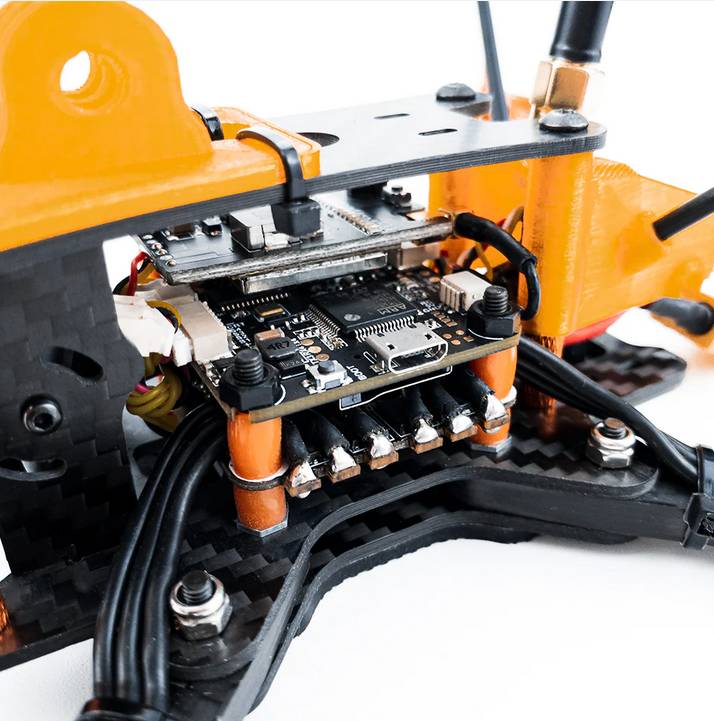

F4 Flight Controller
Lithium battery section number: 3-5 S
BEC: 10V 1A, 4.5V, 3.3V
IMU: MPU6500 (SPI)
MCU: STM32F405
OSD: AT7456E
Firmware: MATEKF405
Weight: 7.2g
Mounting hole: M3 30.5 * 30.5mm
Support black box
Bluetooth
5.8G40CH 800mw VTX TX805
Item name: FPV Transmitter VTX
Frequency: 5.8G Channels: 40CH
Input voltage: 7V~24V
5V camera supply: 120mA(MAX)—-25mW@12V 5V
camera supply: 200mA(MAX)—-200mW@12V 5V
camera supply: 300mA(MAX)—-600mW@12V 5V
camera supply: 350mA(MAX)—-800mW@12V Extra
features: Smart audio
Power supply: 5V output for Camera
Output power: 25mW/200mW/600mW/800mW
switchable Antenna connector: MMCX
Cable connector: Solder pads
Dimensions: 36mm*22mm*5mm,30.5 stackable hole
Weight: 8g(excluding antenna)
Darwin M80 GPS
Name: GPS+GLONASS
Power Supply：5V
Botelv: 115200dps
Receiver Sensitivity：Tracking -167dBm Capture -160dBm
