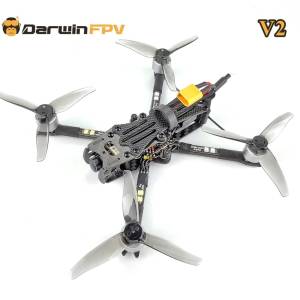

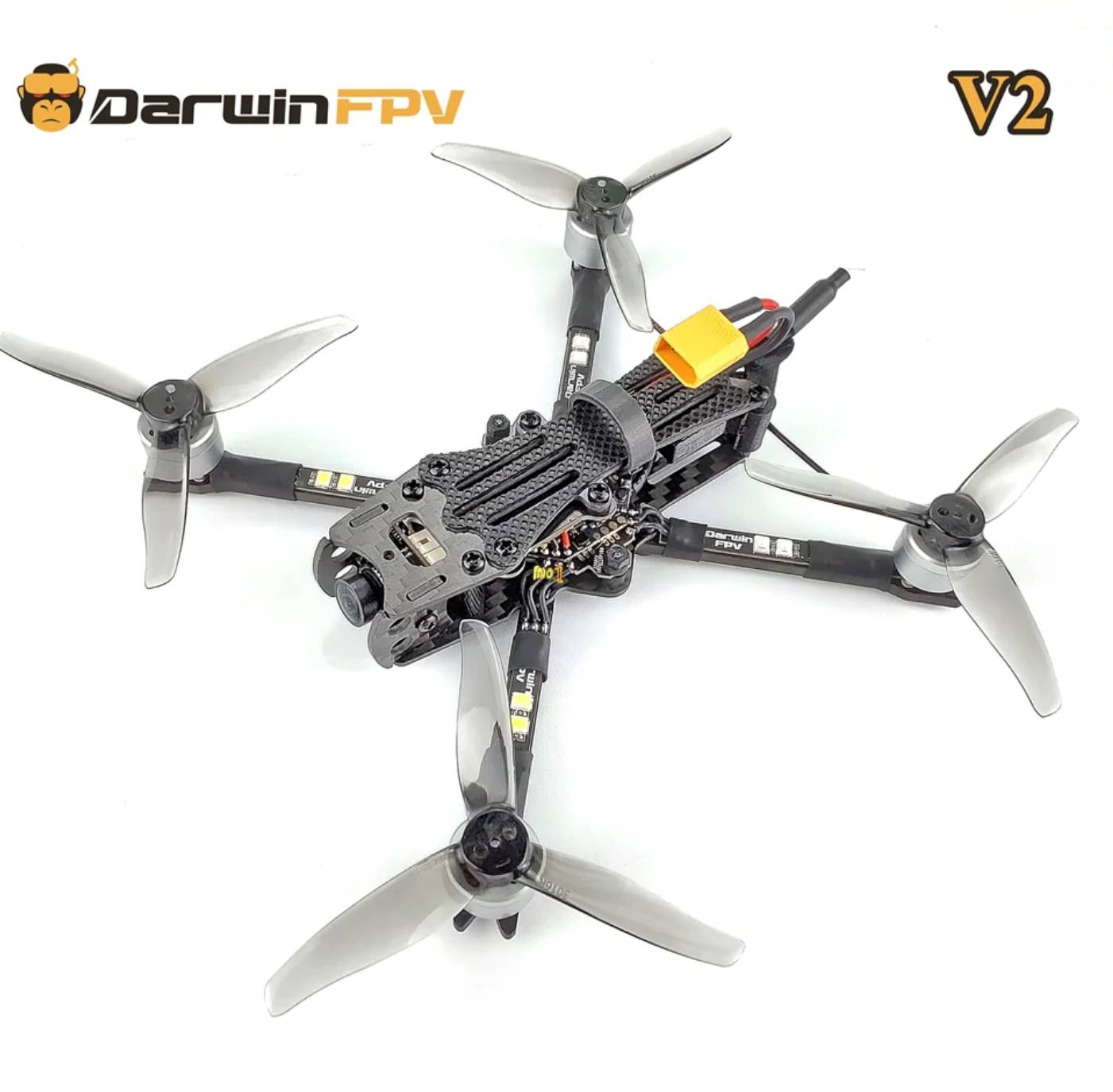

Darwin Baby Ape Pro V2 FPV Drone ELRS – Analog BNF
See all of our DarwinFPV Products! Check out all of our Pre-built drones too!
Specifications:
After receiving positive feedback from many pilots, the Darwin Baby Ape quickly became a beloved FPV drone. Taking their comments into consideration, we have now introduced an improved version – the BabyApe Pro V2.

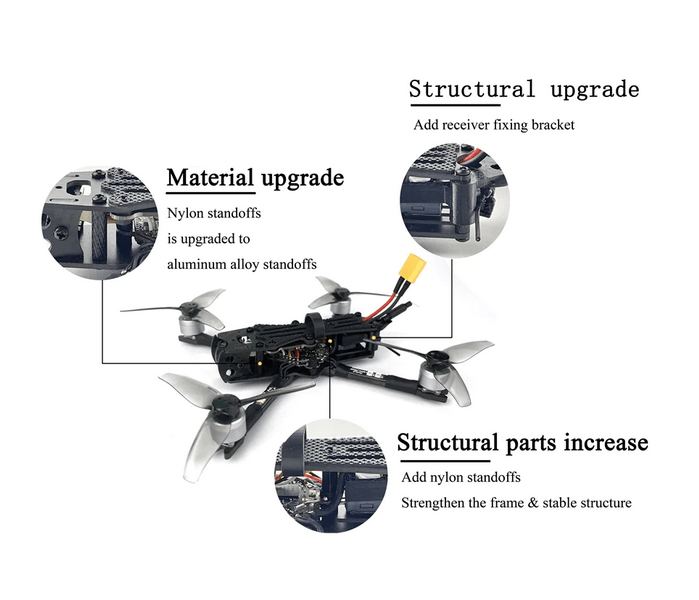

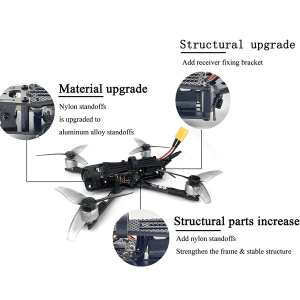

The upgrades made to the new version are significant. Firstly, we have replaced the previous nylon standoffs with stronger and more stable aluminum alloy standoffs, resulting in a more durable frame.

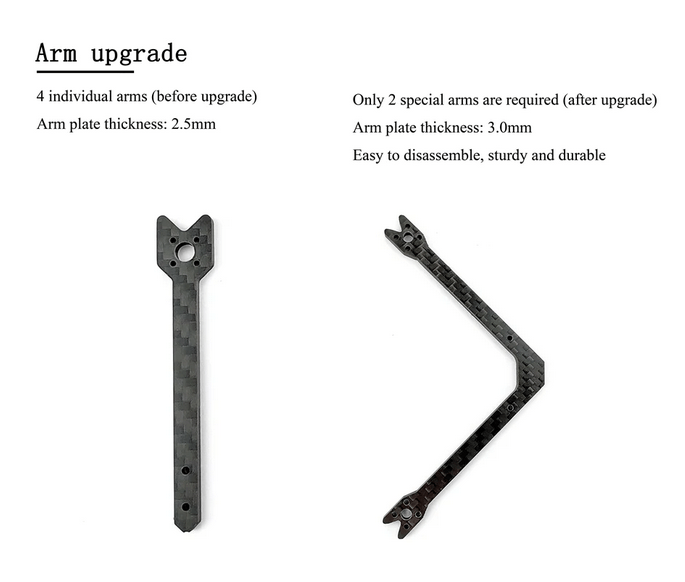

Additionally, we have added a receiver fixing bracket to further enhance the drone’s structure. The arms have also been upgraded from four separate 2.5mm thick arms to two integrated 3.0mm thick arms, making them easier to disassemble and more robust.

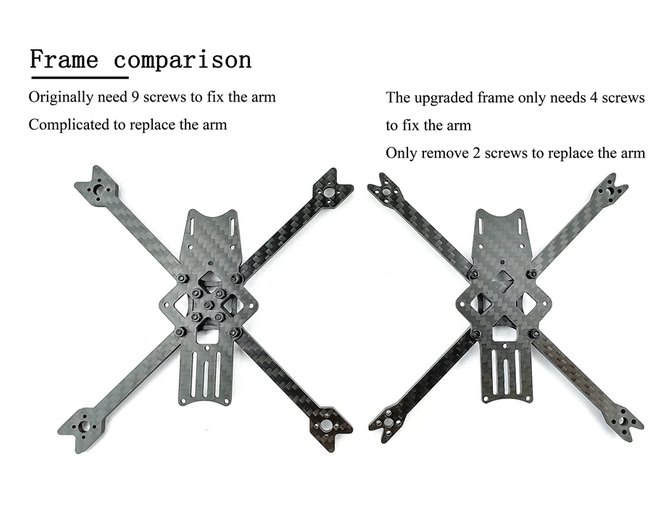

Lastly, the V2 model only requires four screws to fix, and the arms can be easily replaced by removing just two screws, without the need to take apart the entire drone.
Specifications:
CADDX ANT Camera
Resolution:1200TVL
mage Sensor: 1/3″ CMOS Sensor
Input: DC 3.7-18V
TV System: PAL/NTSC
1104Â 4300KV 2-3S Brushless Motor
KV: 4300KV
Lipo cell: 2-3S
AIOÂ 4 IN 1Â 15A BLHeli_S Â ESC
Input voltage: 1-3SLiPo
Continuous current: 15A
Peak current:17A (10S)
BEC output: no
Main control chip: EFM8BB21
Firmware upgrade: Supports Dshot600/Oneshot125
MOS: 3*3
F411 AIOÂ Flight Controller
Main control chip: STM32F411
Integrated OSD
PPM/DSM/IBUS/UAR share: UART1-RX
IMU:Â MPU6500 (SPI)
Mounting holes distance: 25.5*25.5mm
Supports Betaflight firmware
5.8G 40CH 0mW/25mw/200mw switchable VTX
Supports TBS SmartAudio
Transmitting power: 0mW/25mW/100mW/200mW switchable
Channel: 40CH
Full video format: NTSC/PAL
Input voltage: 7V~24V
Power dissipation: +12V/600MW
Size: 25×20×6mm
Weight: ≤3.2g (except an antenna)
With copper pipe mini antenna (ipex antenna)
3016Â 3-blade propellers
Mounting hole:Â 1.5mm
Center thickness:Â 5.5mm
Quantity: 2Â pairs
Weight: 1.18g a pair
