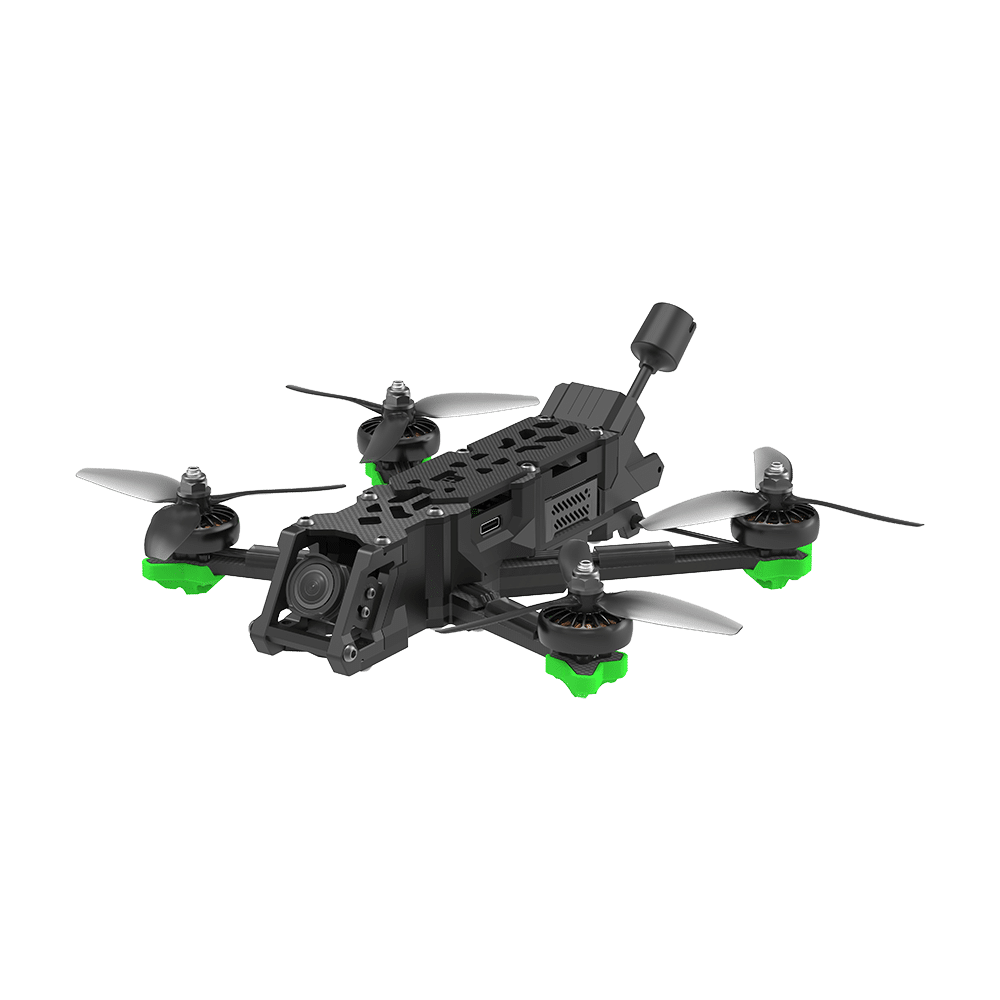

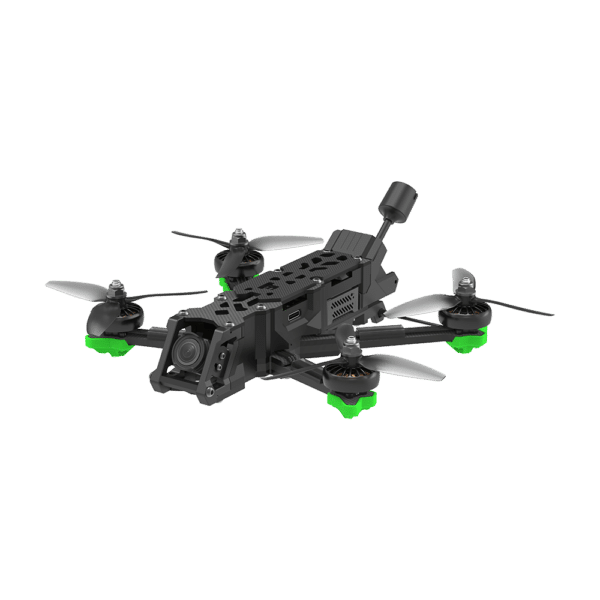

iFlight Nazgul Evoque F4D HD 6S PNP DJI FPV Drone
Our best pre-built drone just got better! Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A new standard of Bind-And-Fly drones that are simple to get started with but the durability and performance for enthusiasts.Welcome to the iFlight experience!
Highlights
- The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.
- DJI O3 HD Air Unit Low-Latency digital transmission
- Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)
- 4K Stabilized Video with 155° Ultra-Wide Angle
- Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)
- Secured Battery Plug with Anti-Spark Filter
- Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
Specifications
- Product Name: Evoque F4
- FC: BLITZ Mini F7 Flight Controller
- ESC: BLITZ Mini E55S 4-IN-1 2-6S 55A ESC
- Video Transmission: DJI O3 Air Unit
- Frame wheelbase: 185mm
- Motor: XING 2205 2450KV motors
- Prop: HQ 4*3*3 propellers
- Takeoff Weight: Approx. 330 g (Without battery)
- Dimensions (L×W×H): 148.5×110×36 mm(Squashed X) / 149*110*36mm (DeadCat)
- Diagonal Distance: 185 mm
- Max Speed: 170 Km/h (Manual Mode)
- Maximum Takeoff Altitude: 7000 m
- Max Hover Time: Approx. 8 mins
- Max Flight Distance: 5 km
- Max Wind Speed Resistance: Level 5
- Operating Temperature Range: -10° to 40° C (14° to 104° F)
- Antennas: DJI O3 Air Unit Dual-Band Antenna
- GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional)
- Recommended batteries:
- 6S 1050mAh Battery
- 6S 1400mAh Battery
Video Transmission
- Product Name: DJI O3 Air Unit
- Communication Bandwidth: Max 40 MHz
- FOV (single screen): 155°
- Communication Frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
- End-to-End Latency
- With DJI FPV Goggles V2:
- 810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
- 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
- With DJI Goggles 2:
- 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
- 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
- Max Video Transmission Bitrate: 50 Mbps
- Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
- Operating Temperature Range: -10º to 40º C (14° to 104° F)
- Power Input: 7.4-26.4 V
- Audio Transmission: N/A
Packing List
1 x Evoque F4 6S HD BNF
1 x DJI O3 air unit Antenna
1 x Battery pad
4 x HQ 4x3x3 propeller(Pairs)
2 x Battery strap
