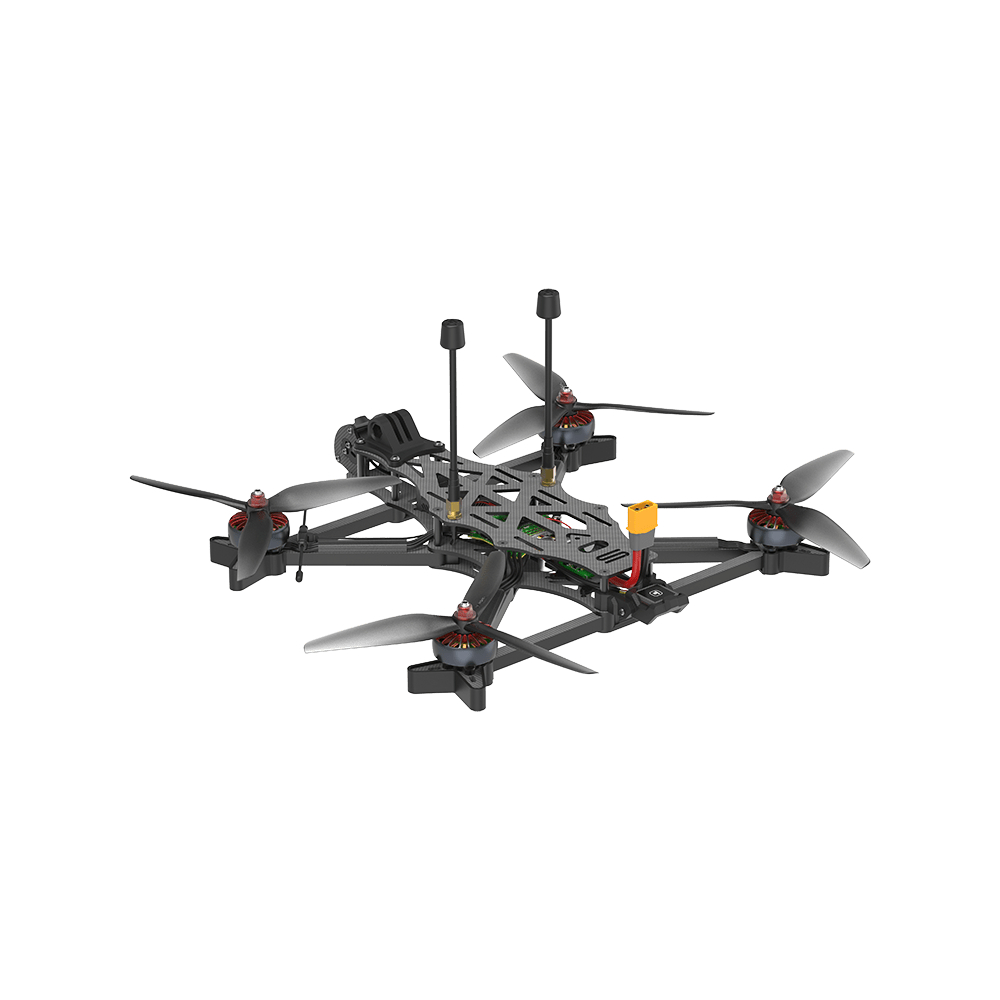

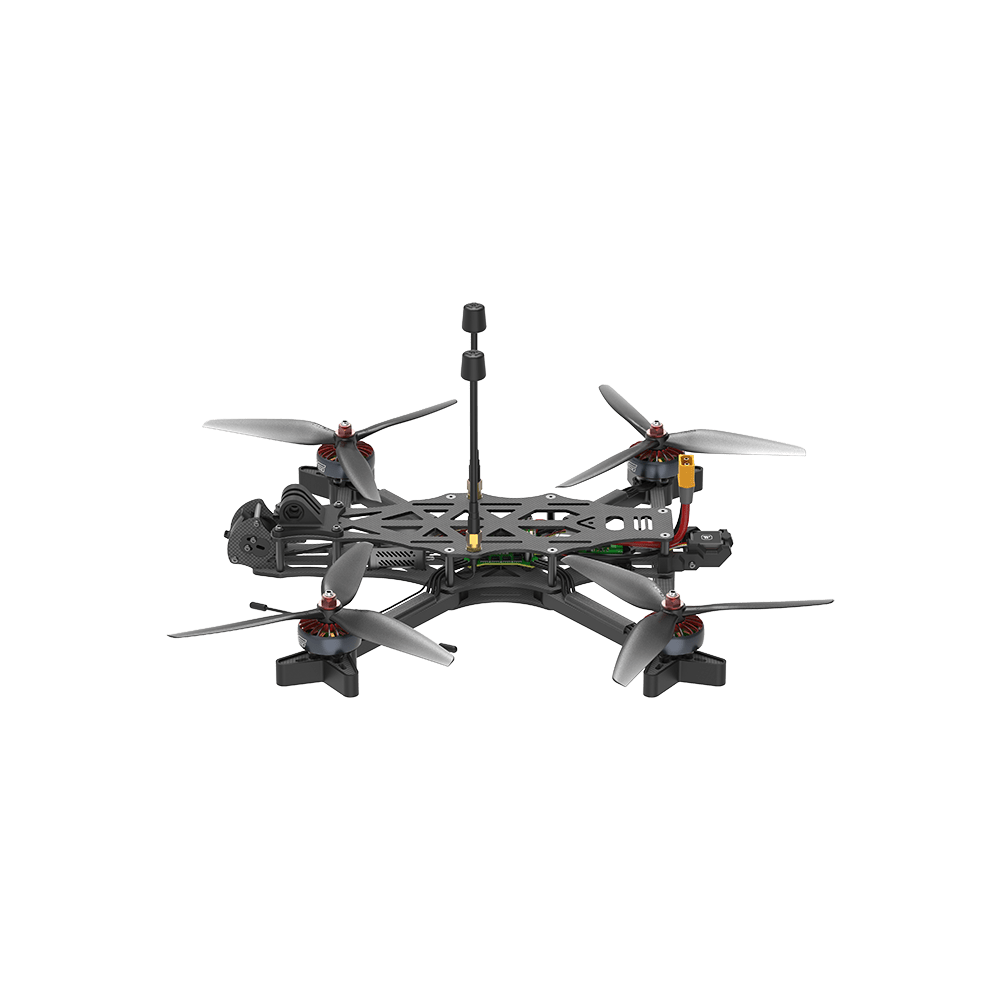

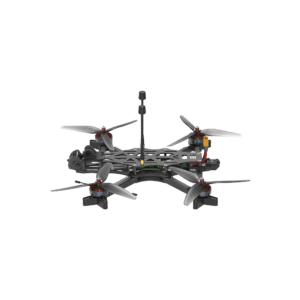

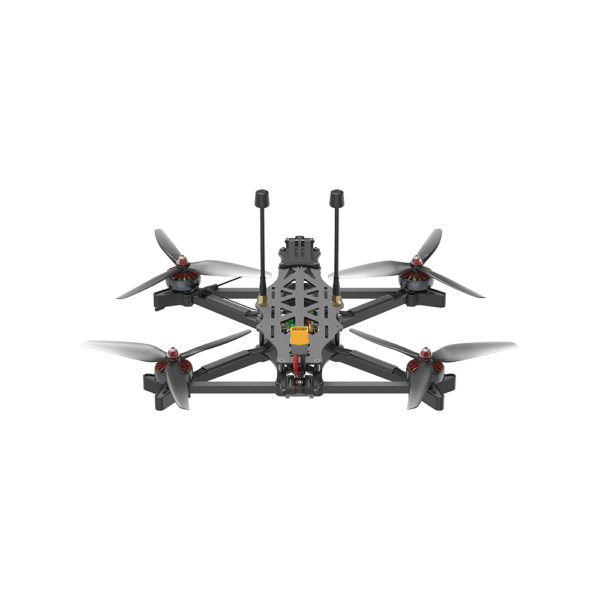

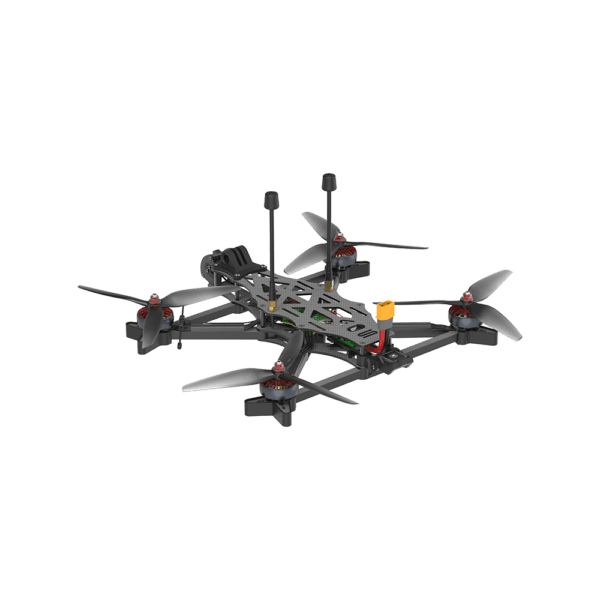

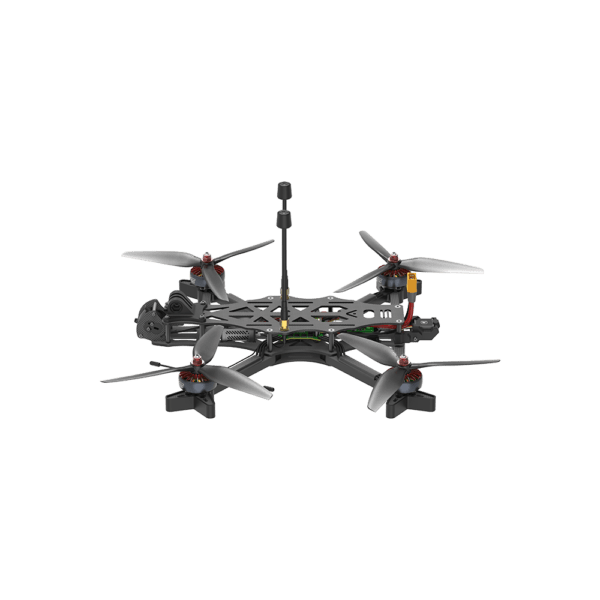

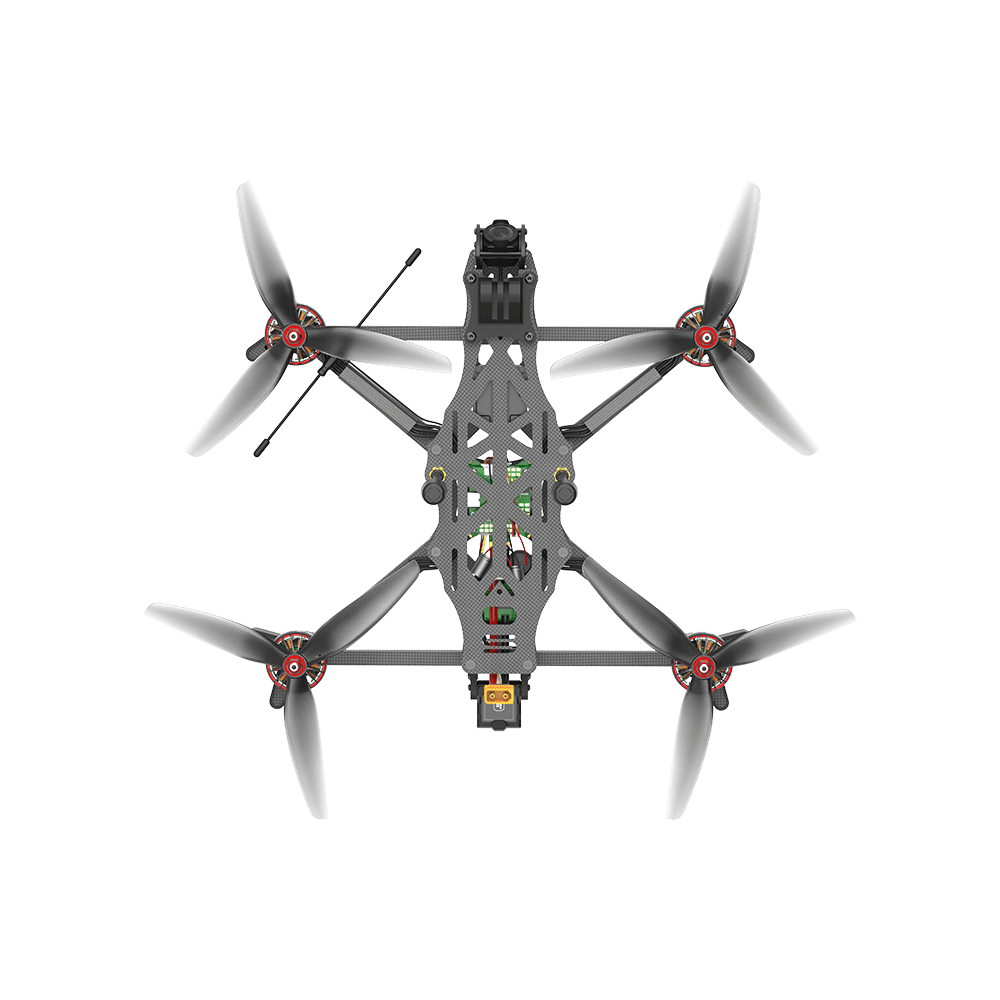

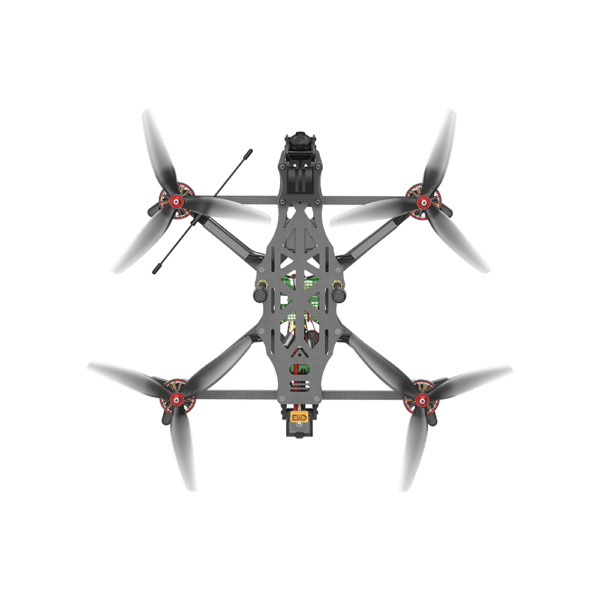

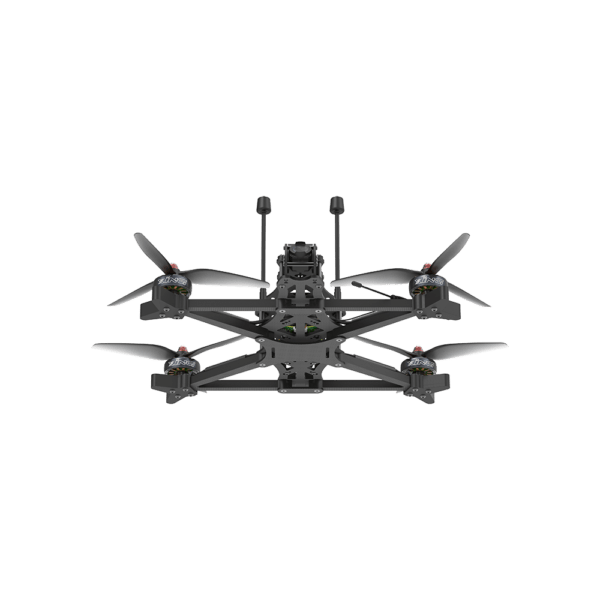

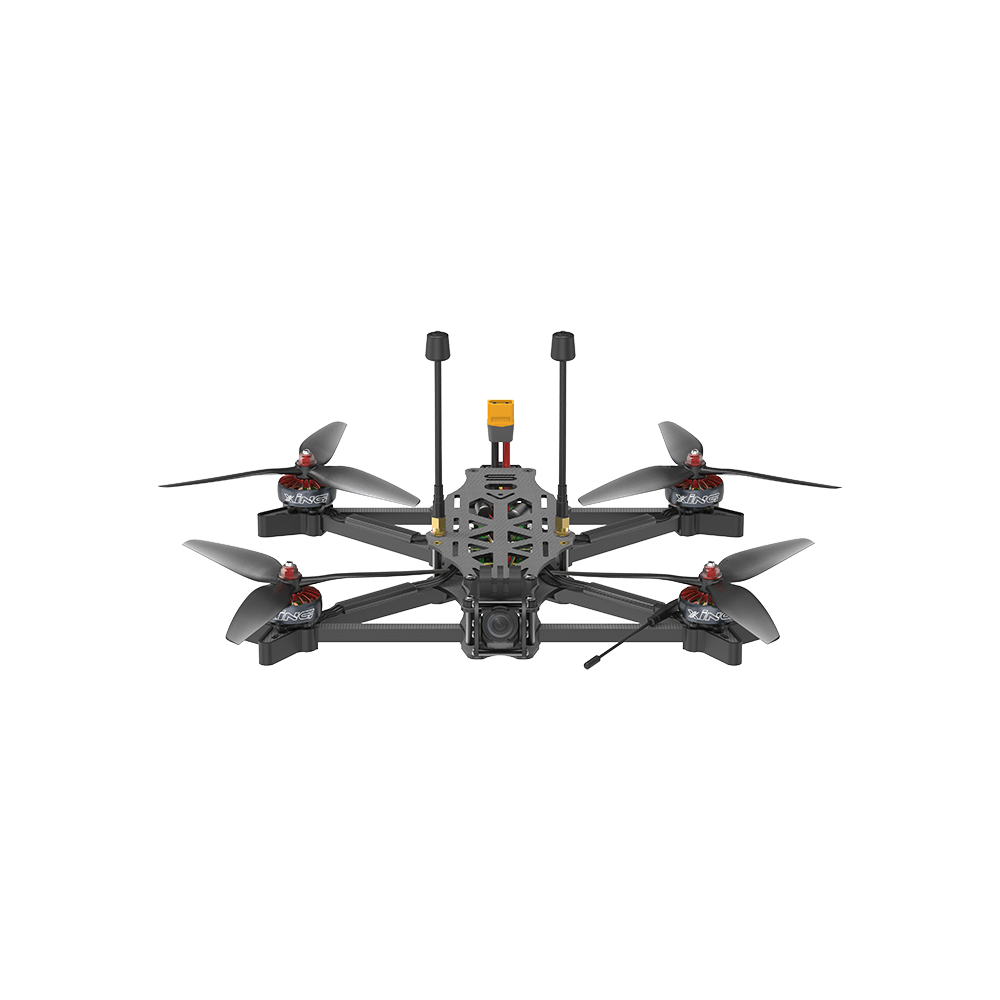

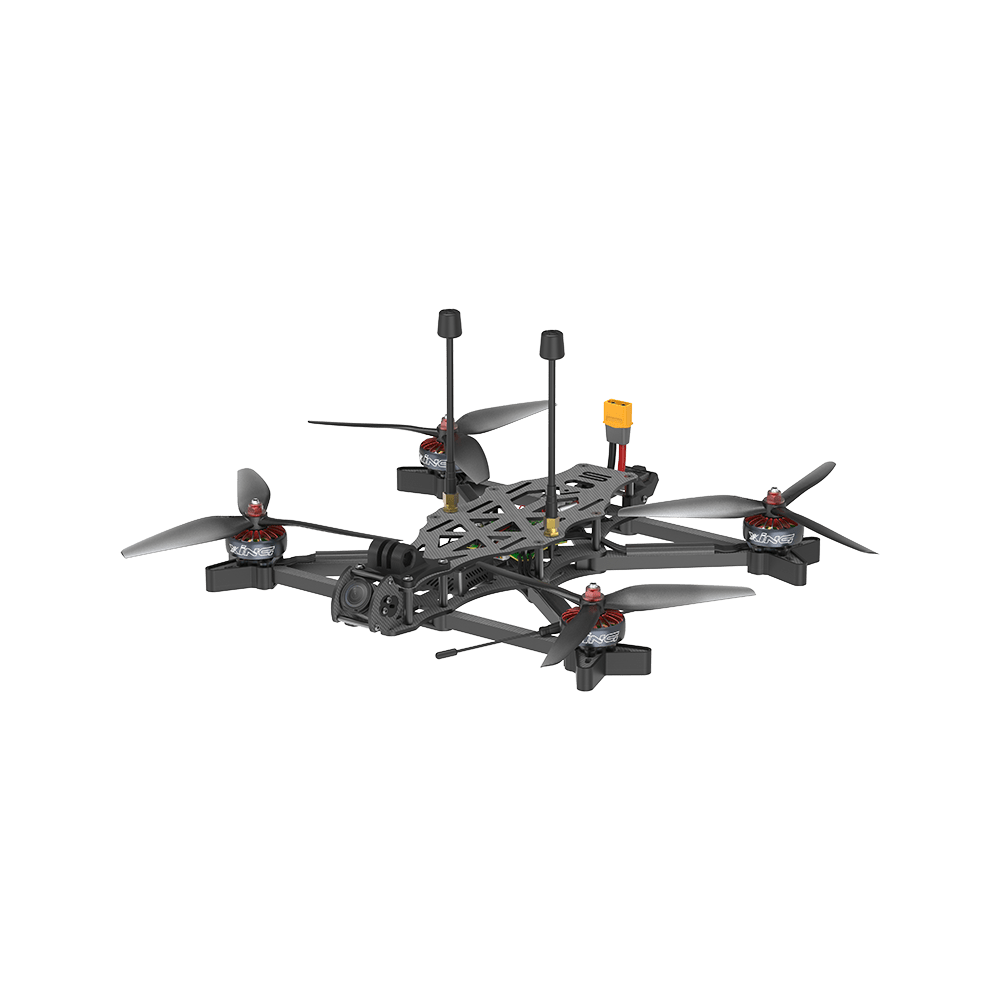

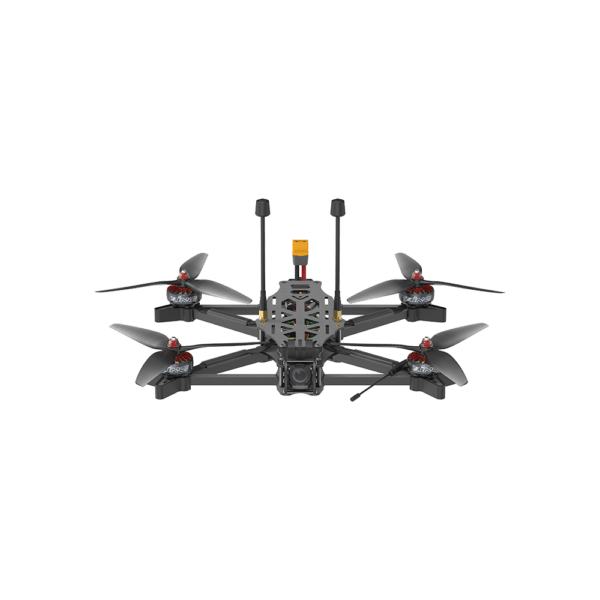

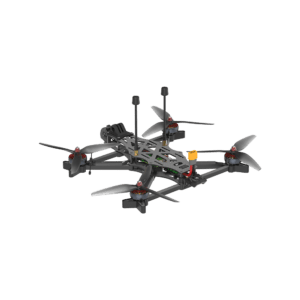

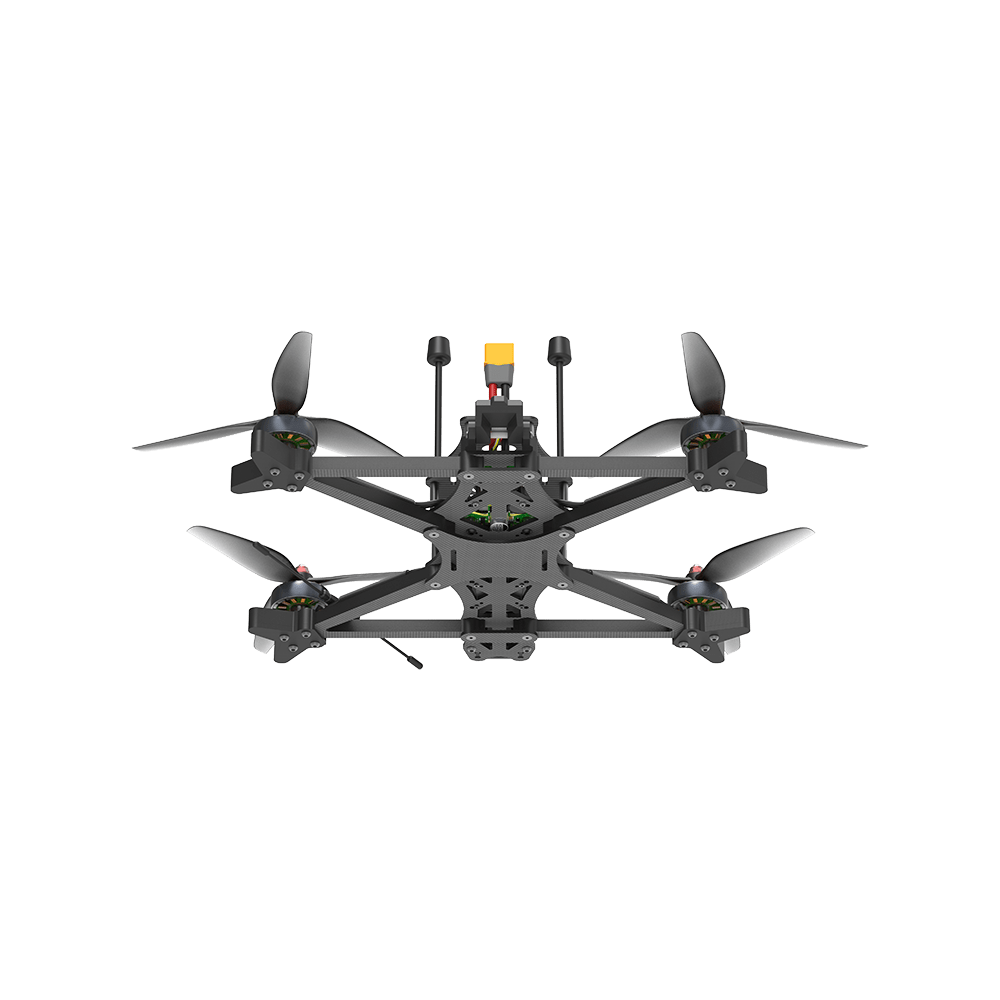

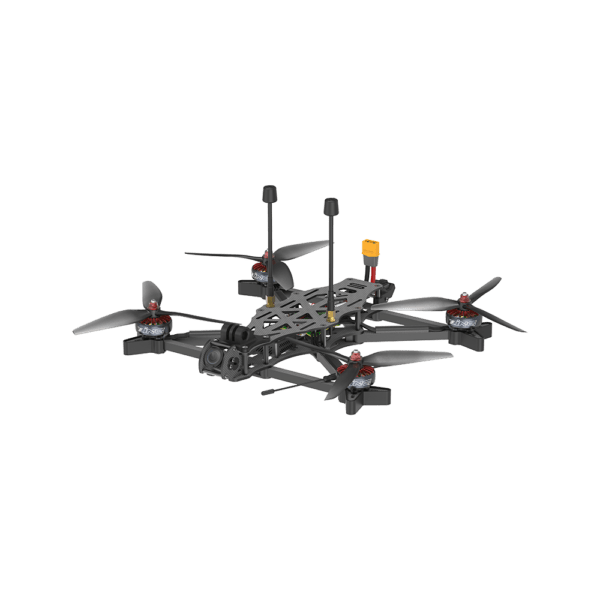

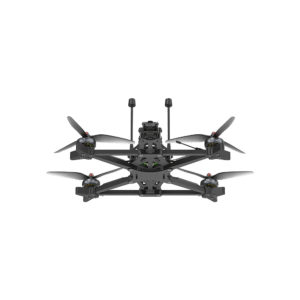

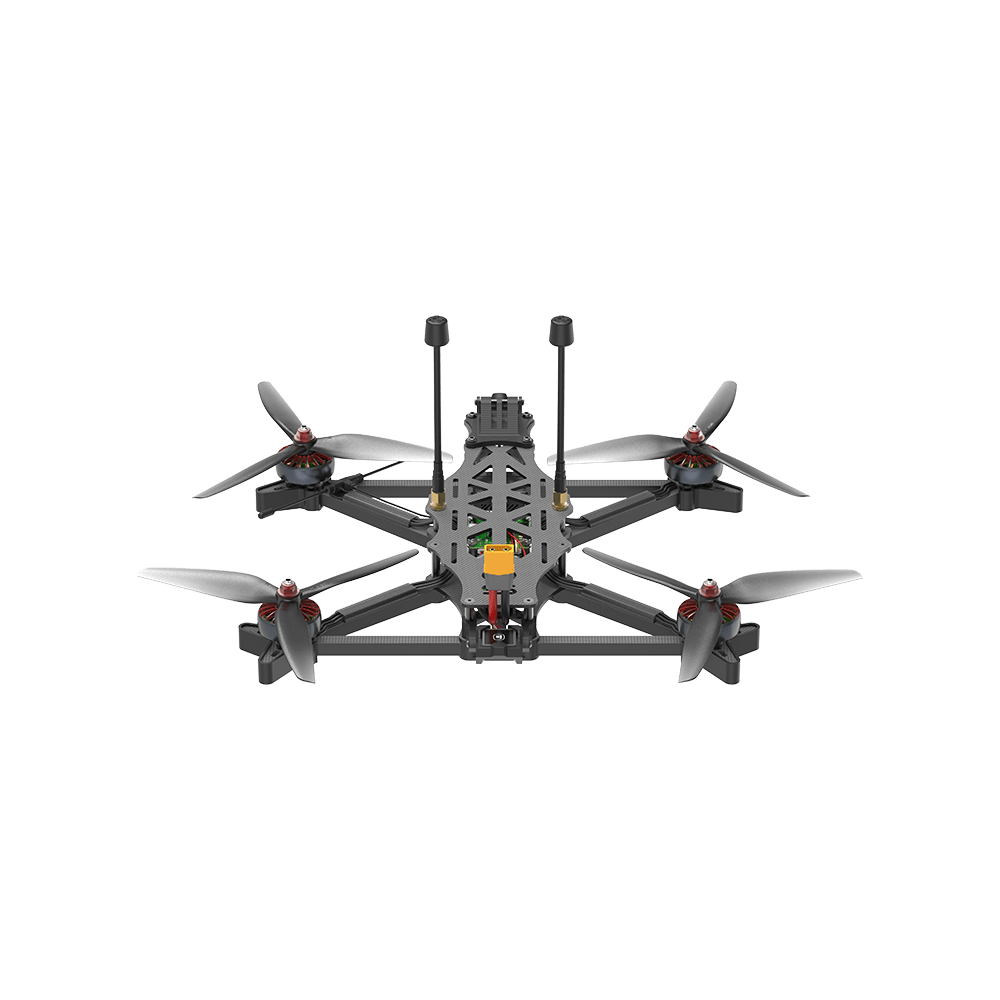

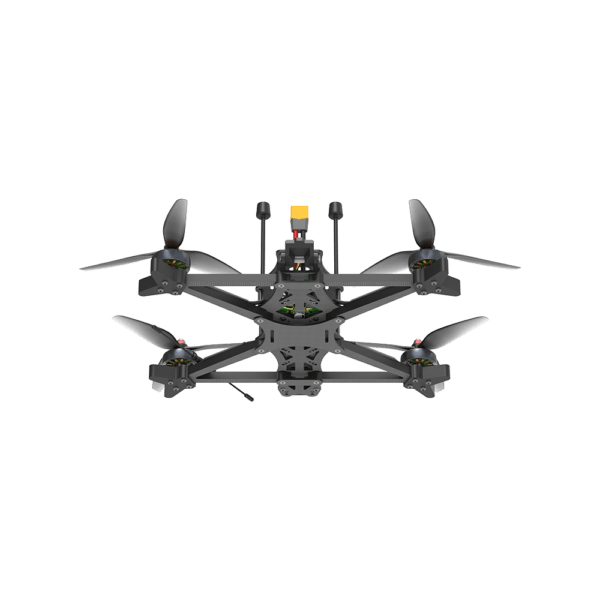

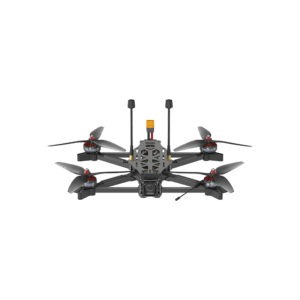

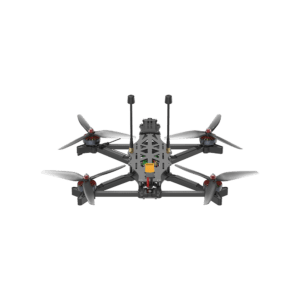

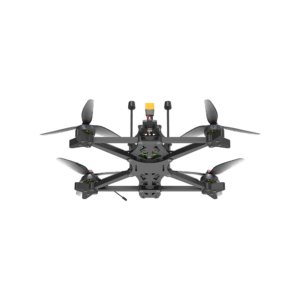

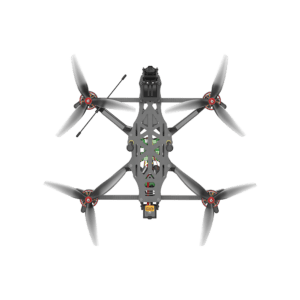

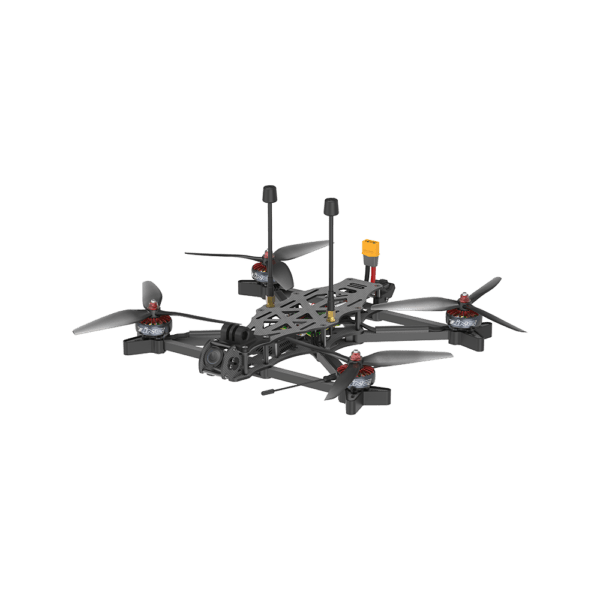

Experience the pinnacle of 7-inch FPV performance with the AOS 7 EVO, expertly built by iFlight. This Bind-N-Fly drone combines Chris Rosser’s scientifically-engineered AOS 7 EVO low-vibration frame with a top-tier iFlight electronics package, including the stunning DJI O3 Air Unit. It’s the ultimate pre-built solution for pilots seeking incredible long-range cruising and smooth, cinematic freestyle flight.

Scientifically Engineered for Smooth Flight

The AOS 7 EVO frame is the result of advanced topology optimization and thousands of simulations. Its unique truss-design arms are engineered to shift vibrations outside of the flight controller’s sensitive frequencies. This allows for significantly less filtering, lower latency, and higher PID gains than other frames in its class, resulting in an incredibly smooth and locked-in flight feel, perfect for jello-free HD footage.

Top-Tier Components, Professionally Built

iFlight has equipped the AOS 7 EVO with a no-compromise electronics package. The powerful BLITZ F722 flight controller and 55A 4-in-1 ESC provide a reliable and robust core. The XING 2806.5 1300KV motors deliver the perfect balance of torque and efficiency for 7-inch props on 6S, capable of long flight times and dynamic maneuvers. At the heart of it all is the DJI O3 Air Unit, providing a crystal-clear, low-latency digital HD video feed and onboard 4K recording capabilities.

Key Features:

• AOS Low-Vibration Frame: Scientifically engineered for incredibly smooth flight, less propwash, and an easier tuning process.
• Built-in DJI O3 HD System: The industry-leading digital FPV system provides a stunning, low-latency HD video feed and onboard 4K recording.
• Professionally Built by iFlight: Expertly assembled and tuned, saving you hours of building and guaranteeing a reliable setup right out of the box.
• High-Performance 6S Powertrain: A BLITZ F7 FC, 55A ESC, and 2806.5 1300KV motors deliver the power and efficiency for true long-range performance.
• Integrated GPS: Comes with a multi-constellation GNSS module for navigation and safety features like Return-to-Home.

Receiver Information

This is a Bind-N-Fly (BNF) drone that comes with the DJI O3 Air Unit pre-installed. The O3 Air Unit has a built-in receiver that is compatible with the DJI FPV Remote Controller 2 or DJI FPV Remote Controller 3. If you wish to use a different radio system (like ELRS, Crossfire, etc.), you will need to purchase, install, and configure your own compatible receiver.

Specifications (Highlights)

• Product Name: AOS 7 EVO V1.2 HD BNF
• Flight Controller: BLITZ F722 FC
• ESC: BLITZ E55 55A 4-IN-1 ESC
• Video Transmission: DJI O3 Air Unit
• Frame Wheelbase: $293\text{mm}$
• Arm Thickness: $8\text{mm}$
• Motor: XING 2806.5 1300KV
• Propeller: GemFan 7040 Propellers
• Takeoff Weight: Approx. $652\text{g}$
• Max Hover Time: Approx. 30 min (with 6S 8000mAh Li-ion, no load)
• Max Range: $10\text{km}$ (FCC)
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Packing List

• 1 x AOS 7 EVO V1.2 6S HD BNF
• 2 x Antennas
• 2 x Propeller Sets (Pairs)
• 2 x Battery Straps
