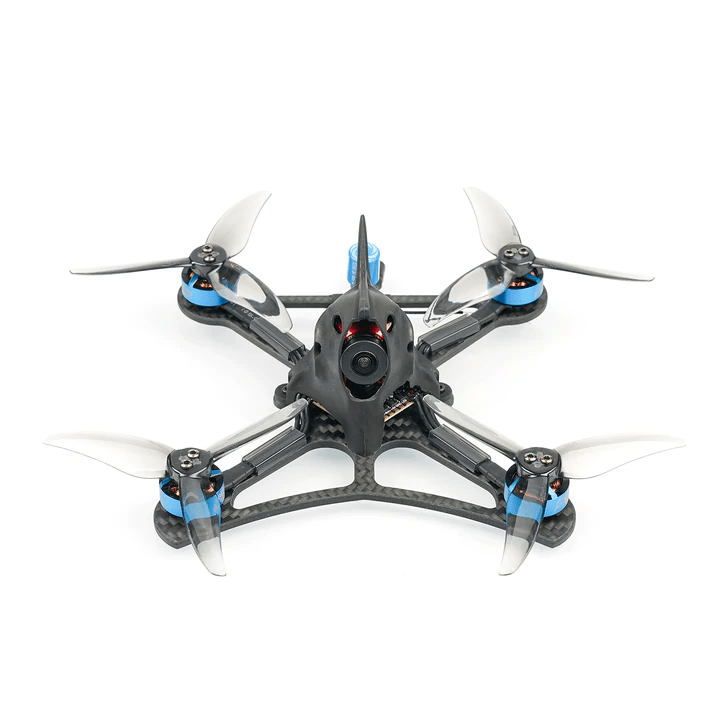

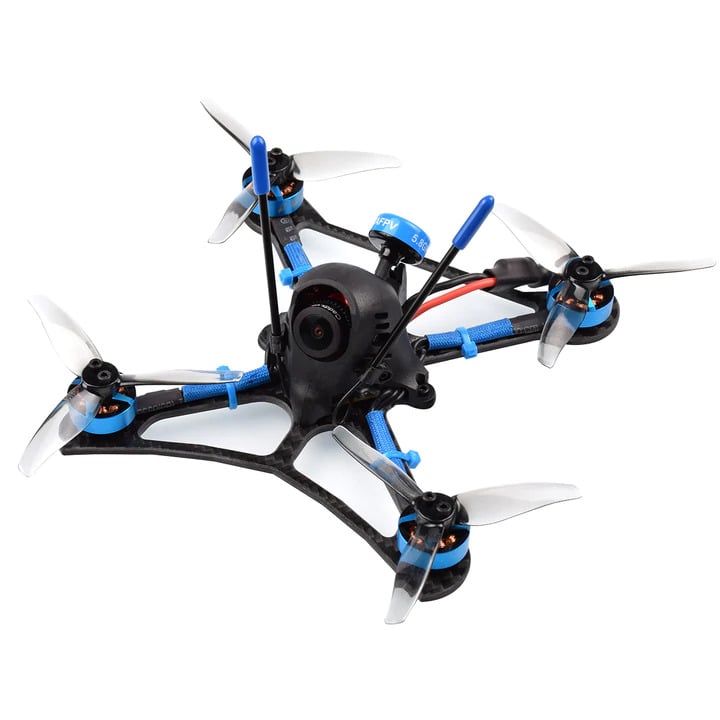

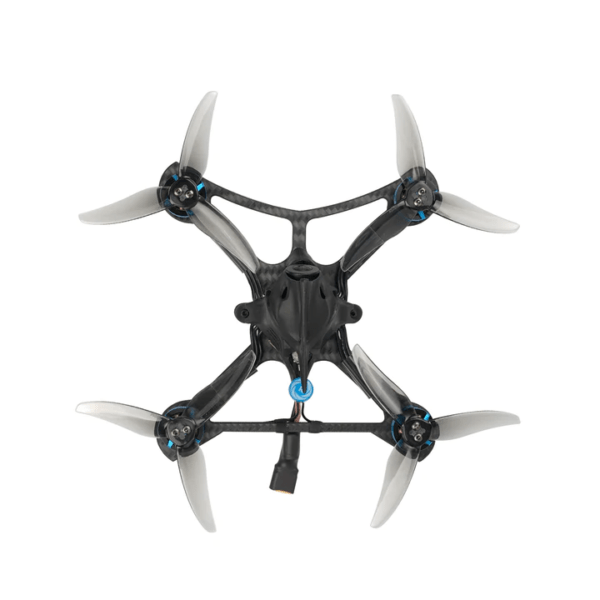

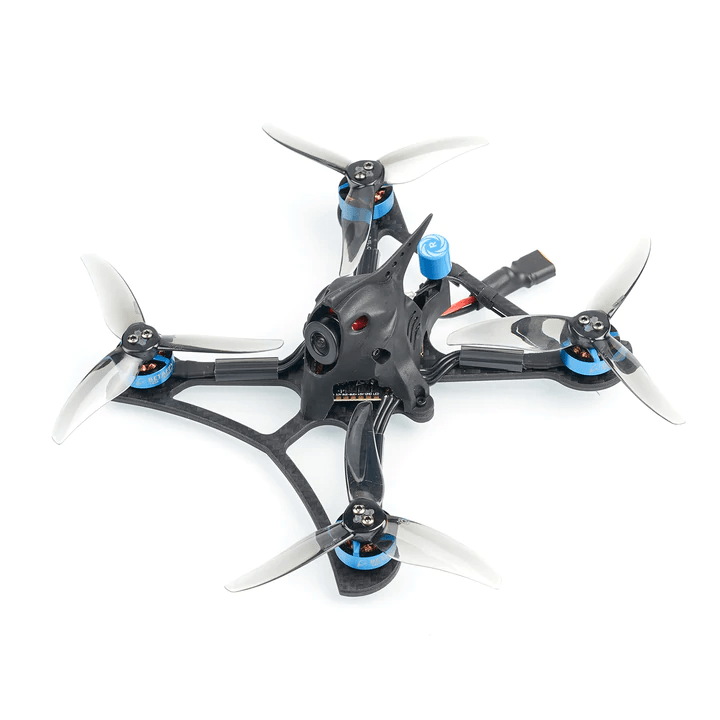

BetaFPV TWIG XL FPV Toothpick Quad – Version 2021 – PNP
TWIG XL FPV Toothpick Quad is the first joint quad with Racer X FPV since 2020 Feb. In 2021 June, the new version comes back with 3.5inch propellers and a series of improvements.
This TWIG XL frame is definitely the most popular frame at present. The performance and power-to-weight ratio of this frame design are out of this world! With the Caddx Ratel Camera, 1404 3800KV Brushless Motors, and 3/3.5inch propellers, it supports a 450mAh 4S battery and provides you super-efficient flight experience. What is more, we adopt the injection-molded canopy, protecting your camera well even in several severe crashing.

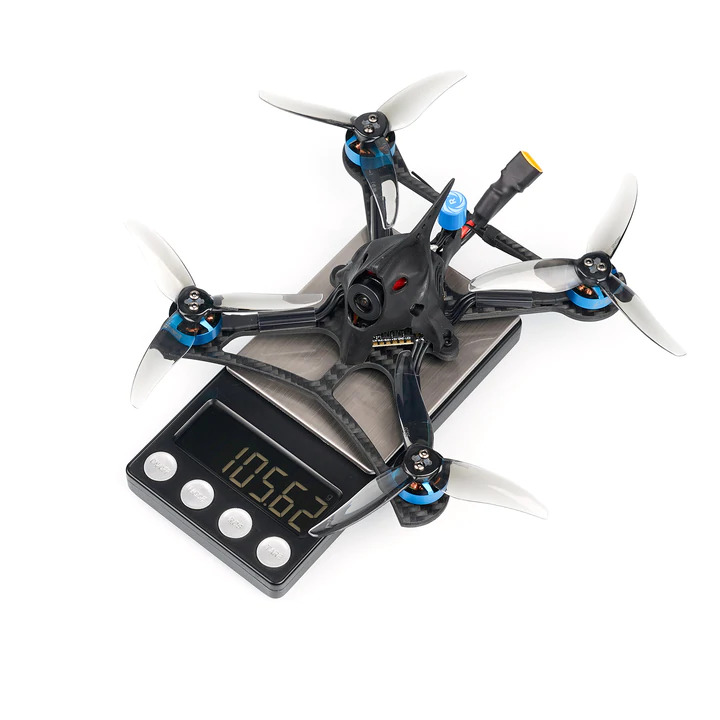

- Weight: 105g (without battery)

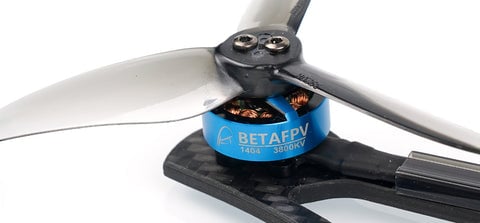

- Motors: 1404 3800KV Brushless Motors
- Frame: TWIG XL Frame
- Receiver Option: Frsky XM+ / TBS Crossfire
- Recommend Battery: 450mAh 4S battery (NOT included)
- Flight time: 3:00-5:00mins
Here is the comparison of the two versions of the TWIG XL quadcopter indifference.
|2021 Version||2020 Version|
|FC Board||20A F4 2-4S AIO FC V3||12A F4 2-4S AIO FC|
|Camera||Caddx Ratel 2||Caddx Ratel|
|5.8G VTX||M02 25-350mW||A01 25-200mW|
|Propellers||3.5inch 3-blades||3inch 3-blades|
|Canopy||X-Knight Canopy||Mini Canopy|
TWIG XL Frame
TWIG XL frames are premium 3mm thick, high-grade T700 carbon cut along the weave and chamfered on both sides interior and exterior edges at .7mm. All the frames are approximately 140mm motor post to motor post and swing up to 3” or 3.5″ props. The frames accommodate motor mounting for 4-hole 9×9 or 12×12 motor mounts.
Is the original TWIG XL frame compatible with 3.5inch propellers already? The answer is YES.
Gemfan 3520 or HQ 3520
Gemfan 3520 3-Blade propellers and HQ 3520 3-Blade propellers are available for your choice to be installed on TWIG XL FPV Toothpick Quad. The three-blade design with 3.5 inches propeller diameter can provide your quadcopter with strong power off the ground.
If you want smooth freestyle flying with a TWIG XL drone, recommend the Gemfan 3520 3-Blade propellers.
If you want powerful racing flying with TWIG XL drone, recommend the HQ 3520 3-Blade propellers.
The X-Knight canopy comes with TWIG XL is suitable for all mini cameras which are the 19*19mm or 20*20mm mounting hole, like Caddx Vista or DJI FPV unit camera, Caddx Turtle V2, RunCam Racer 3. It could provide full protection to the camera lens.
This canopy could provide a wider camera tilt angle from 10-50 degrees.

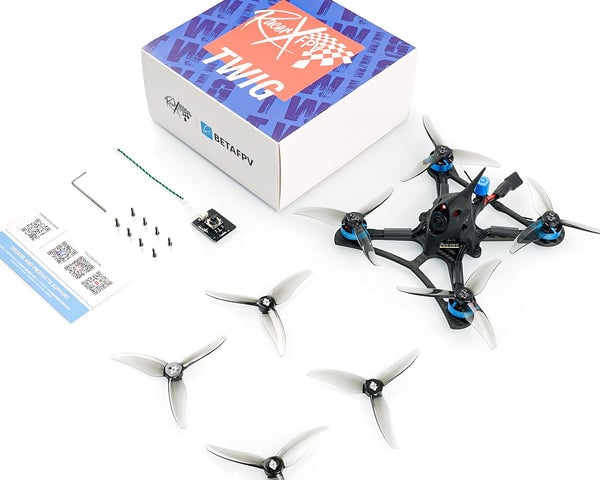

- 1 * TWIG XL 3” FPV Quad
- 1 * Gemfan 3520 3-Blade Props (4pcs)
- 1 * HQ 3520 3-Blade Props (4pcs)
- 1 * Set of M2*7 screws for propellers
*Battery is NOT included.
