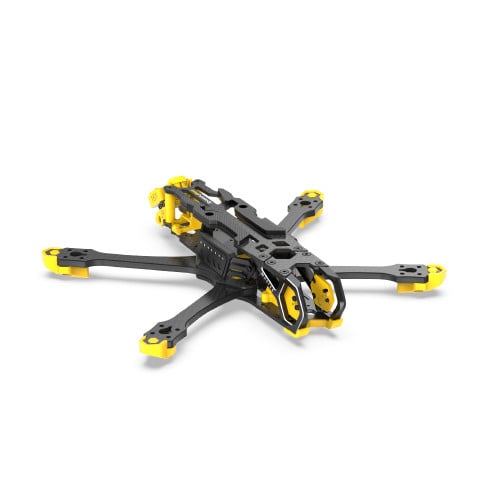

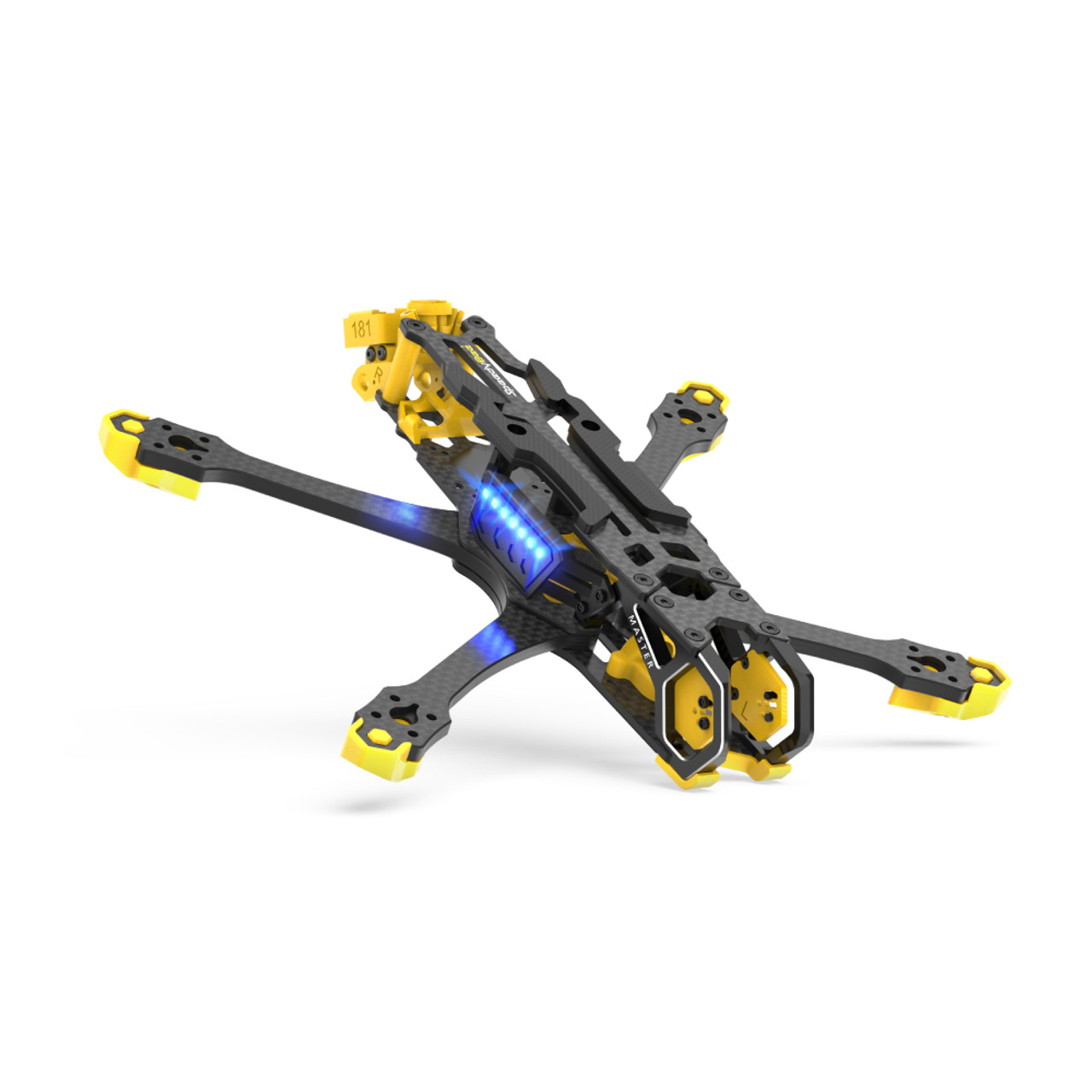

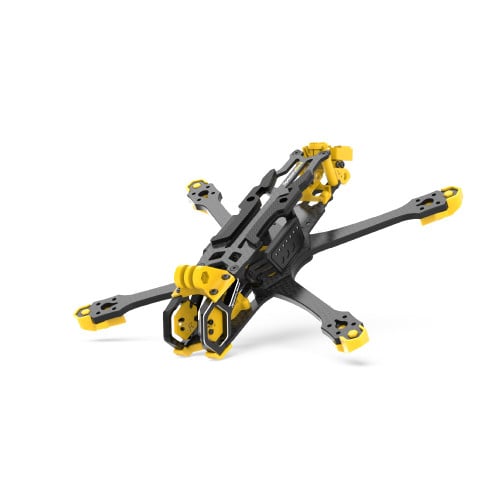

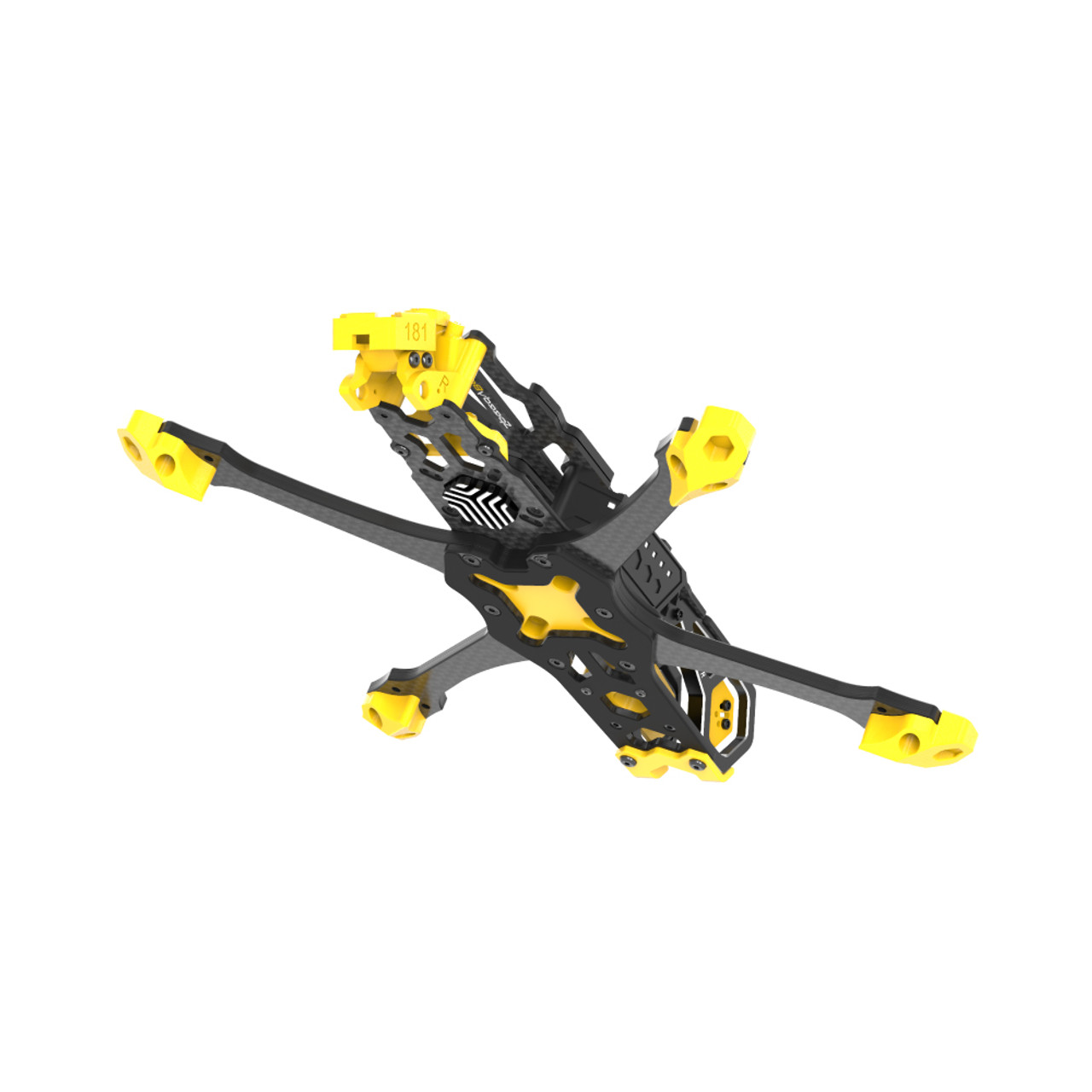

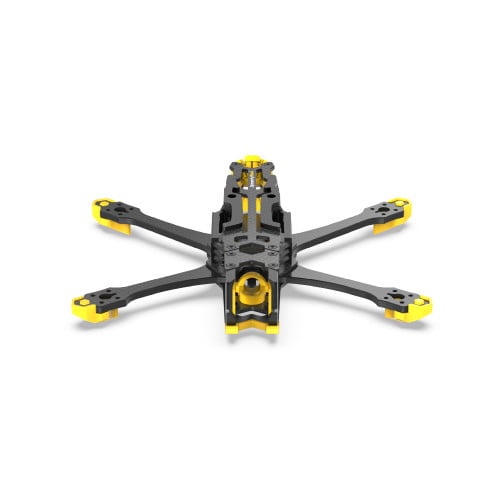

SpeedyBee Master 5 V2 Frame
The innovative anti-vibration stack structure dampens the effect from motor noise on the gyro, offering a stabilized running environment. Averaging 1.5 screws per arm, the quick release structure makes assembly and disassembly easily
Honeycomb-shaped aluminum alloy CNC drone head ensures better strength and look, with H-FOV 130° section, drone head gets larger field of view. Furthermore, the incorporated DJI O3 Air Unit also supports ND filters and changeable side plate mounting
TPU side plate inside CNC part helps dampen the vibration on camera, and it can be modified by pilots on their own to get it compatible with more mounting holes, and get rid of vignetting for clear images
Under the VTX, there is a honeycomb-shaped aluminum alloy heat sink improving the operation stability of FPV and high-power analog VTX
Specifications
| Frame | Master 5 V2 |
| Wheelbase | 226mm |
| Weight | About 140g (non-3D printed parts included) |
| Top plate thickness | 2.5mm(T300 3K) |
| Middle plate thickness | 2mm(T300 3K) |
| Bottom plate thickness | 2.5mm(T300 3K) |
| Arm thickness | 5mm(T300 3K) |
| Camera side plate thickness | 2mm TUPC |
| Anti-vibration stack structure hardness | Yellow HB80、Translucent HB50 |
| 3D printed par | Yellow TPU |
| Motor circlip spacing | Φ8mm |
| Compatible propellers | 5-5.1 inch |
| Mounting holes for motors | 16*16mm |
| FC mounting hole | 30.5×30.5(M3) & 20×20mm (M3) |
| Drone head | 7075 CNC aluminum alloy |
| Aluminum standoff | 7075 M3*23mm*(6mm/4.7mm)、M3*23mm*(4.6mm) |
| Internal installation height | 23-30mm |
| Standard antenna installation suppor | SMA (single), O3 4mm, RunCam Link |
| Standard GPS base size | 18*18*8mm (other size requiresan additional purchase) |
| Rear Support Mounting Holes | 20*20mm – 25.5*25.5mm – 30.5*30.5mm |
| Detachable stack protective plate RGB LED | included |
| Motor wire protection | included |

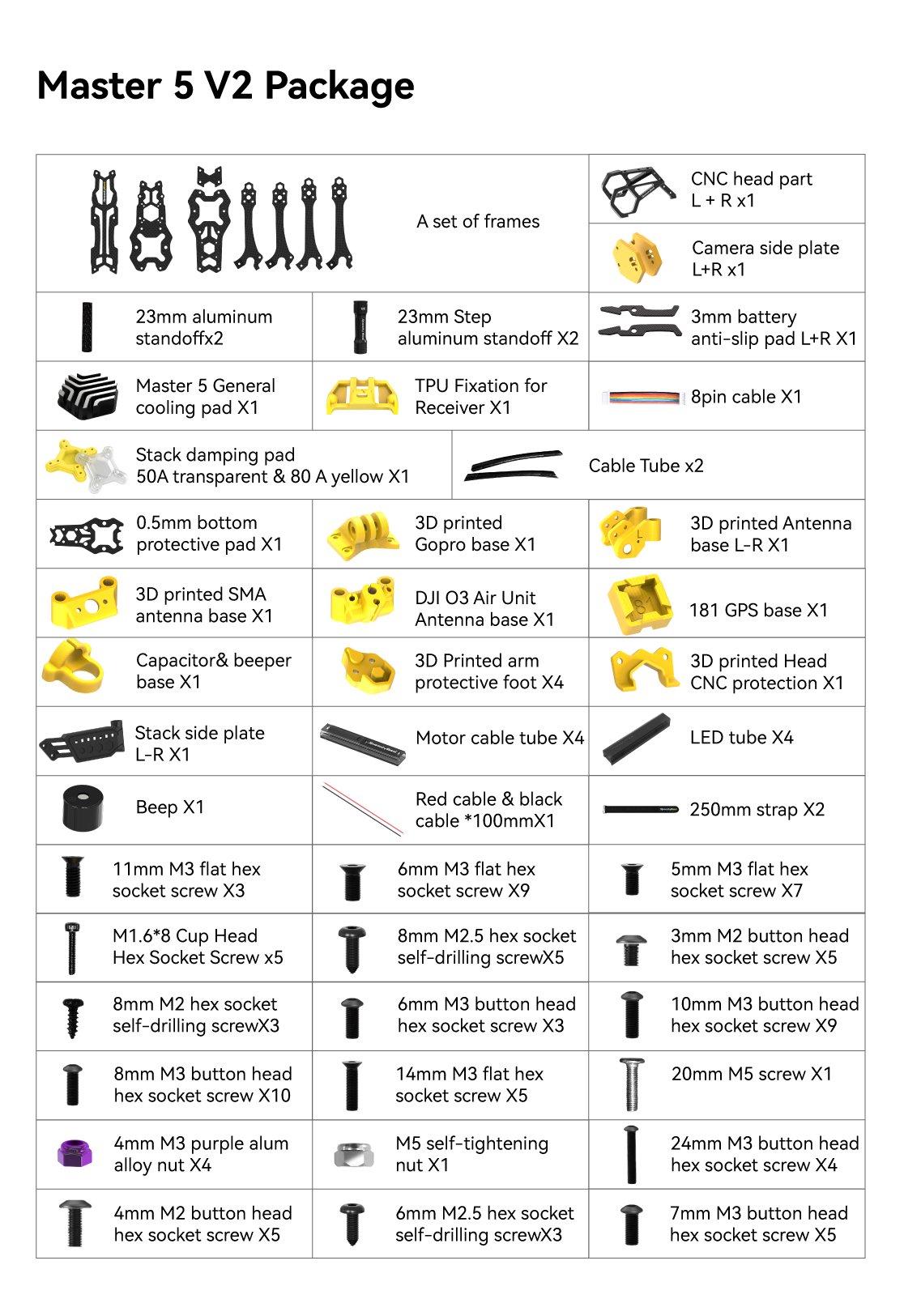

| Included 3D printed parts | GOPRO base, capacitor/buzzerbase, arm protection, 181GPS base, T-antenna base, CNC drone head TPU protection, camera anti-vibration module |
| Buzzer | TMB12A05 |
