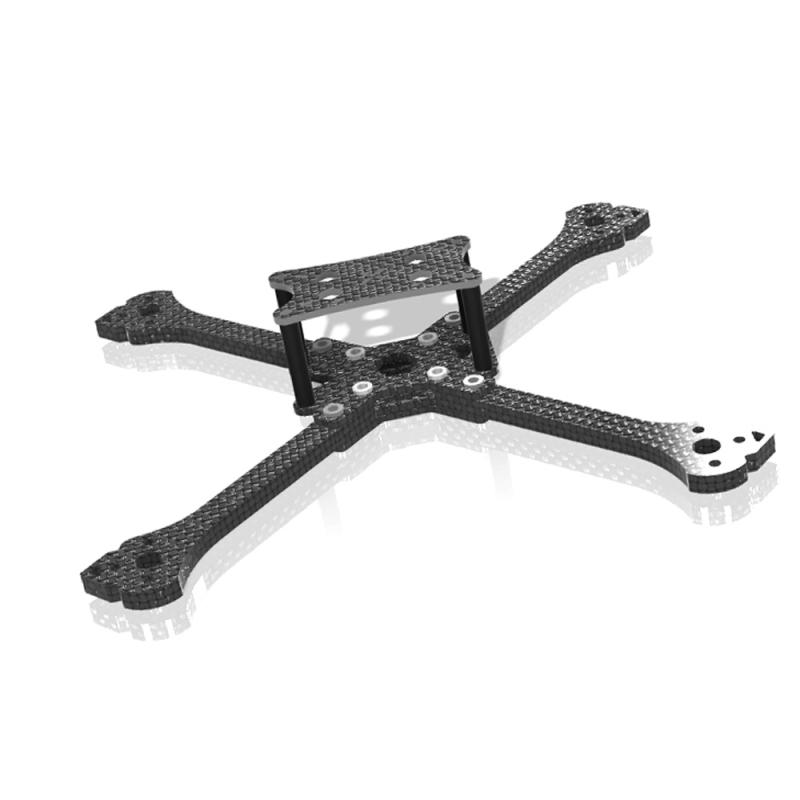

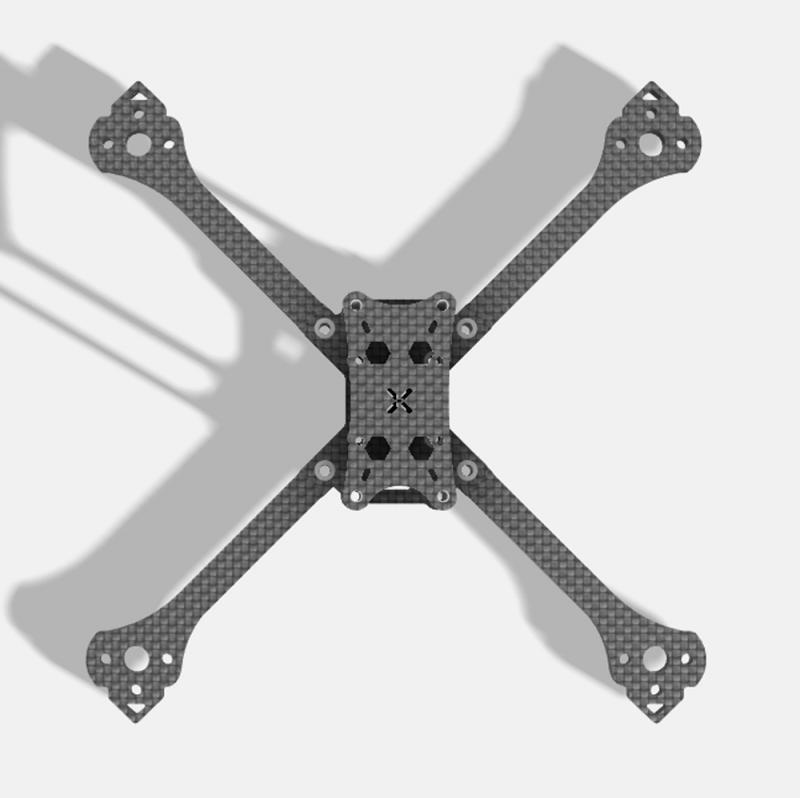

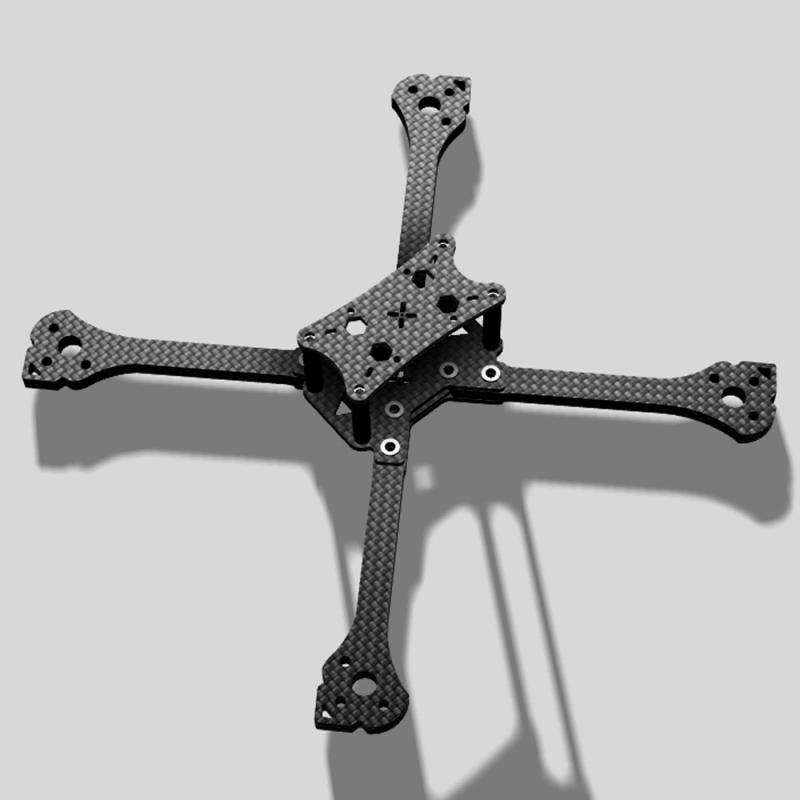

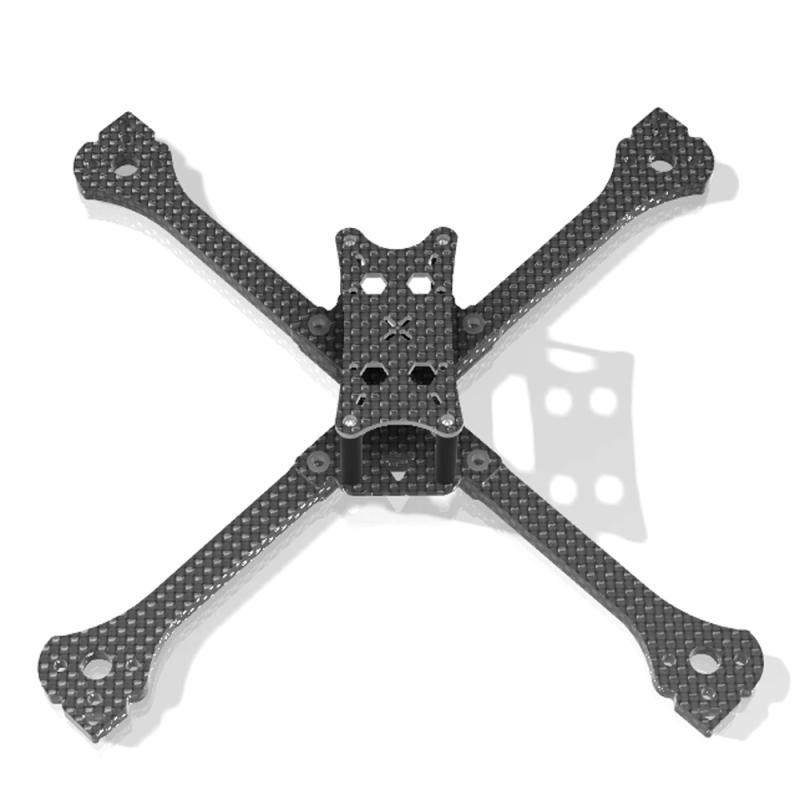

SniperX Light Frame

Push your FPV drone to the limits of lightweight performance with the SniperX Light frame. This frame is engineered for one purpose: to provide the highest possible power-to-weight ratio for competitive racing and agile freestyle. Weighing in at an incredible 61 grams while still featuring durable 5mm thick arms, the SniperX Light is a masterclass in minimalist design.

The secret to its low weight is the purposeful design built exclusively for modern, 20x20mm electronic stacks. By eliminating excess size and material, the frame remains incredibly stiff, compact, and highly optimized. The True-X geometry provides a perfectly balanced and intuitive flight feel, giving you the predictable control needed for both tight race lines and complex freestyle maneuvers.

Every detail has been considered for a clean and efficient build. The SniperX Light features a clever design where the battery strap passes between the arms for a secure hold, and includes a custom-designed holder to neatly mount your TBS Crossfire receiver and video transmitter. If you’re looking for the ultimate lightweight 5.1-inch platform, this is the frame for you.

KEY FEATURES

• Extremely Lightweight: Weighs only 61 grams for an incredible power-to-weight ratio.
• Durable 5mm Arms: Thick, individual arms provide excellent rigidity and crash resistance.
• 20×20 Mounting Only: A modern, minimalist design for lightweight electronic stacks.
• True-X Geometry: Delivers a balanced and predictable flight feel perfect for freestyle and racing.
• Optimized for 5.1″ Props: Designed to get the most performance out of modern 5-inch propellers.
• Clean Build Features: Includes a custom-designed holder for TBS VTX and RX modules.

SPECIFICATIONS

• Geometry: True-X
• Wheelbase: 135mm
• Frame Weight: 61g
• Arm Thickness: 5mm
• Plate Thickness: 2mm
• Standoff Height: 25mm
• Stack Mounting: 20x20mm Only
• Recommended Prop Size: 5.1 inch

INCLUDES

• 1x SniperX Light Frame Kit (Carbon Plates & Arms)
• 1x TPU Parts Kit (including TBS VTX/RX Holder)
• 1x Screw and Hardware Pack
• 1x Battery Strap
