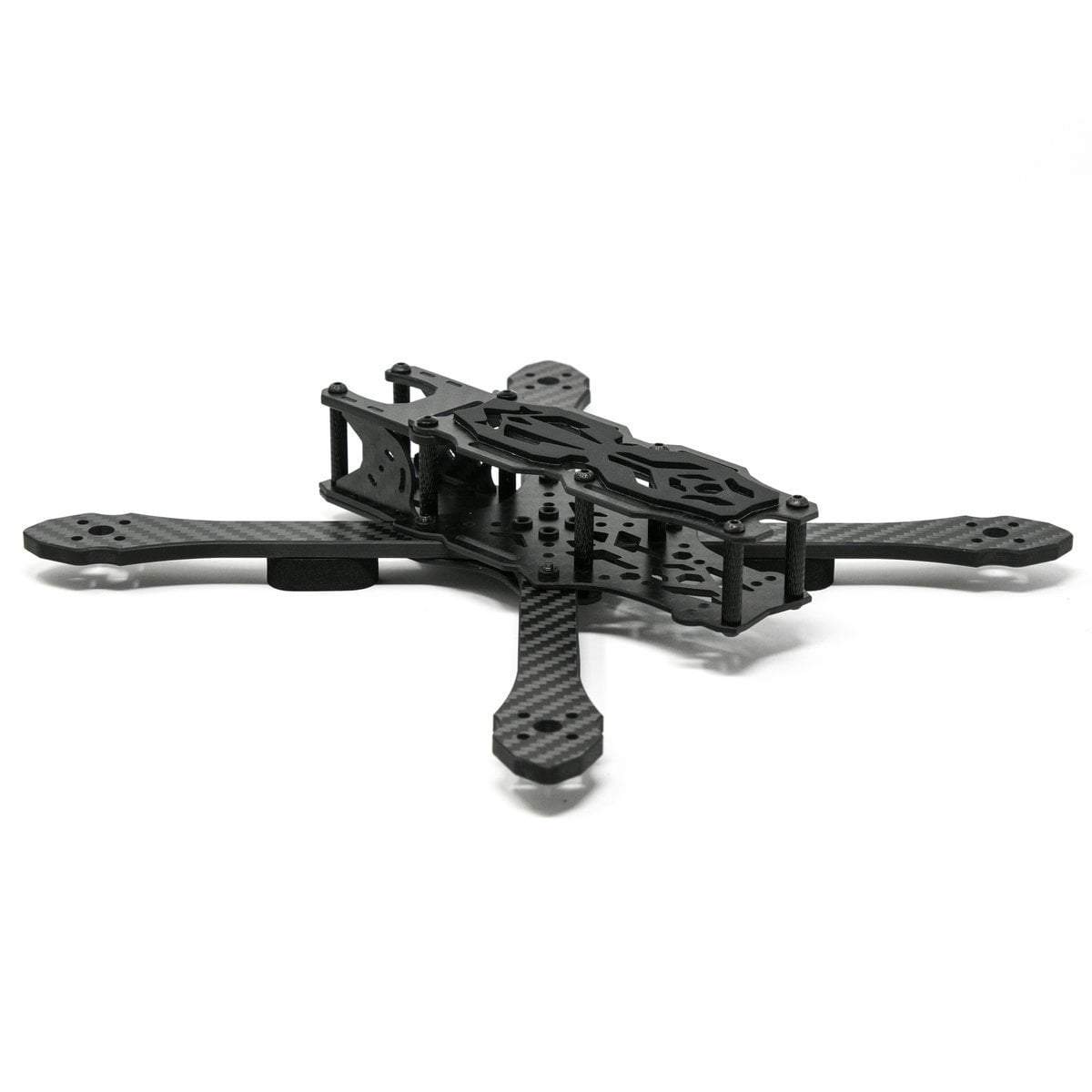

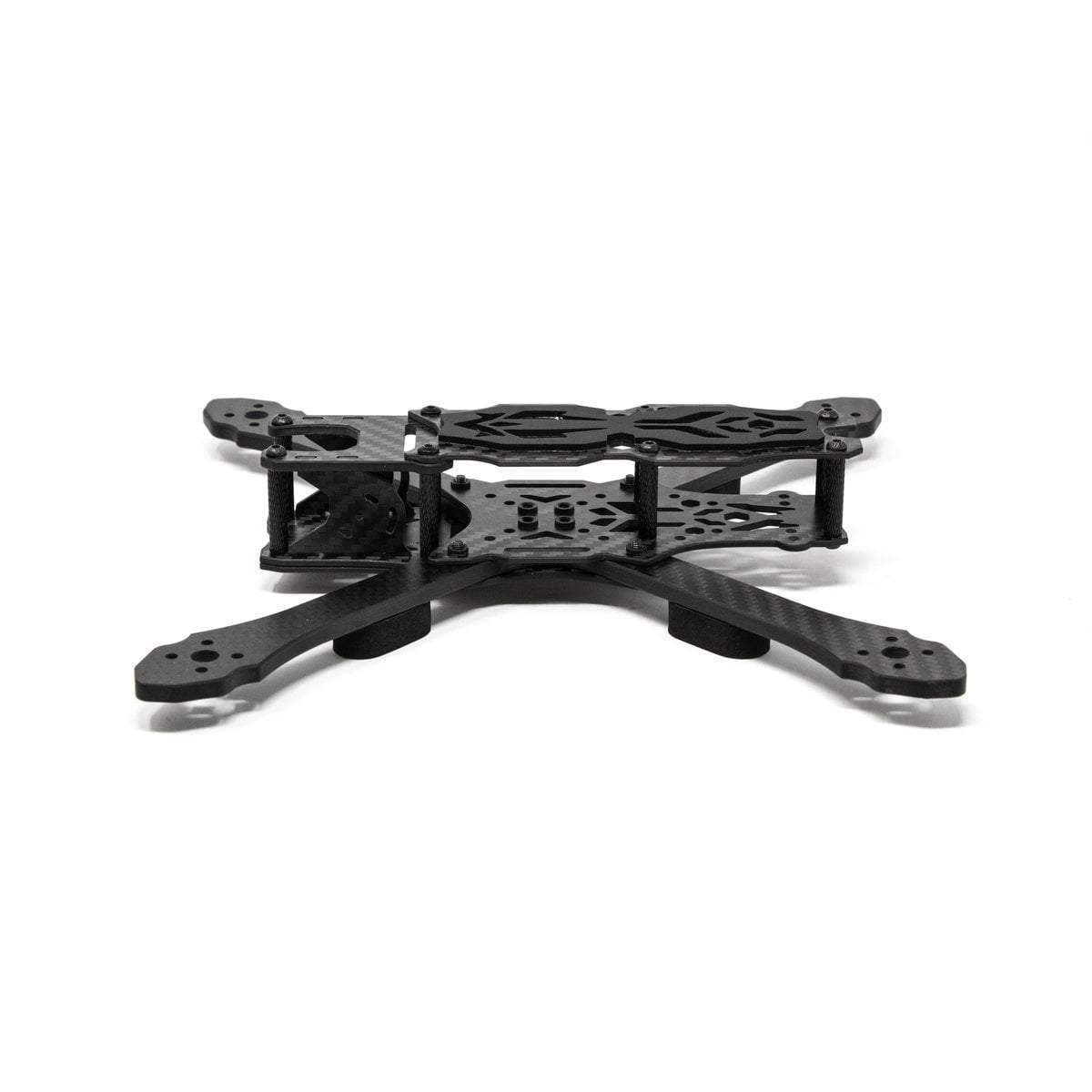

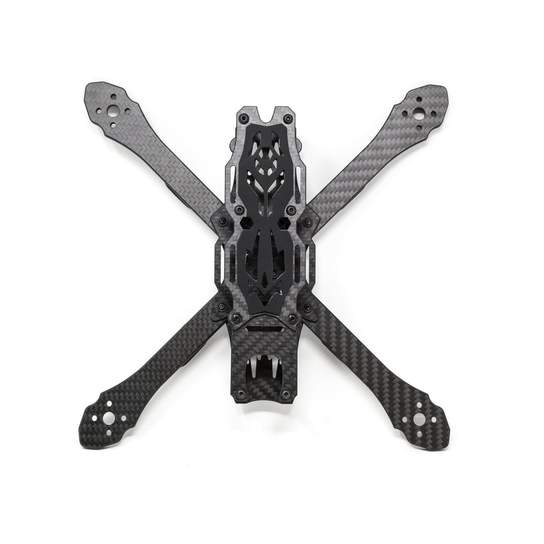

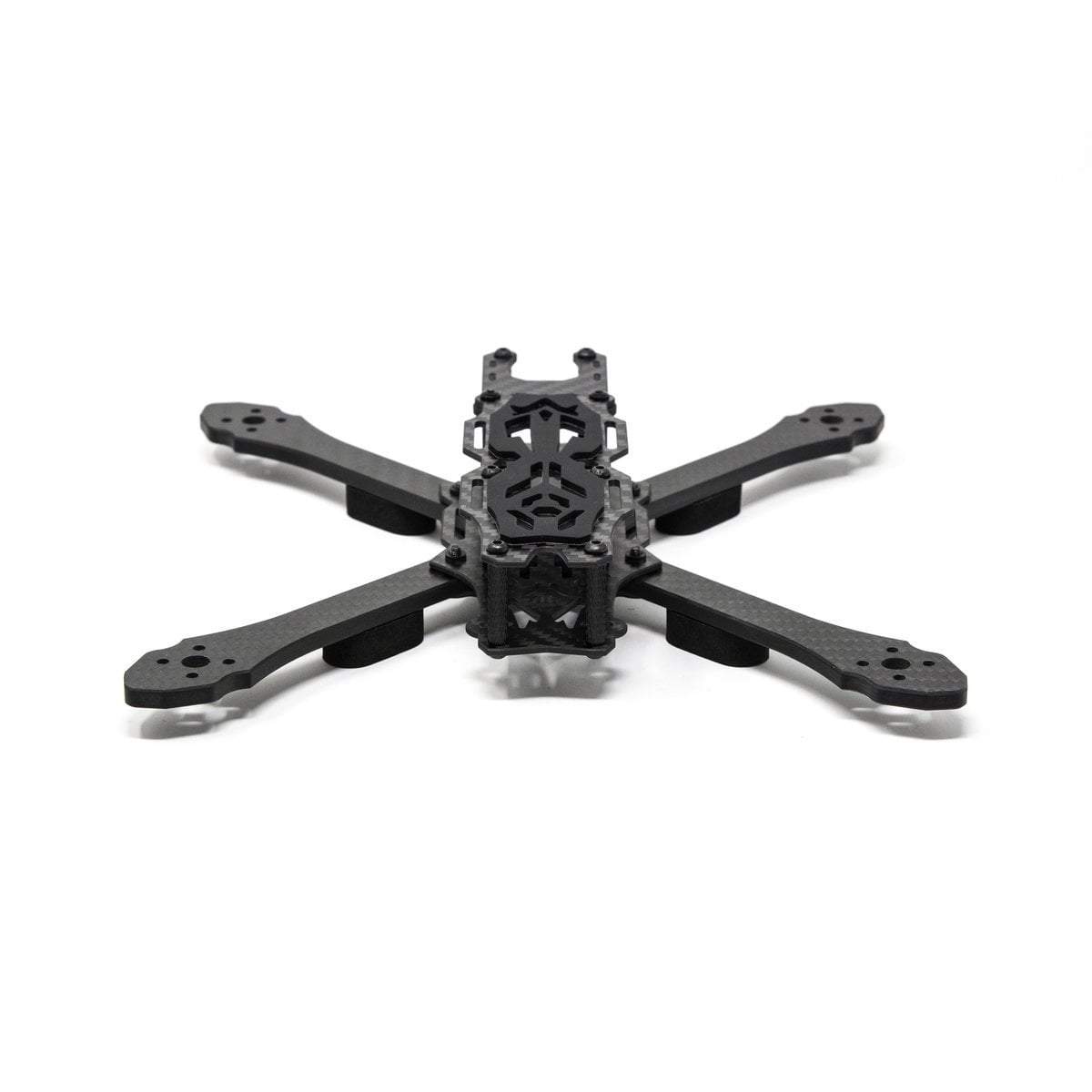

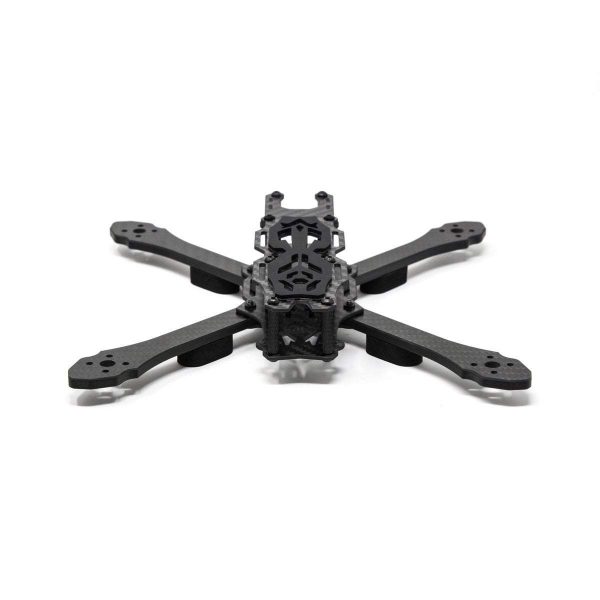

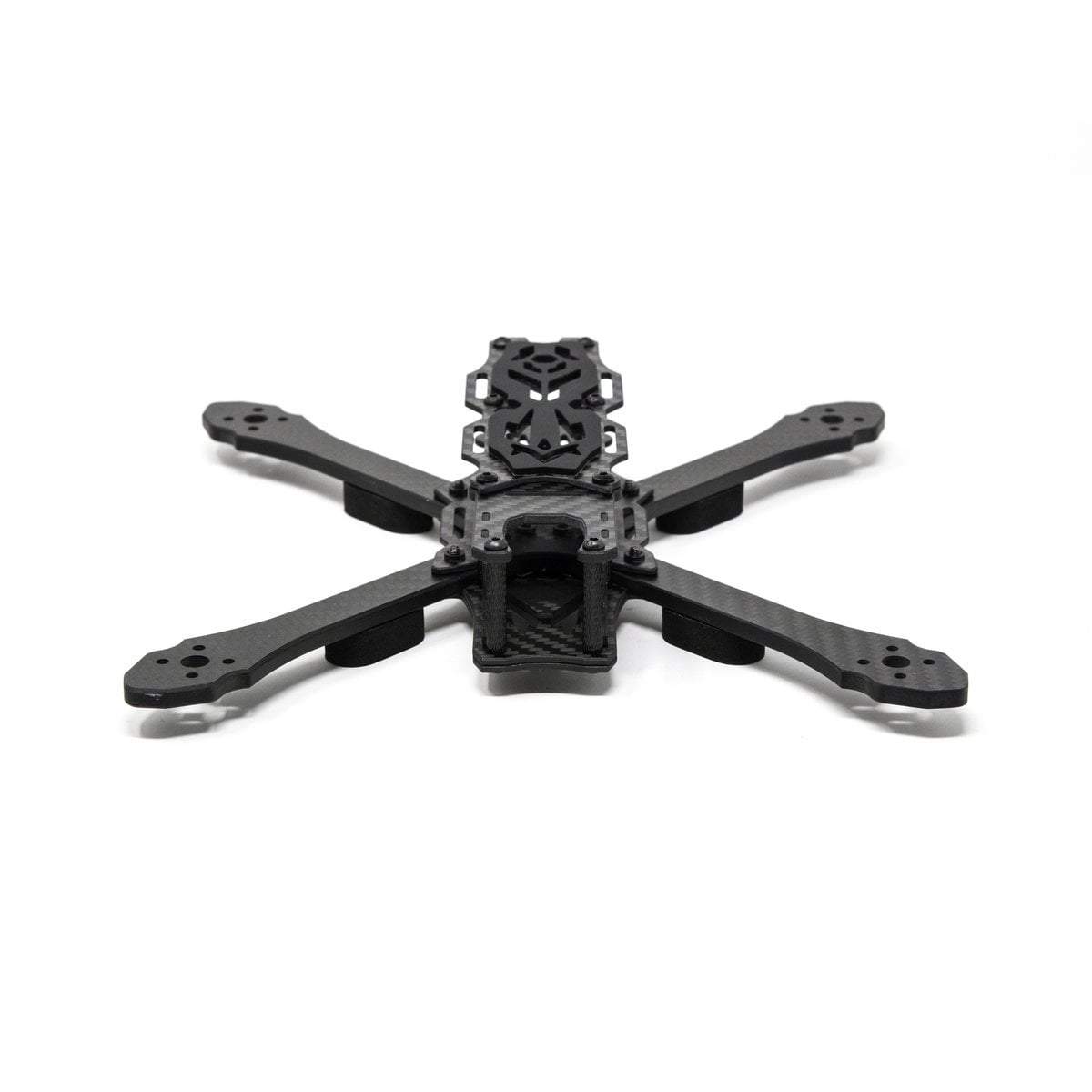

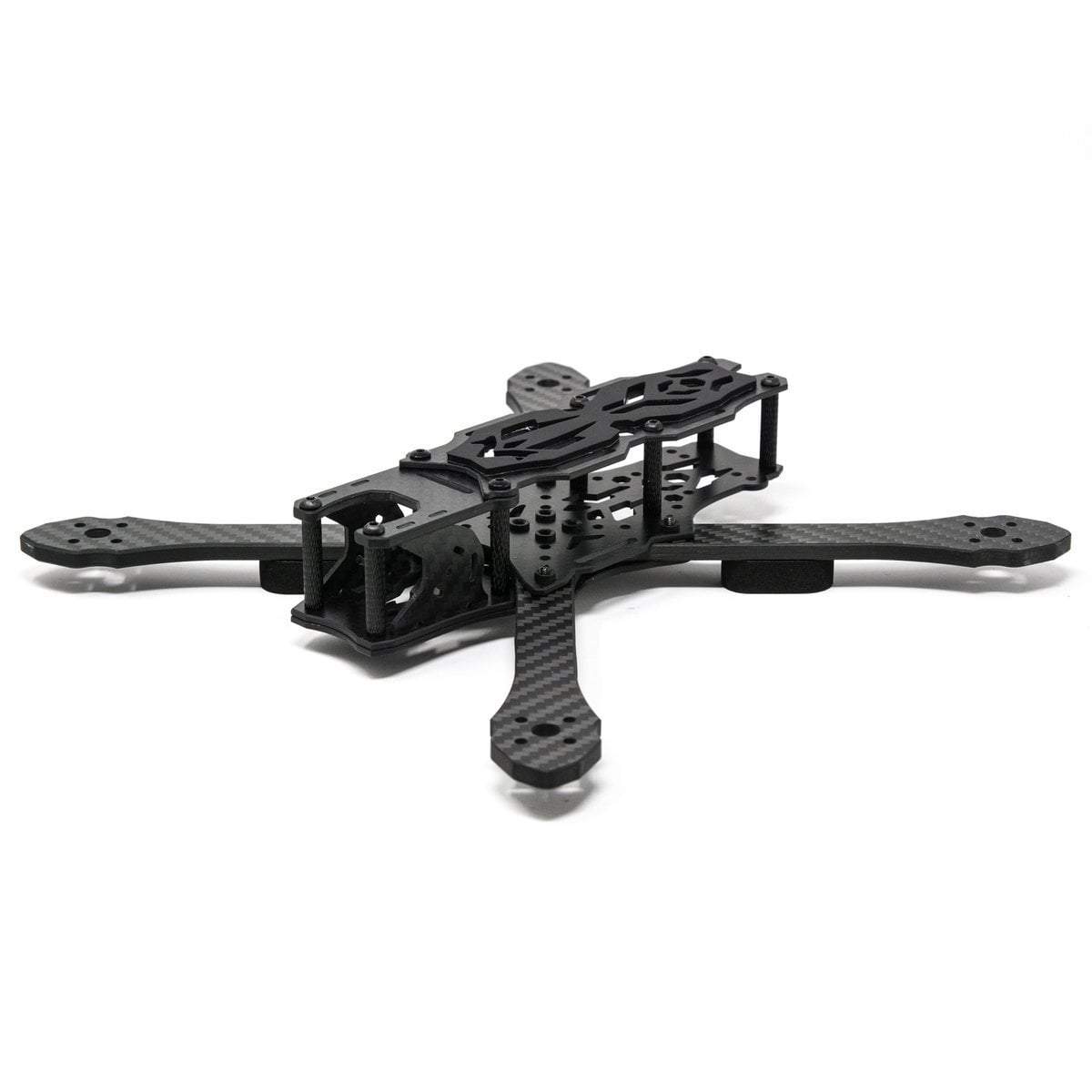

Rotor Riot Flow 5″ Freestyle Frame (Pick – Normal or Slammed)
Check out all of our Rotor Riot Products, and all of our other 5-inch frames!
With the release of the CL1, Rotor Riot brought to the community a bare bones, budget friendly freestyle frame. For those looking for a premium quality, durable frame with more features, we present the Rotor Riot Flow.

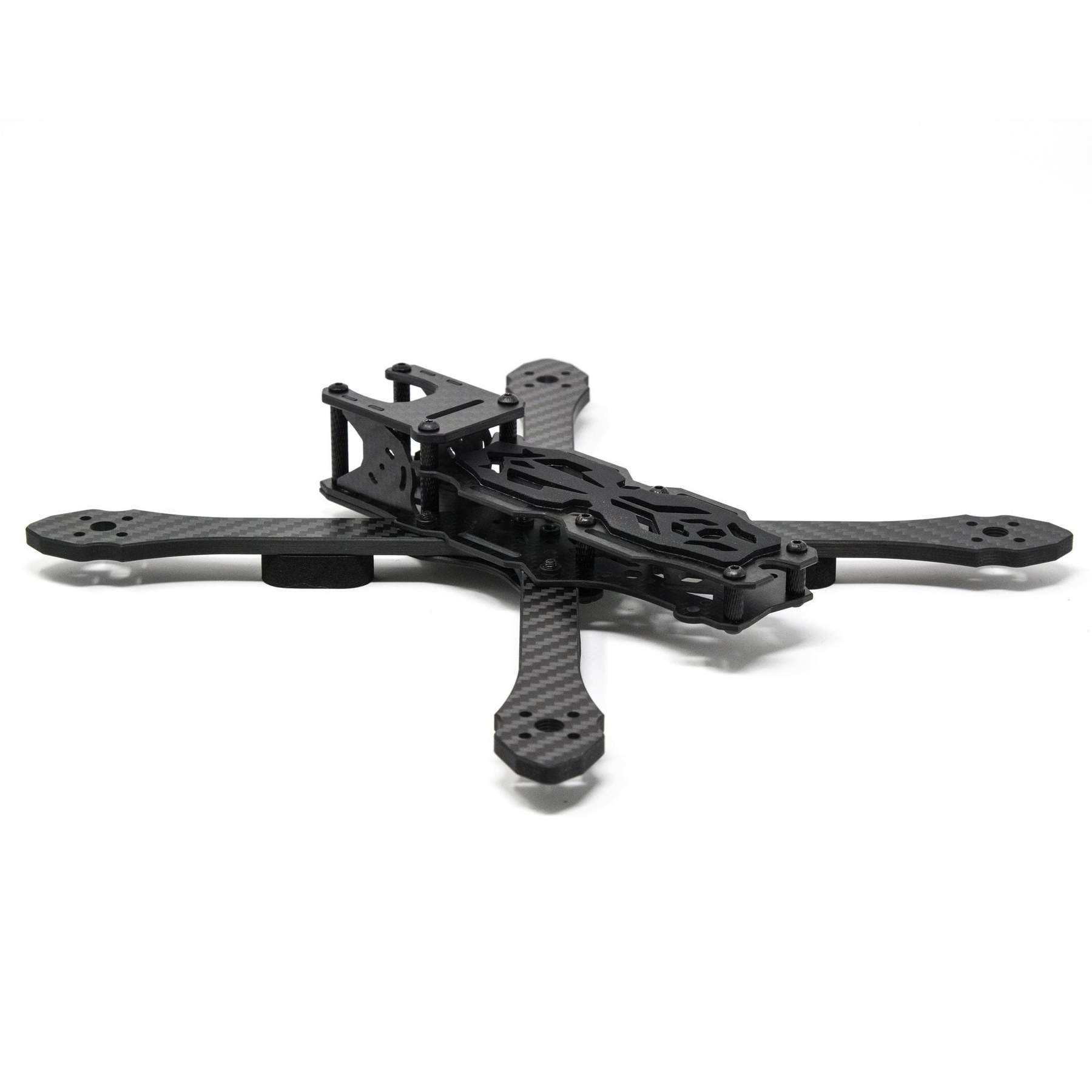

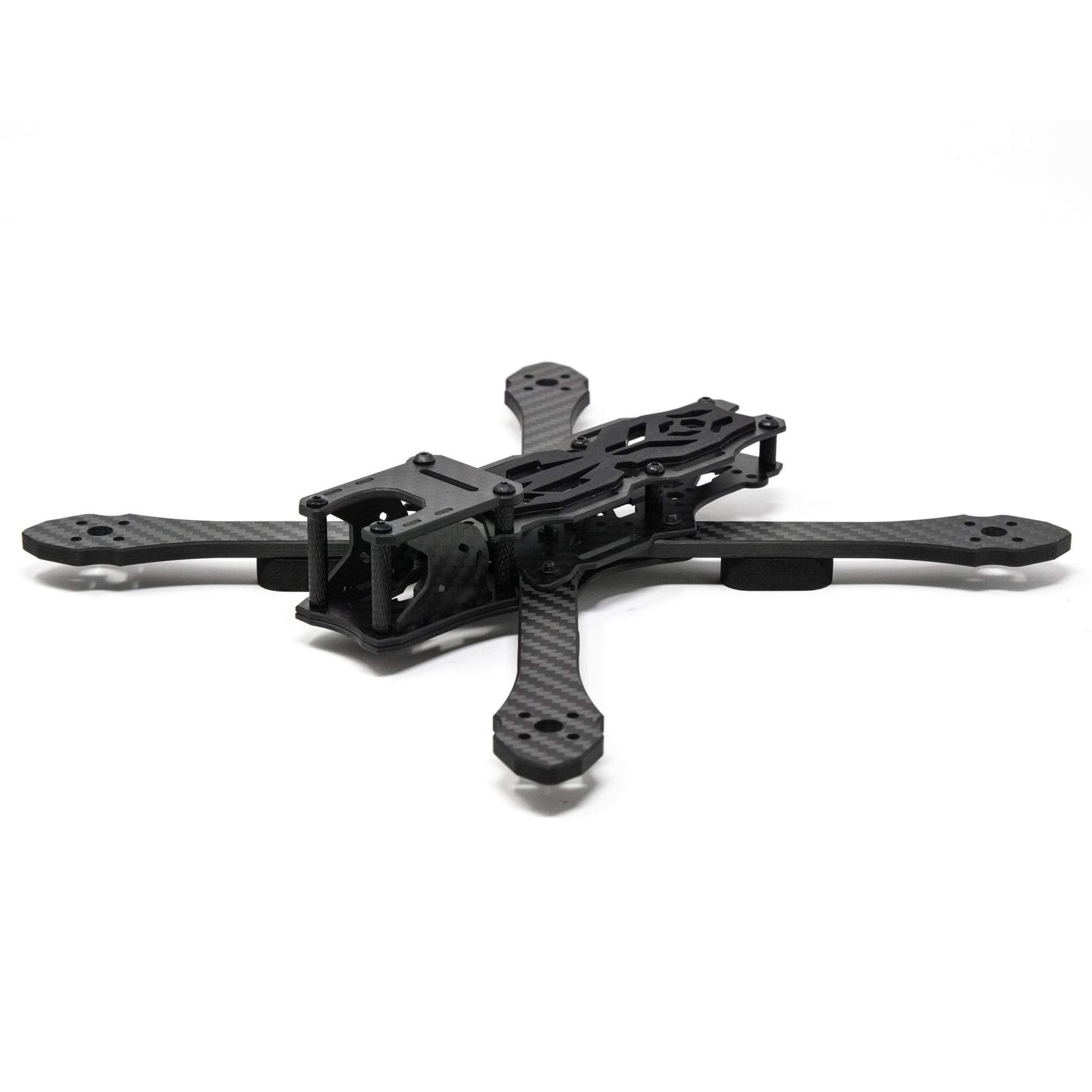

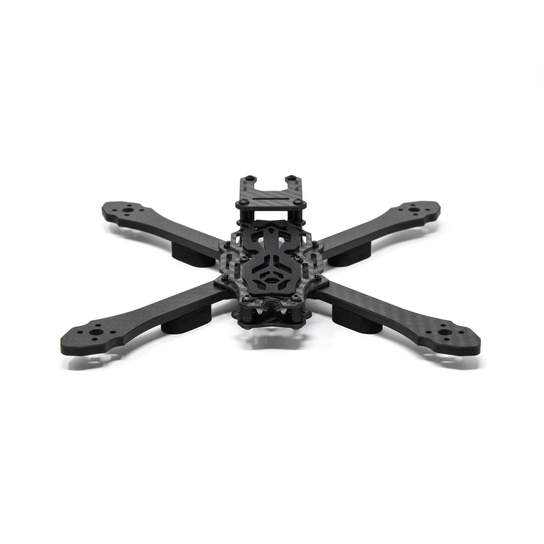

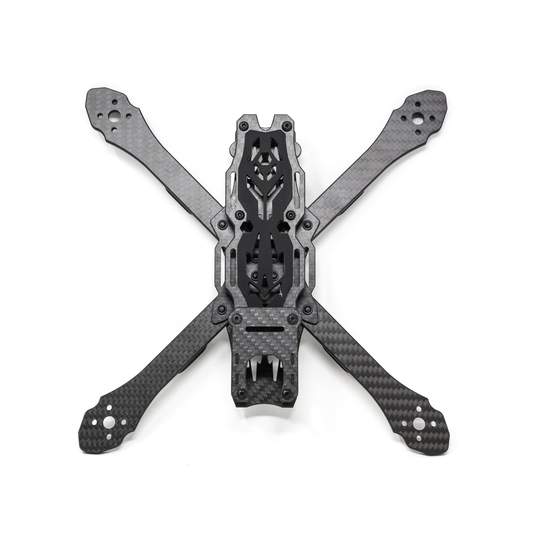

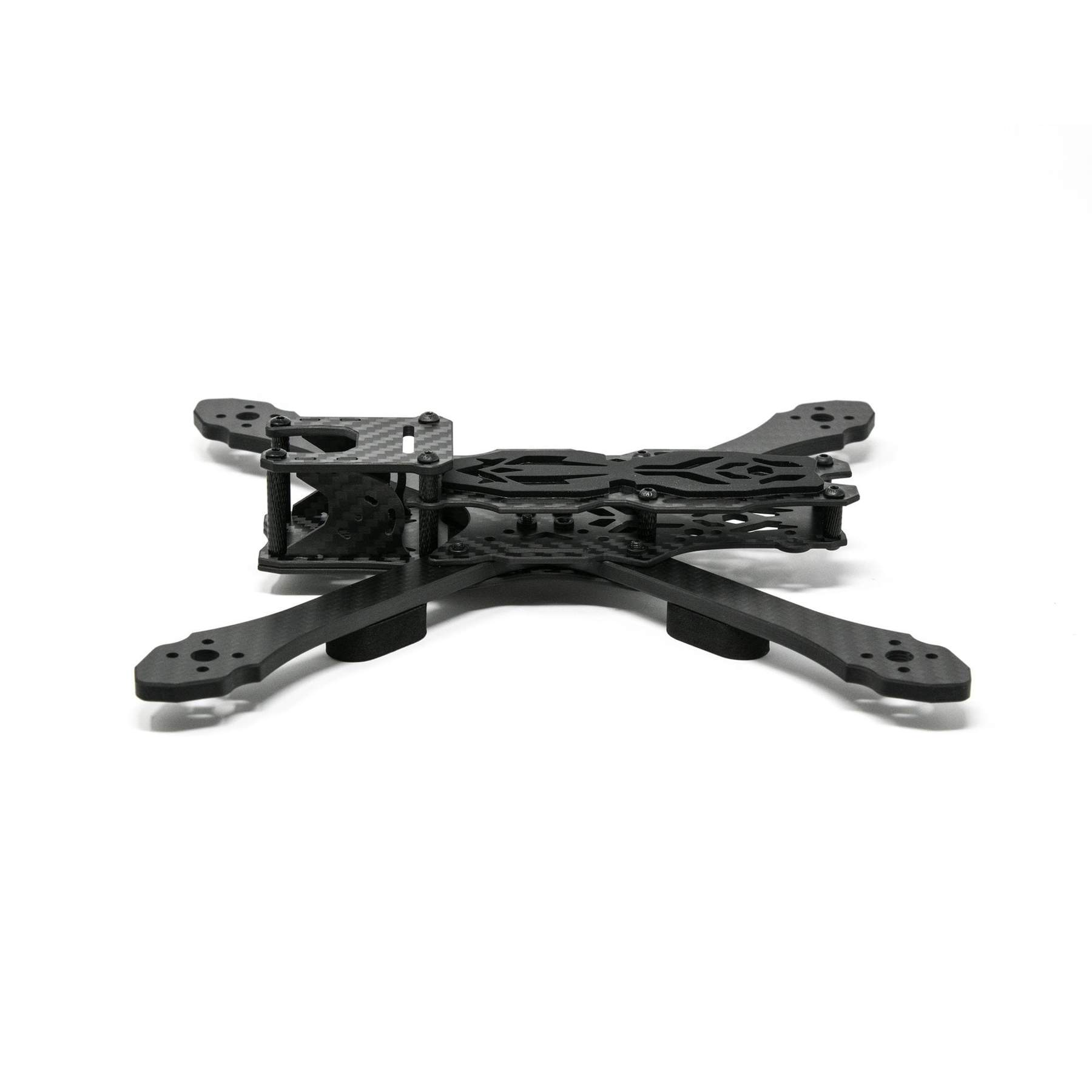

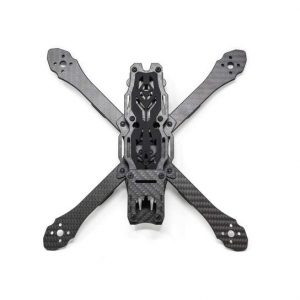

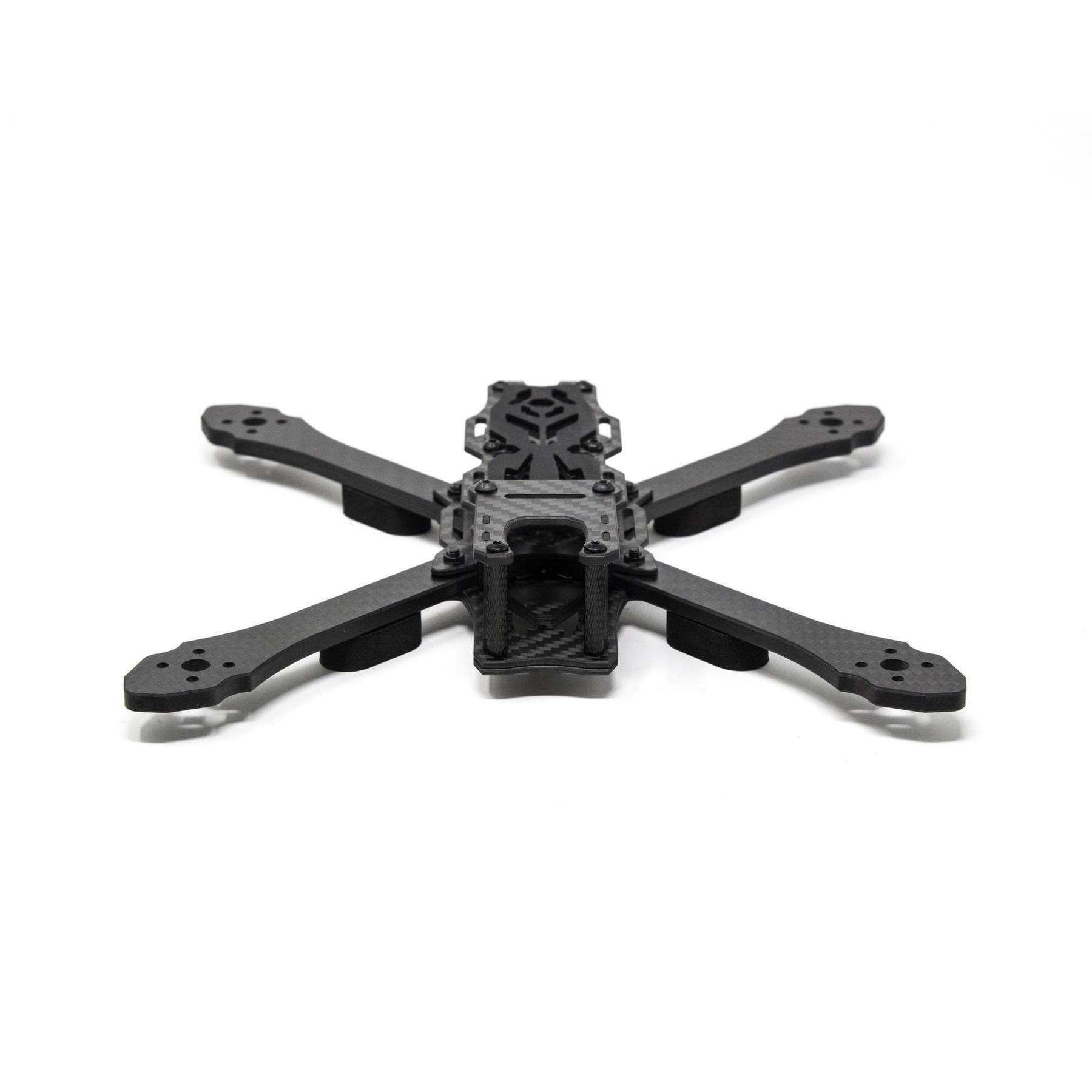

By taking a performance-oriented design approach, we’ve been able to produce a practical frame with no compromises. Available in two versions, Regular or Slammed. The Regular version will give you more space for 4in1 ESCs and other gear. The Slammed version will give you a sleek, low profile with lower center of gravity.
Features
- Modern, edgy design
- True X layout, 240mm motor-to-motor
- Dual strap slots on top, single strap slot on bottom
- Dual 30.5×30.5 and 20×20 stack mounts
- Full size 28mm camera mount (TPU micro mounts included)
- Solid sandwich-Type center construction
- High quality carbon fiber
- Battery pad included
- Wide range of 3D printed accessories available
- Weight: 142g
Includes
- 4x 5mm Chamfered Arms
- 1x 2mm Chamfered Top Plate
- 1x 2mm Chamfered Main Plate
- 1x 2mm Chamfered Bottom Plate
- 1x 3mm Chamfered Front Plate
- 1x 2mm Front Reinforcement Plate
- 2x 1.5mm Camera Mount Plates
- 2x 3D Printed Standoff Style Cam Mounts
- 1x Die-Cut 2mm Non-Slip Rubber LiPo Battery Pad
- 4x Foam Landing Pads
Normal Hardware
- 4x M3x25mm Knurled Standoff
- 4x M3x23mm Knurled Standoff
- 10x M3x12mm Bolt
- 12x M3x10mm Bolt
- 10x M3x6mm Bolt
Slammed Hardware
- 2x M3x25mm Knurled Standoff
- 2x M3x15mm Knurled Standoff
- 2x M3x10mm Knurled Standoff
- 2x M3x8mm Knurled Standoff
- 2x M3x25mm Bolt
- 10x M3x12mm Bolt
- 10x M3x10mm Bolt
- 10x M3x6mm Bolt
